Home
>>
Mercedes Benz
>>
2006
>>
E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Auxiliary Cabin Heater
>>
Specifications
>>
Mechanical Specifications
Mechanical Specifications
BA83.70-P-1000-01C Stationary Heater Unit
- with Thermo Top C

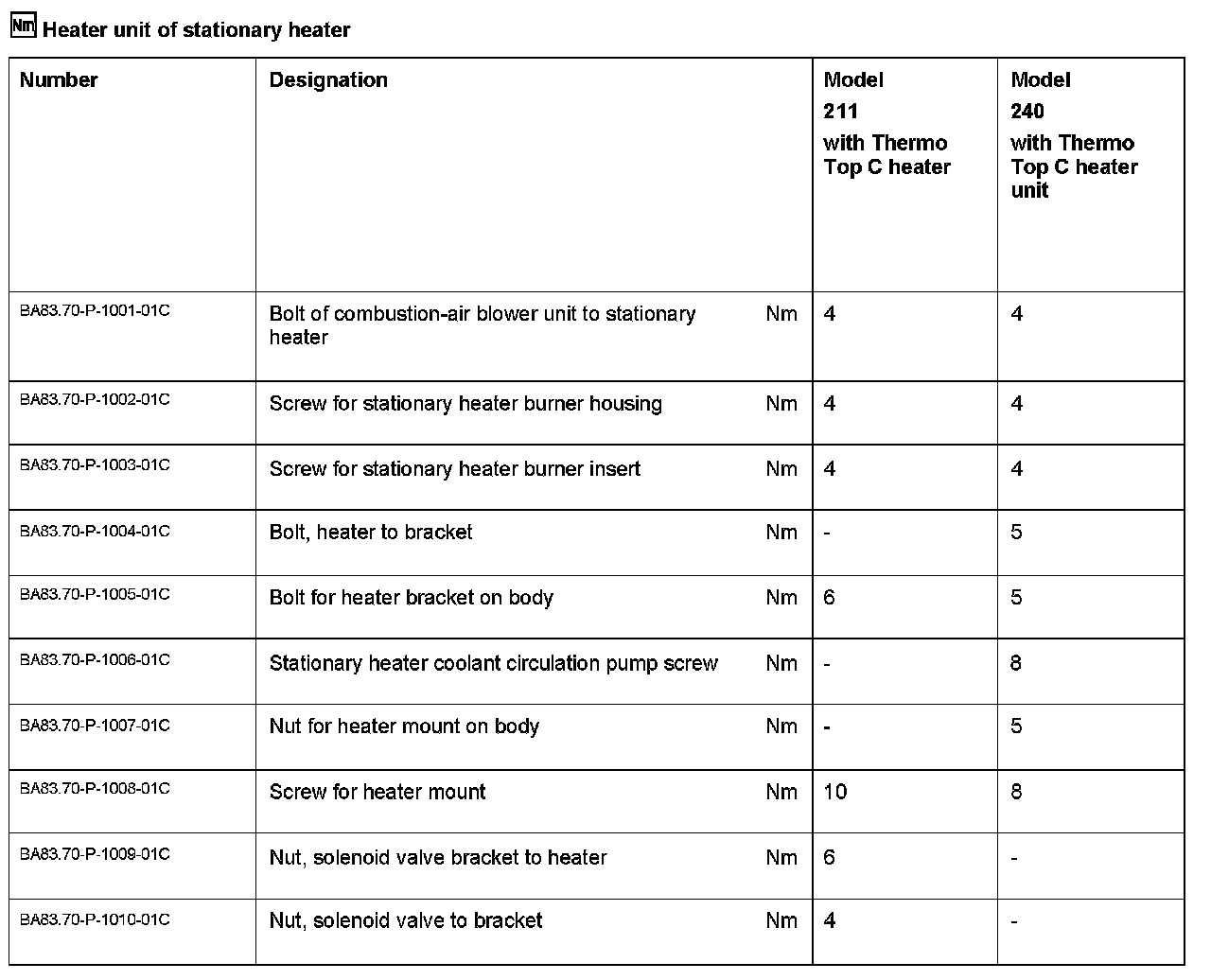

Heater unit of stationary heater
Heater Unit Of Stationary Heater:
