Auxiliary Cabin Heater Transmitter: Testing and Inspection

AR83.70-P-0003-03T Teach-In Telestart Transmitter
- 211.026/065/070/265 1# Telestart T70

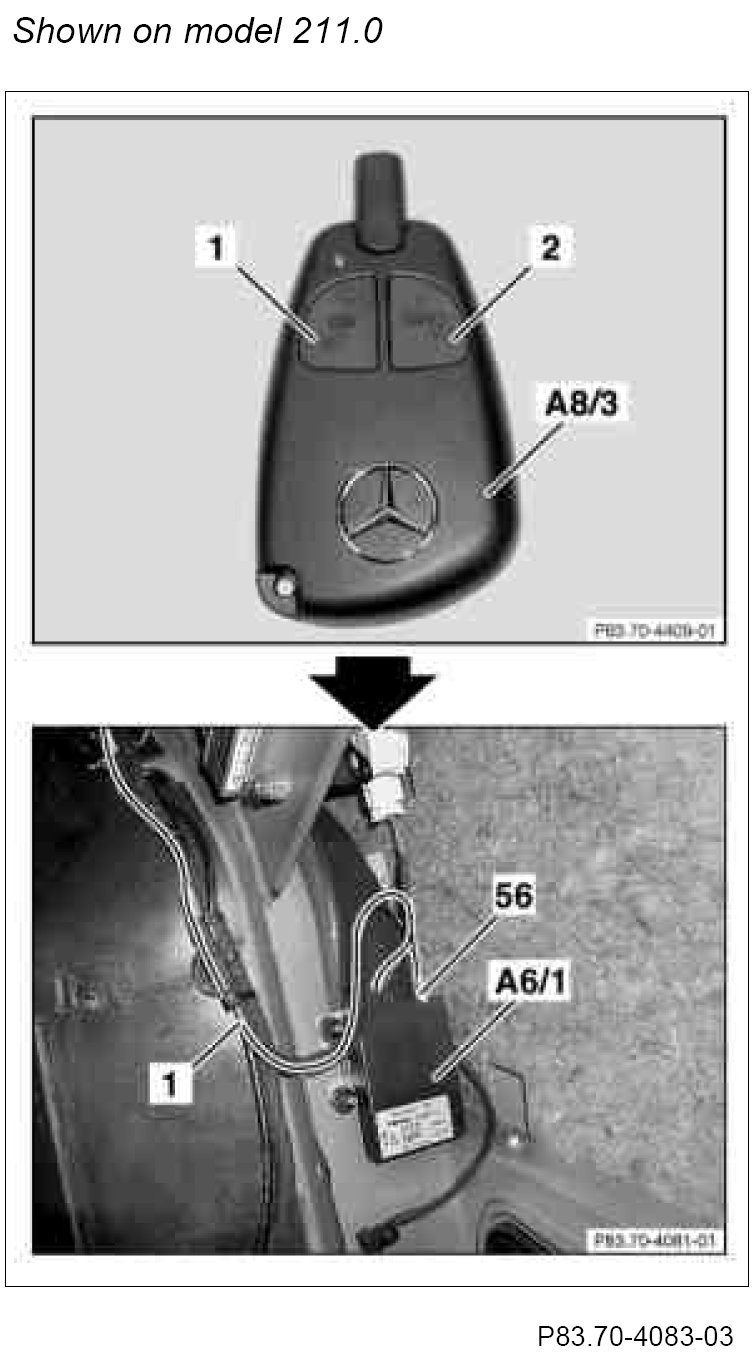

1. Contact 6-pin, black coupling to STH radio remote control receiver (A6/1) and, no later than 5 seconds after, press the button (2) on the STH radio remote control receiver (A8/3) until the light emitting diode above the button (1) lights up.

During transmission, the STH radio remote control transmitter (A8/3) must be positioned at least 2 m away from the vehicle antenna. If this is not possible, the transmitter antenna must be covered with the hand.

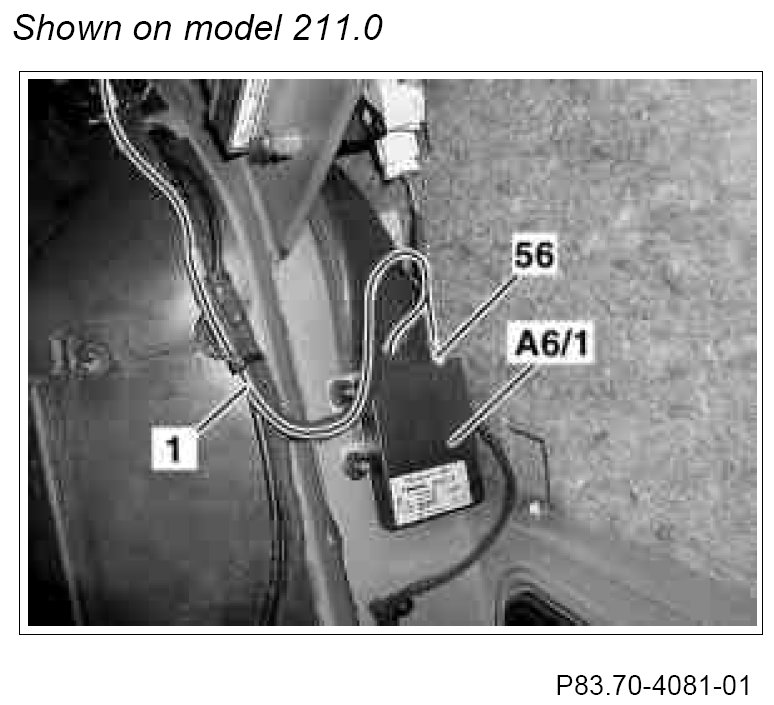

2. Connect antenna line (56) to STH radio remote control receiver (A6/1).
3. Assignment complete: the heater can be switched on with the button (1) on the STH radio remote control transmitter (A8/3).







If the time window was exceeded the process must be repeated as follows:
- Detach antenna line (56) and 6-pin, black coupling from the STH radio remote control receiver (A6/1) (the STH radio remote control receiver (A6/1) has to be de-energized for at least 120 seconds).
- Contact 6-pin, black coupling to STH radio remote control receiver (A6/1) and, no later than 5 seconds after, press the OFF button on the STH radio remote control receiver (A8/3) until the light emitting diode above the ON button lights up.
- Fit antenna line (56) to STH radio remote control receiver (A6/1).

A maximum of 3 Telestart transmitters can be programmed to one receiver
