AR49.10-P-7281T Remove/Install Exhaust System As of Pipe Connection



AR49.10-P-7281T Remove/install exhaust system as of pipe connection

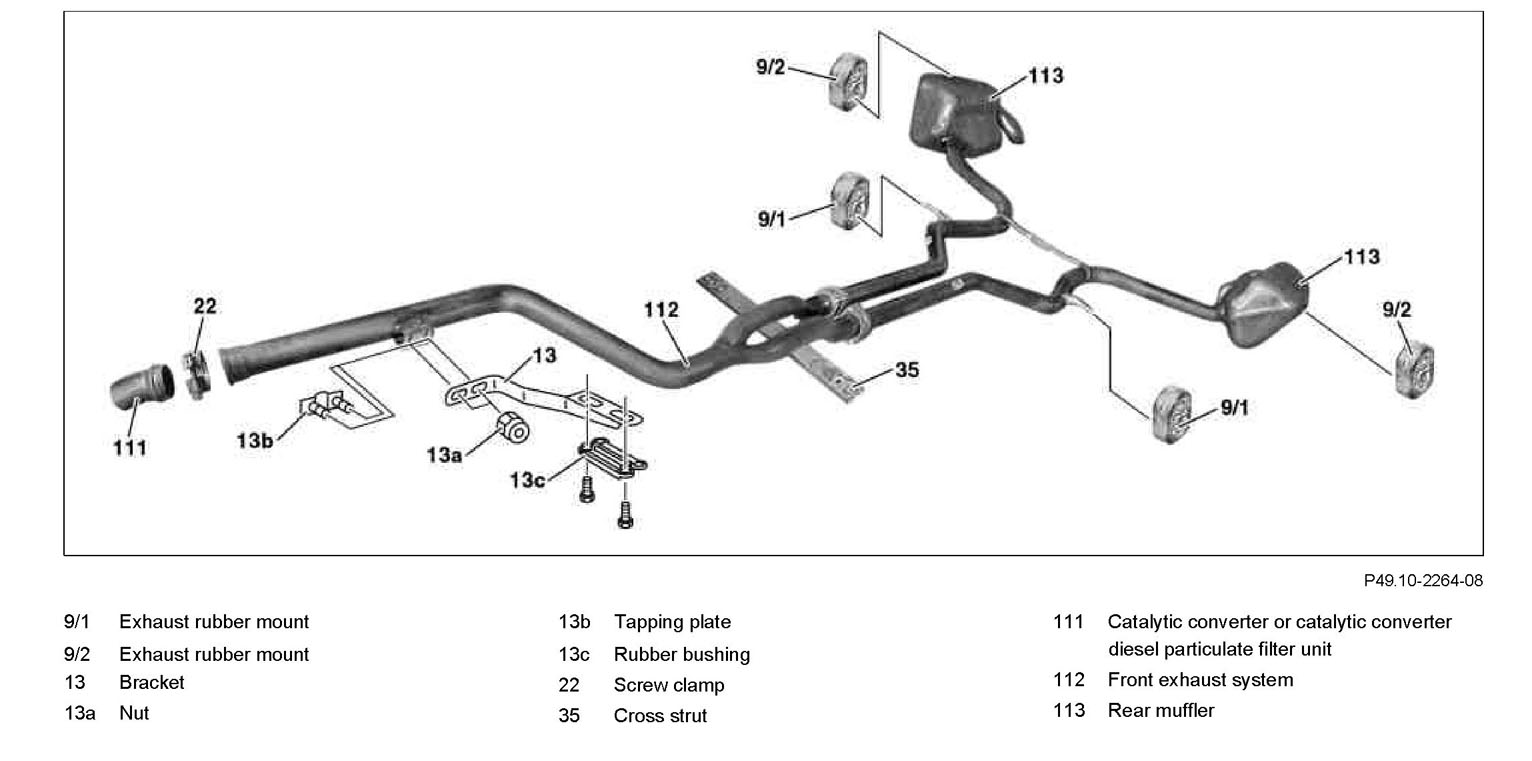

Component Identification:

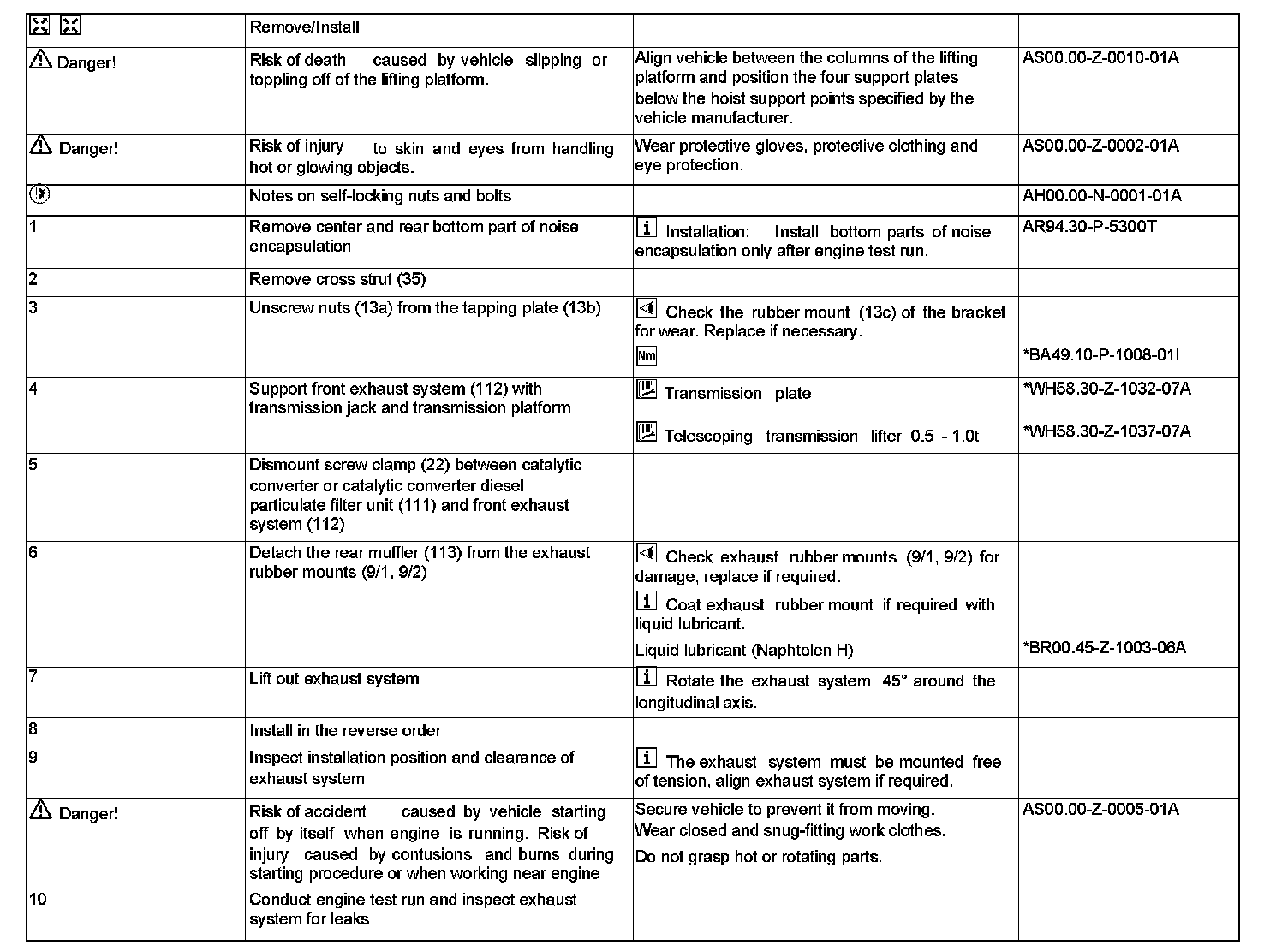

Steps 1-10:

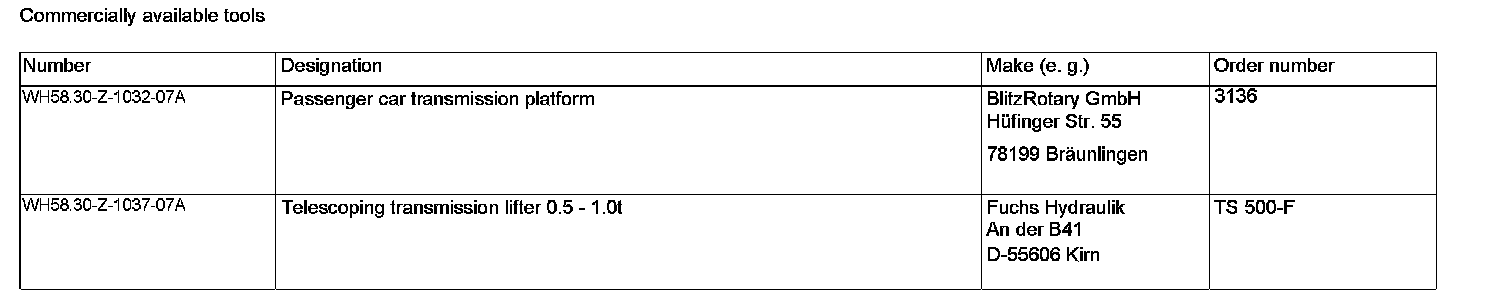

Commercially Available Tools:




Commercially Available Tools:

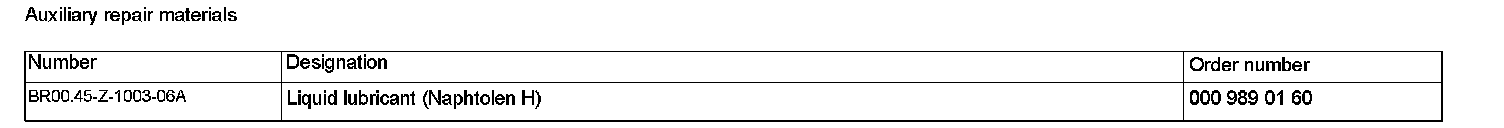

Auxiliary Repair Materials:
