Muffler: Service and Repair
AR49.10-P-4951TC Replace rear
muffler

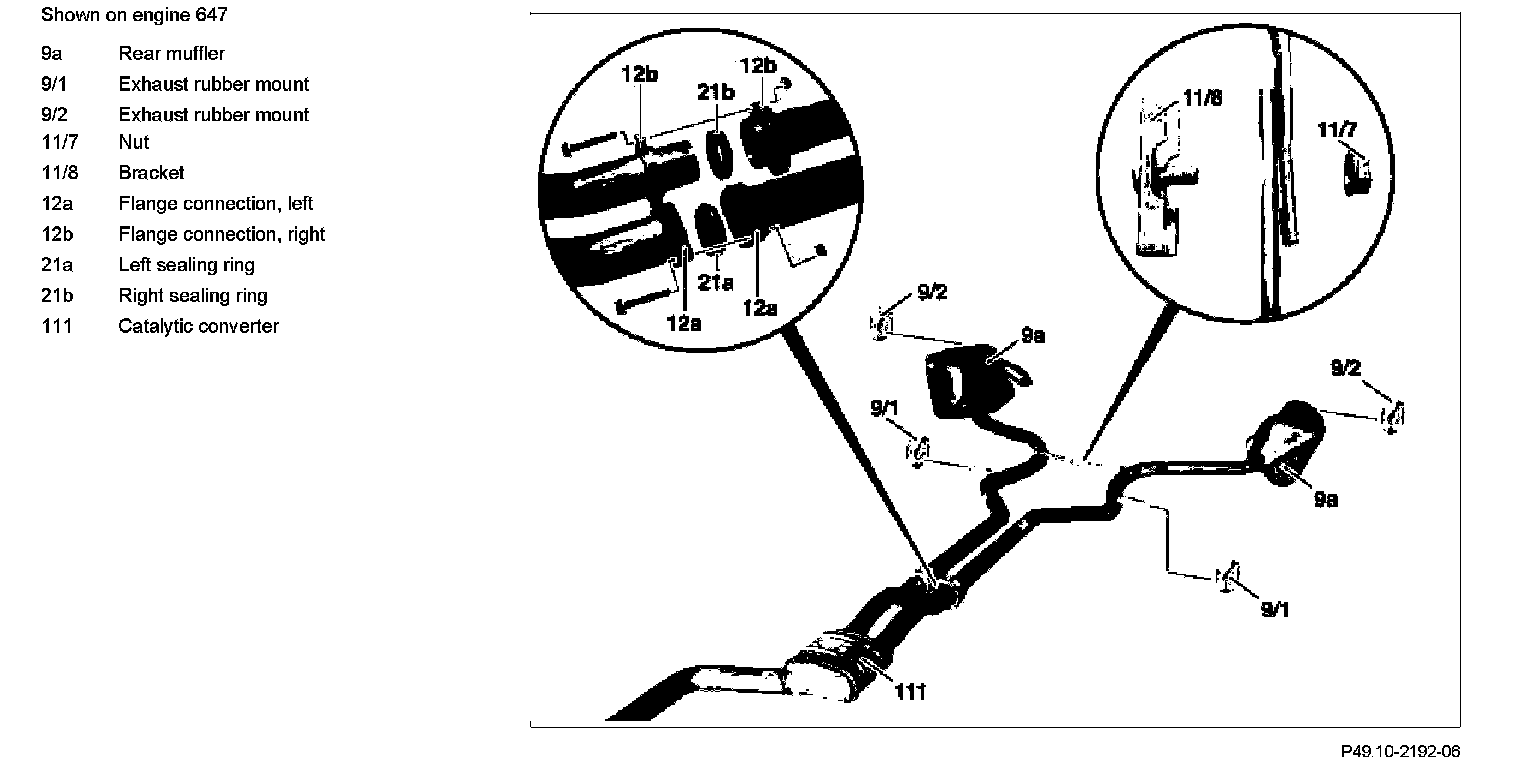

Component Identification:

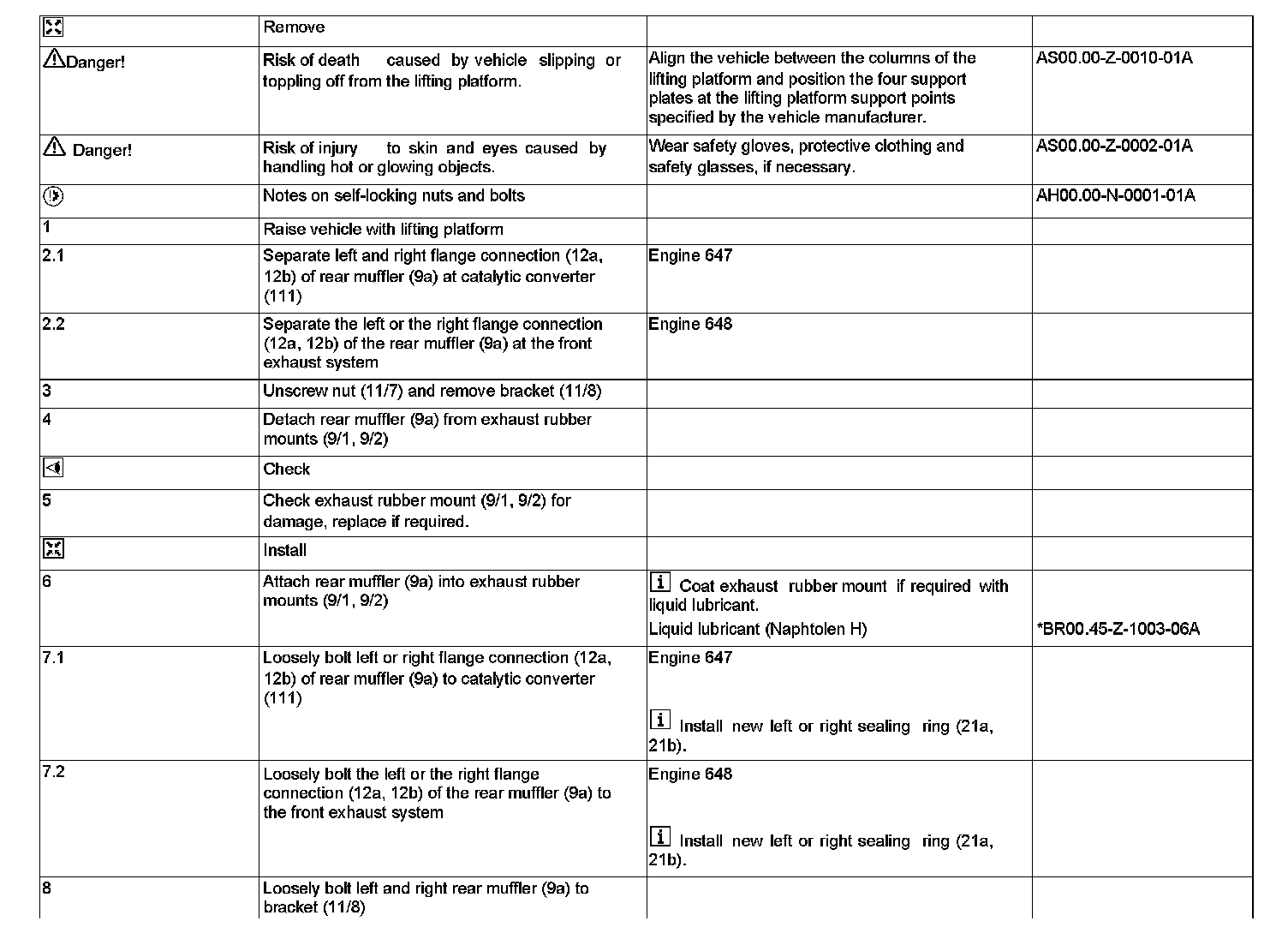

Steps 1-8:

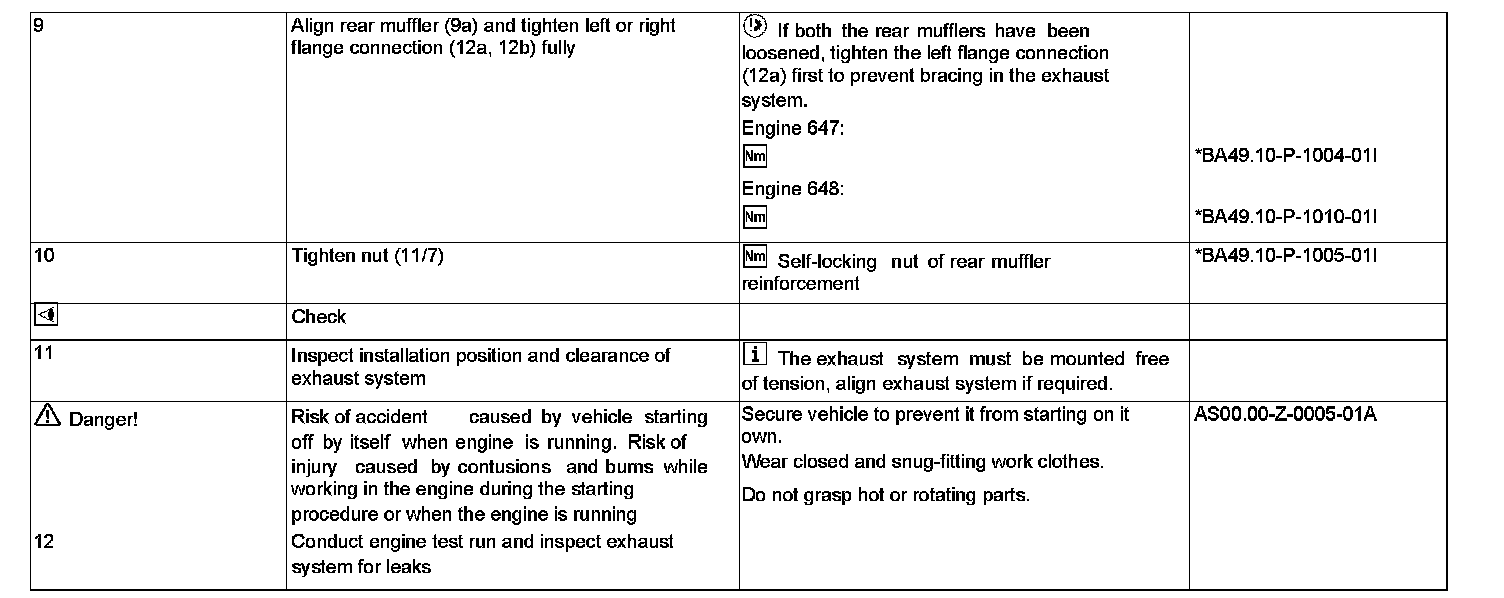

Steps 9-12:

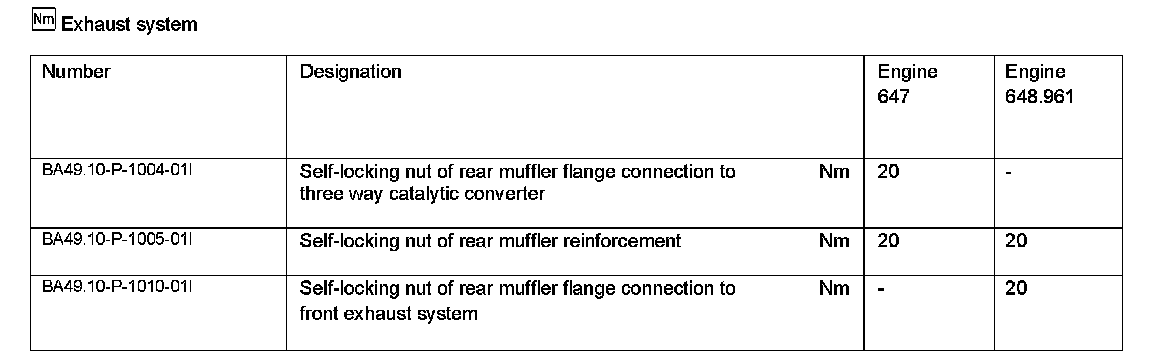

Exhaust System:

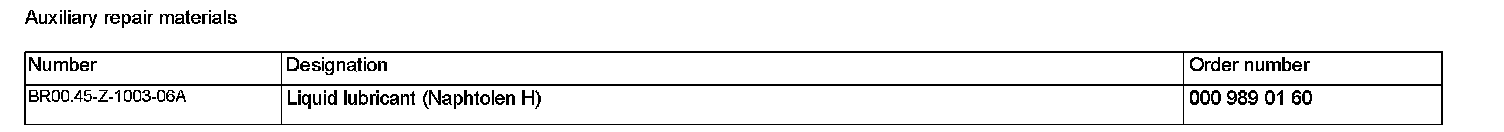

Auxiliary Repair Materials:
