Heat Shield: Service and Repair

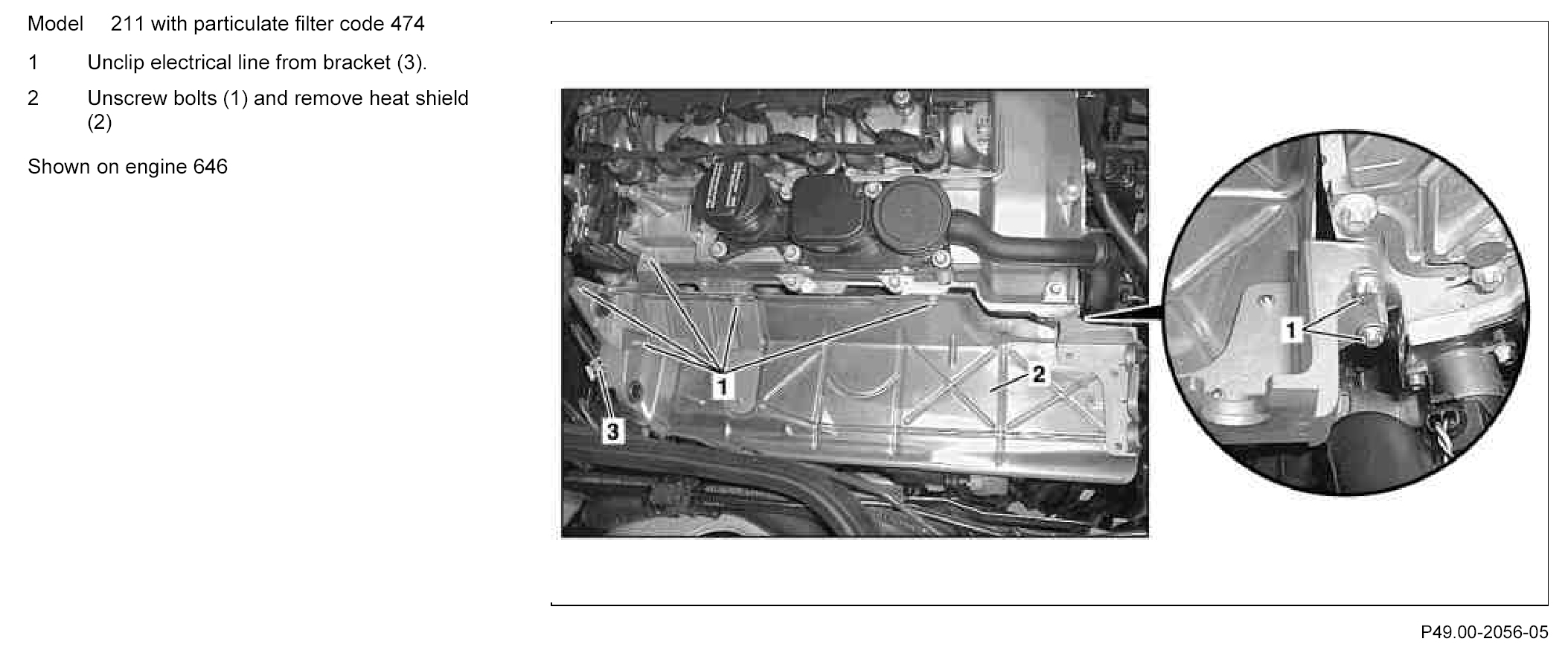

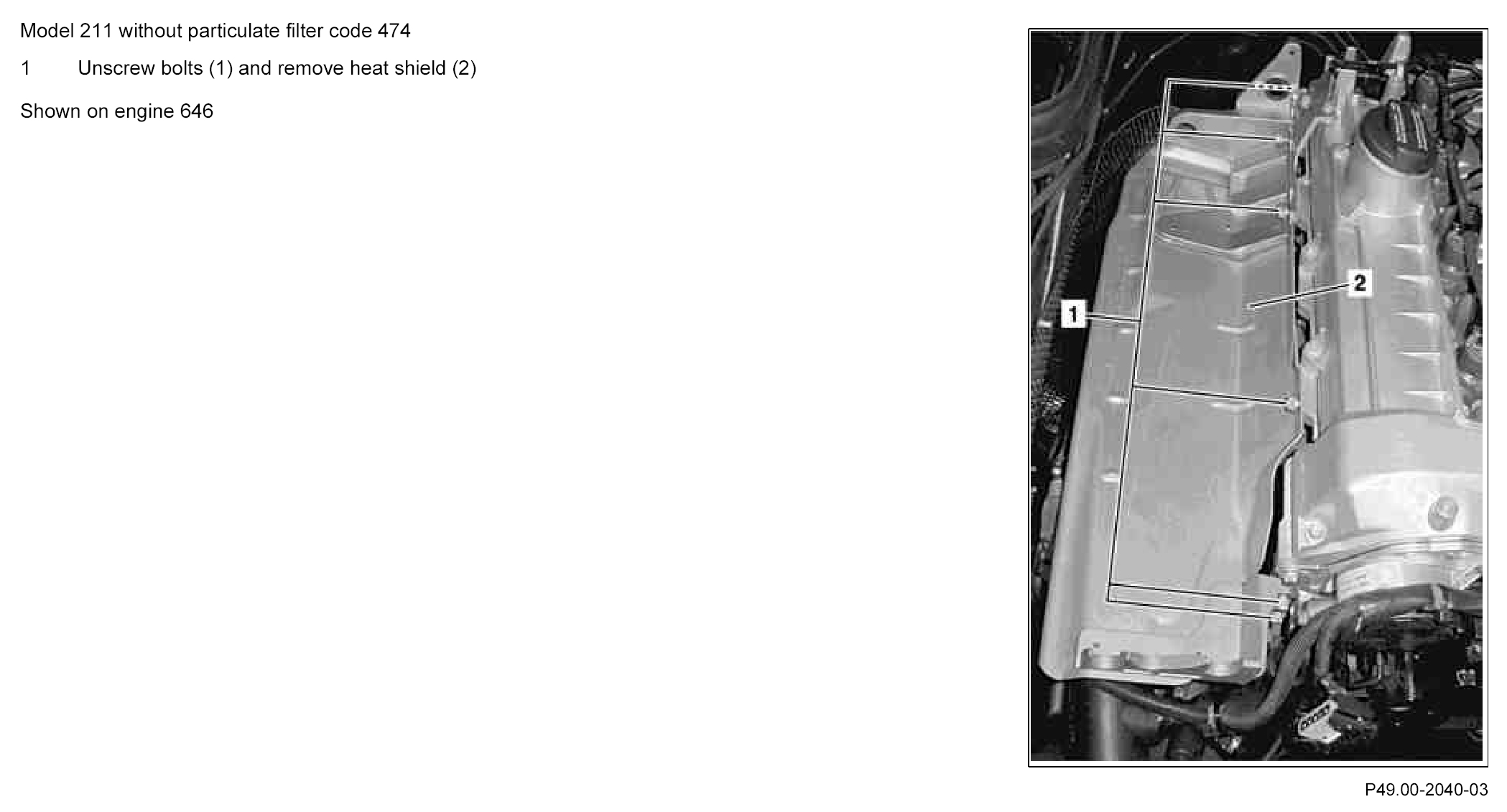

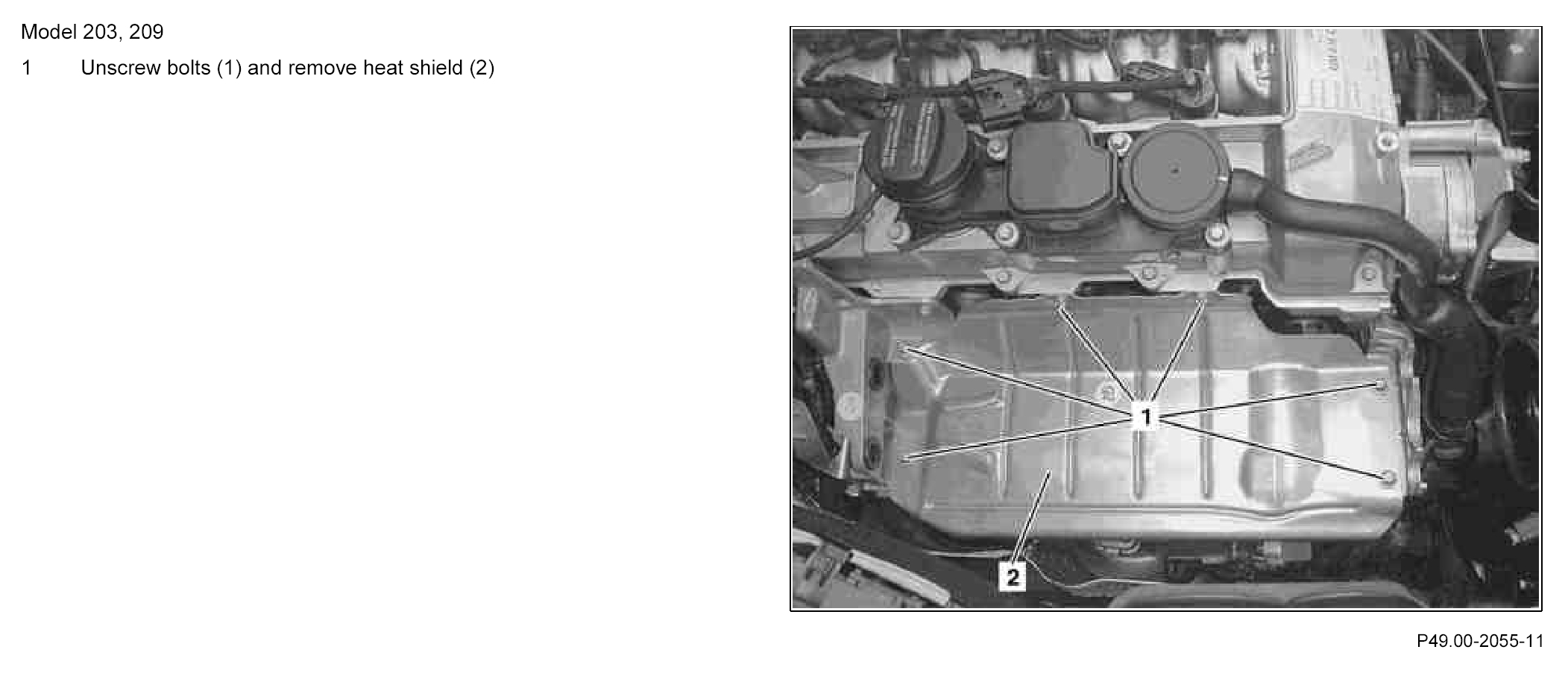

AR49.00-P-1000-01T Remove/Install
Heat Shield

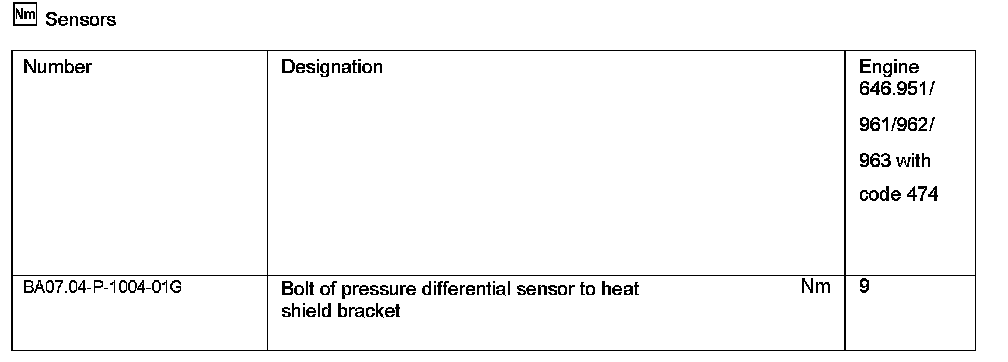

Sensors:

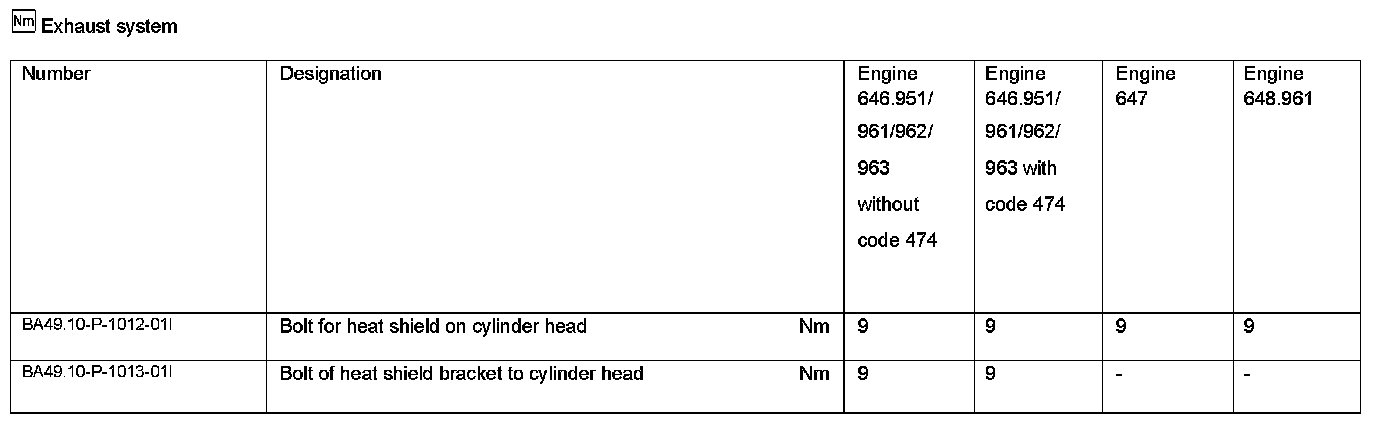

Exhaust System:
Component Identification:
Component Identification:
Component Identification:
