AR14.10-P-3915T Remove/Install Exhaust Manifold



AR14.10-P-3915T Remove/install exhaust manifold

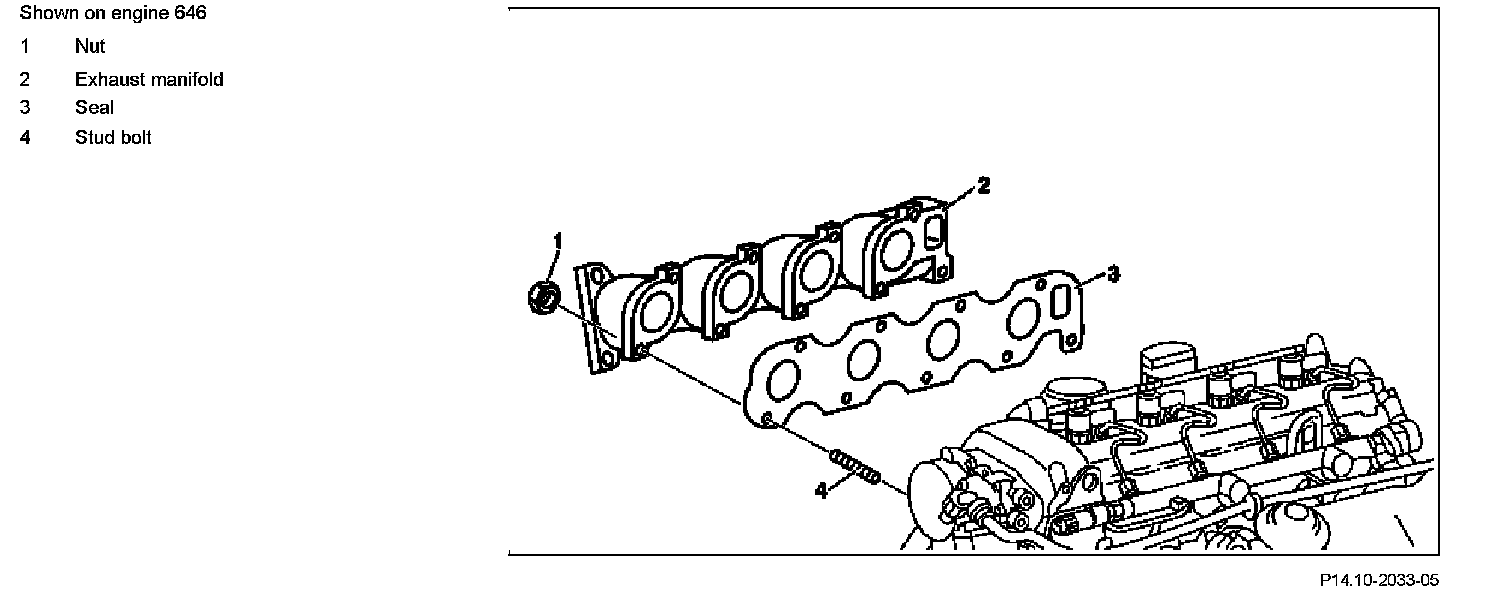

Component Identification:

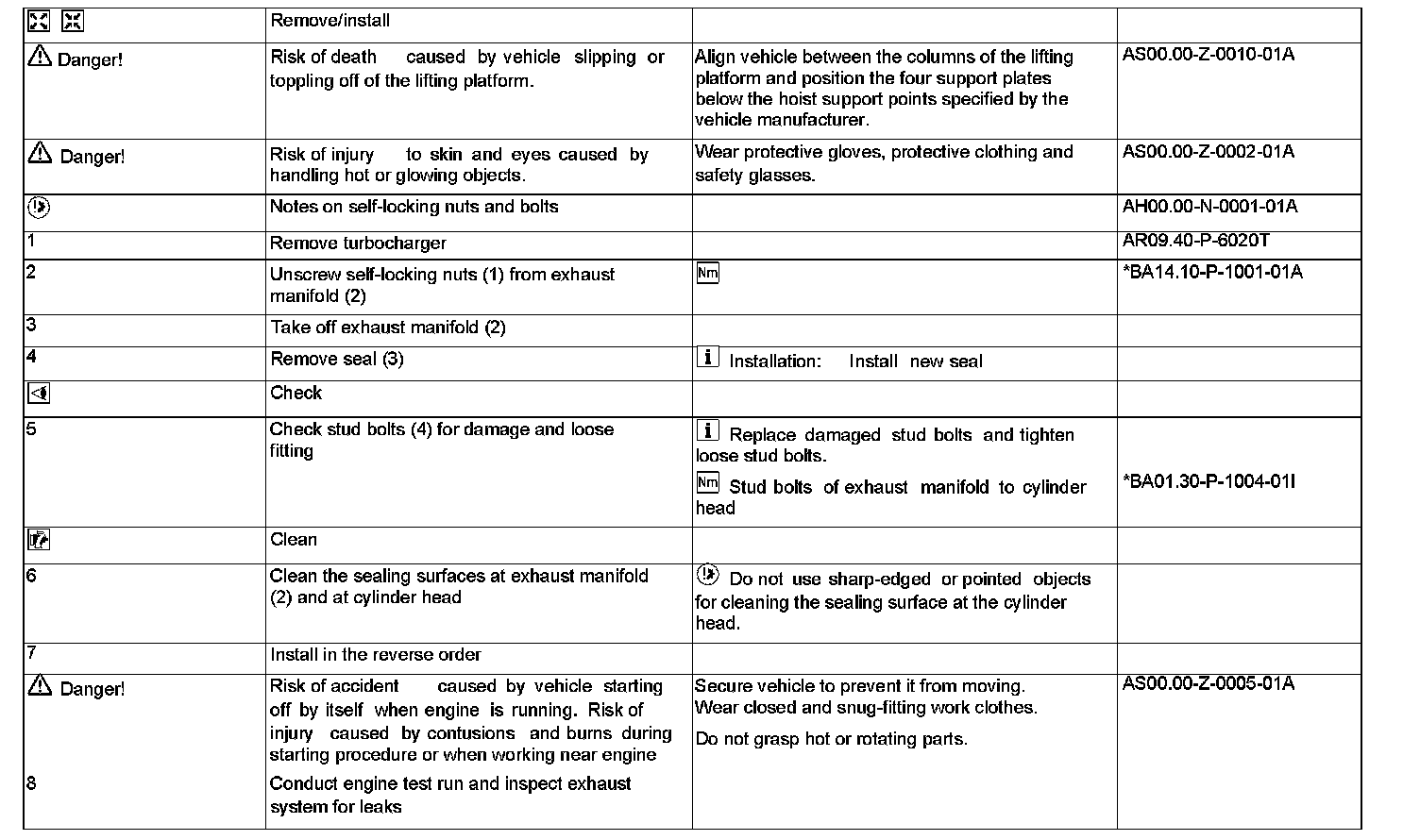

Steps 1-8:




Exhaust Manifold:

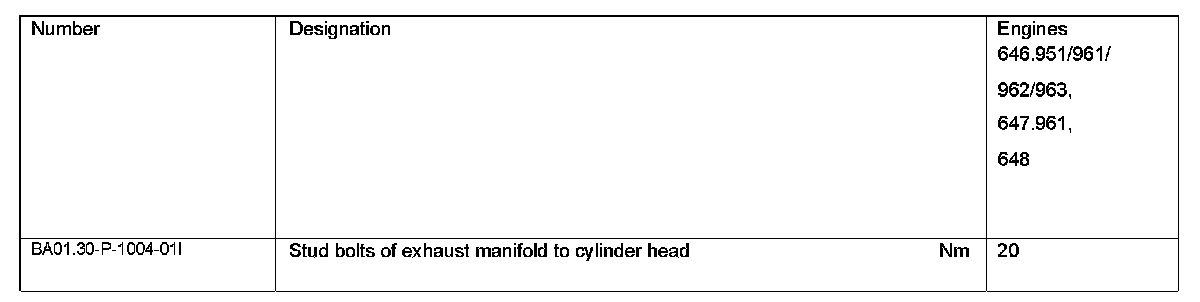

Cylinder Head Tightening Torques:
