Water Pump: Service and Repair



AR20.10-P-1271T Removing/installing coolant pump

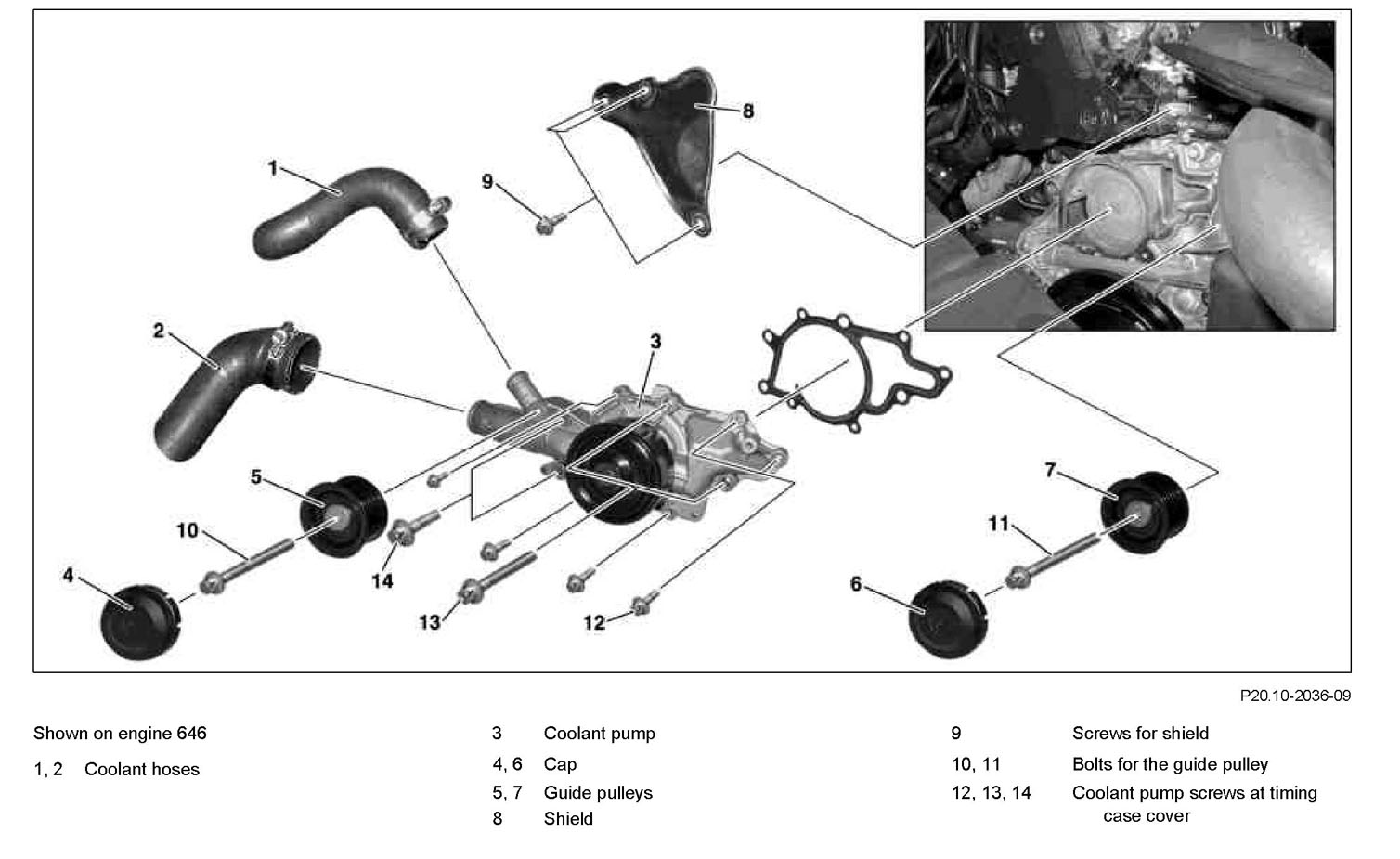

Component Identification:

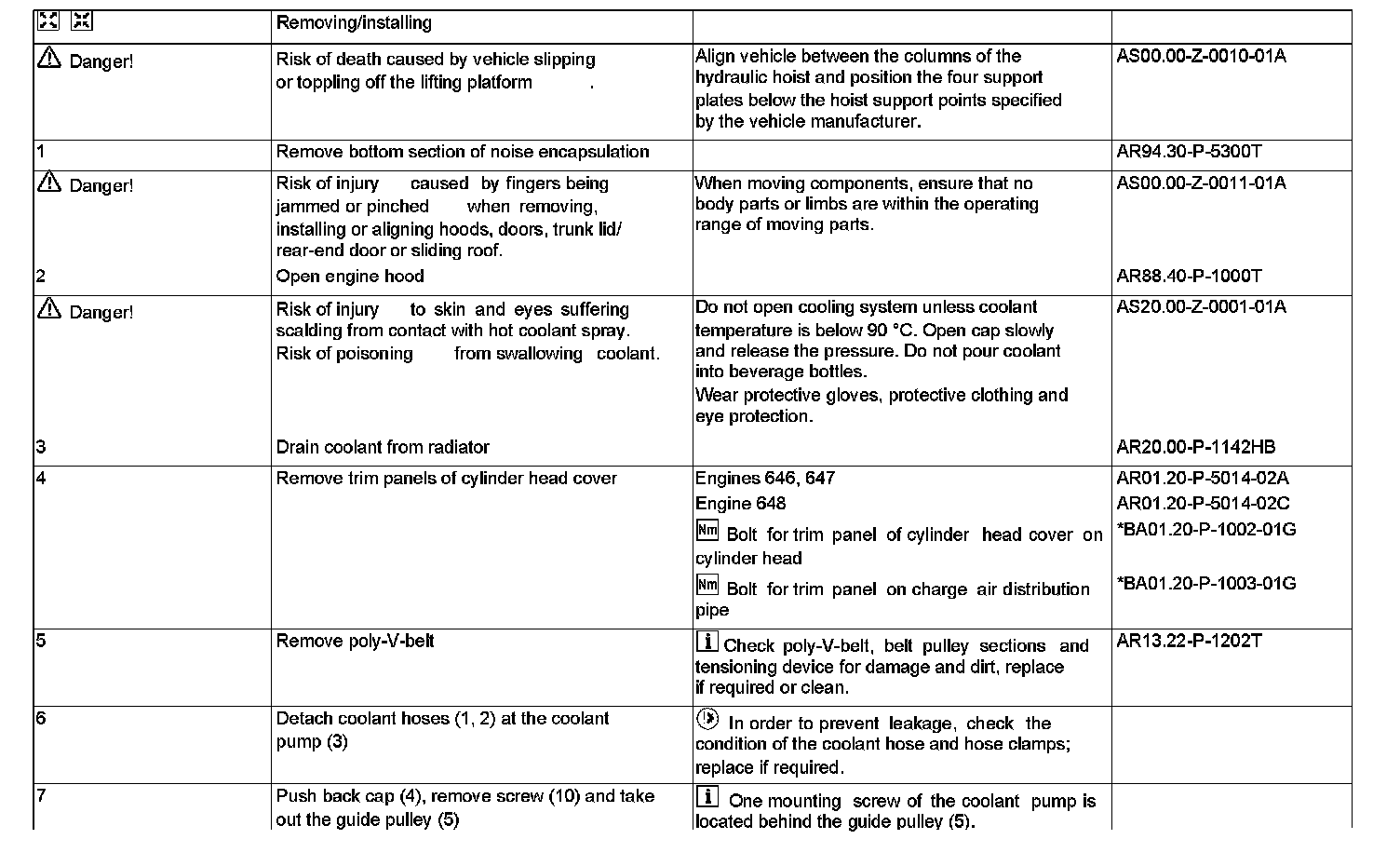

Steps 1-7:

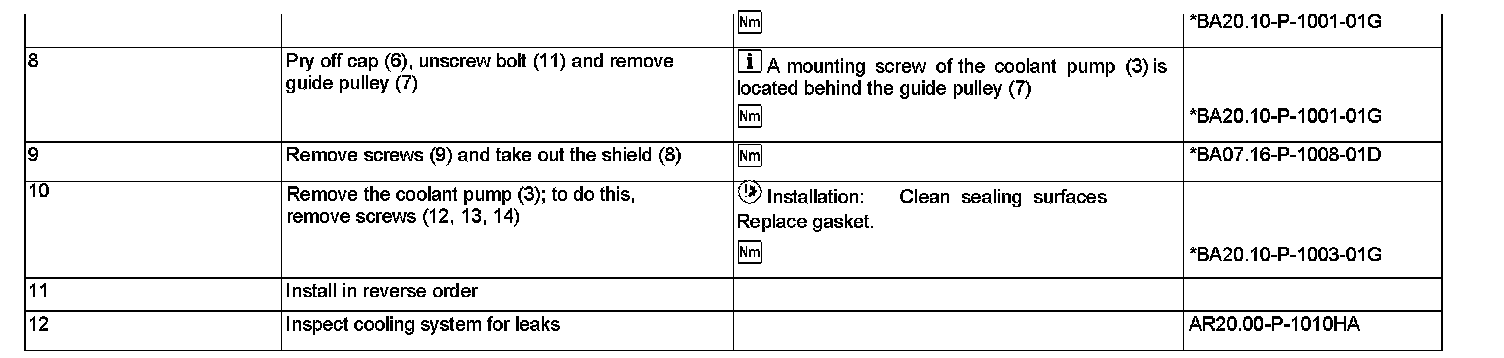

Steps 8-12:

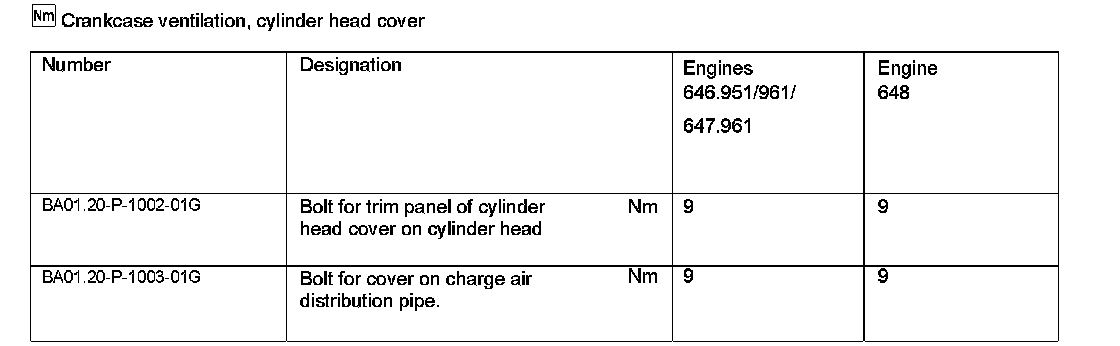

Crankcase Ventilation, Cylinder Head Cover:

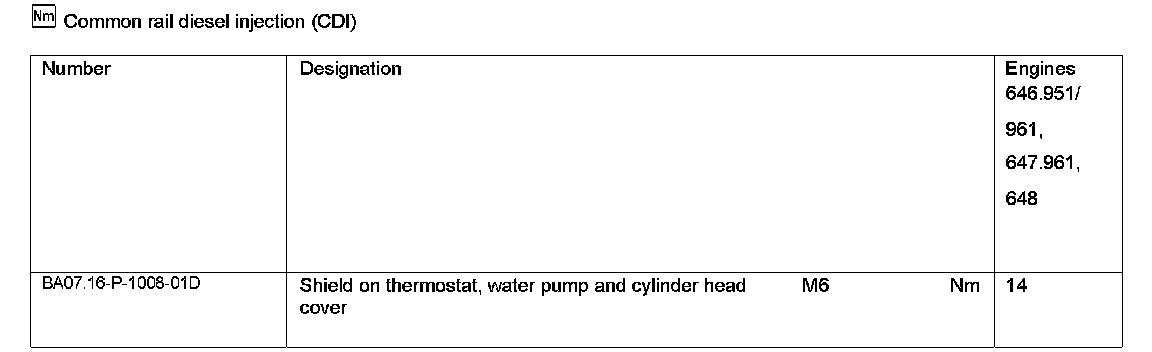

Common Rail Diesel Injection (CDI):

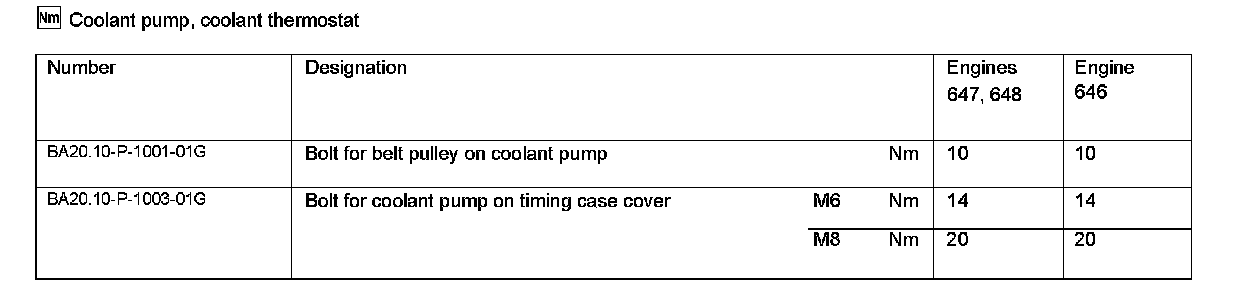

Coolant Pump, Coolant Thermostat:
