AR01.00-P-1200T Testing the Compression Pressure



AR01.00-P-1200T Testing the compression pressure

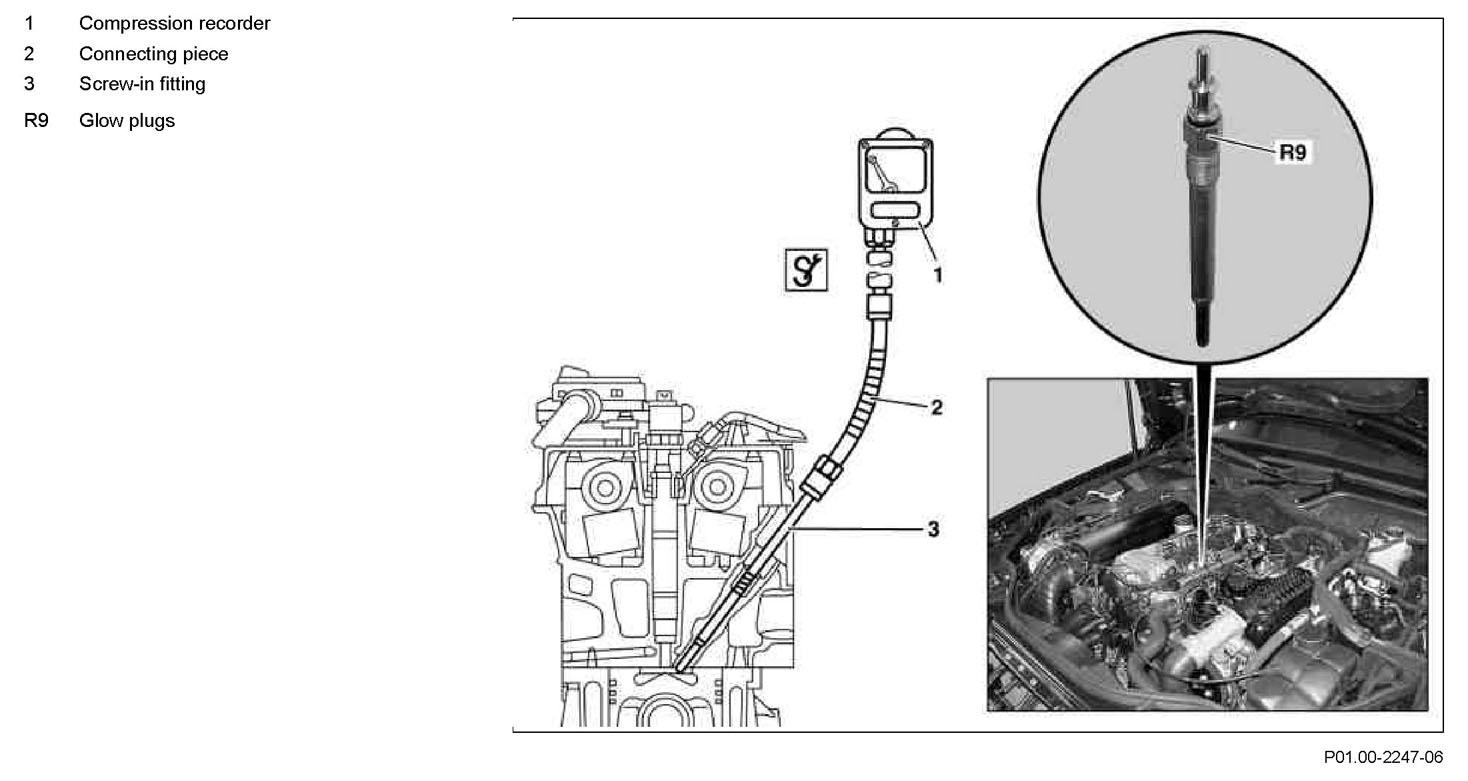

Component Identification:

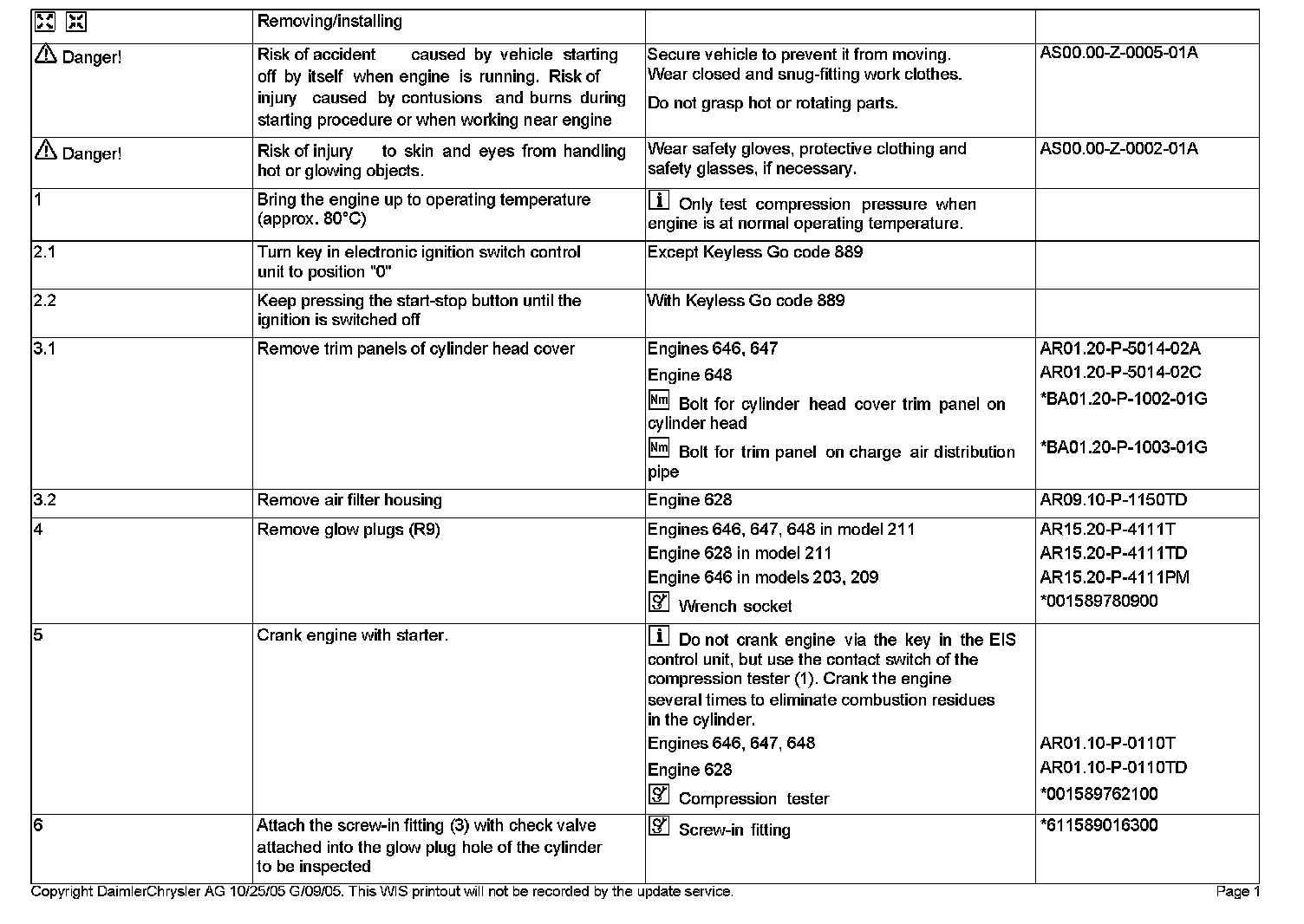

Steps 1-6:

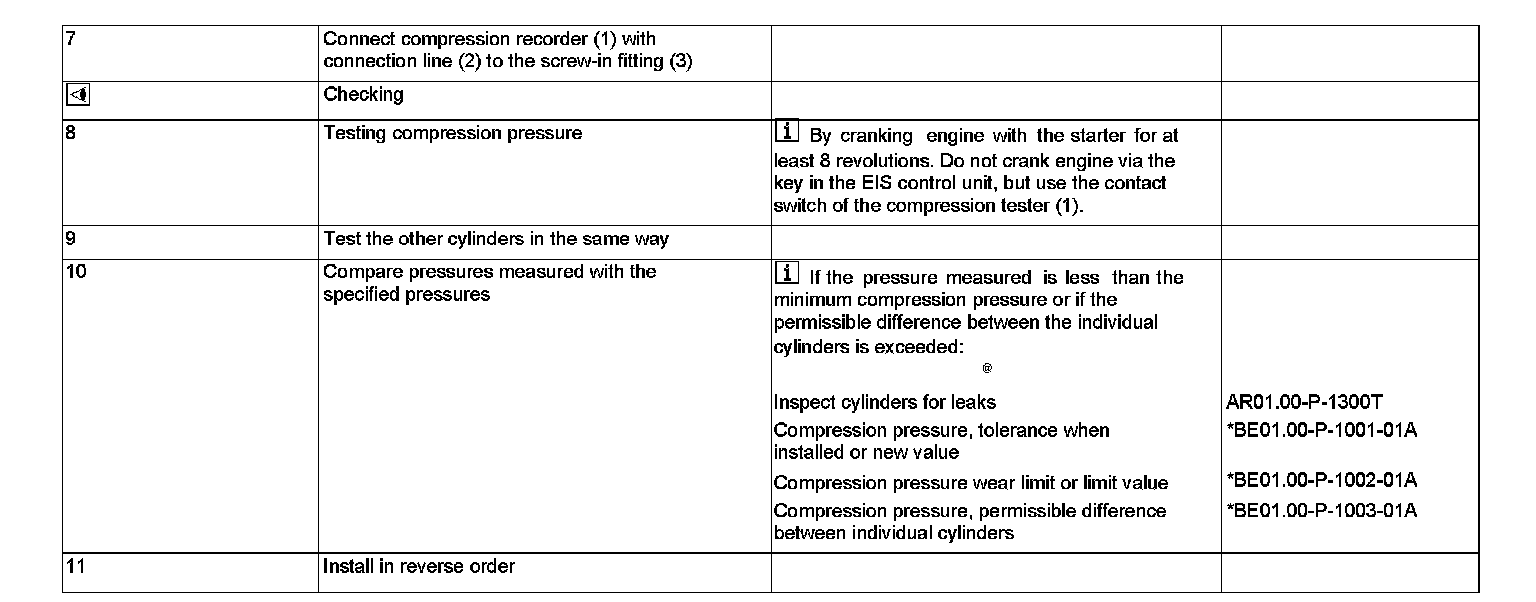

Steps 7-11:




Compression Pressure:




Compression Pressure:

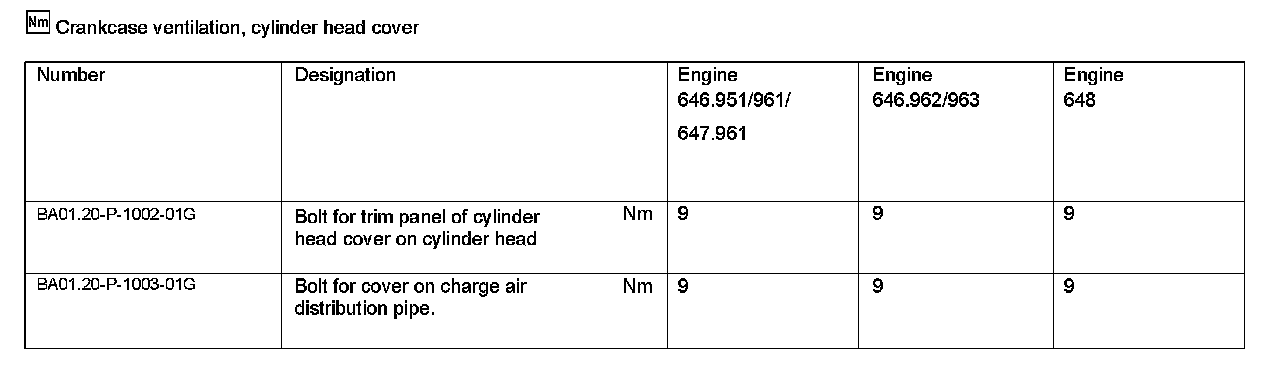

Crankcase Ventilation, Cylinder Head Cover:

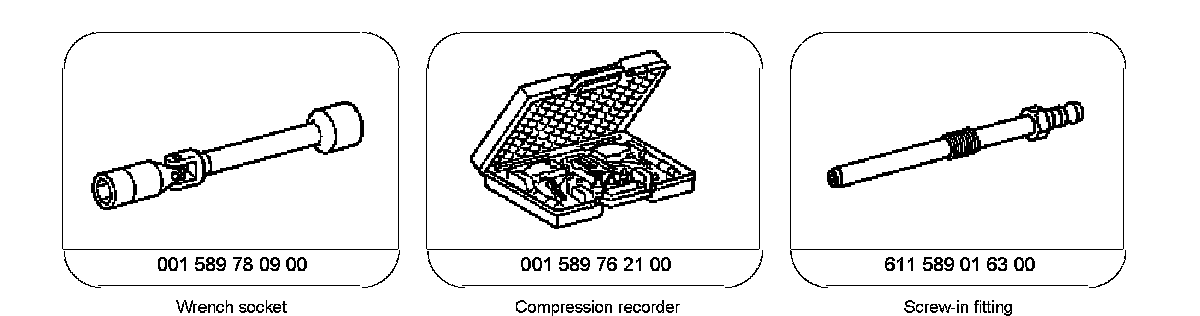

Special Tools:
