AR01.40-P-8000-01T Bolt Diagram For Timing Case Cover



AR01.40-P-8000-01T Bolt Diagram For Timing Case Cover





Observe different bolt lengths and bolt diameters.

1 Place bolts (1, 2, 3, 4, 5, 6) according to bolt plan.

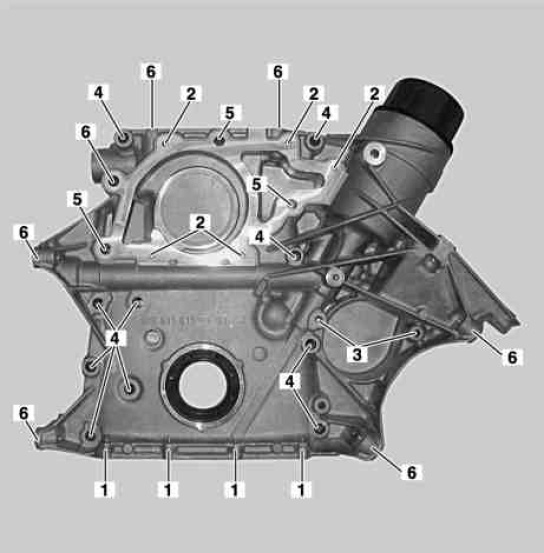

Shown on engine 647.961

1 Bolts M6X20
2 Bolts M6X28
3 Bolts M7X28
4 Bolts M8X60
5 Bolts M8X80
6 Bolts M8X90
