Timing Chain: Service and Repair

AR05.10-P-7601T Replace timing chain

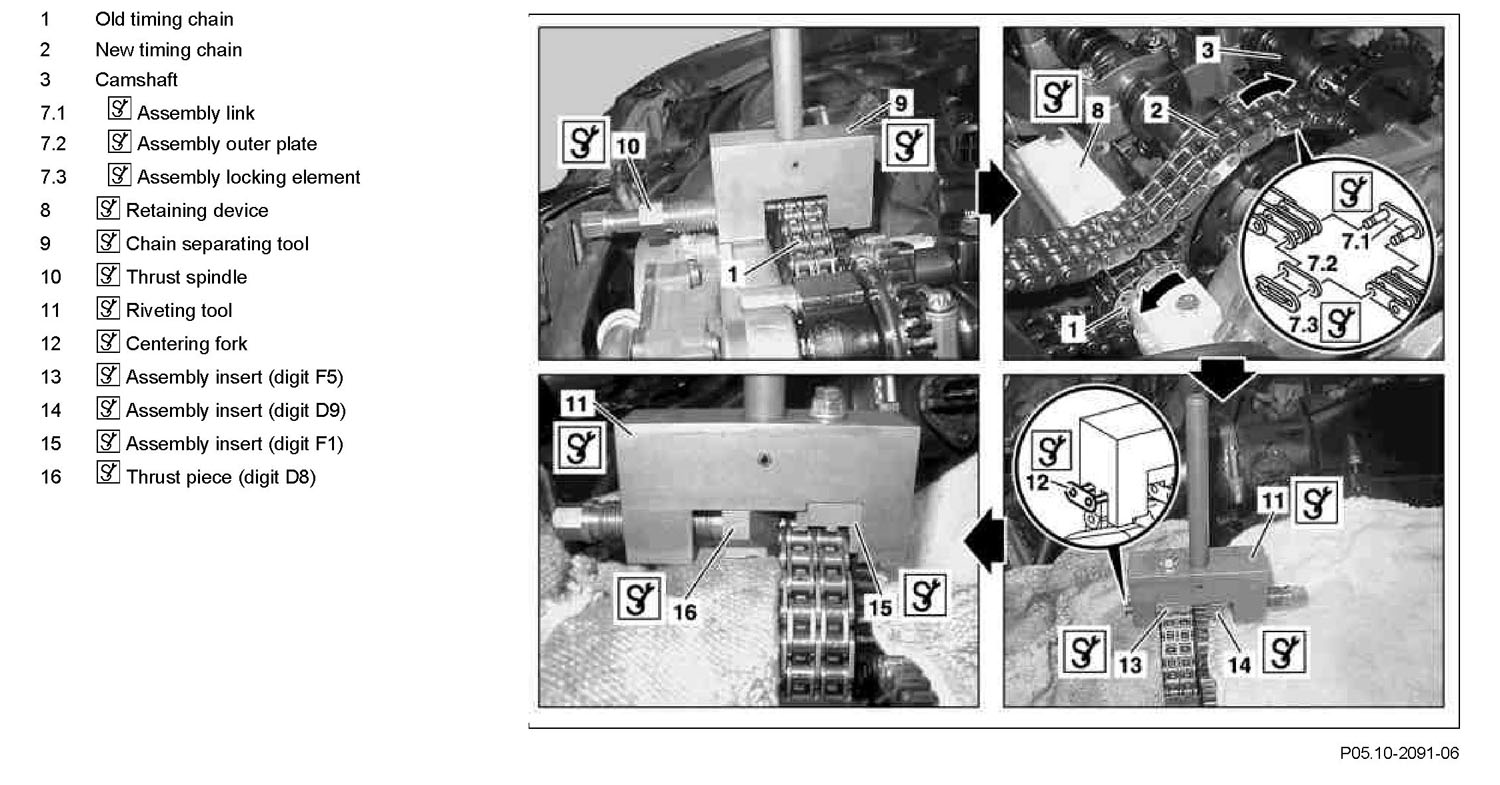

Component Identification:

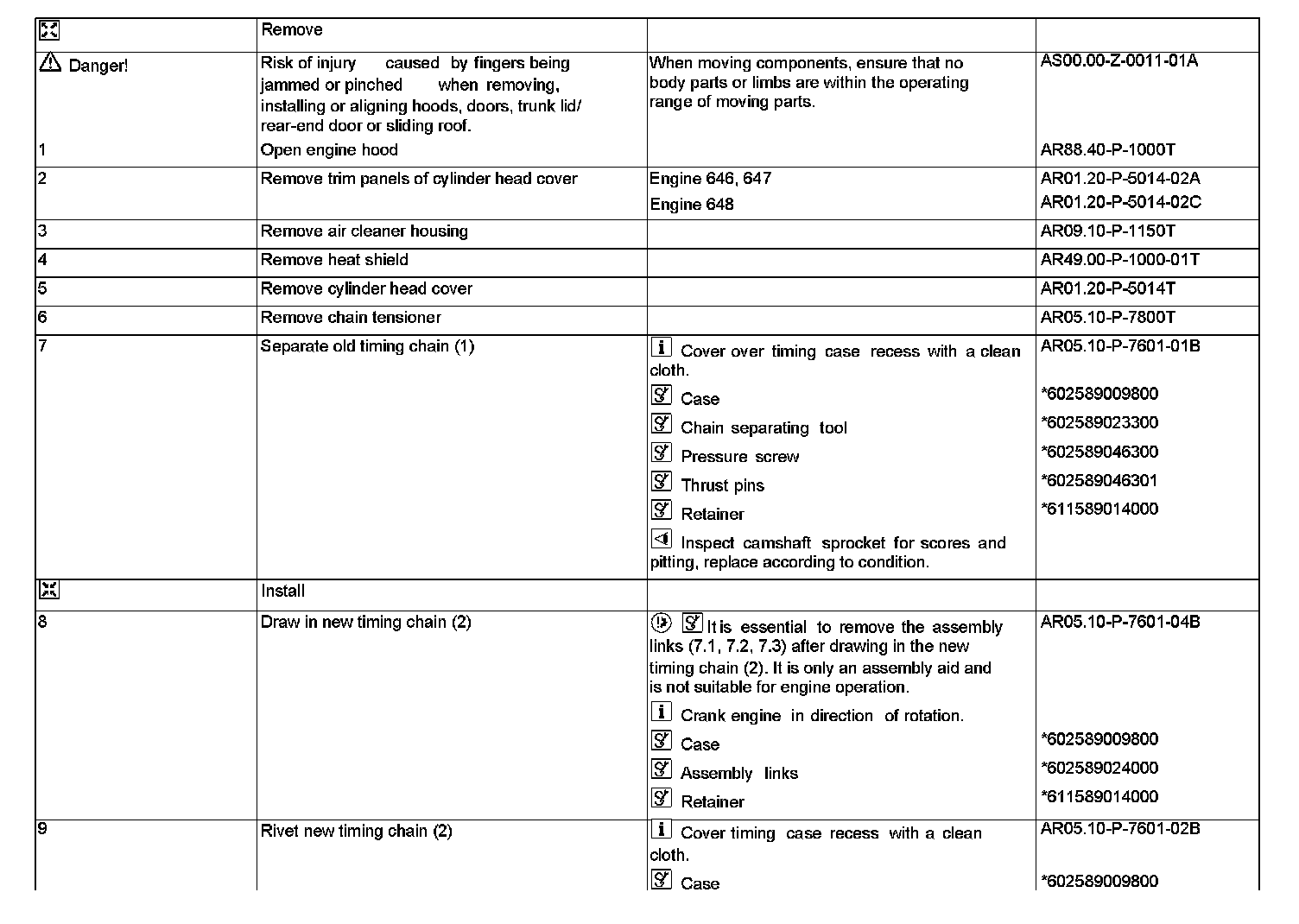

Steps 1-9:

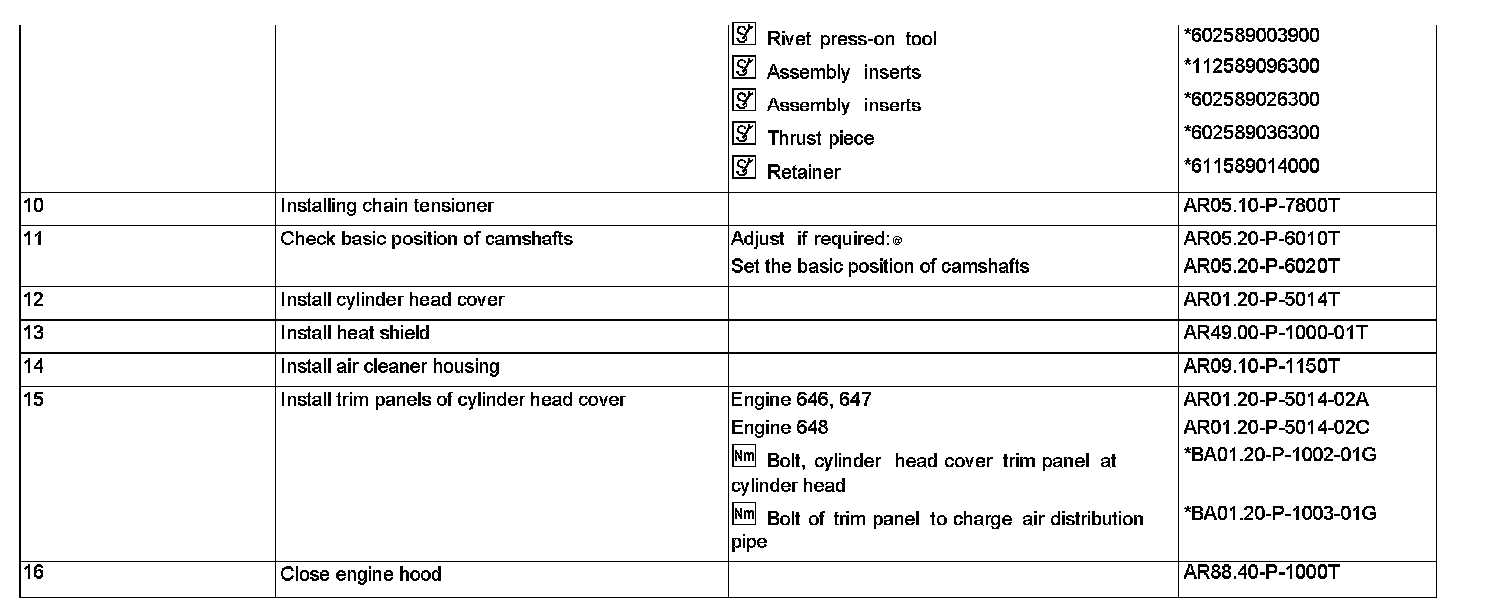

Steps 10-16:

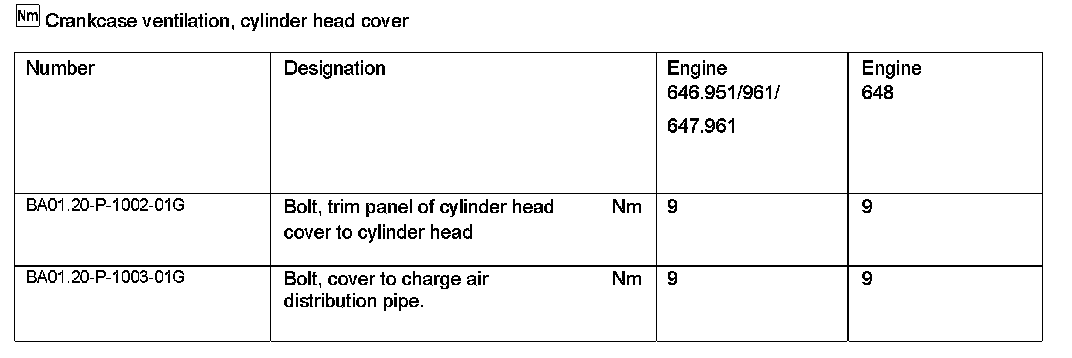

Crankcase Ventilation, Cylinder Head Cover:

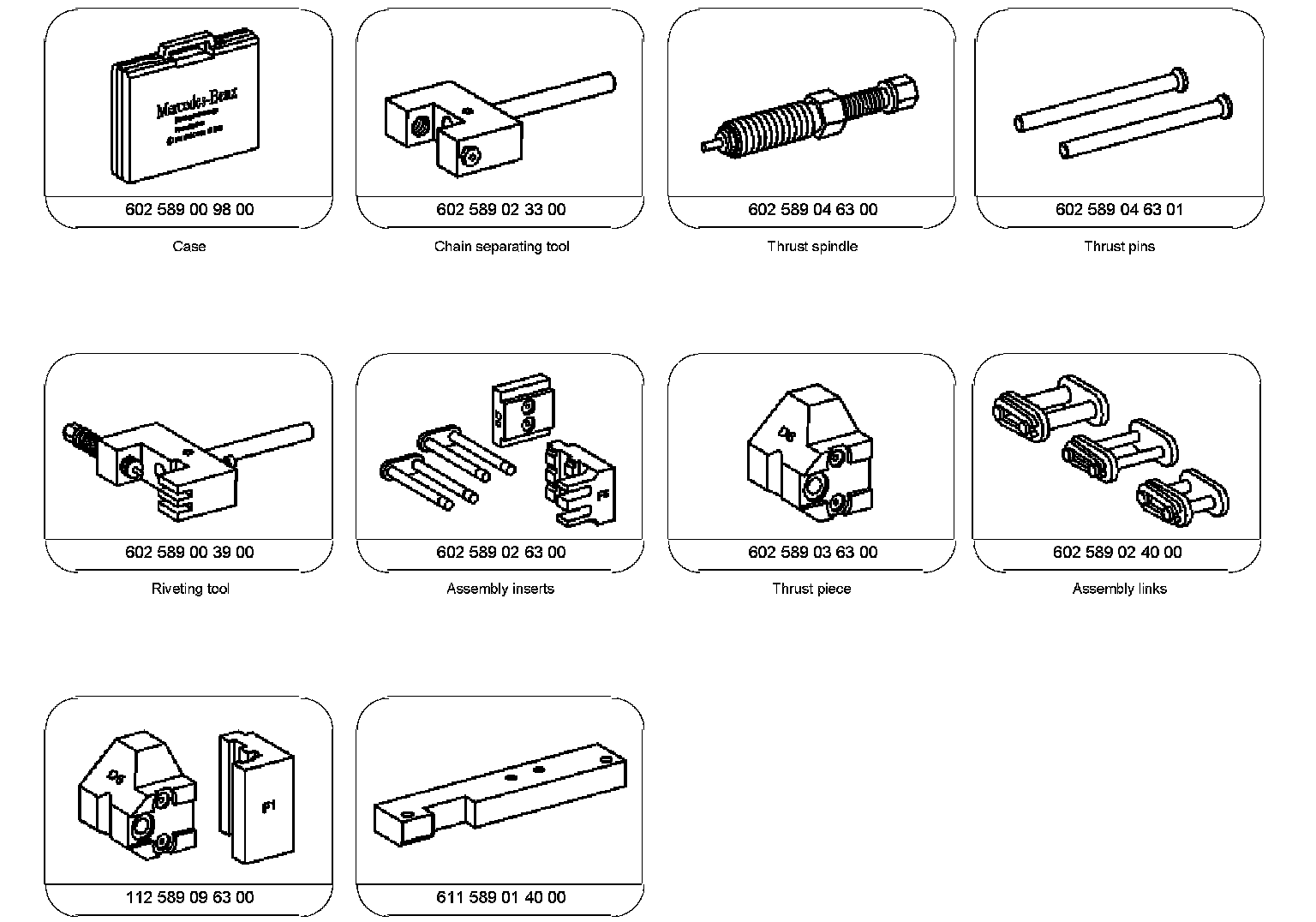

Special Tools:

Assembly Inserts:
