AR05.10-P-8420A Remove/Install Bottom Slide Rail



AR05.10-P-8420A Remove/install bottom slide rail

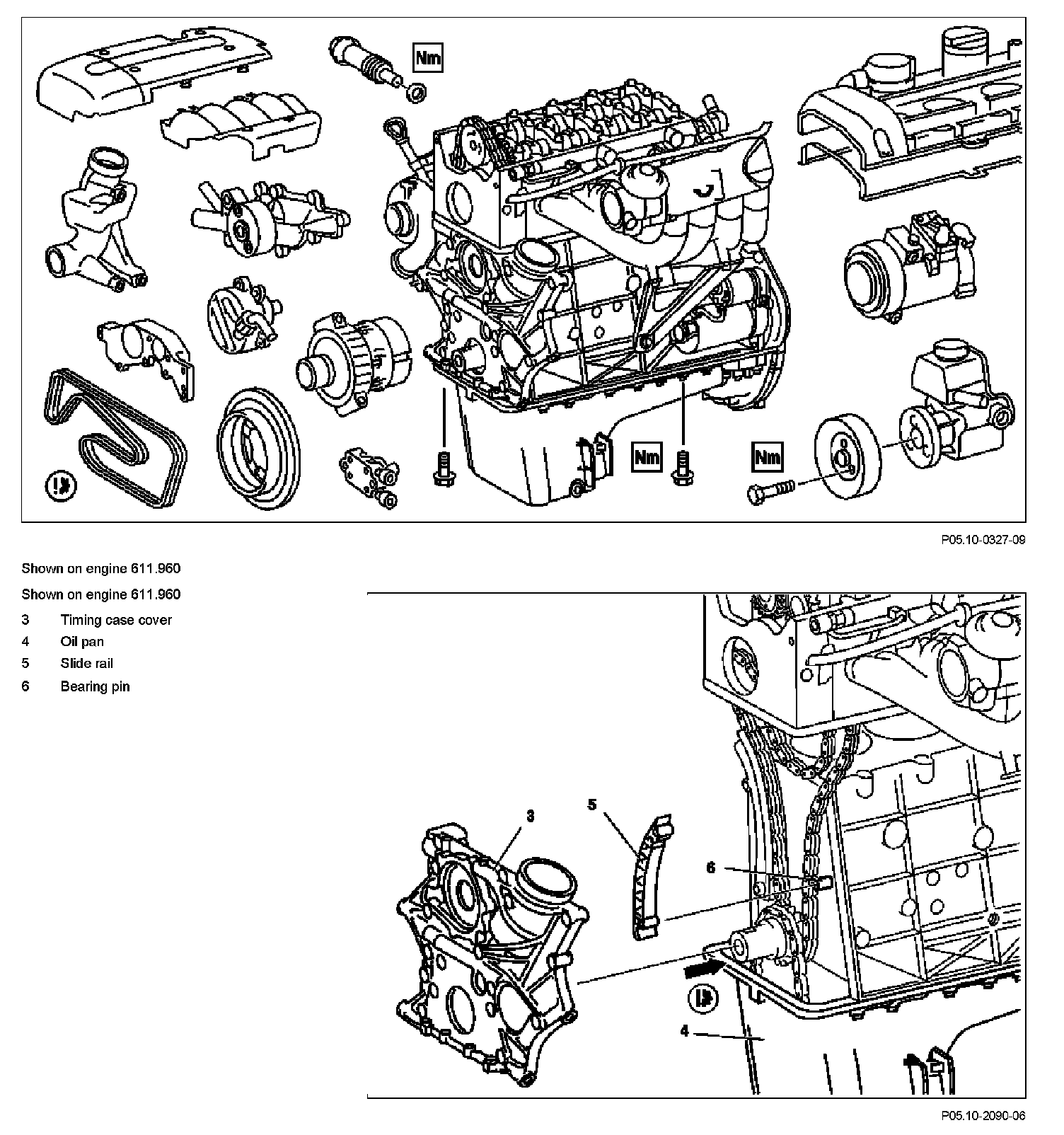

Component Identification:




Component Identification:

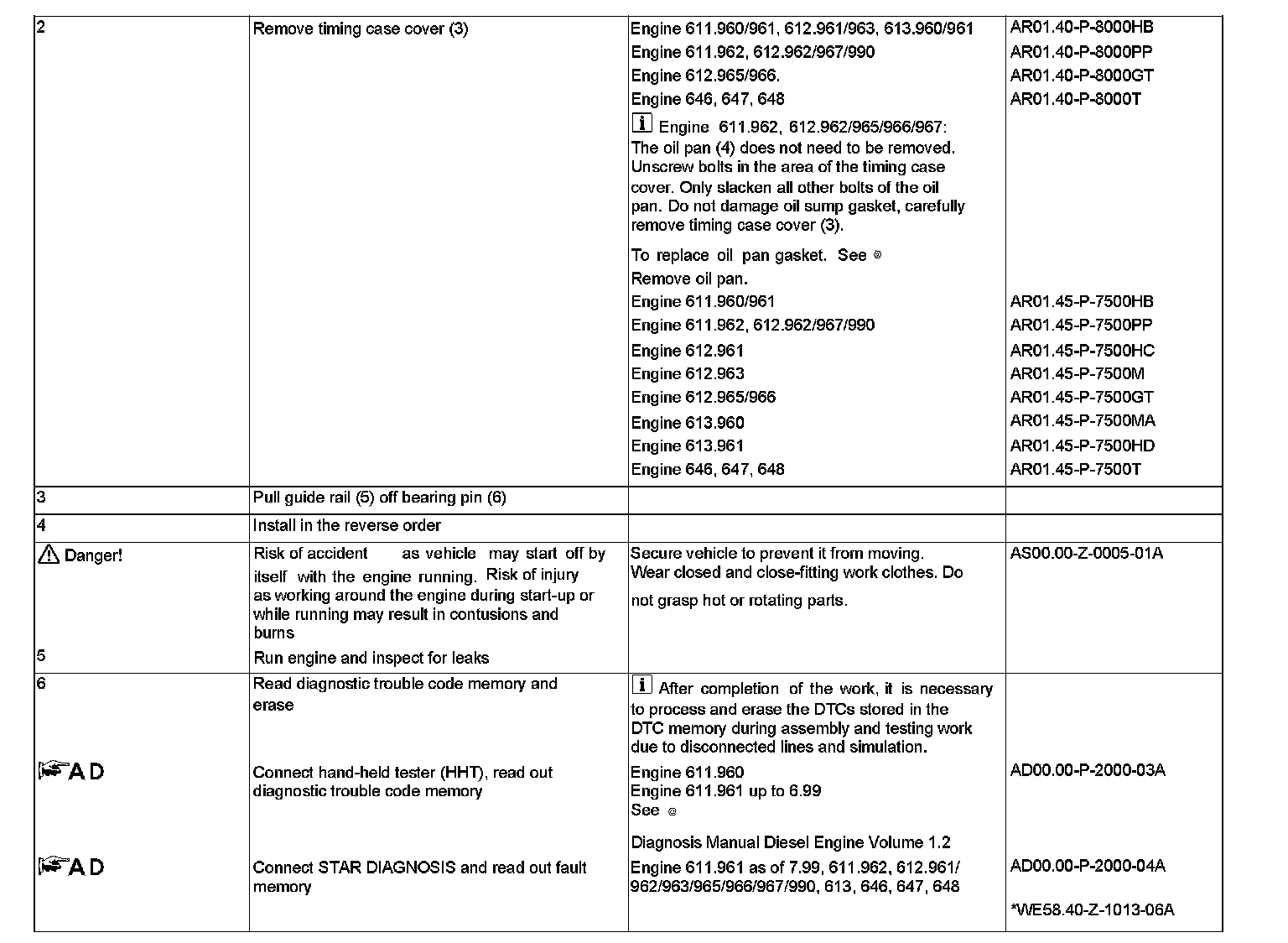

Steps 2-6:

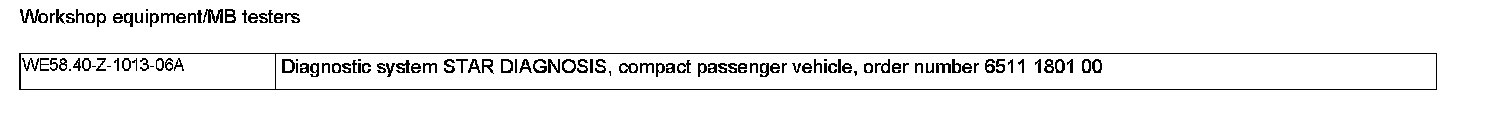

Workshop Equipment/MB Testers:
