AR05.10-P-8127HB Remove/Install Tensioning Rail



AR05.10-P-8127HB Remove/install tensioning rail

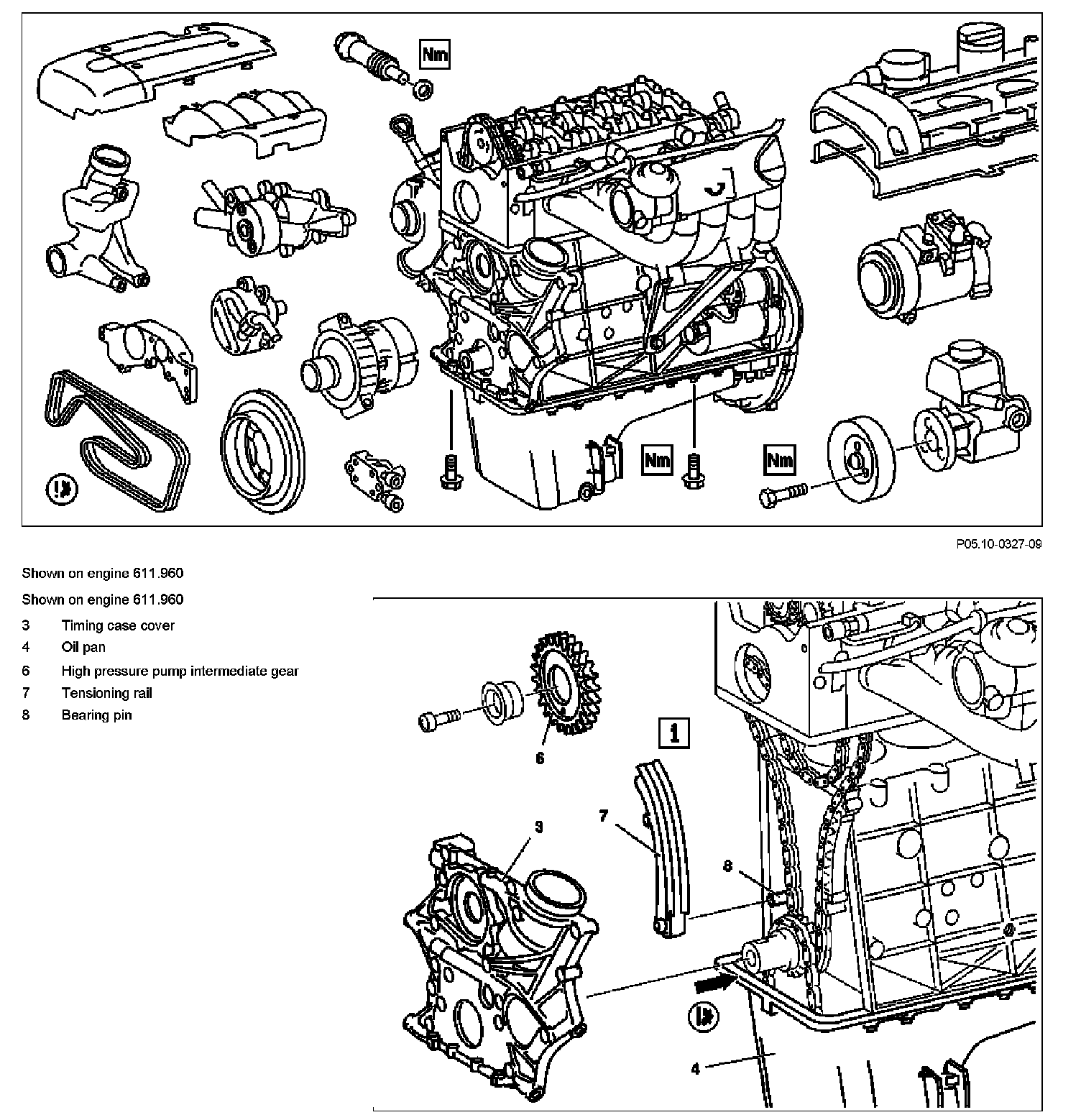

Component Identification:

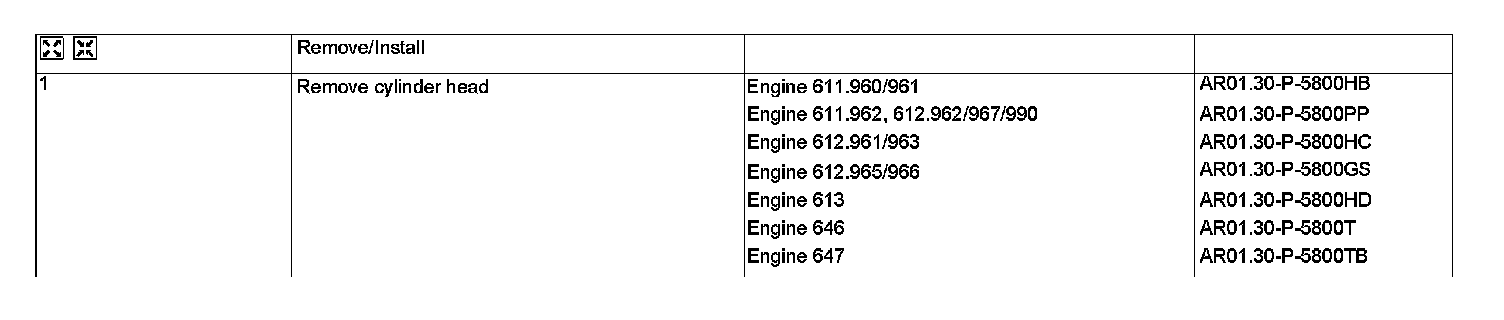

Steps 1:

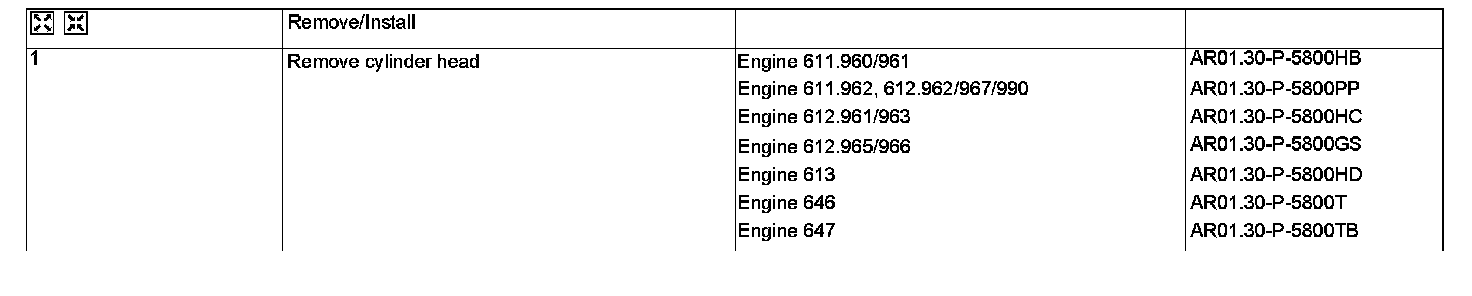

Step 1:

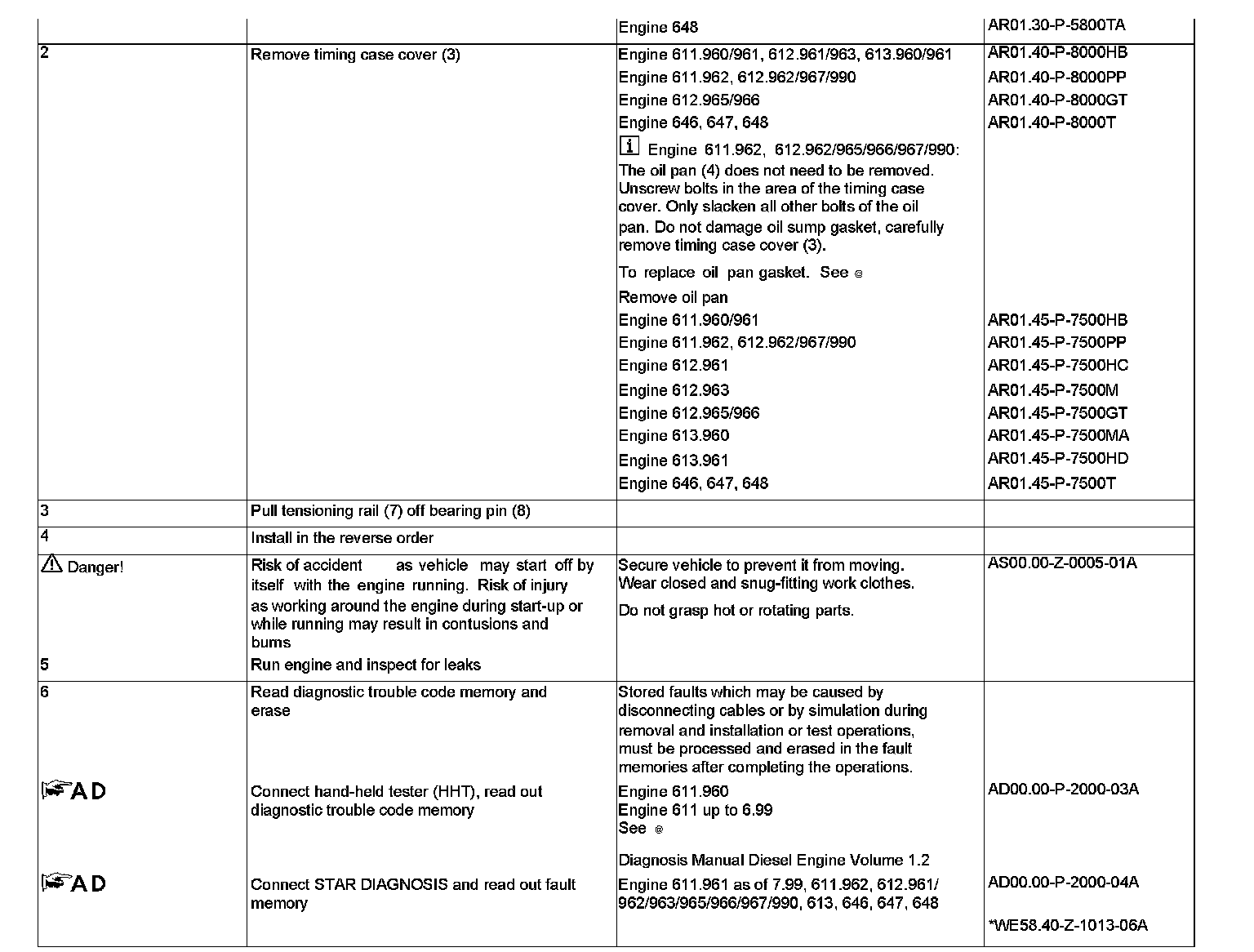

Steps 2-6:




Workshop Equipment/MB Testers:
