Timing Components: Service and Repair
AR05.10-P-4650T Remove high pressure pump intermediate gear, install

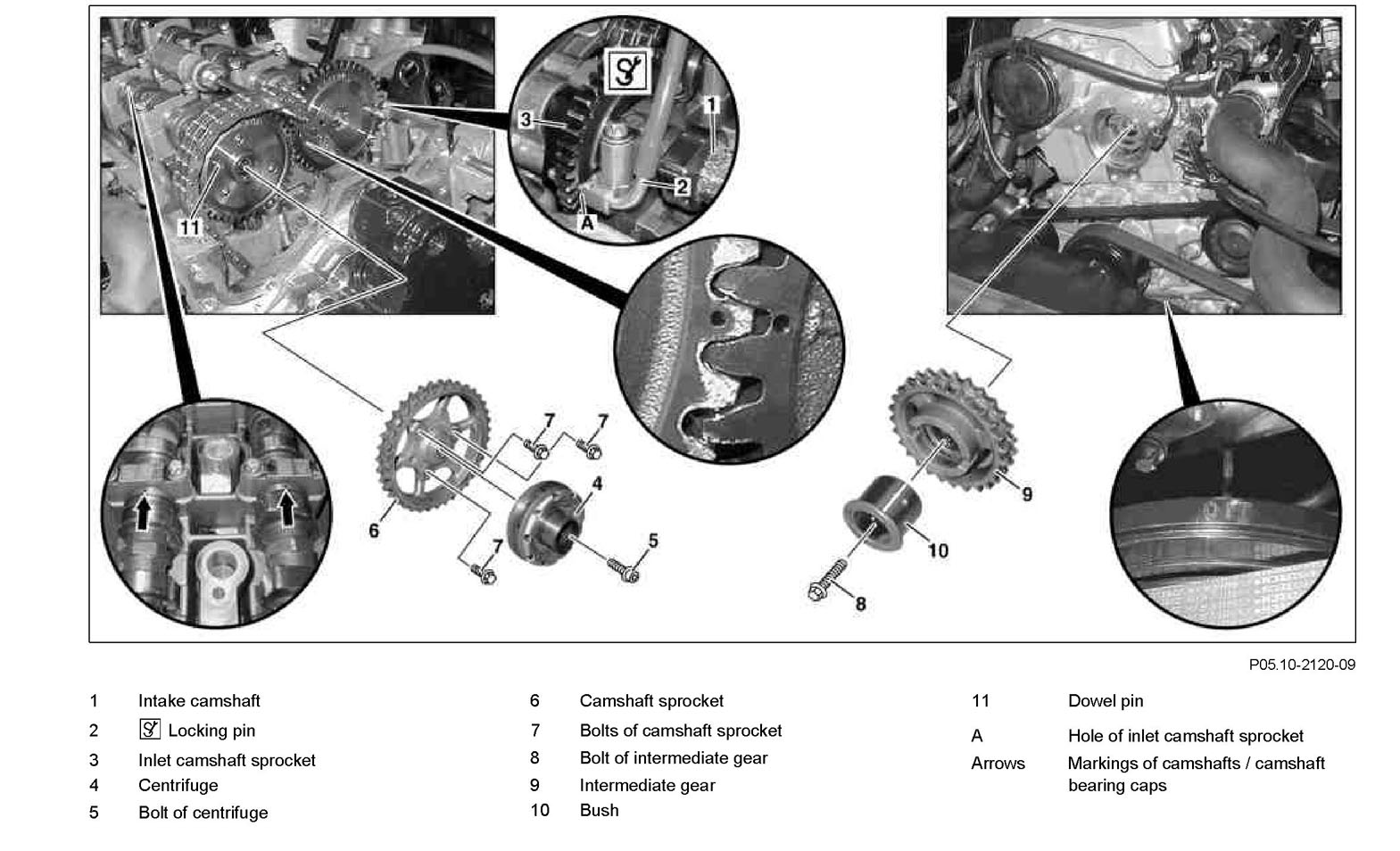

Component Identification:

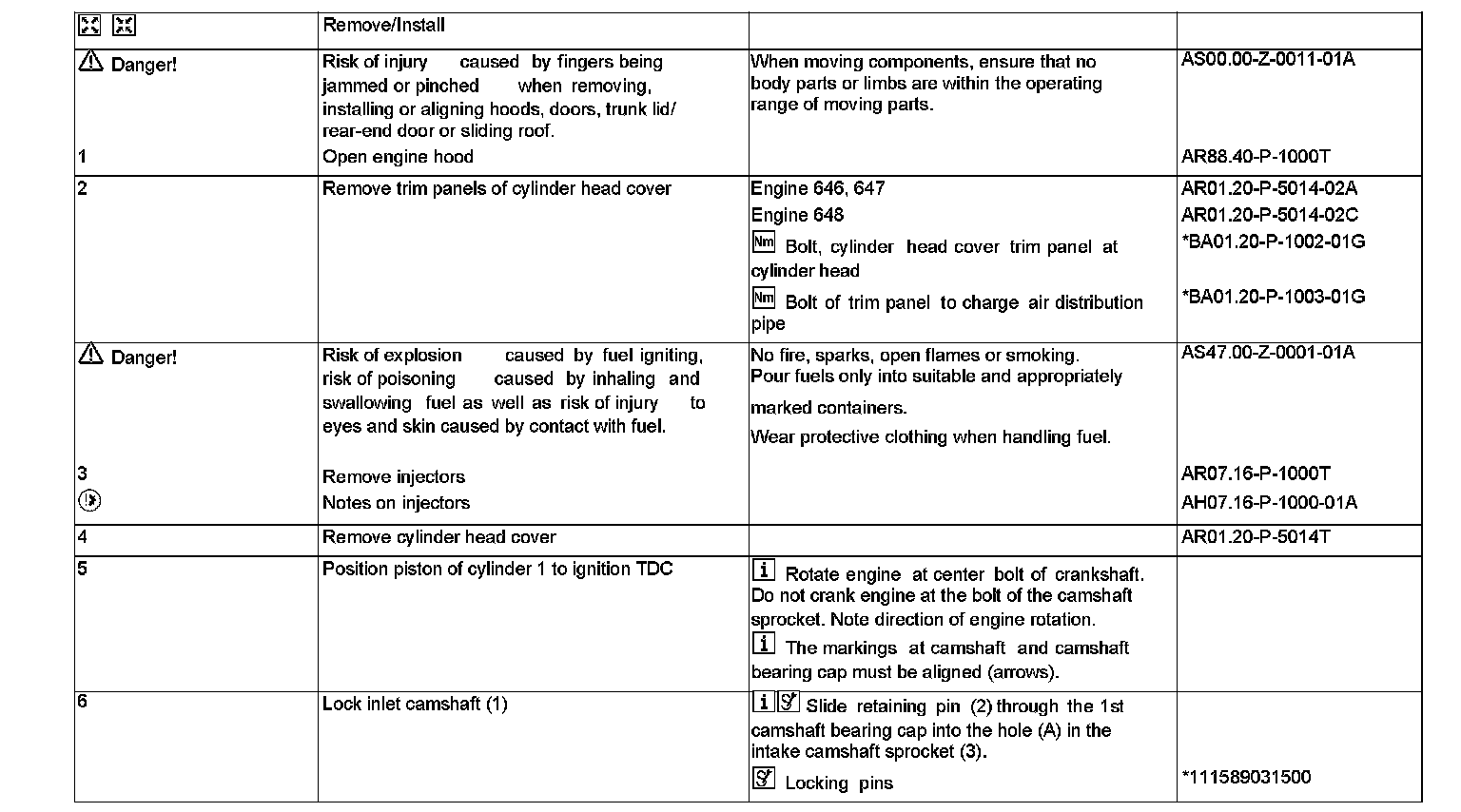

Steps 1-6:

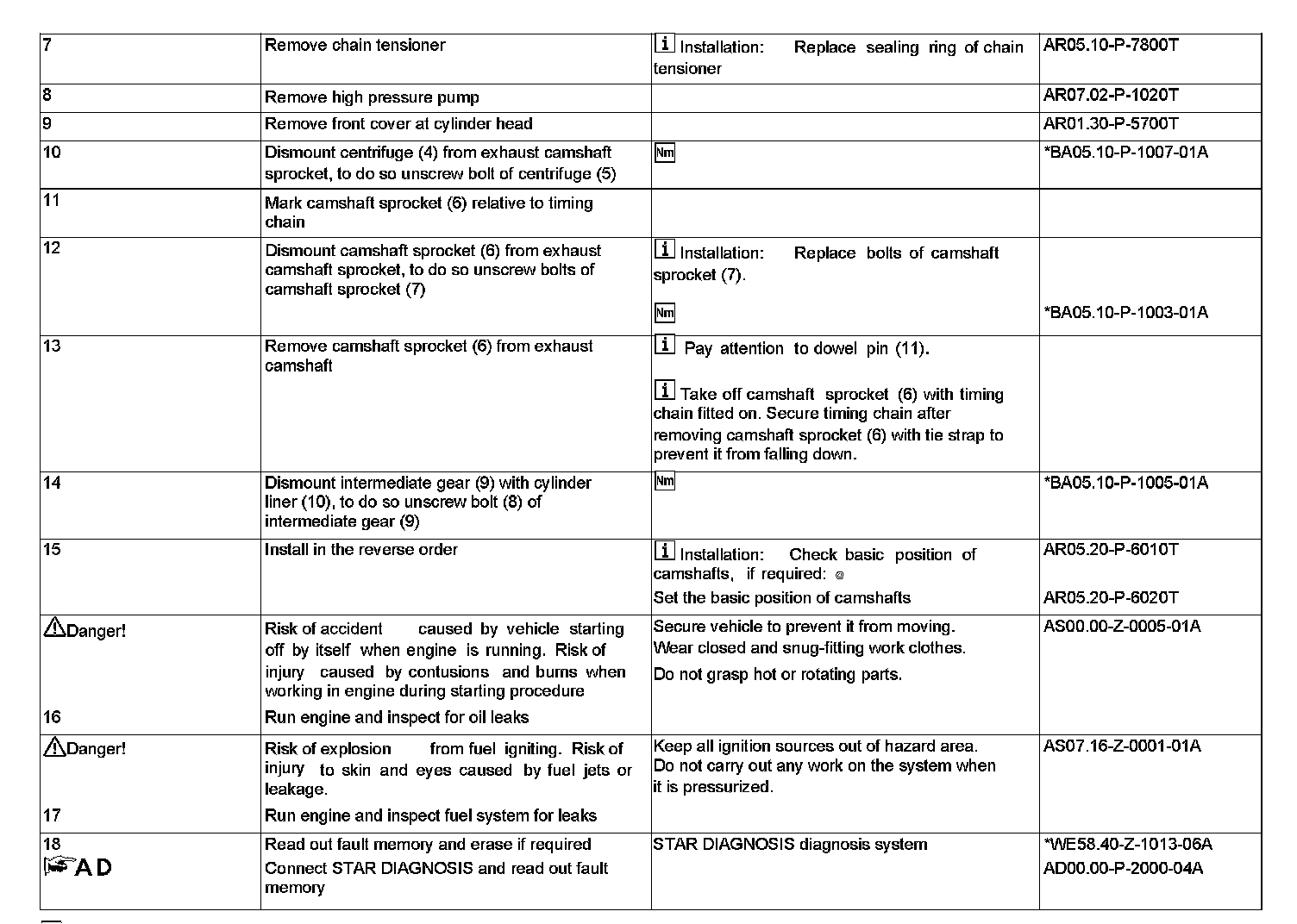

Steps 7-18:

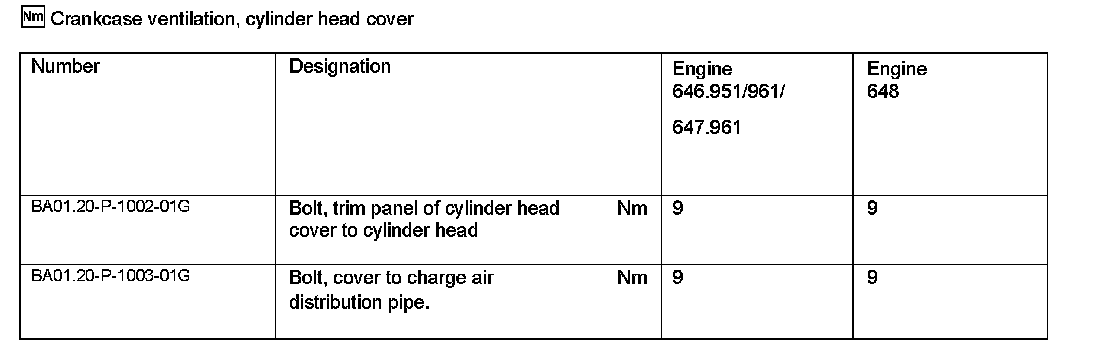

Crankcase Ventilation, Cylinder Head Cover:

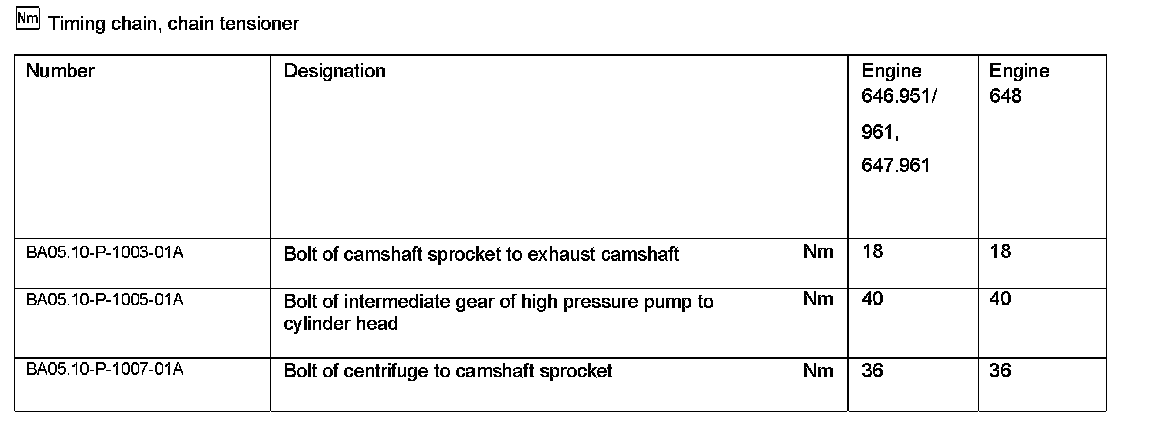

Timing Chain, Chain Tensioner:

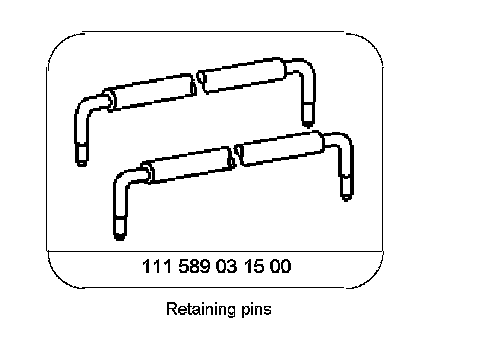

Special Tools:

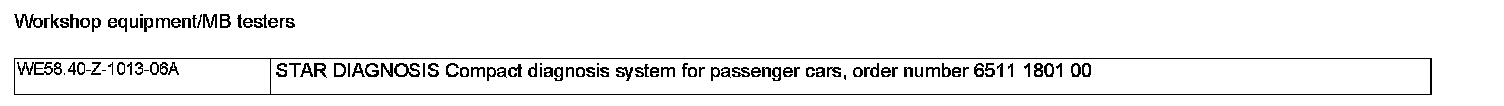

Workshop Equipment/MB Testers:
