AR01.00-P-1300T Inspecting Cylinders For Leaks

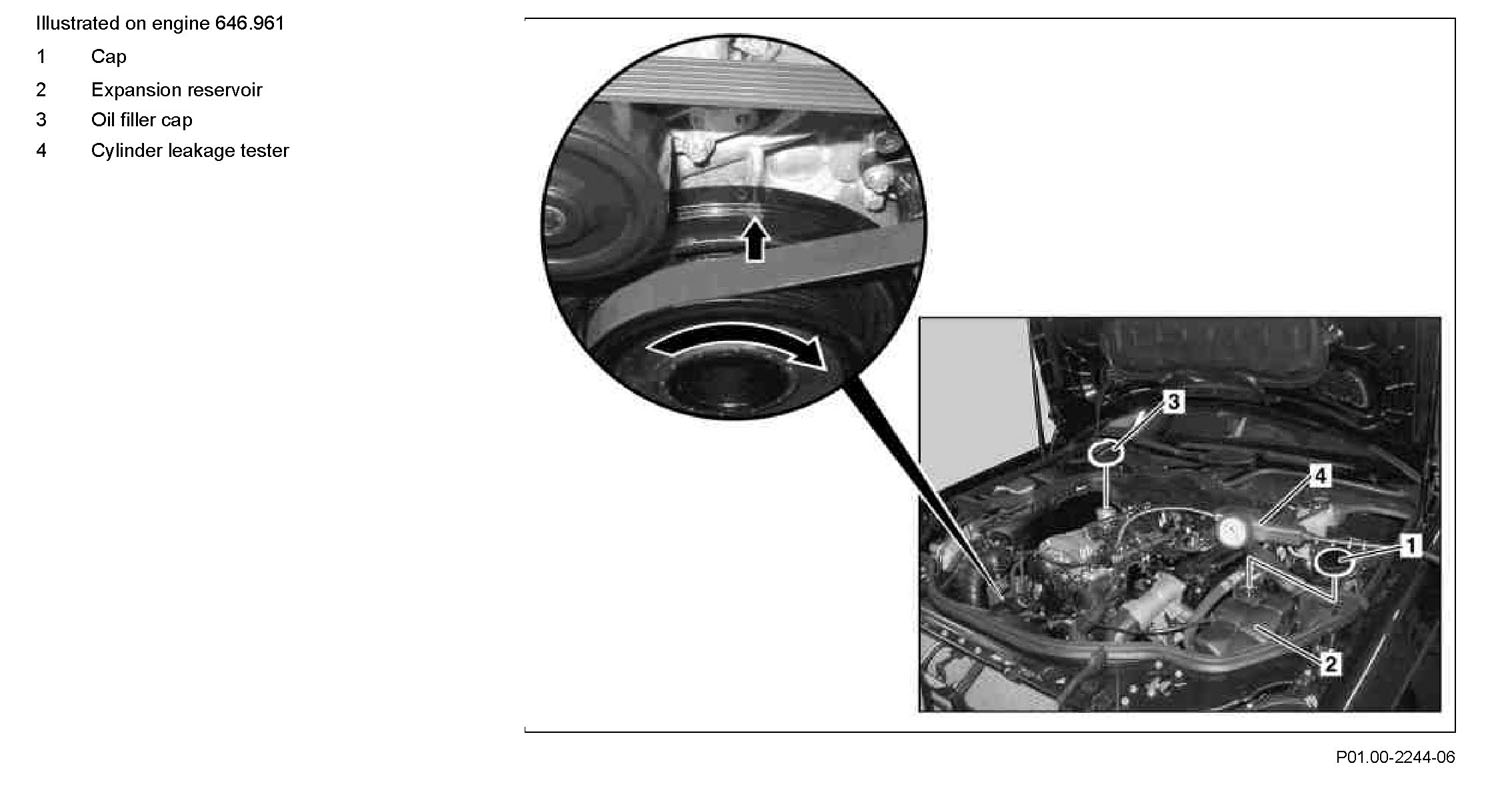

Component Identification:

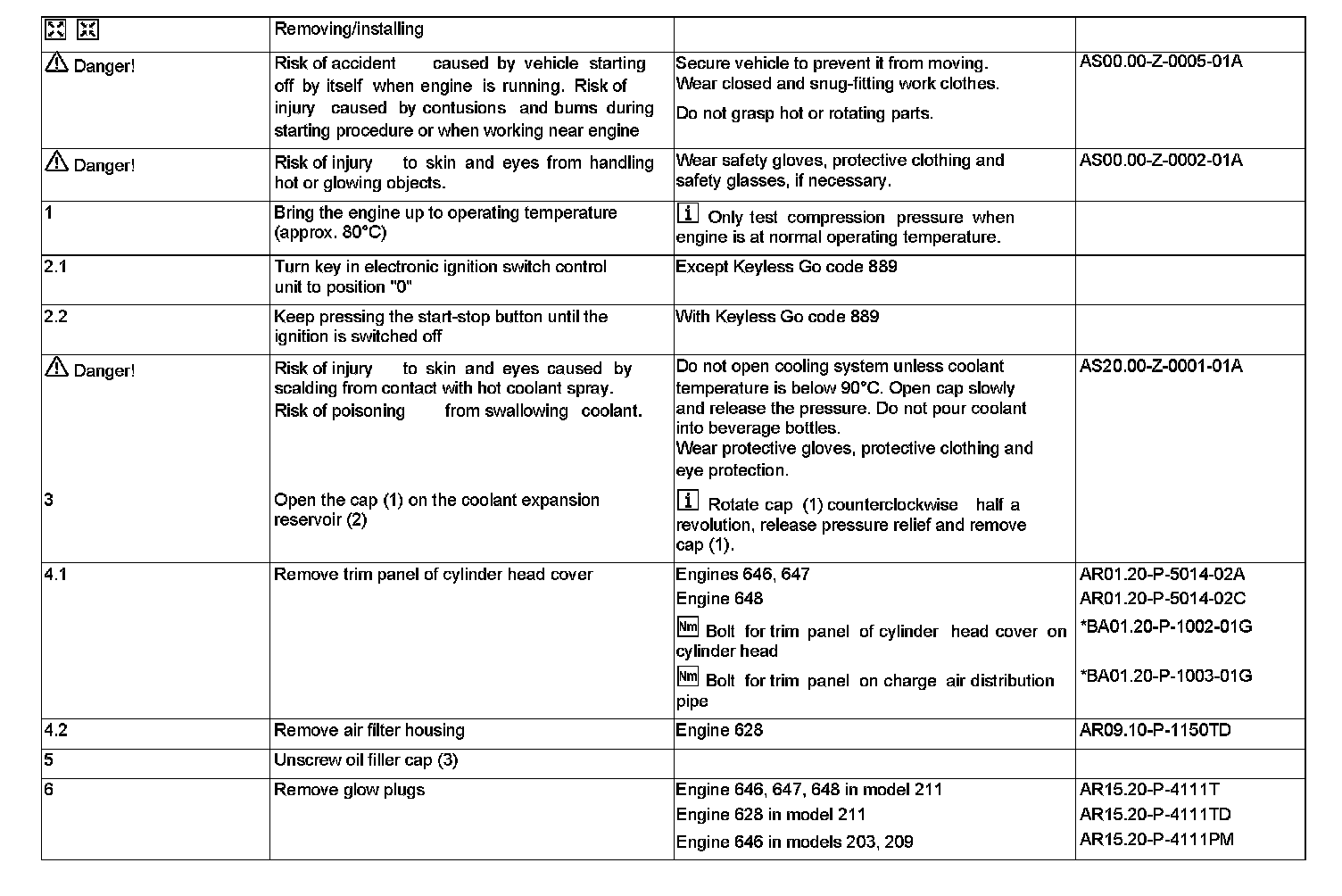

Steps 1-6:

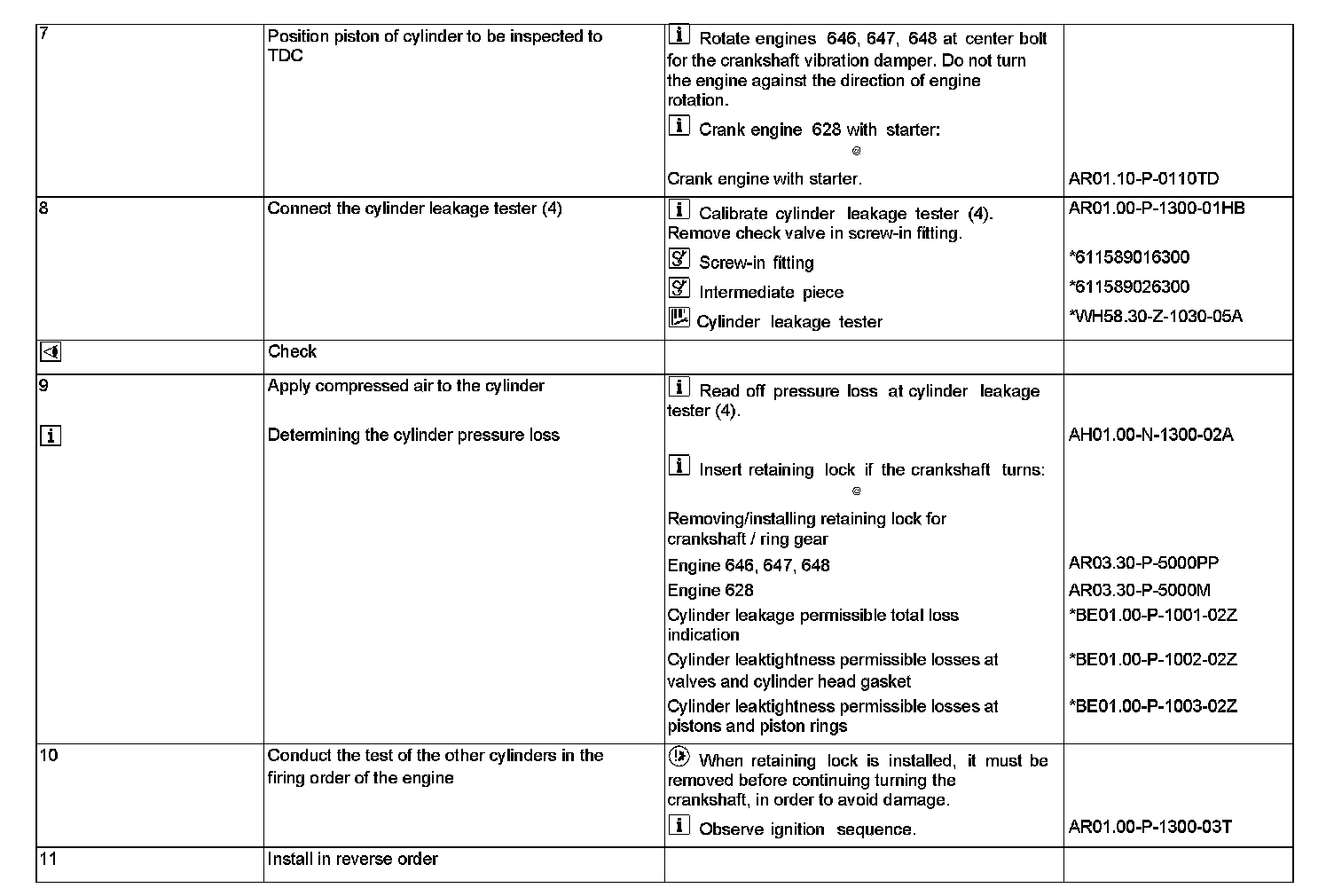

Steps 7-11:

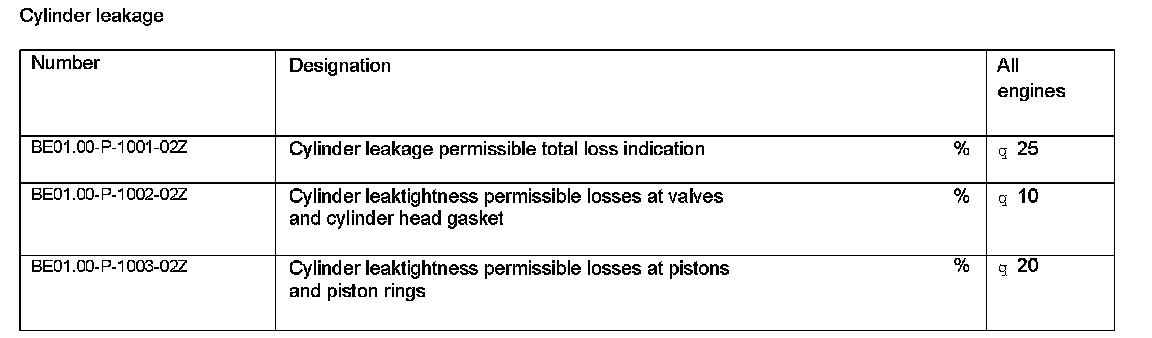

Cylinder Leakage:

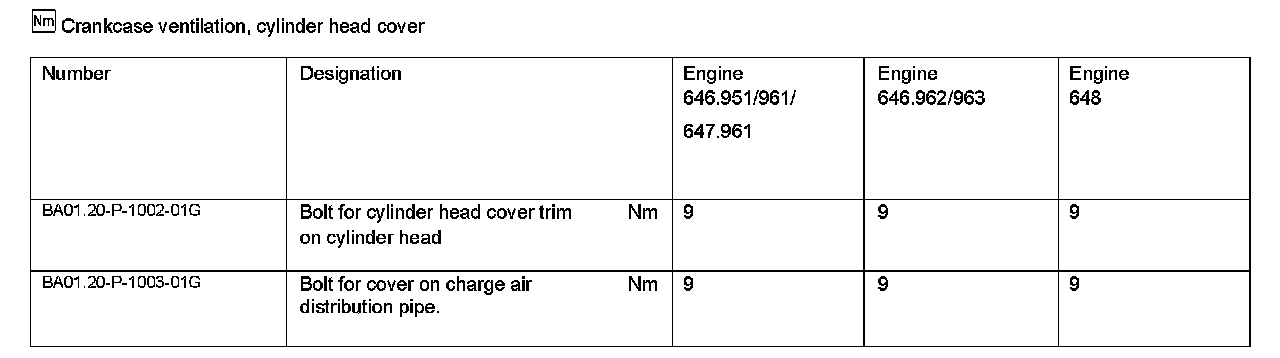

Crankcase Ventilation, Cylinder Head Cover:

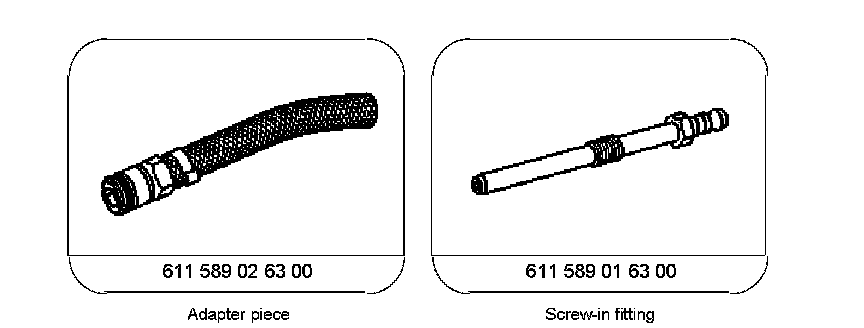

Special Tools:

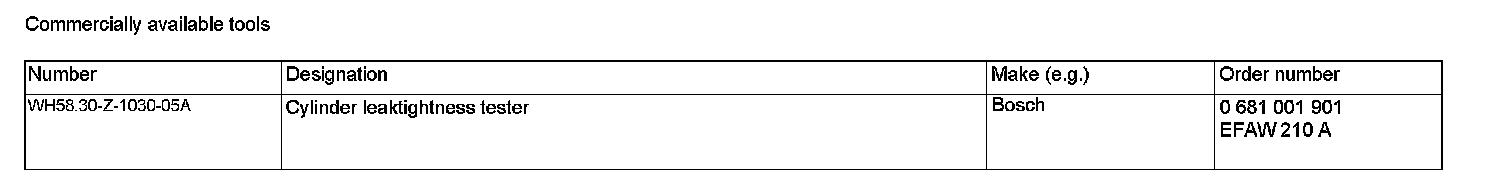

Commercially Available Tools:
