AR01.00-P-2410TB Disconnecting, Connecting Engine Wiring Harness


AR01.00-P-2410TB Disconnecting, connecting engine wiring harness

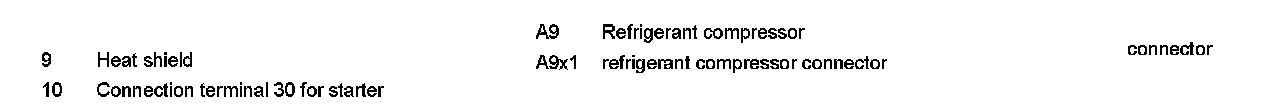

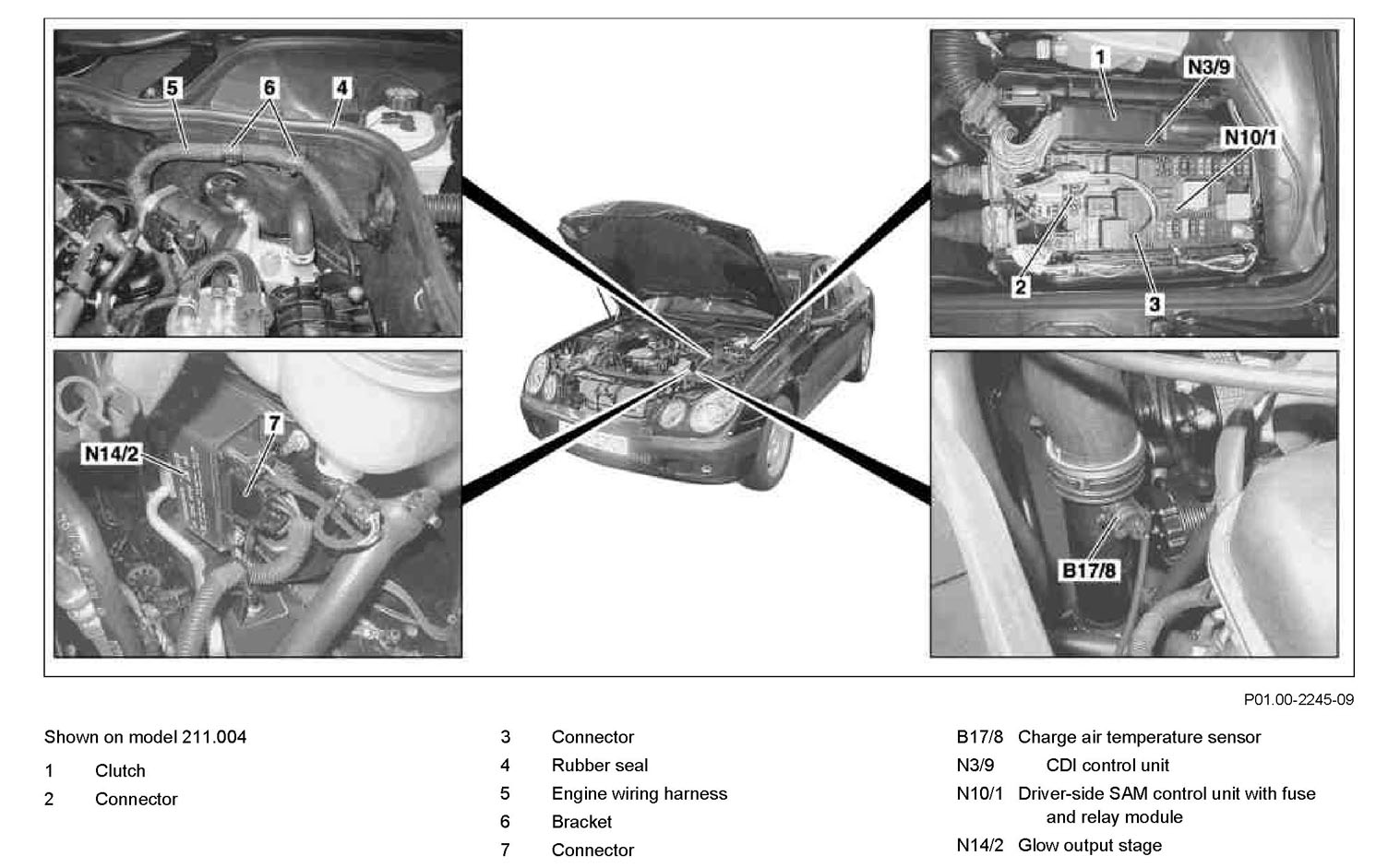

Component Identification:

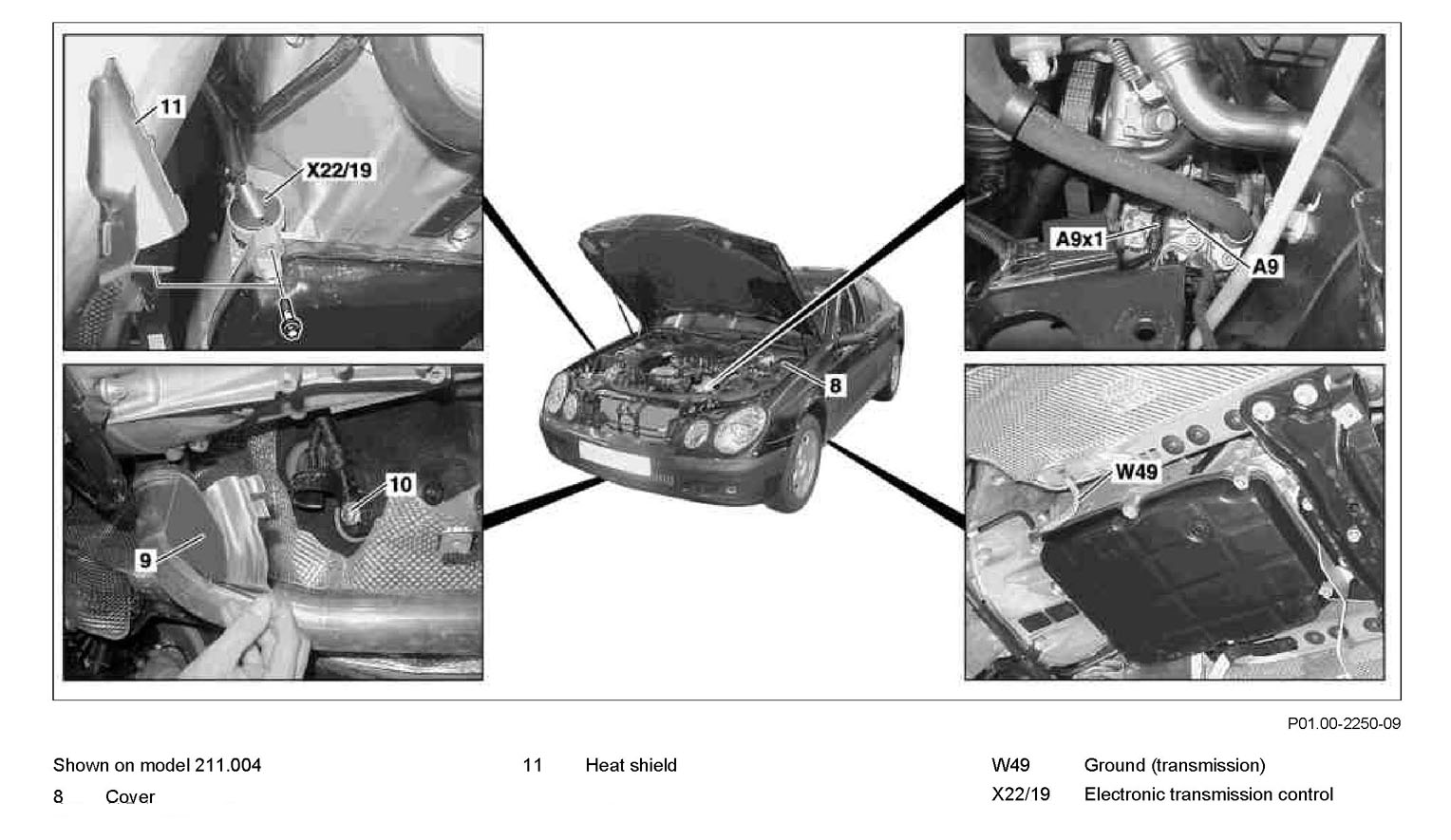

Component Identification:




Component Identification:

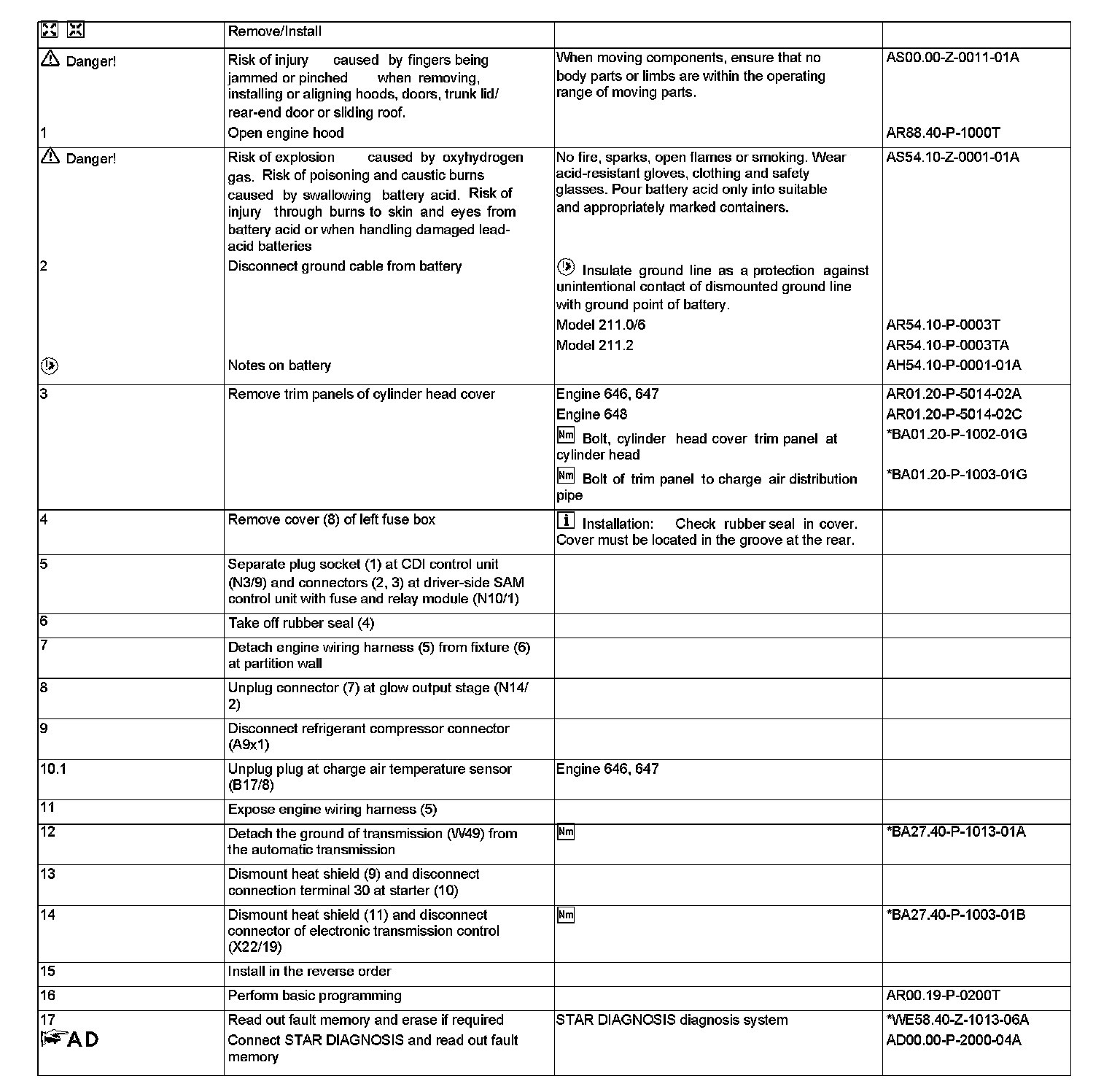

Steps 1-17:

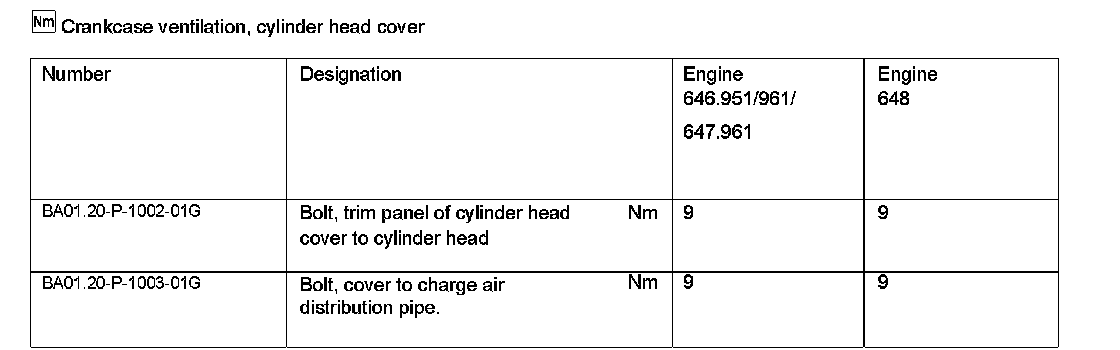

Crankcase Ventilation, Cylinder Head Cover:

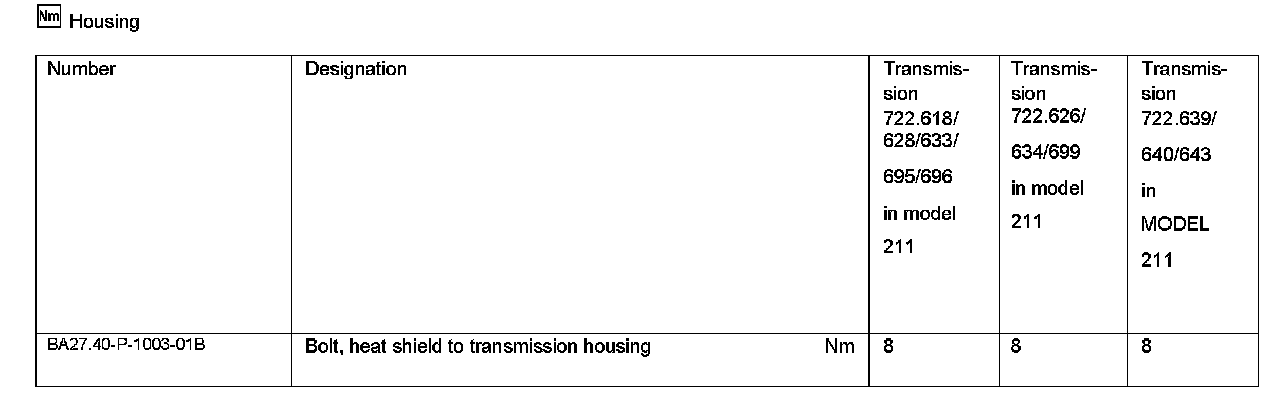

Housing:

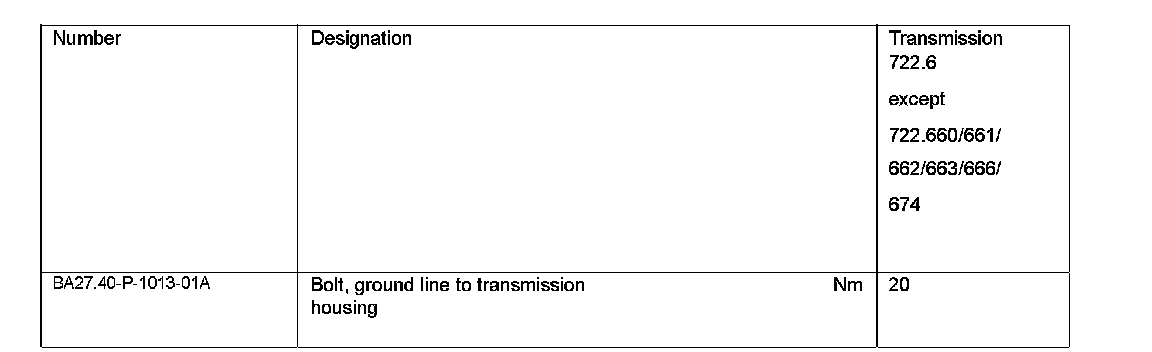

Housing:

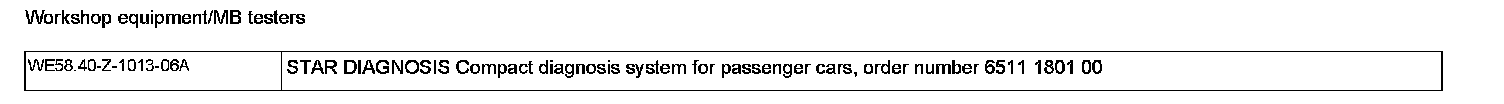

Workshop Equipment/MB Testers:
