Procedures



AR03.20-P-3000T Replace front crankshaft radial seal

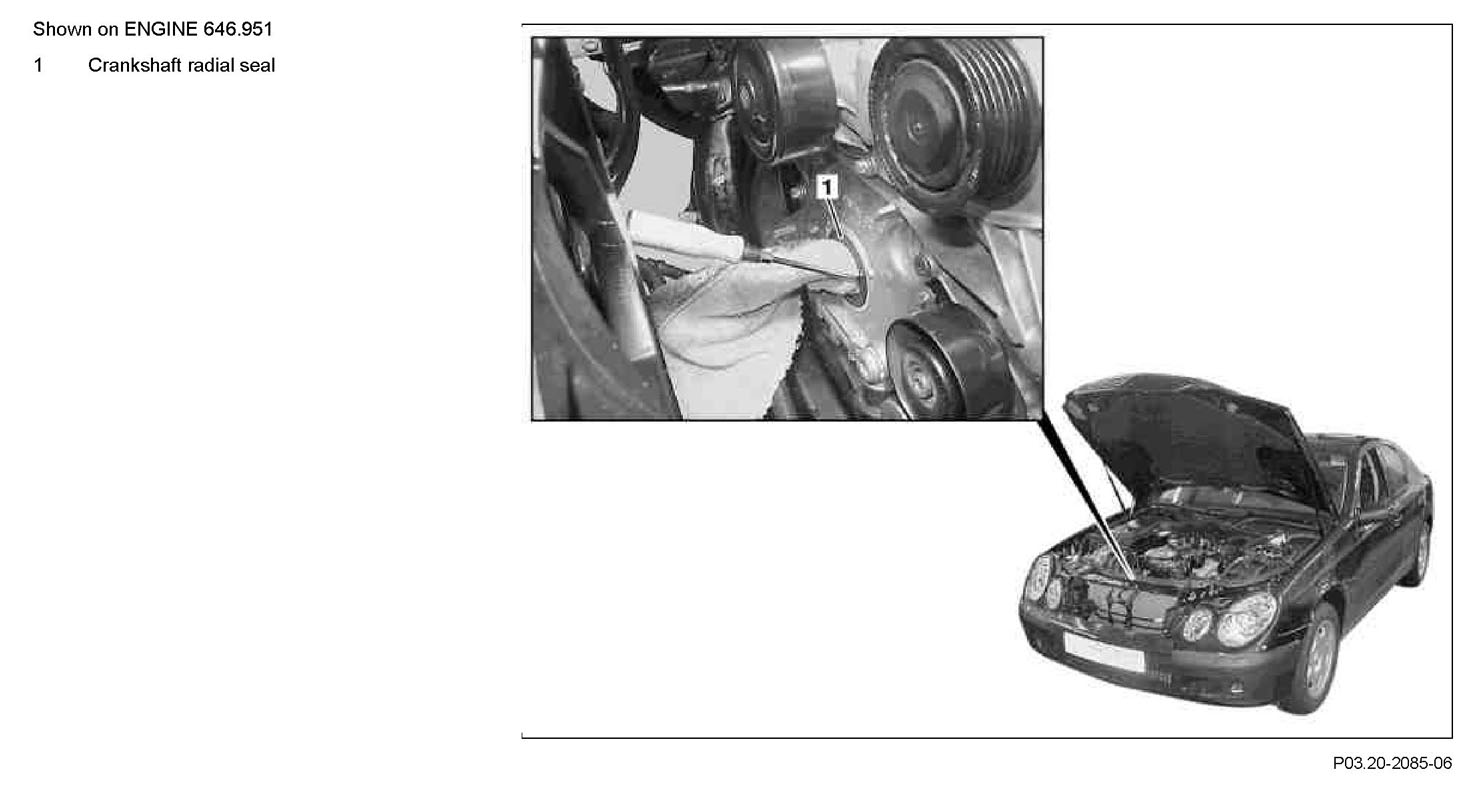

Component Identification:

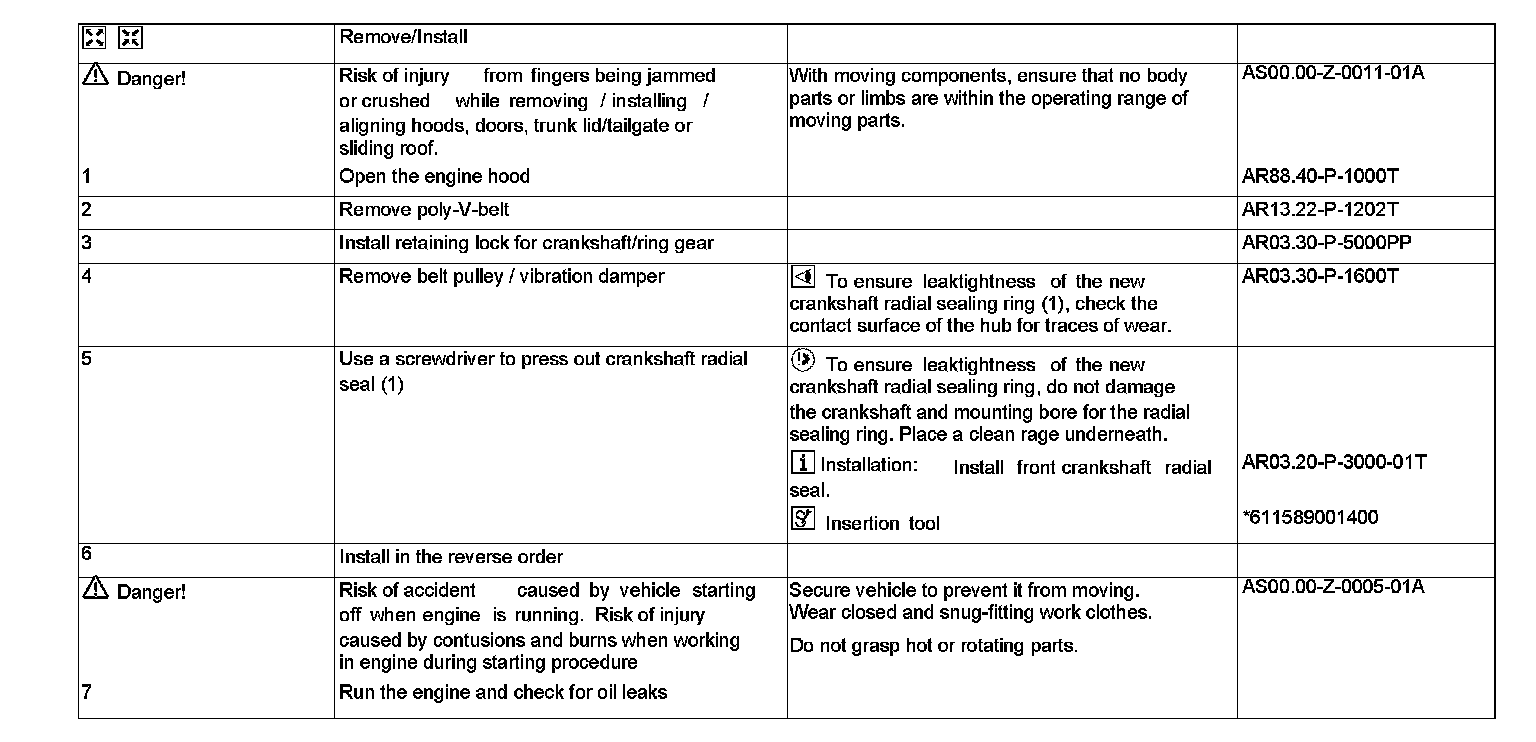

Steps 1-7:

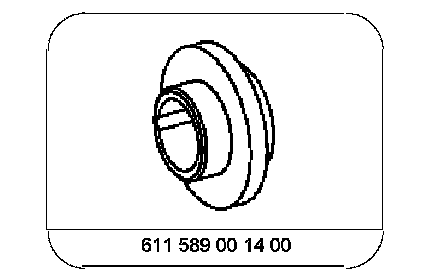

Special Tools:
