Removal and Replacement

AP18.00-P-0101TC Engine Oil and filter change

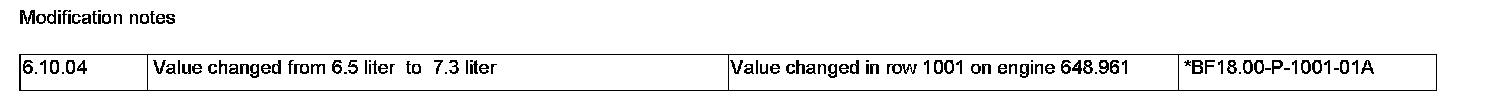

Modification Notes:

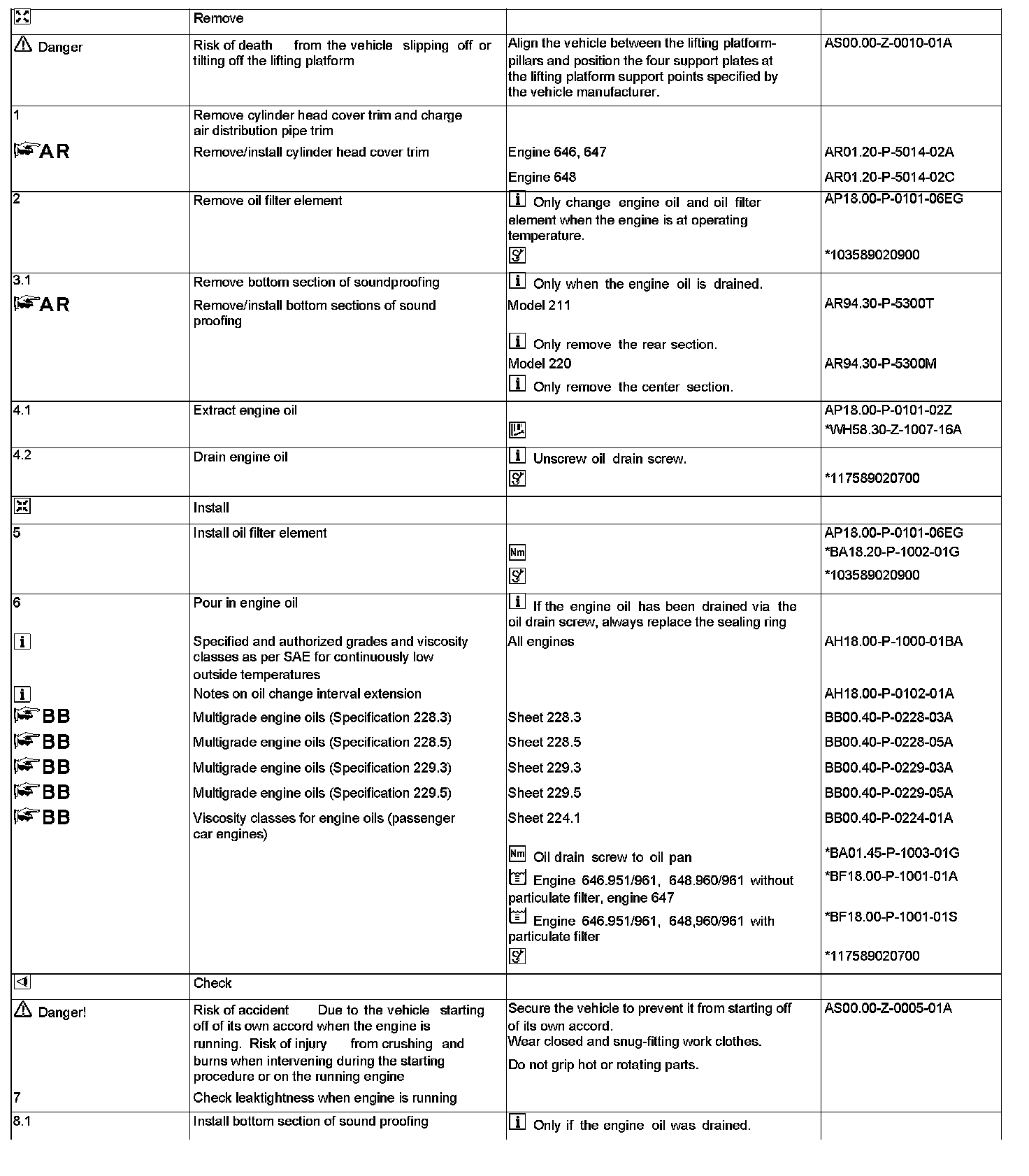

Steps 1-8.1:

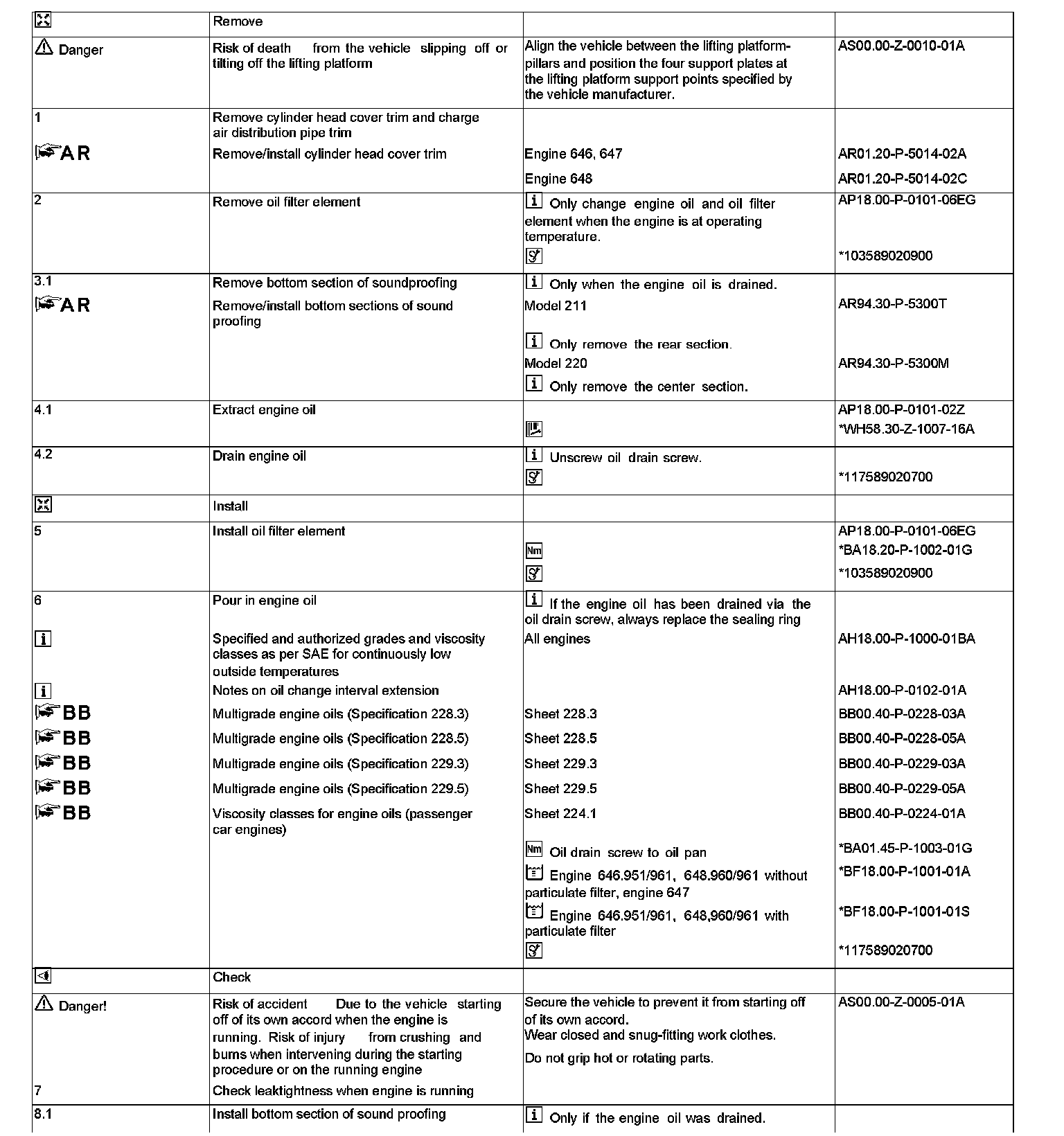

Steps 1-8.1:

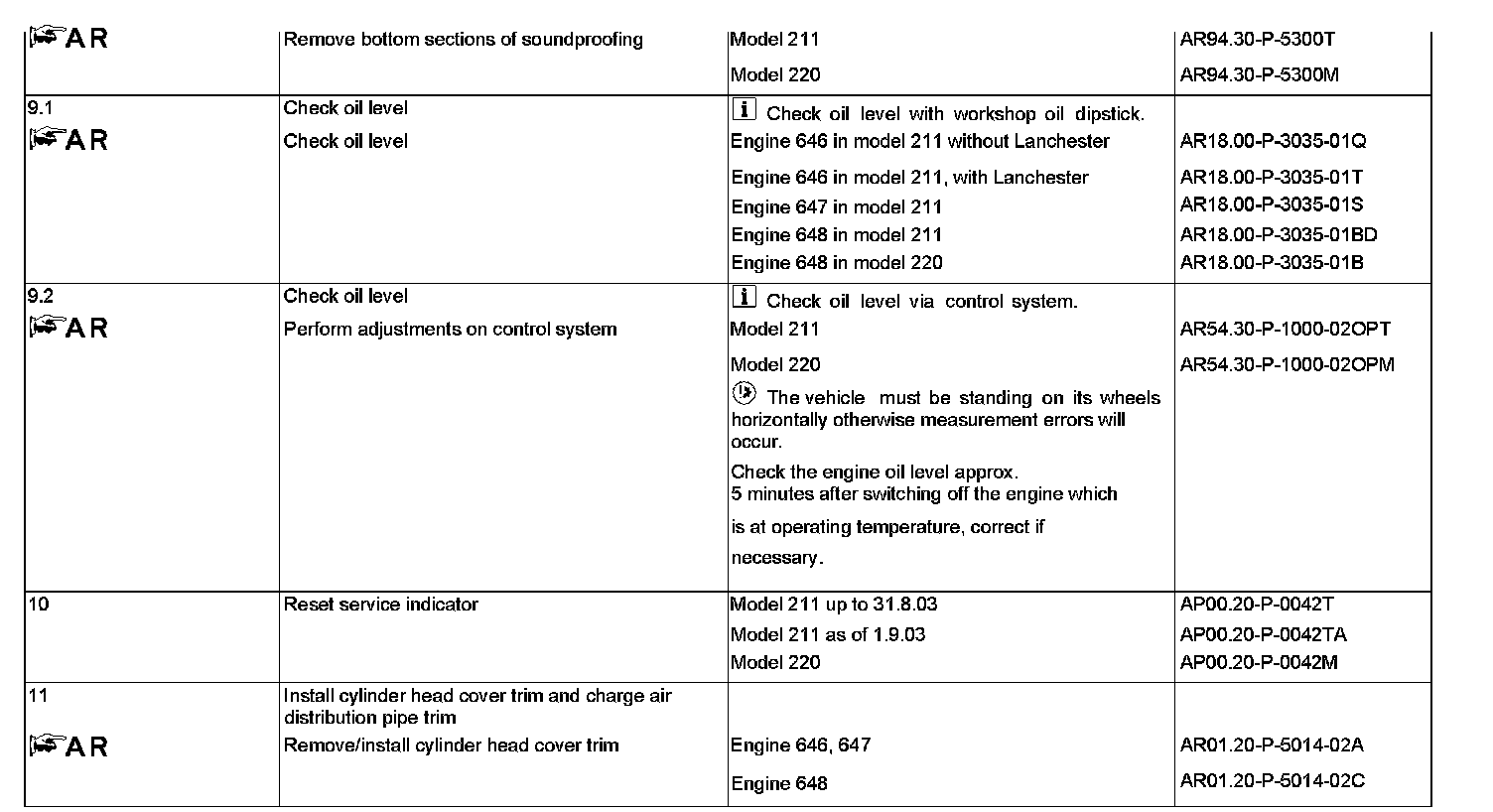

Steps 9.1-11:

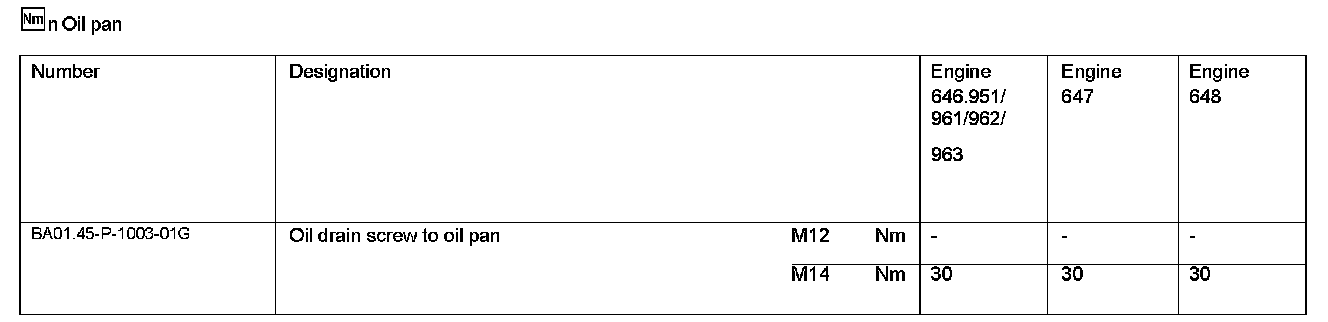

Oil Pan:

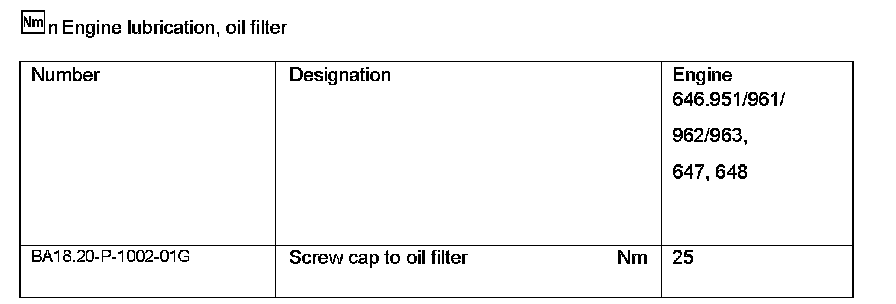

Engine Lubrication, Oil Filter:

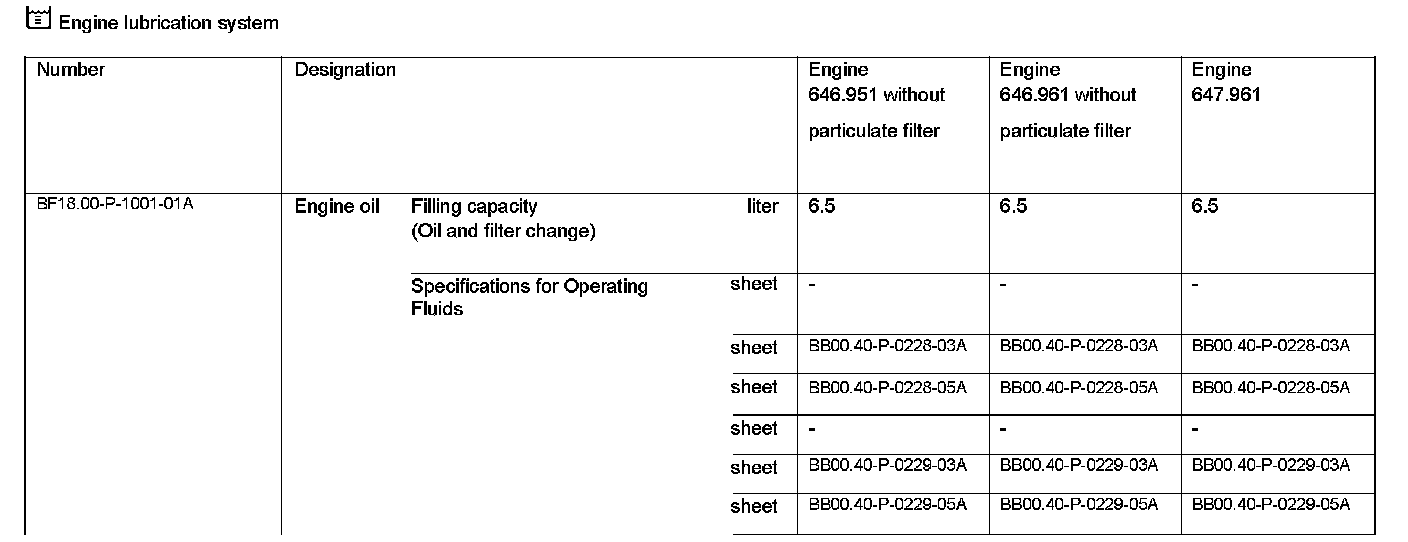

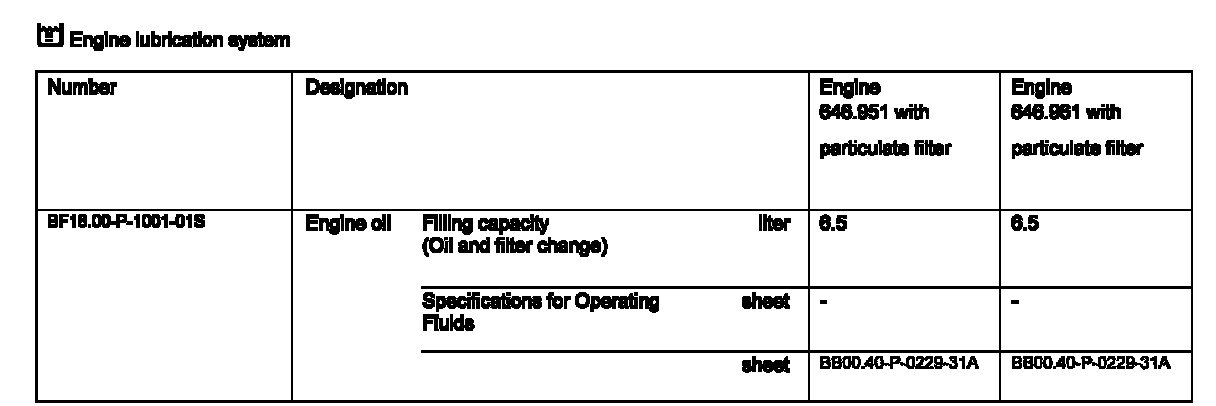

Engine Lubrication System:

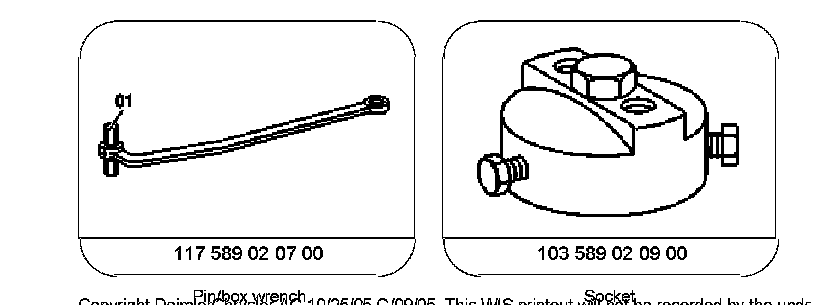

Special Tools:

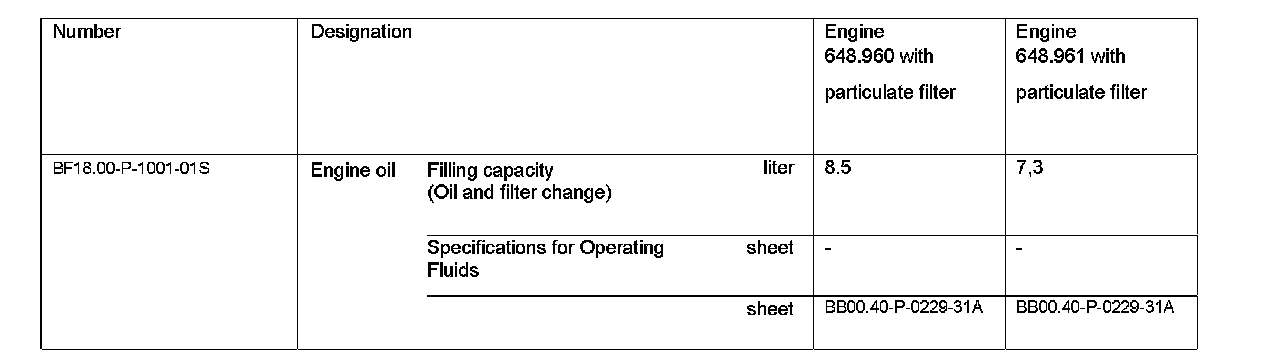

Engine Lubrication:

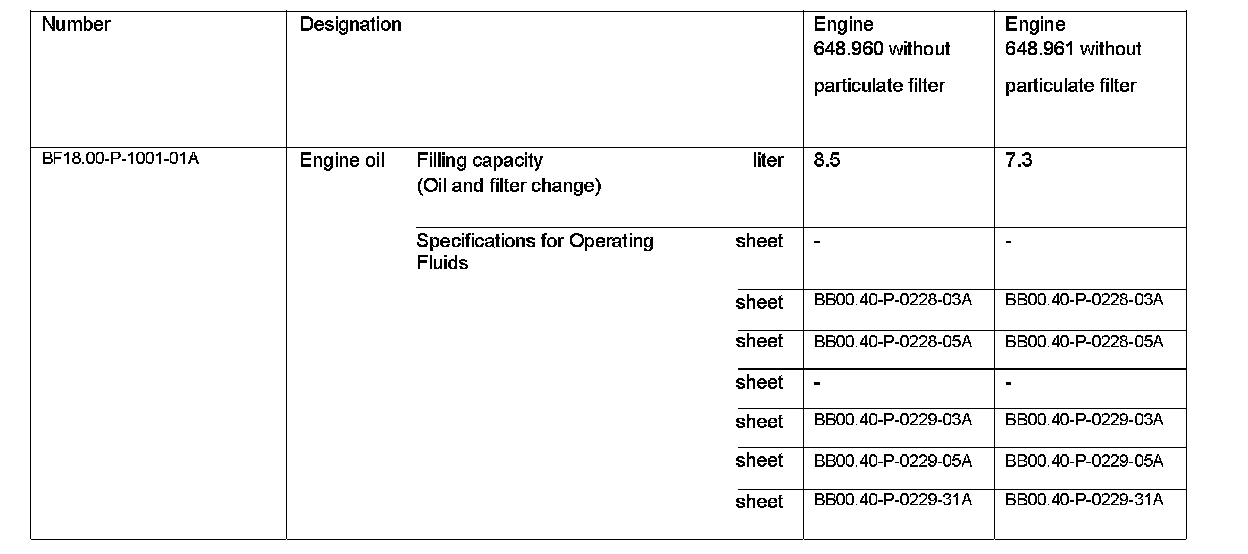

Engine Lubrication:

Engine Lubrication:

Special Tools:

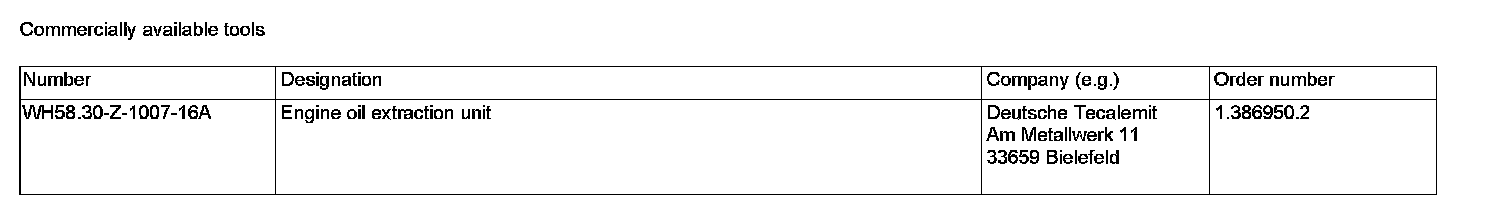

Commercially Available Tools:
