AR18.10-P-6020TB Remove/Install Oil Pump
AR18.10-P-6020TB Remove/Install Oil Pump
AR18.10-P-6020TB Remove/install oil pump

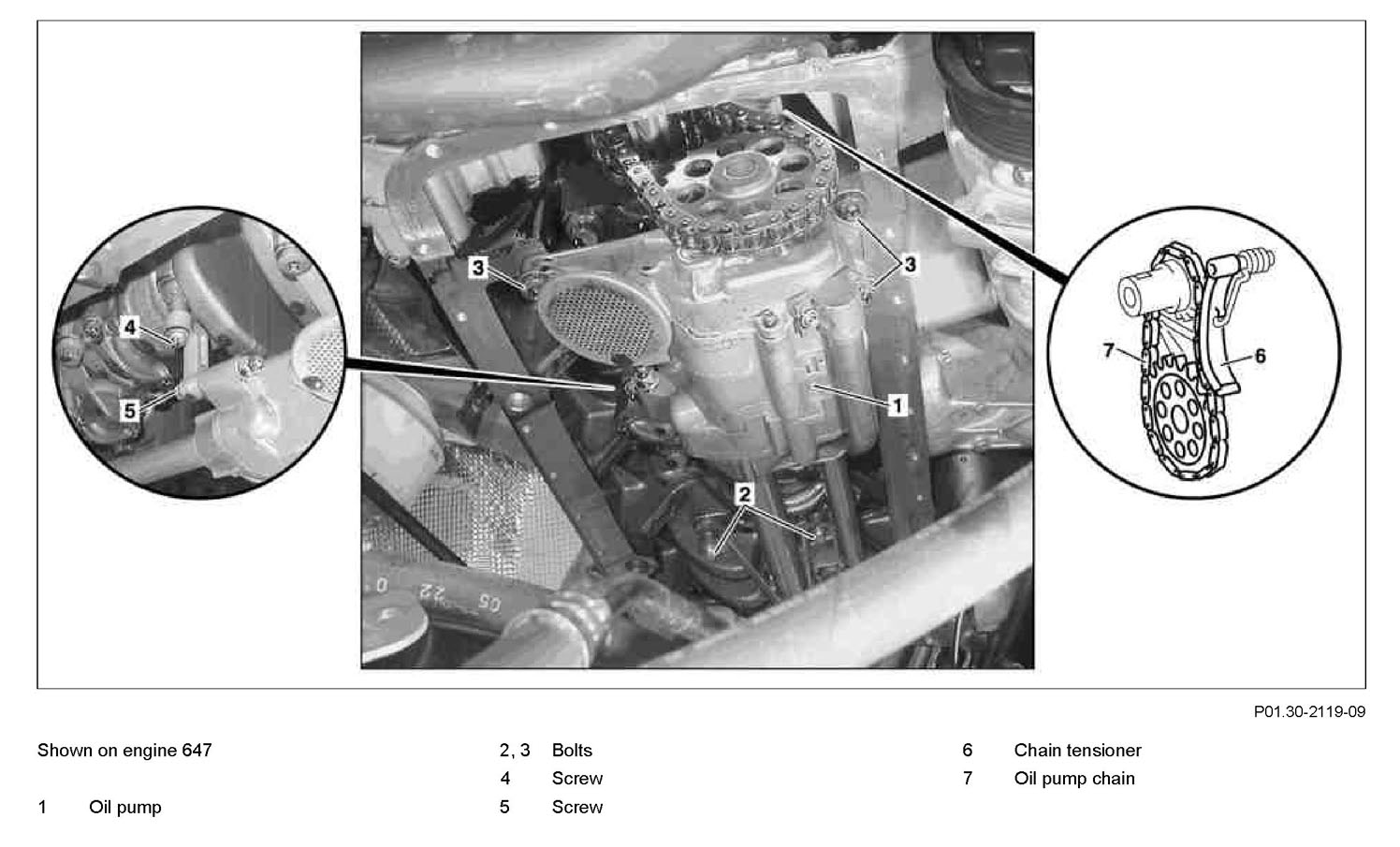

Component Identification:

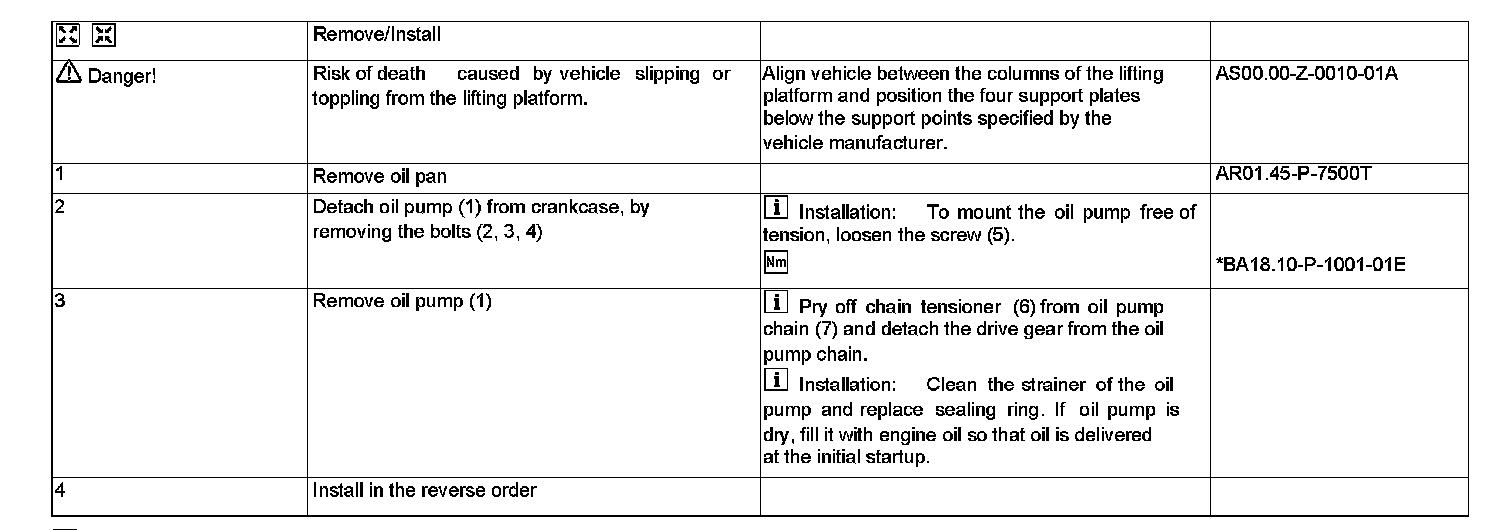

Steps 1-4:
Oil Pump:
