AR18.10-P-2140T Replace Oil Pump Chain
AR18.10-P-2140T Replace Oil Pump Chain
AR18.10-P-2140T Replace oil pump chain

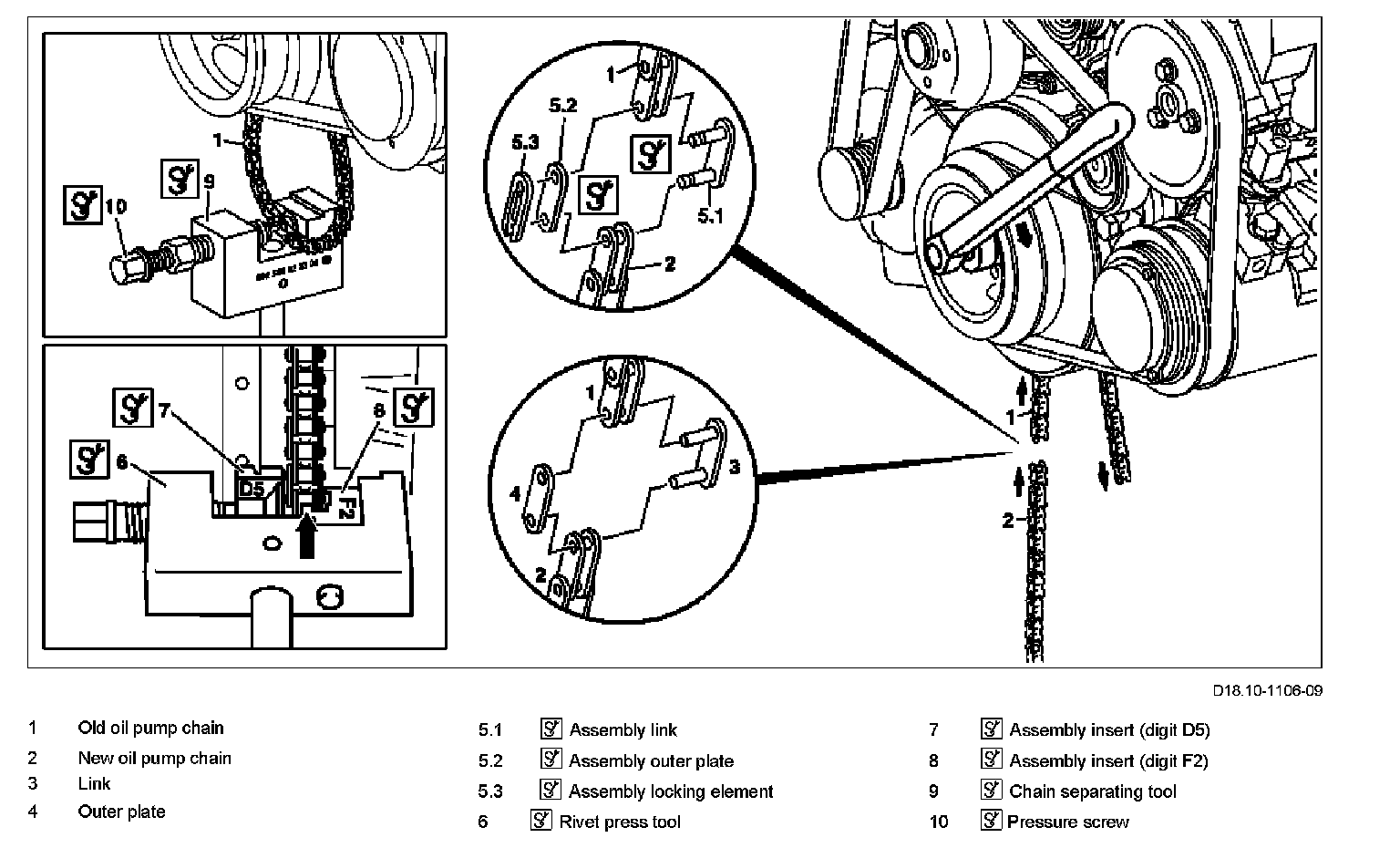

Component Identification:

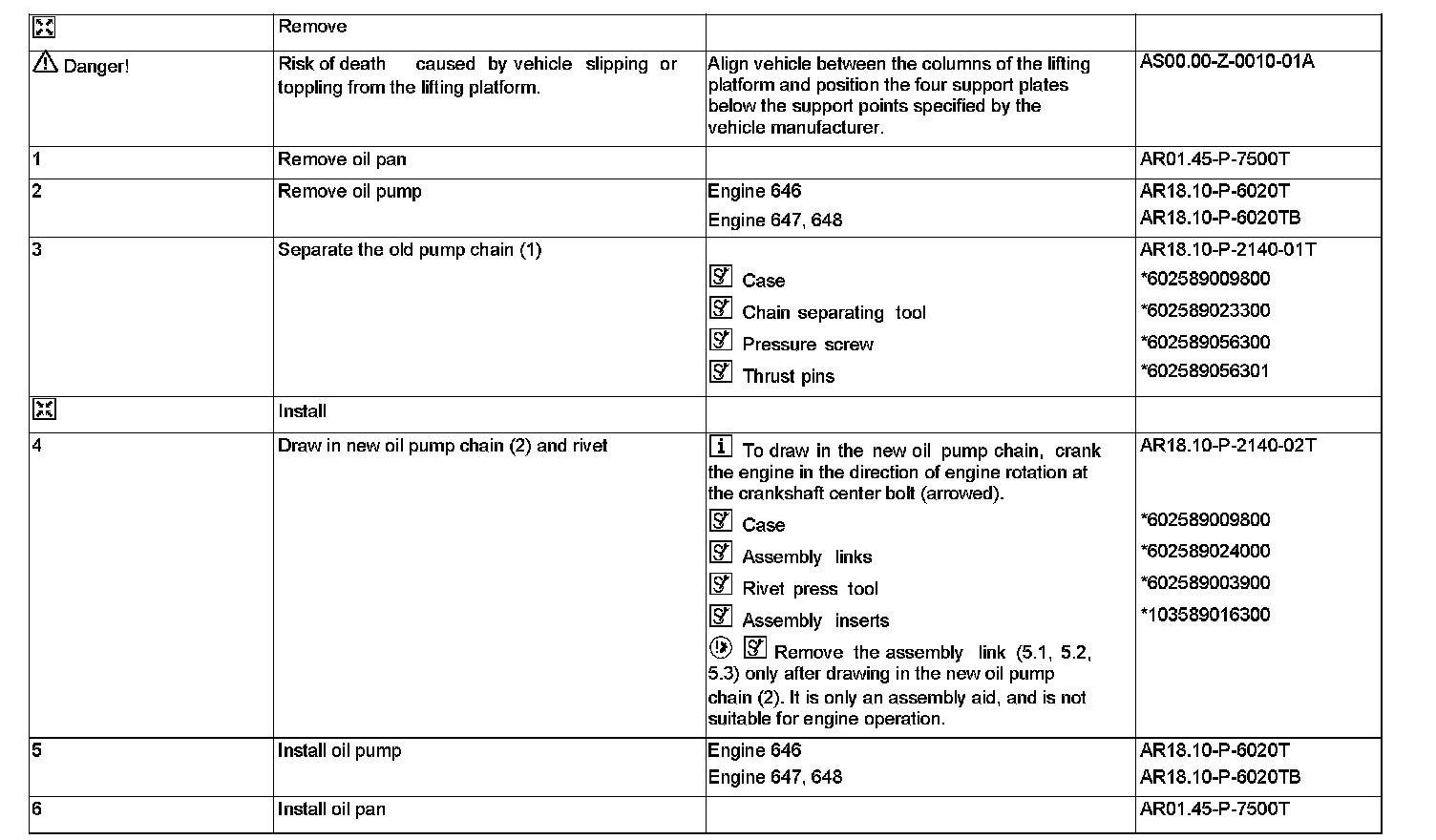

Steps 1-6:

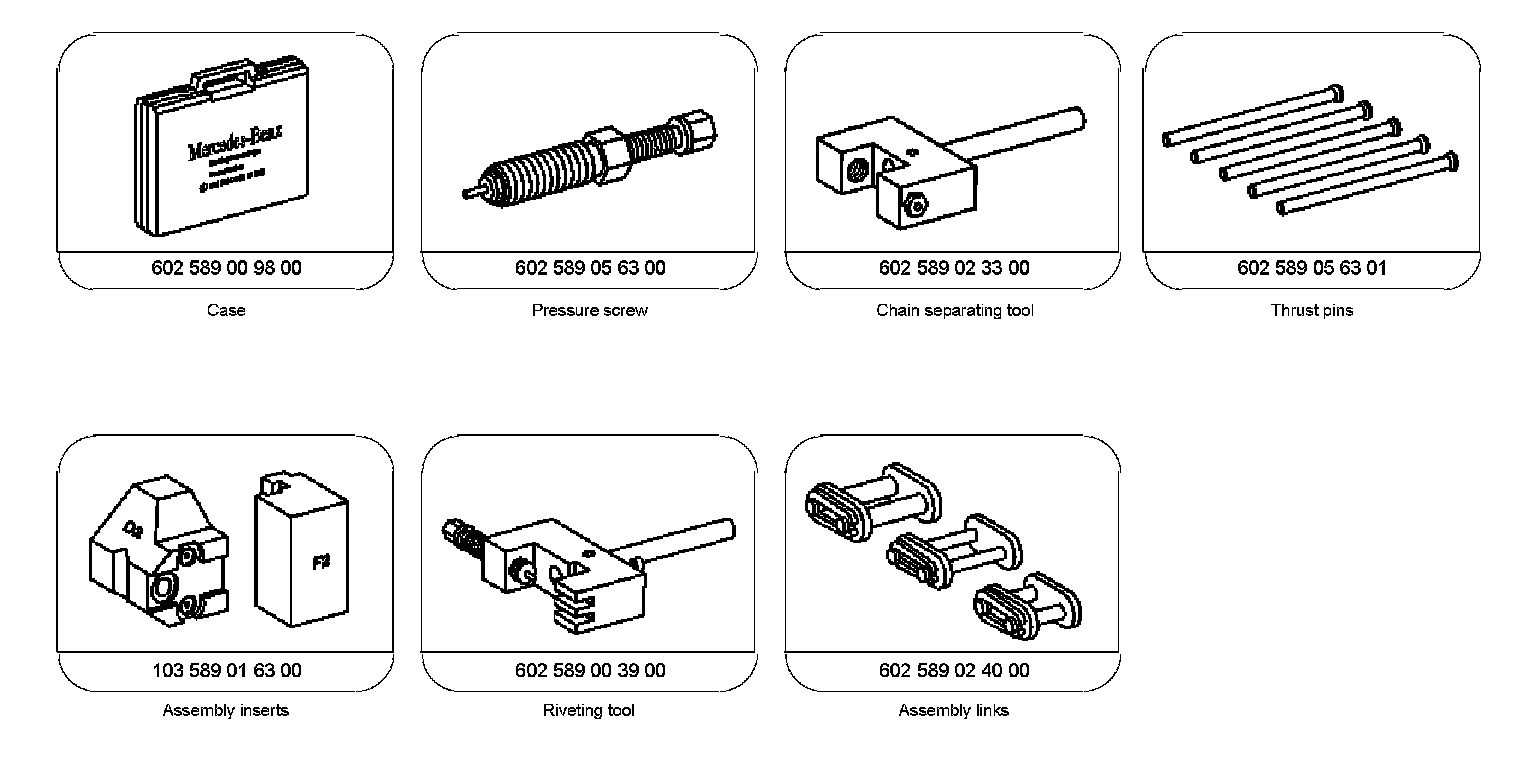

Special Tools:
