Oil Cooler: Service and Repair



AR18.30-P-3481T Removing/installing the oil/water heat exchanger on oil filter

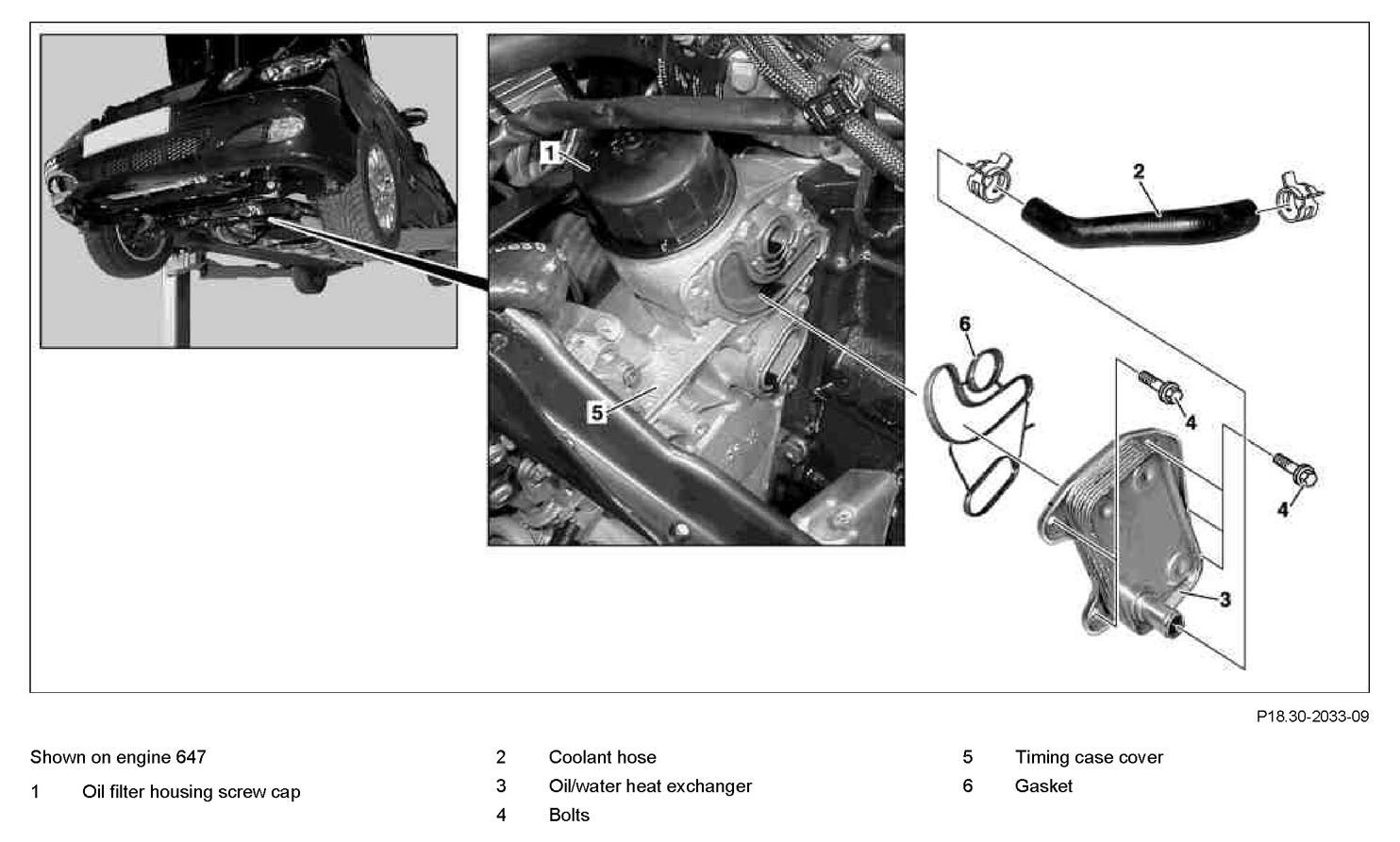

Component Identification:

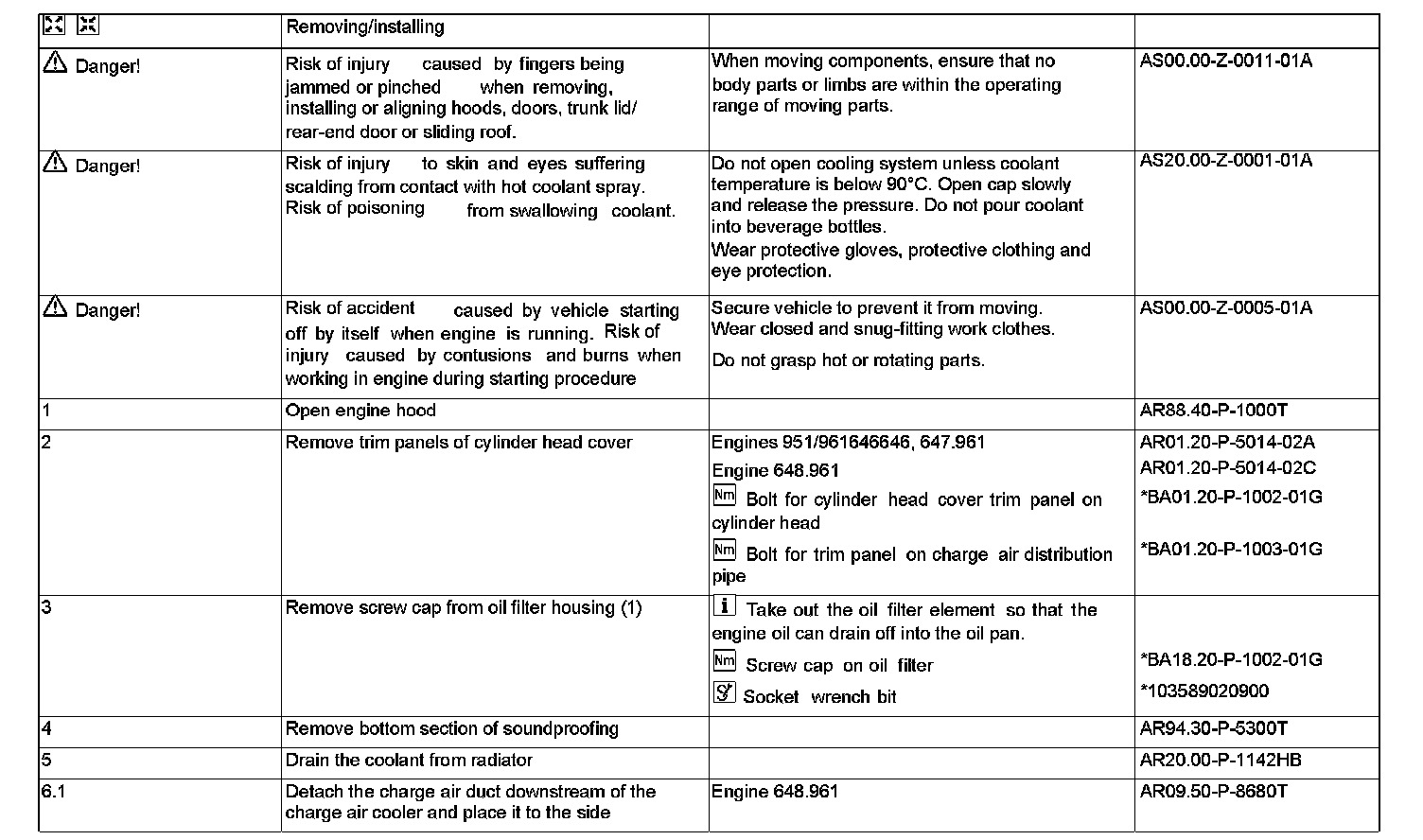

Steps 1-6.1:

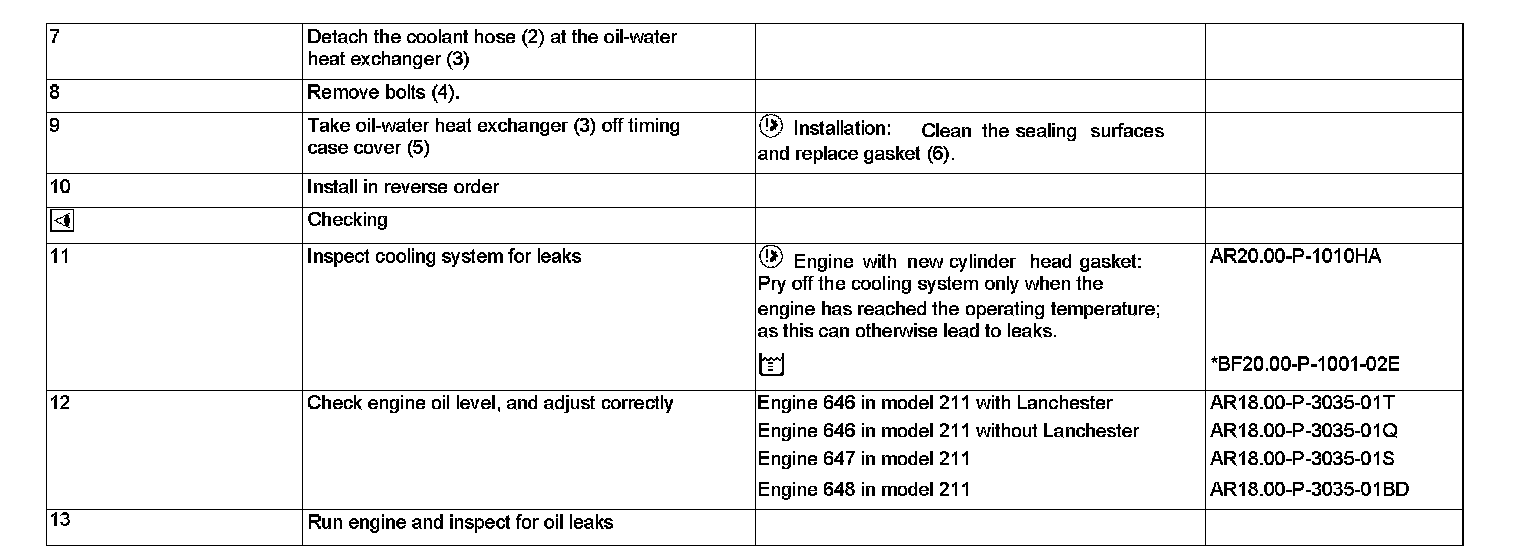

Steps 7-13:

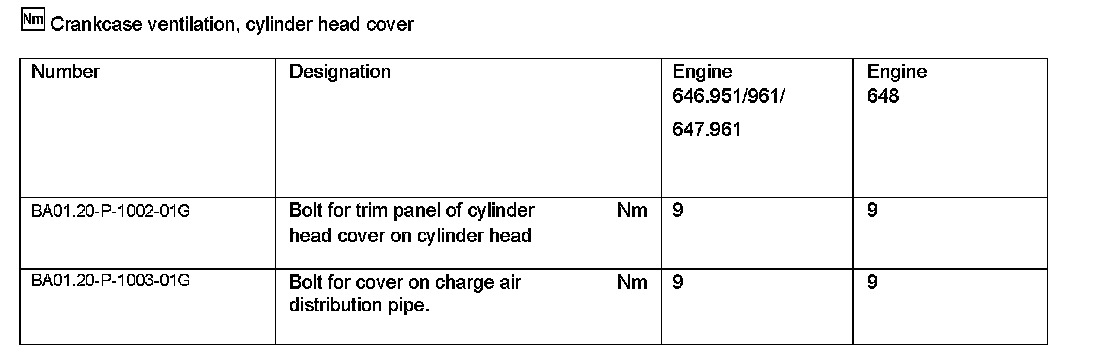

Crankcase Ventilation, Cylinder Head Cover:

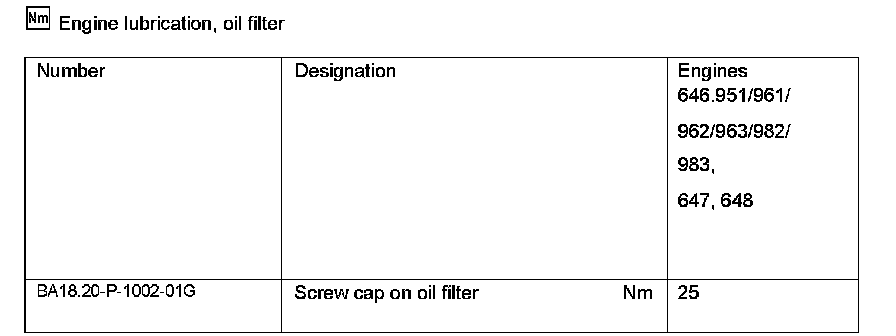

Engine Lubrication, Oil Filter:

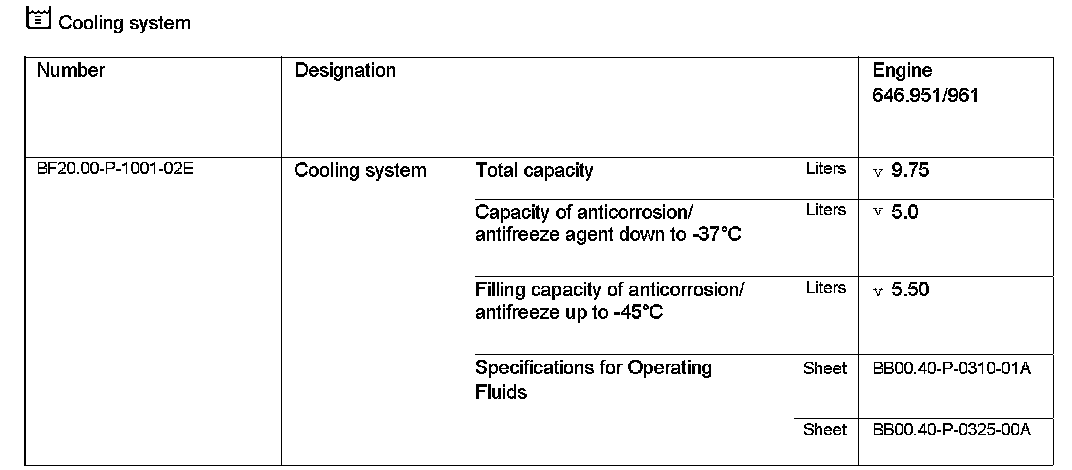

Cooling System:

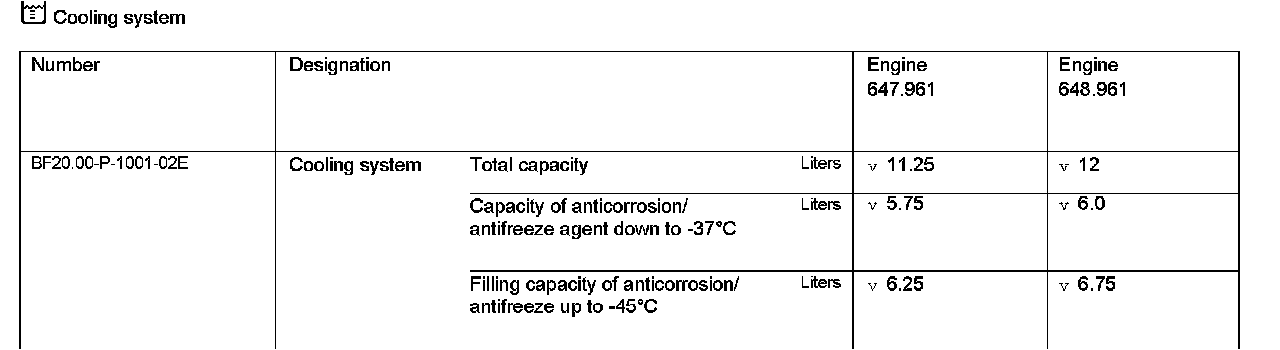

Cooling System:

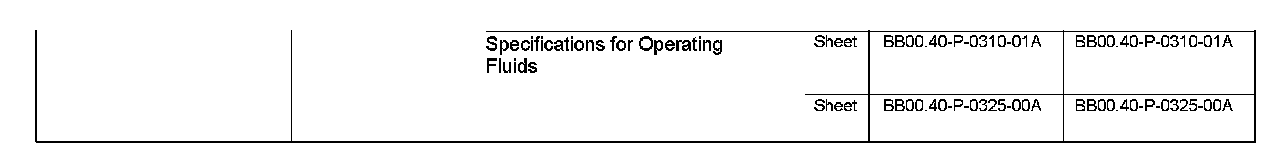

Cooling System:

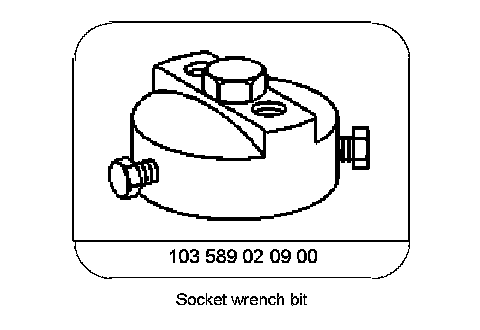

Special Tools:
