Engine Mount: Service and Repair
AR22.10-P-1260T Remove/install front engine mounts and/or engine support

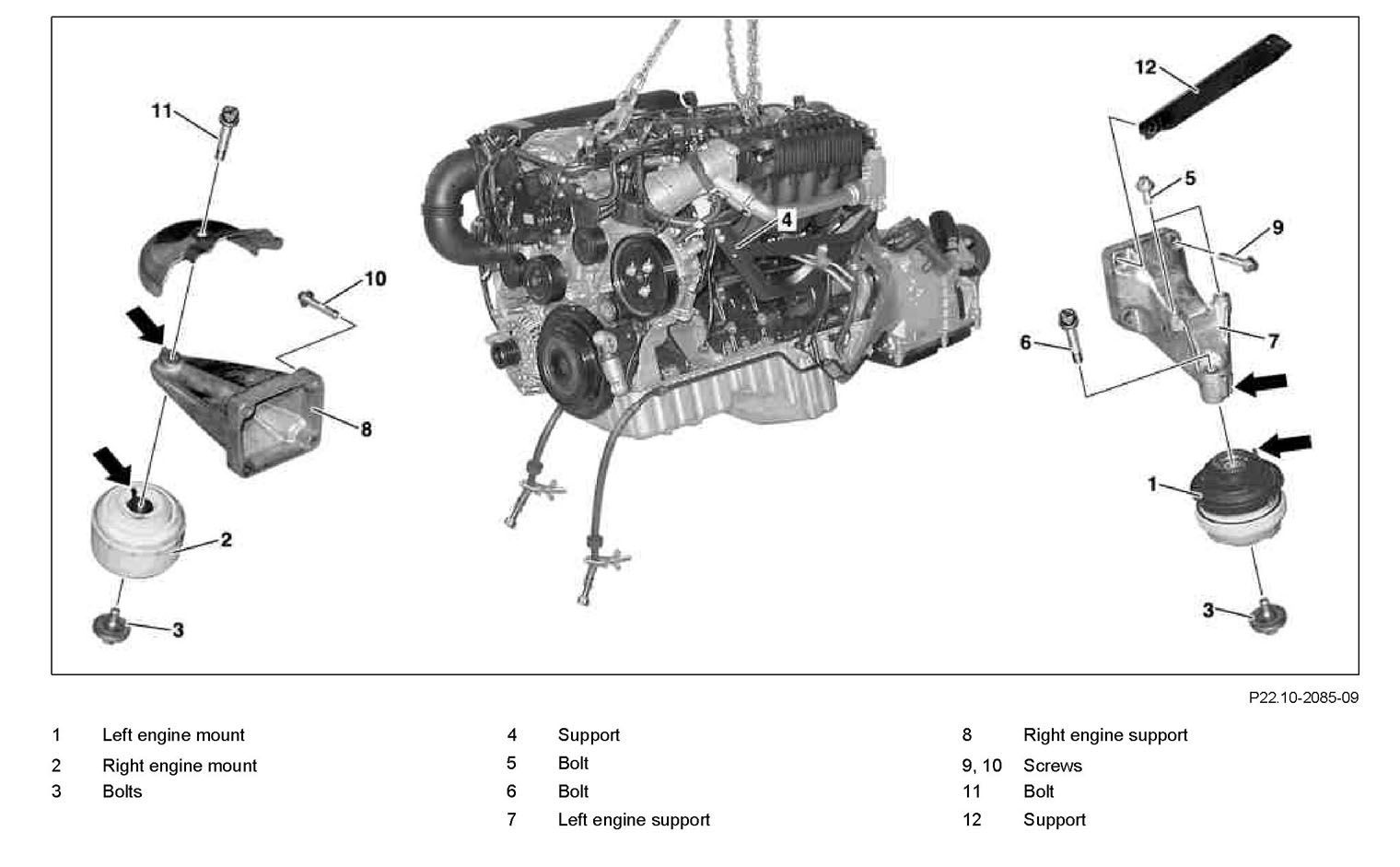

Component Identification:

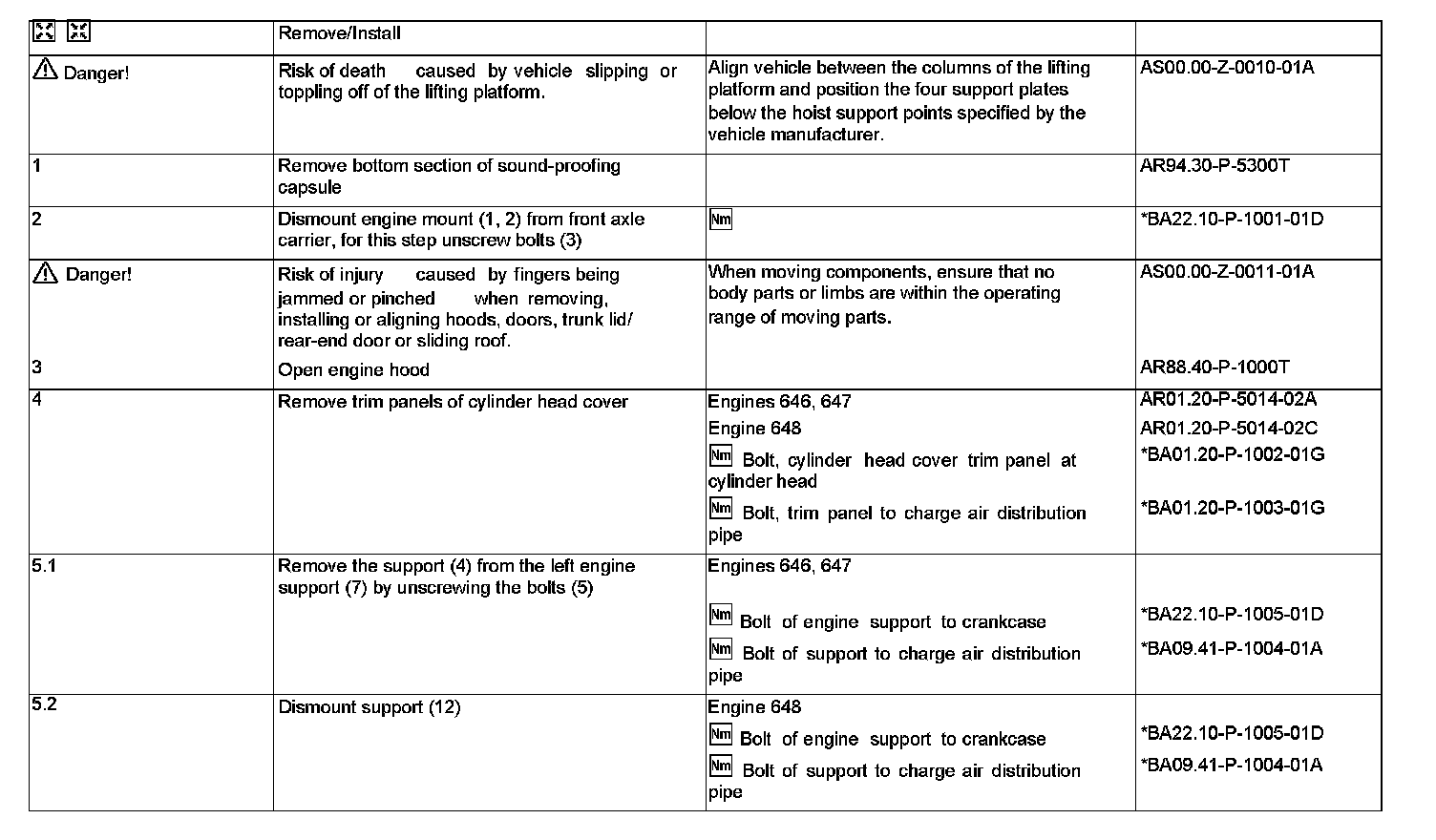

Steps 1-5.2:

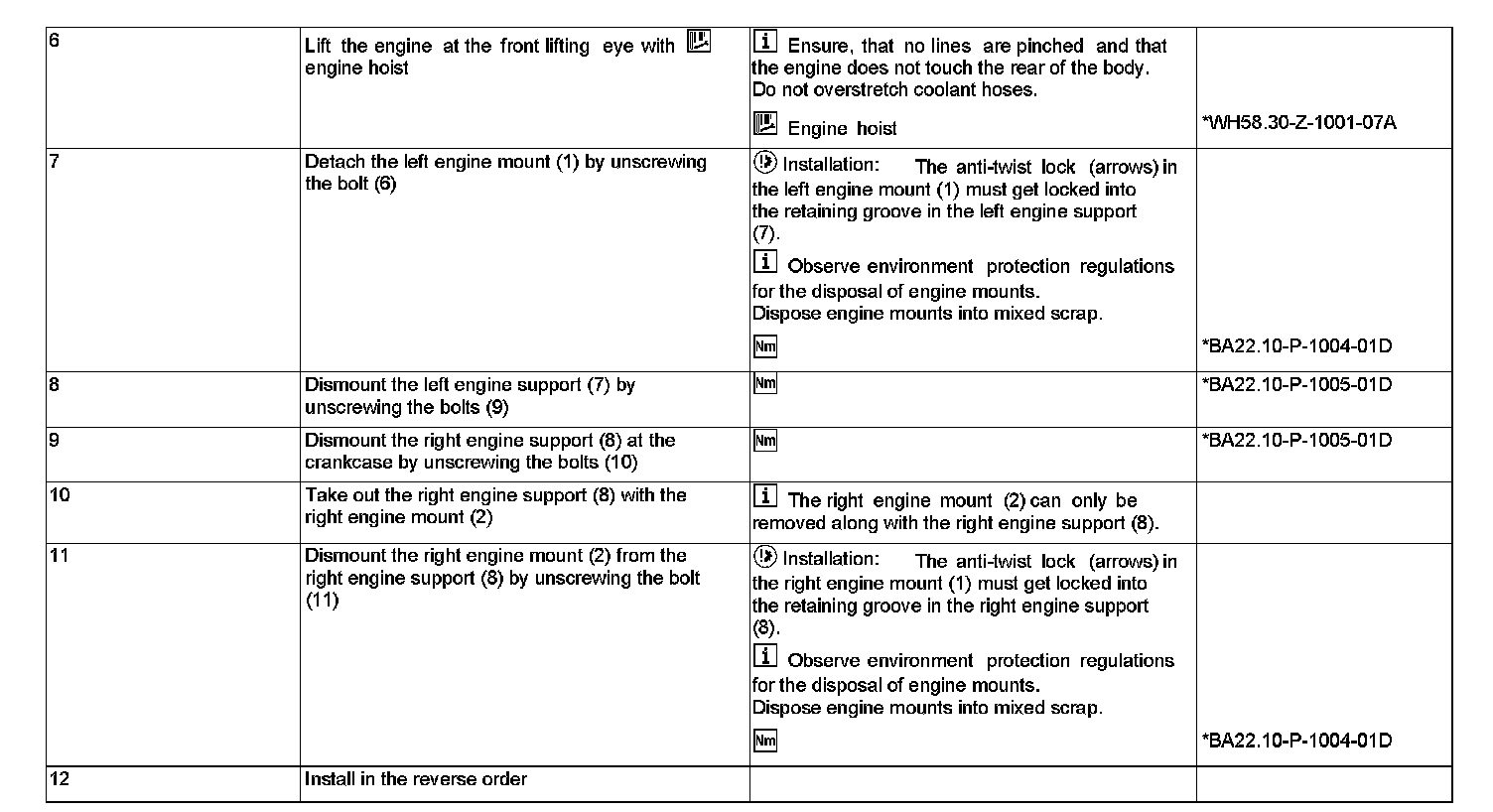

Steps 6-12:
Crankcase Ventilation, Cylinder Head Cover:
Charge Air Pipe/charge Air Cooling:

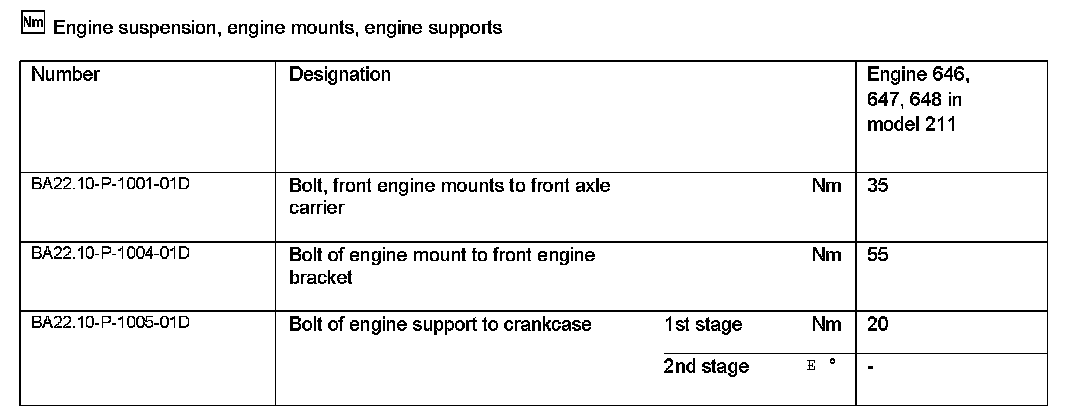

Engine Suspension, Engine Mounts, Engine Supports:

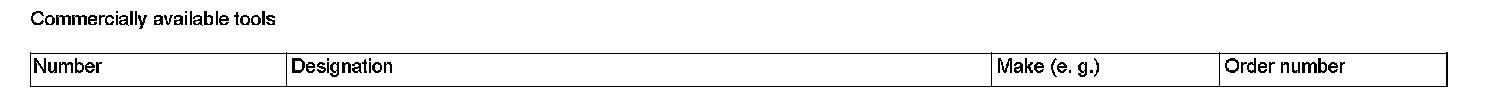

Commercially Available Tools:

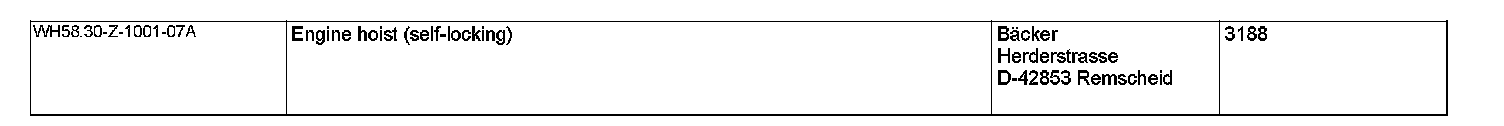

Engine Hoist (self-locking):
