AR13.25-P-3200TA Remove/Install Poly-V-Belt Tensioning Device
AR13.25-P-3200TA Remove/Install Poly-V-Belt Tensioning Device
AR13.25-P-3200TA Remove/install poly-V-belt tensioning device

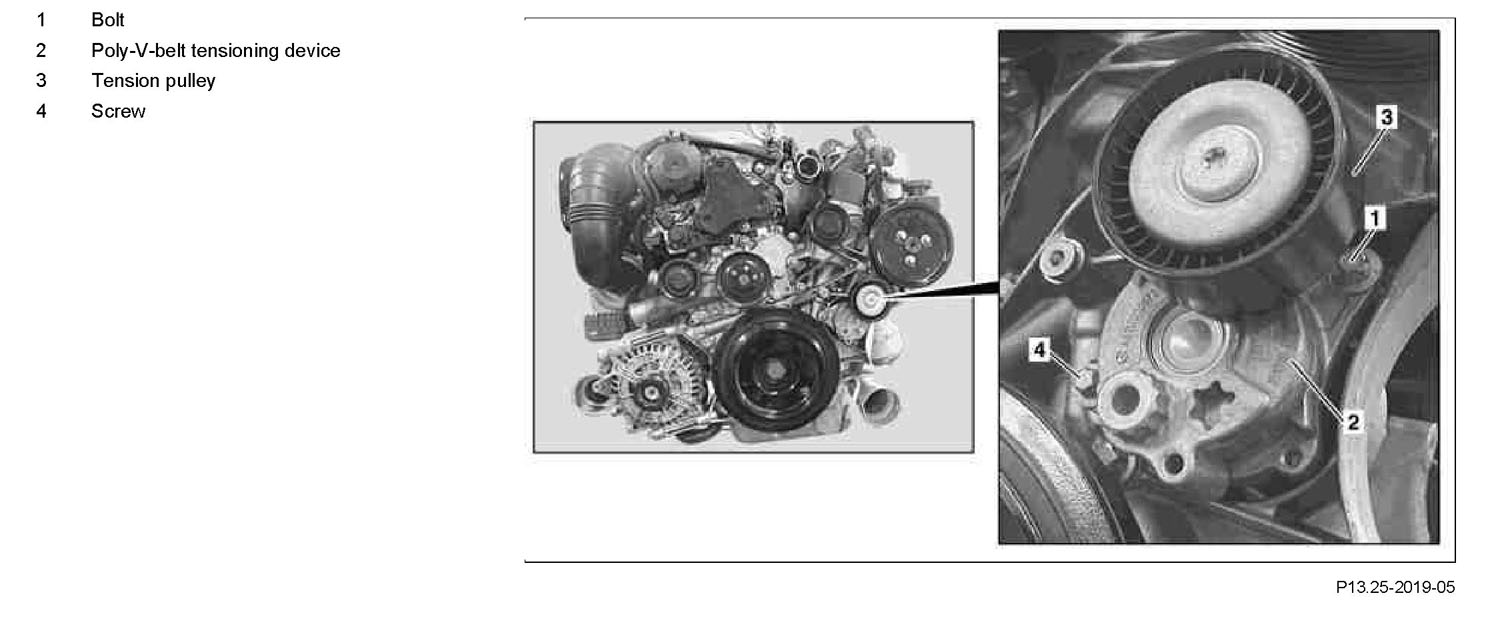

Component Identification:

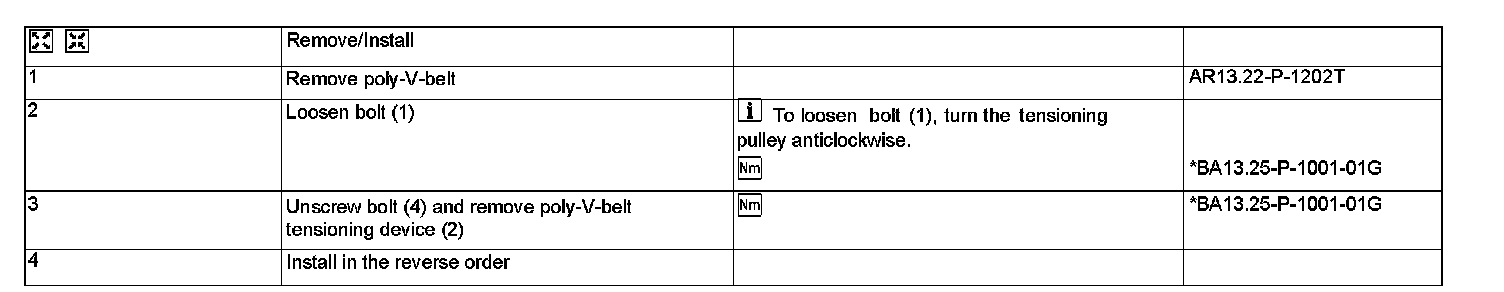

Steps 1-4:

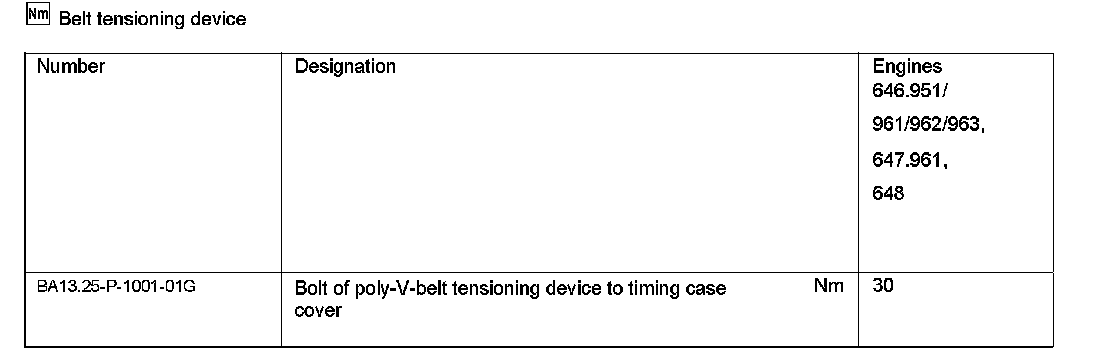

Belt Tensioning Device:
