AR05.30-P-3511HB Remove/install valves

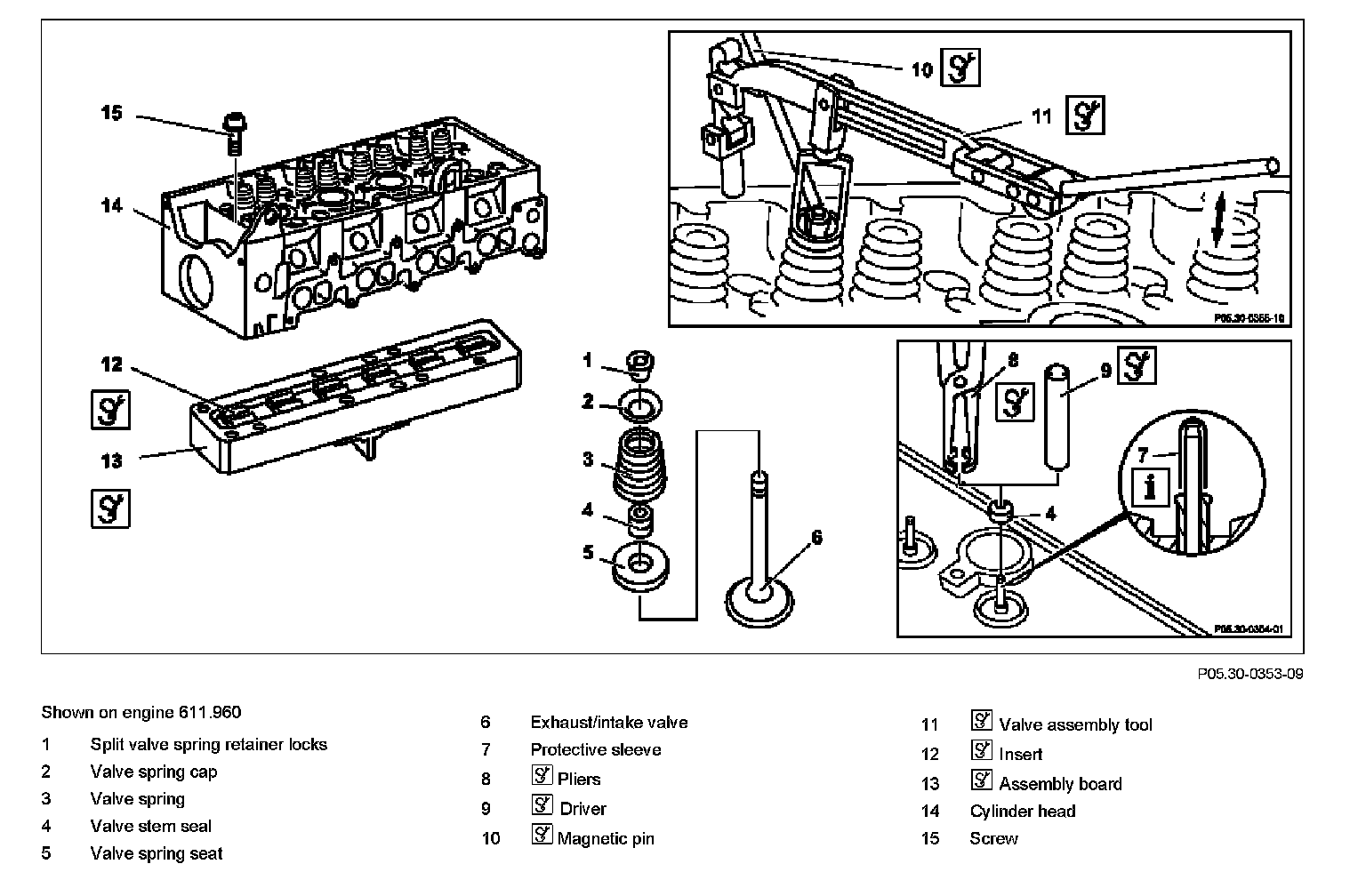

Component Identification:

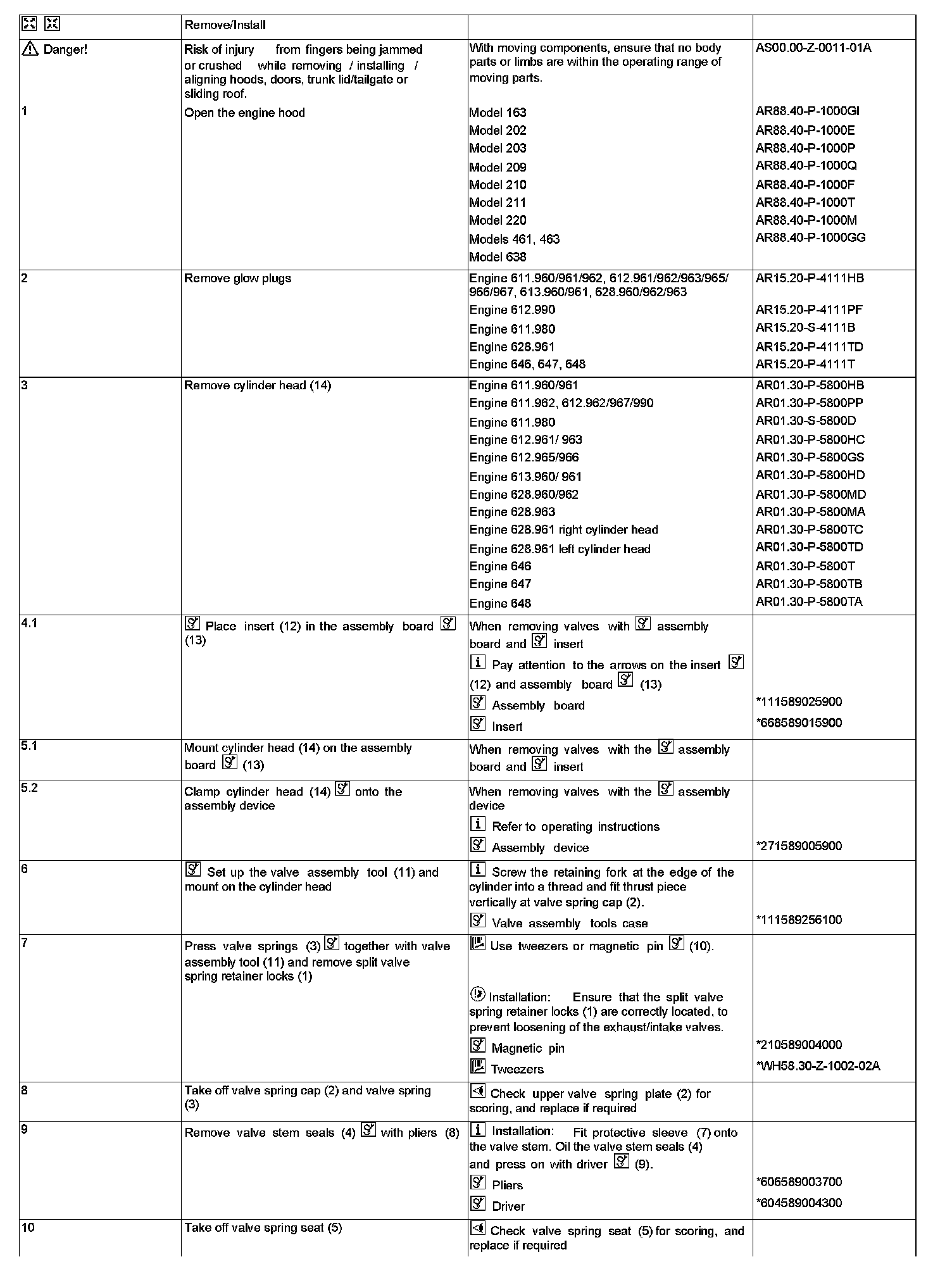

Steps 1-10:

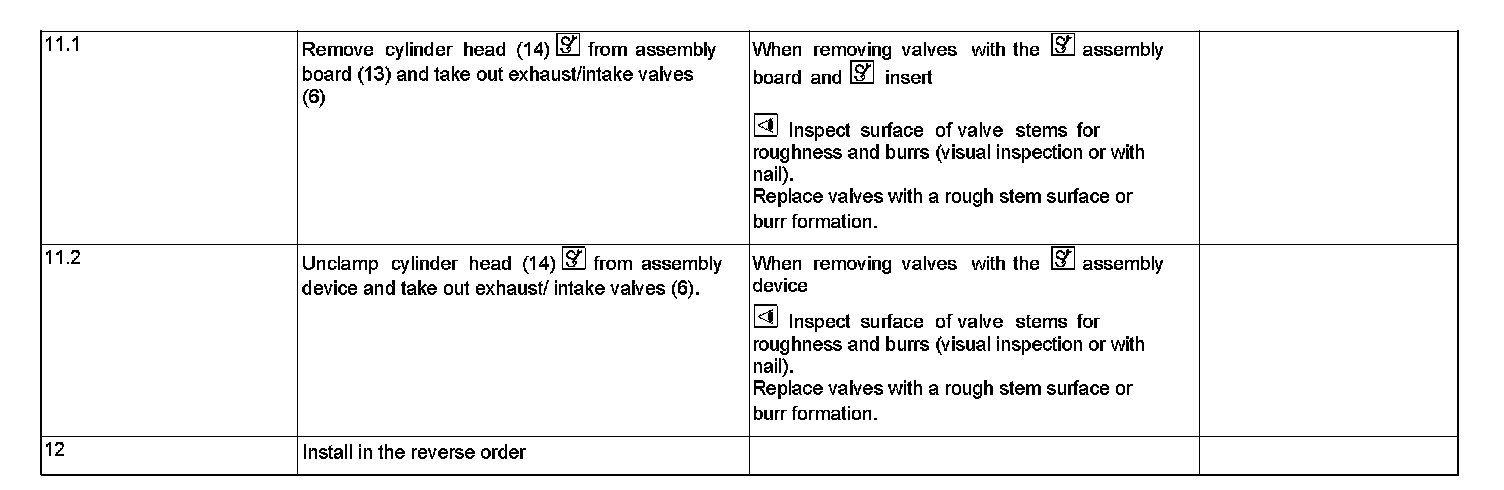

Steps 11.1-12:

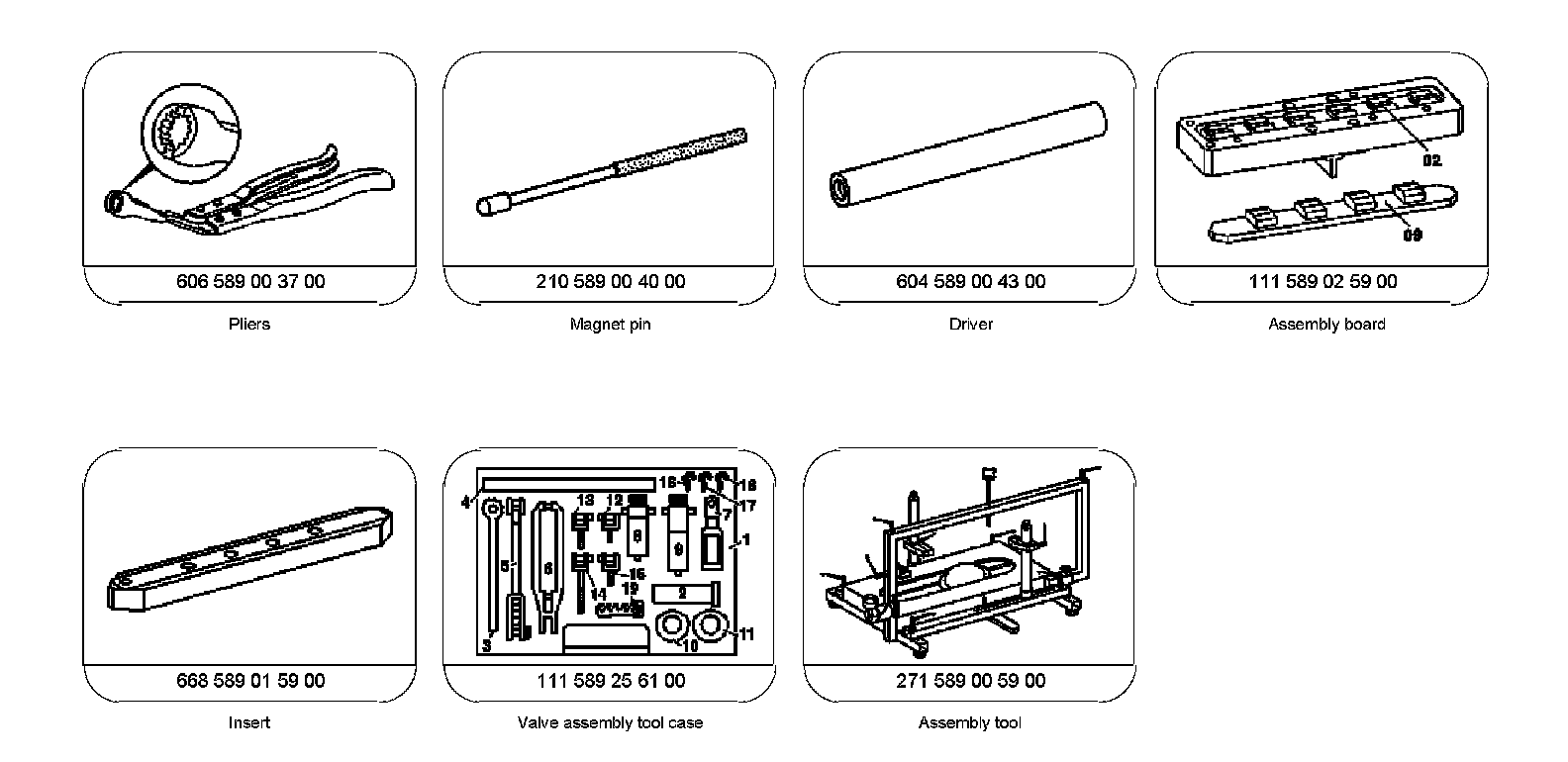

Special Tools:

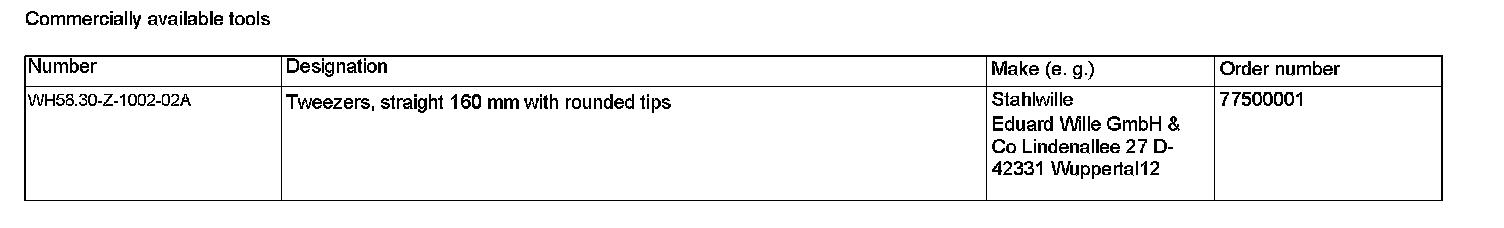

Commercially Available Tools:
