Procedures



AR05.30-P-4201AB Inspect, machine valves

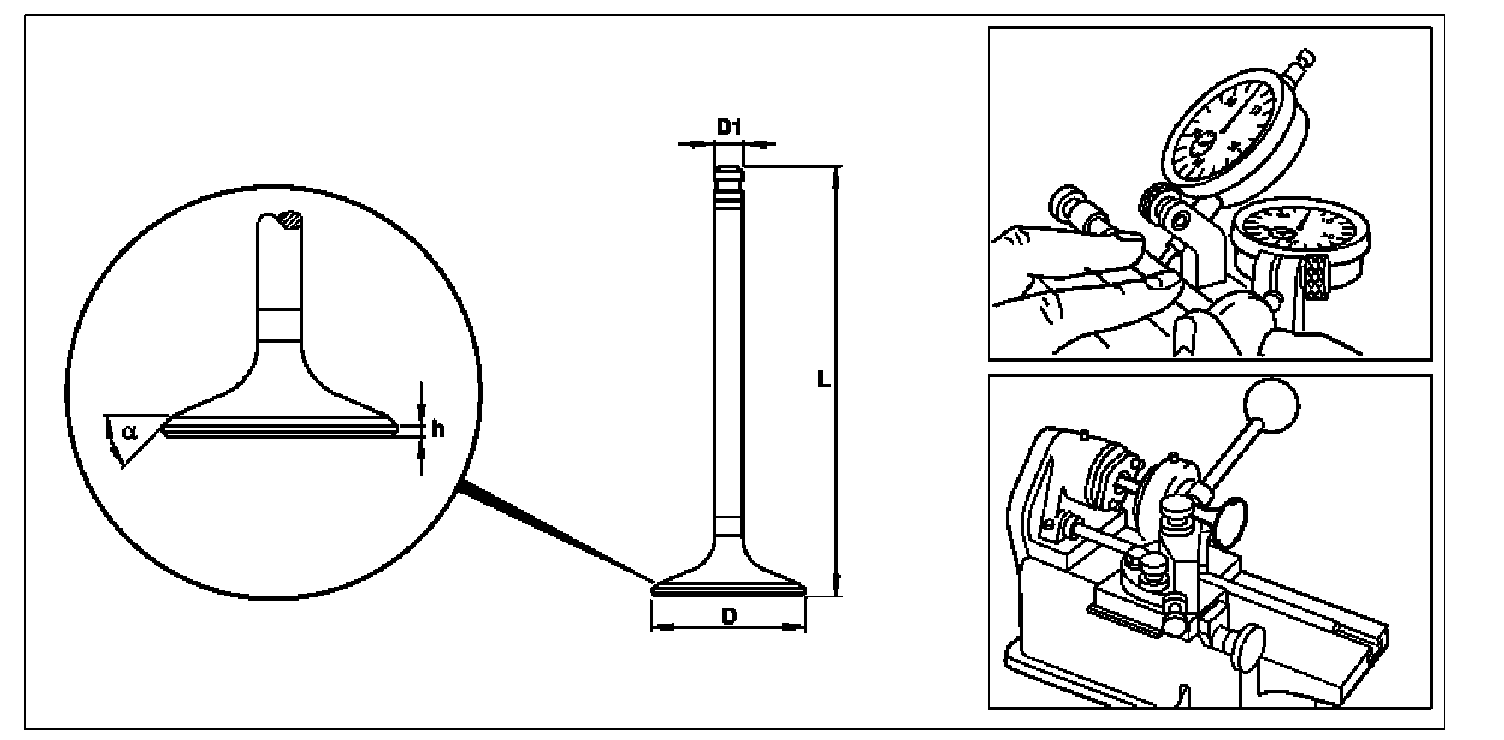

Component Identification:

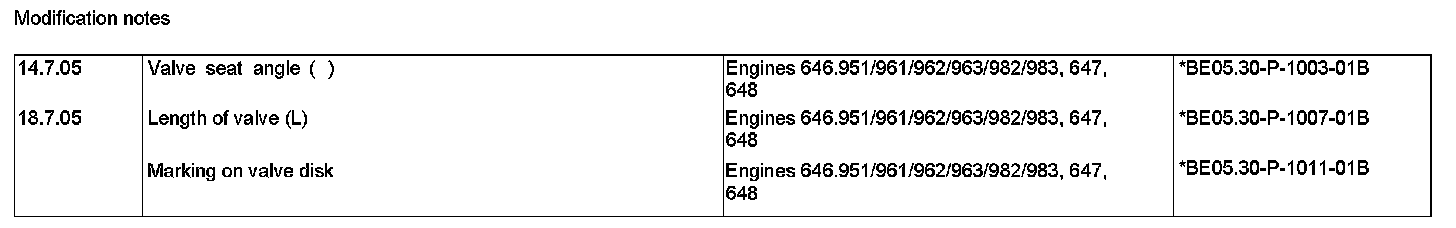

Modification Notes:

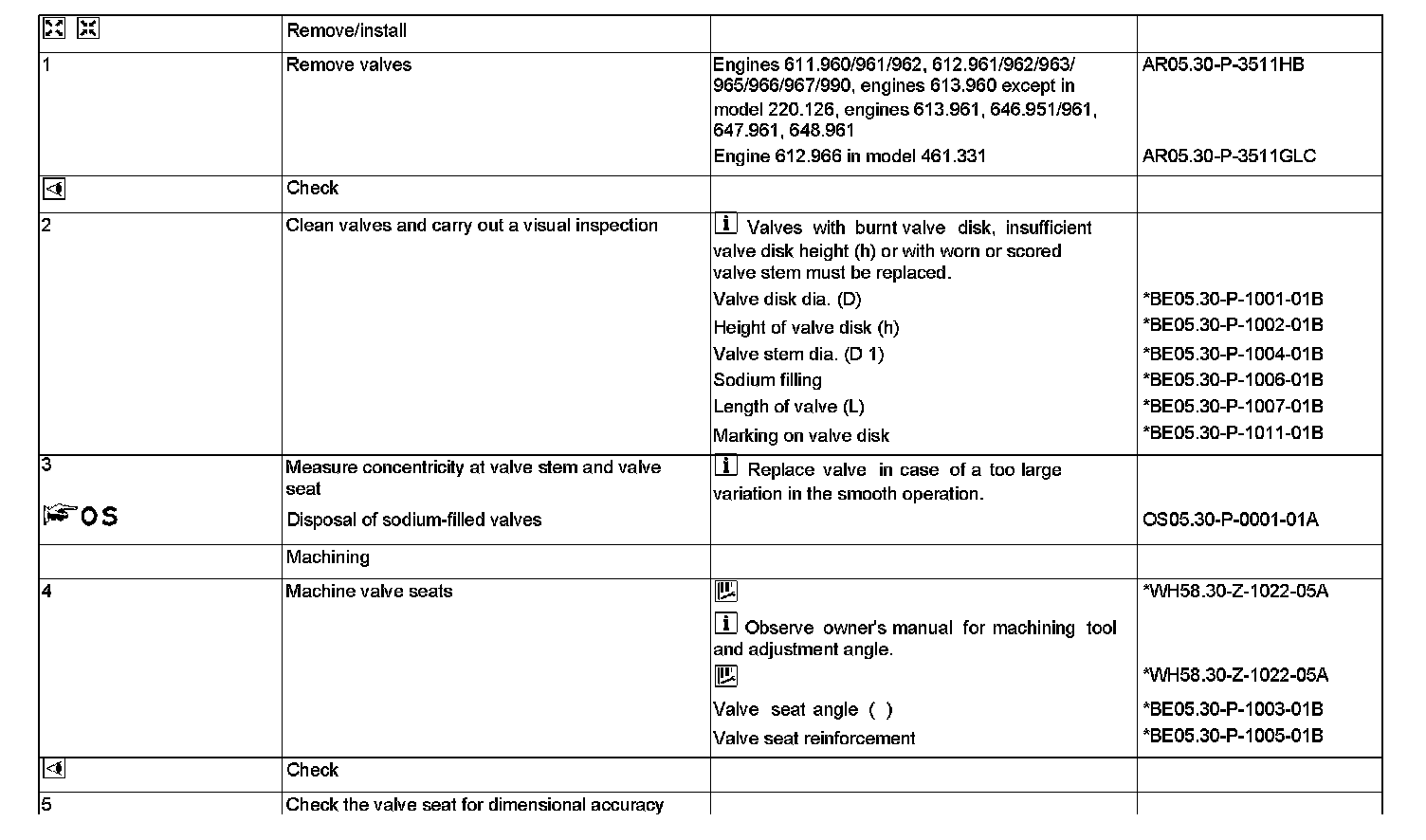

Steps 1-5:

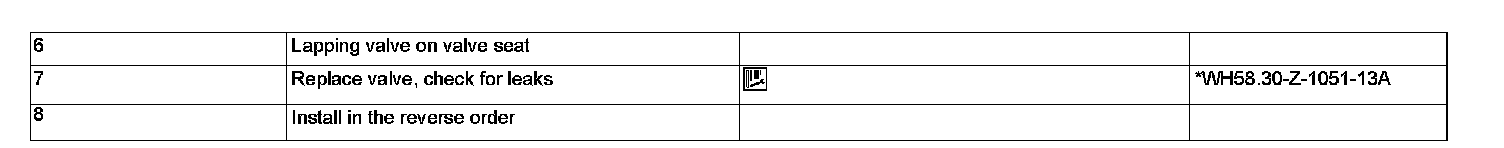

Steps 6-8:

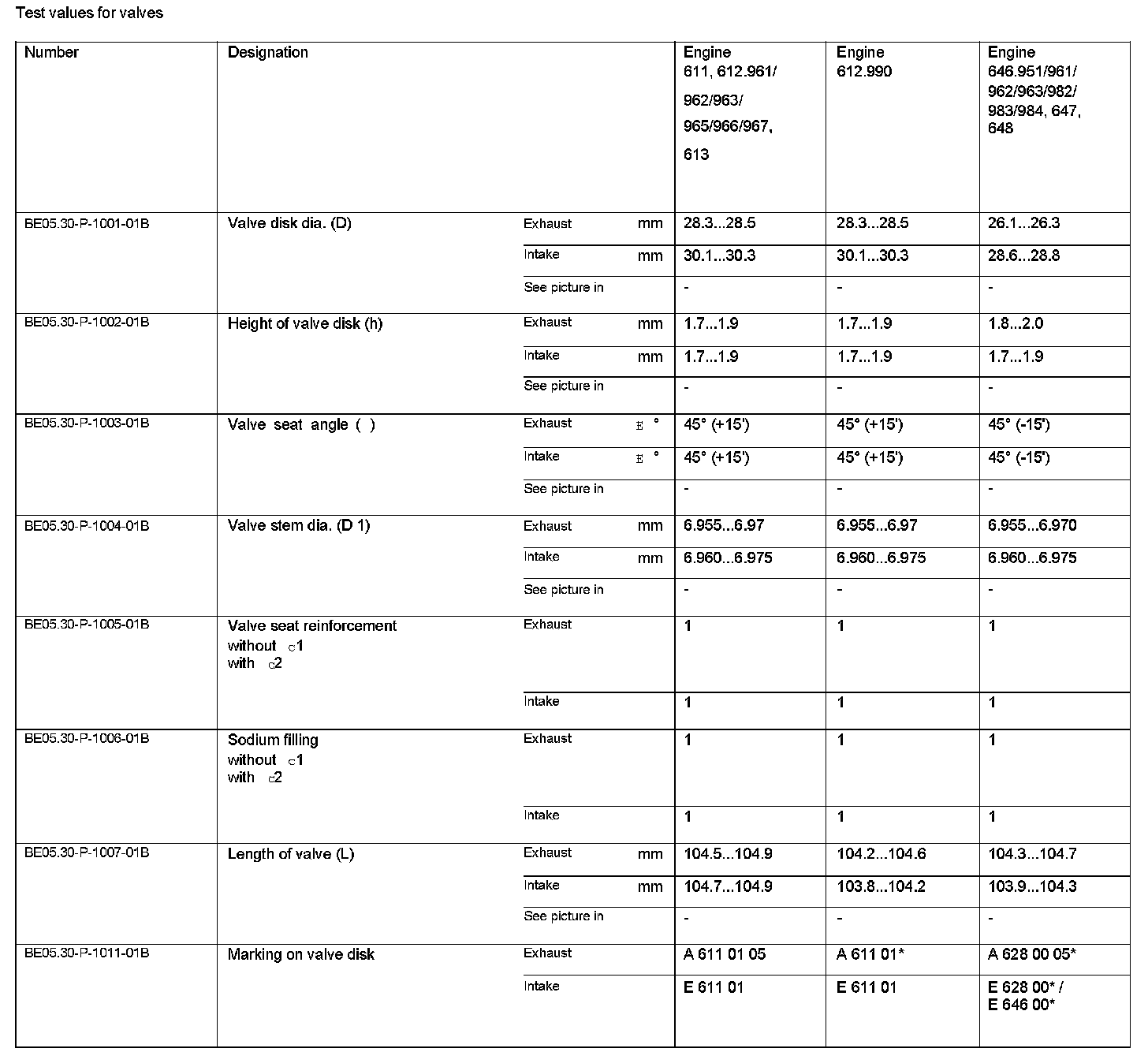

Test Values For Valves:

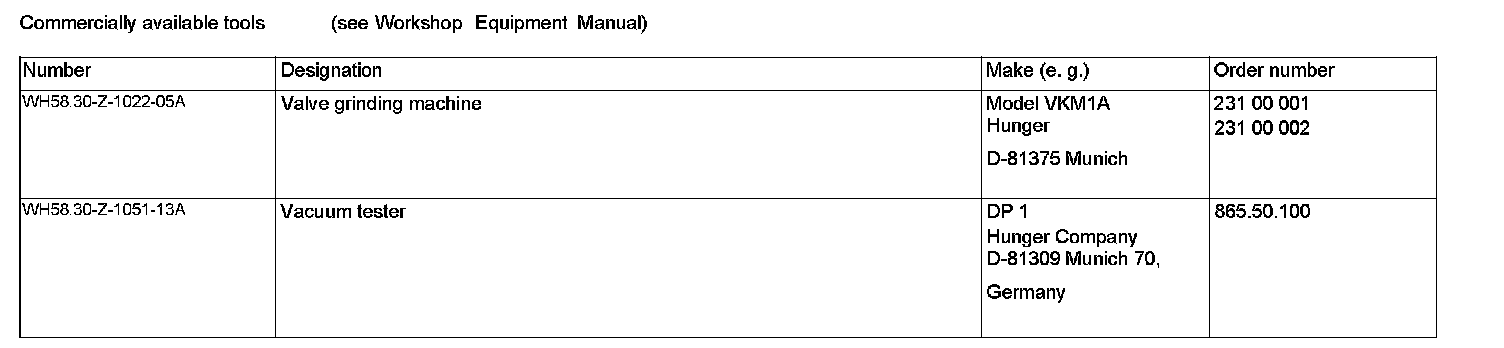

Commercially Available Tools:
