Valve Spring: Service and Repair
AR05.30-P-3500HB Remove/install valve springs and / or valve stem seals

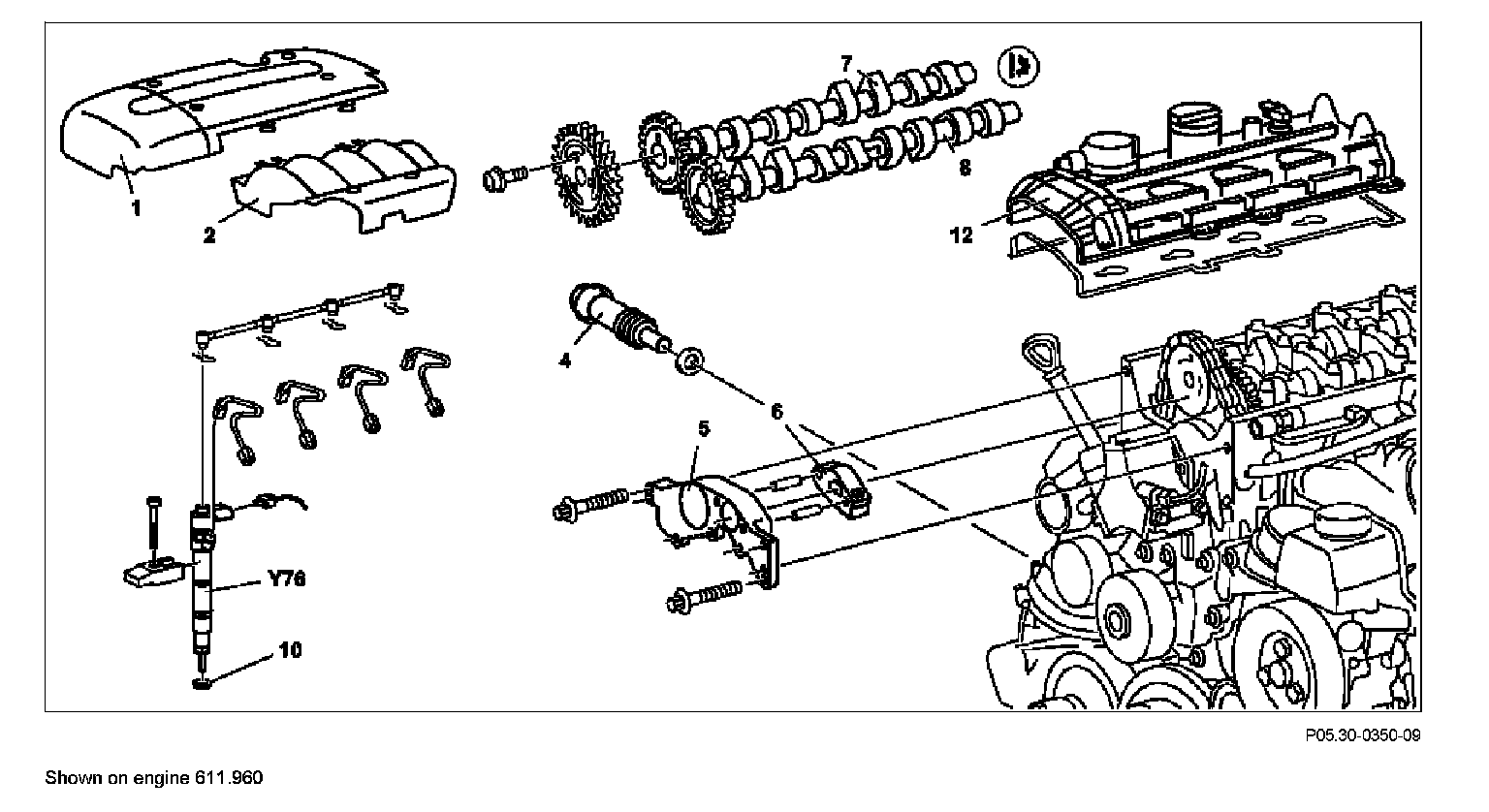

Component Identification:
Component Identification:

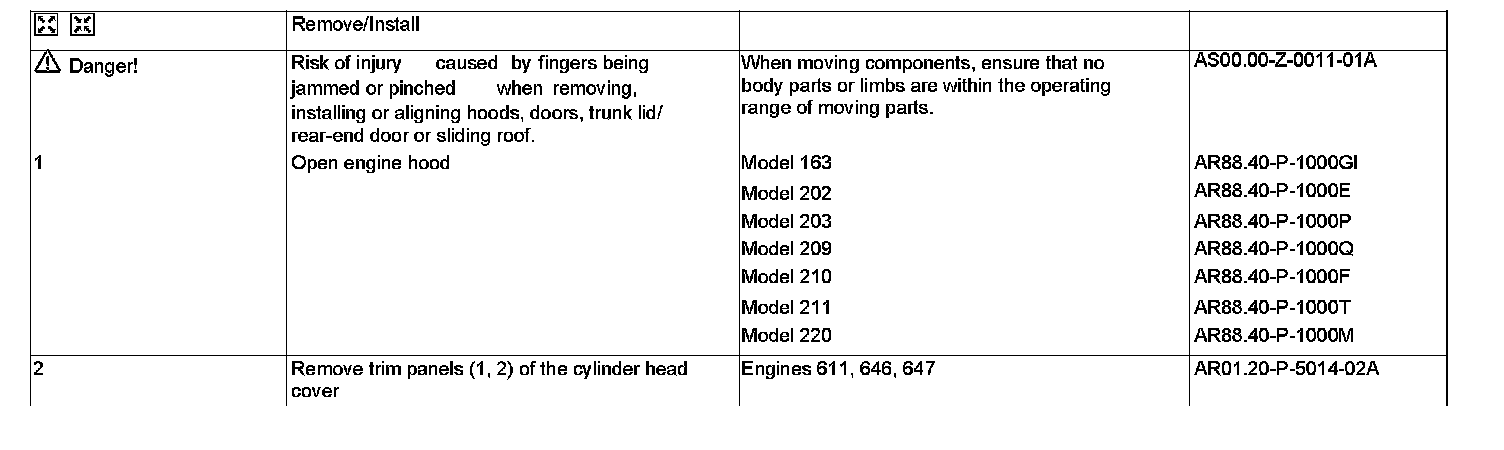

Steps 1-2:

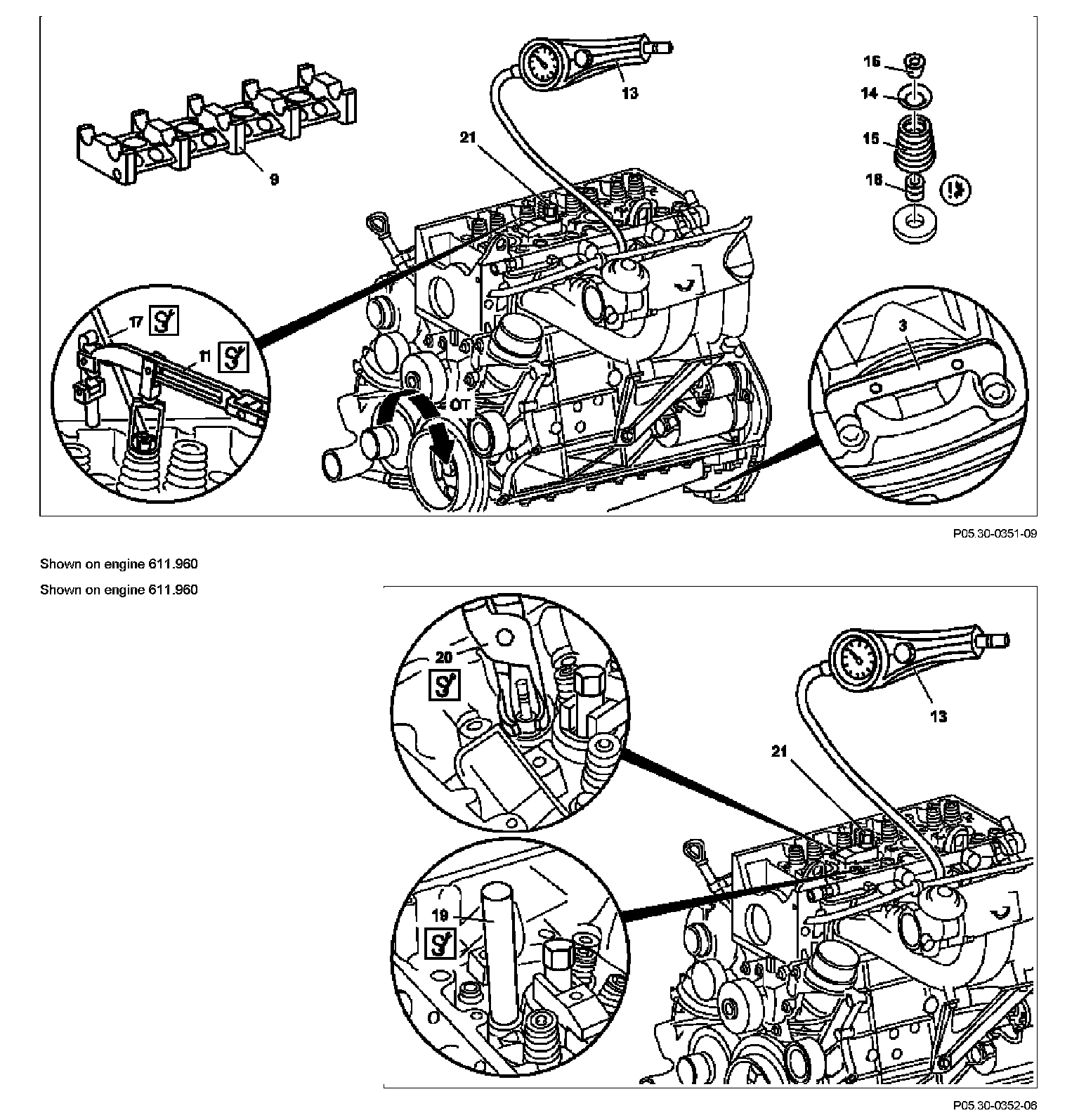

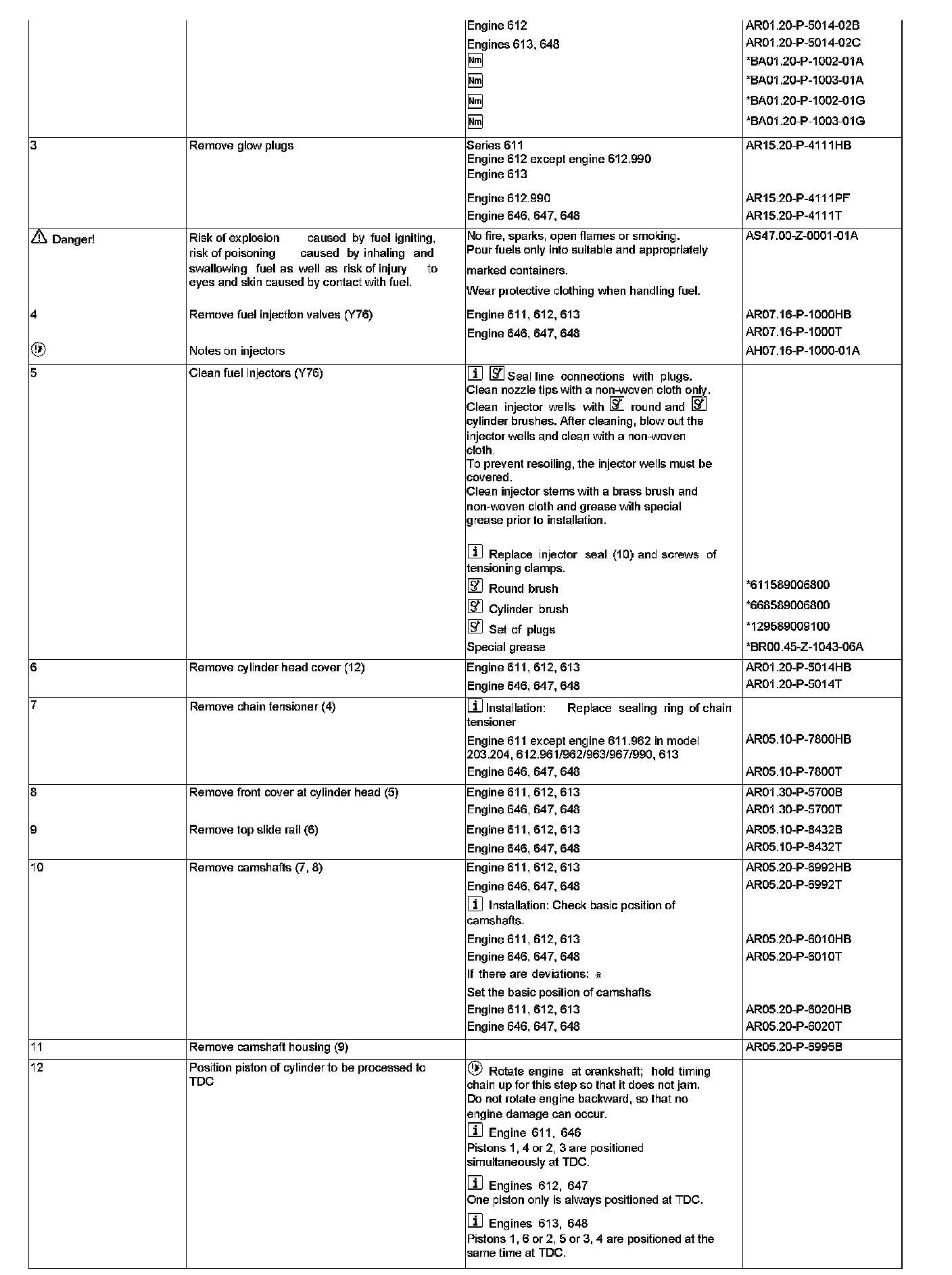

Steps 3-12:

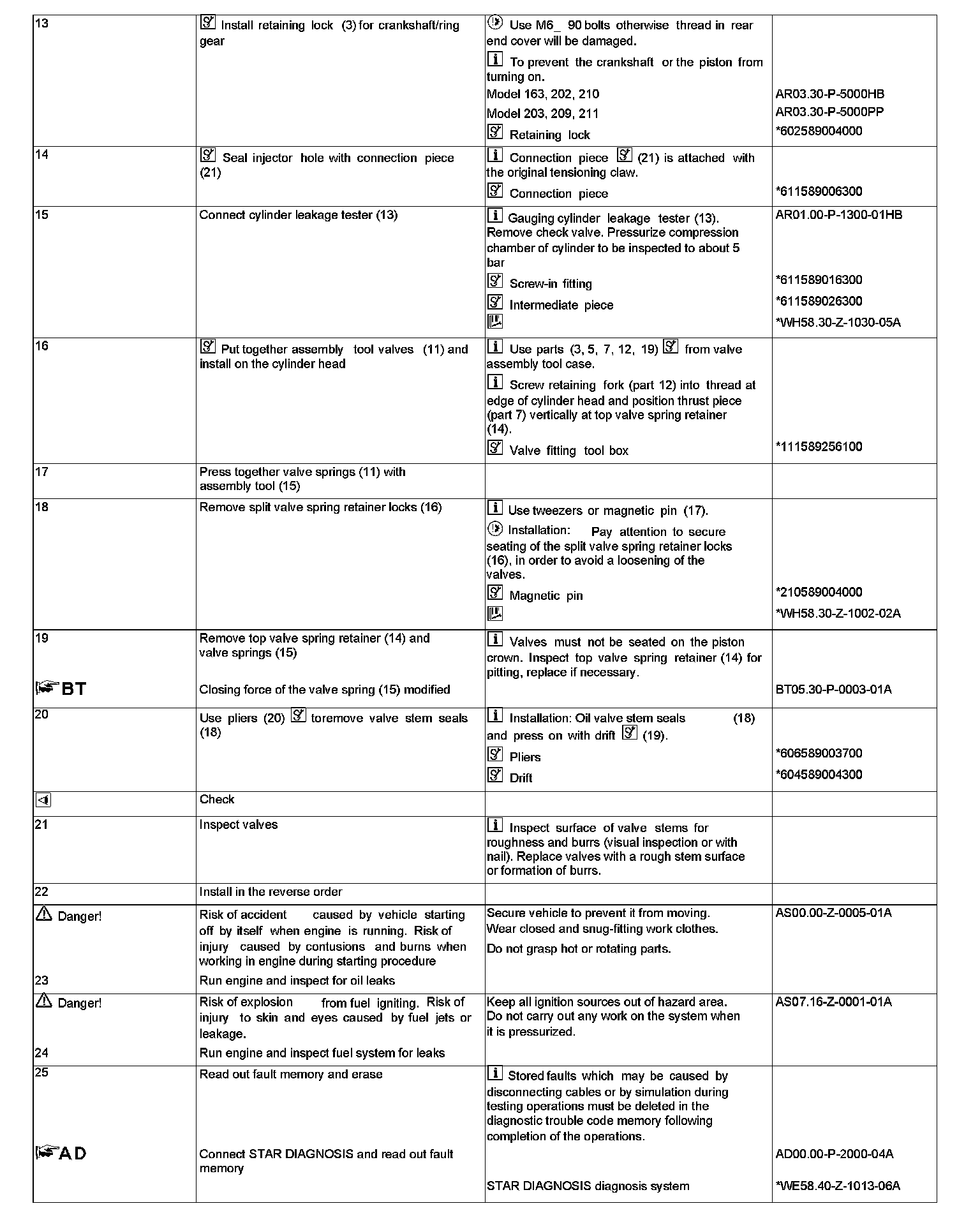

Steps 13-25:

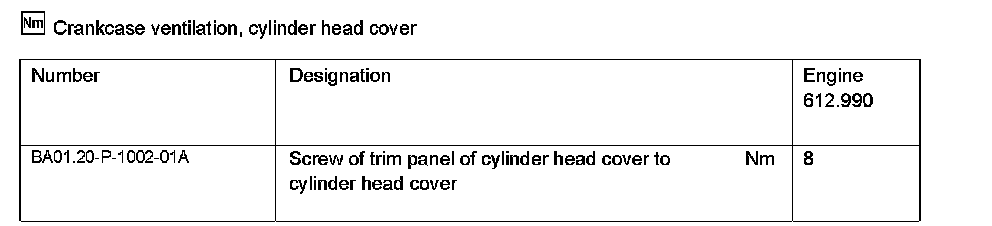

Crankcase Ventilation, Cylinder Head Cover:
Crankcase Ventilation, Cylinder Head Cover:

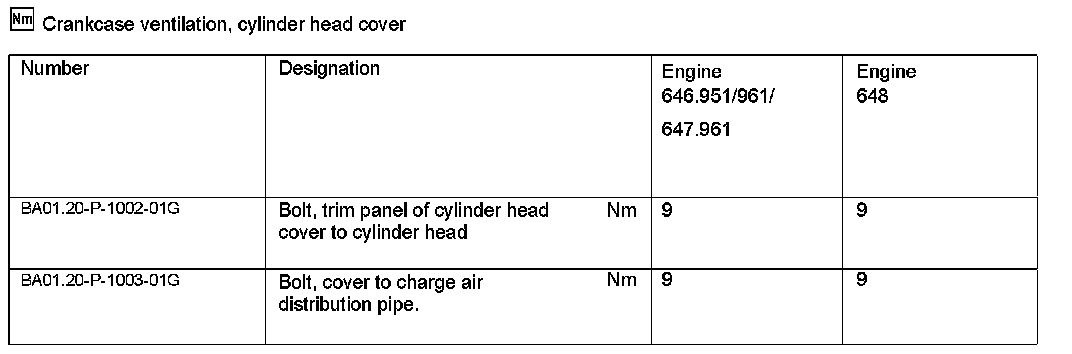

Crankcase Ventilation, Cylinder Head Cover:
Crankcase Ventilation, Cylinder Head Cover:

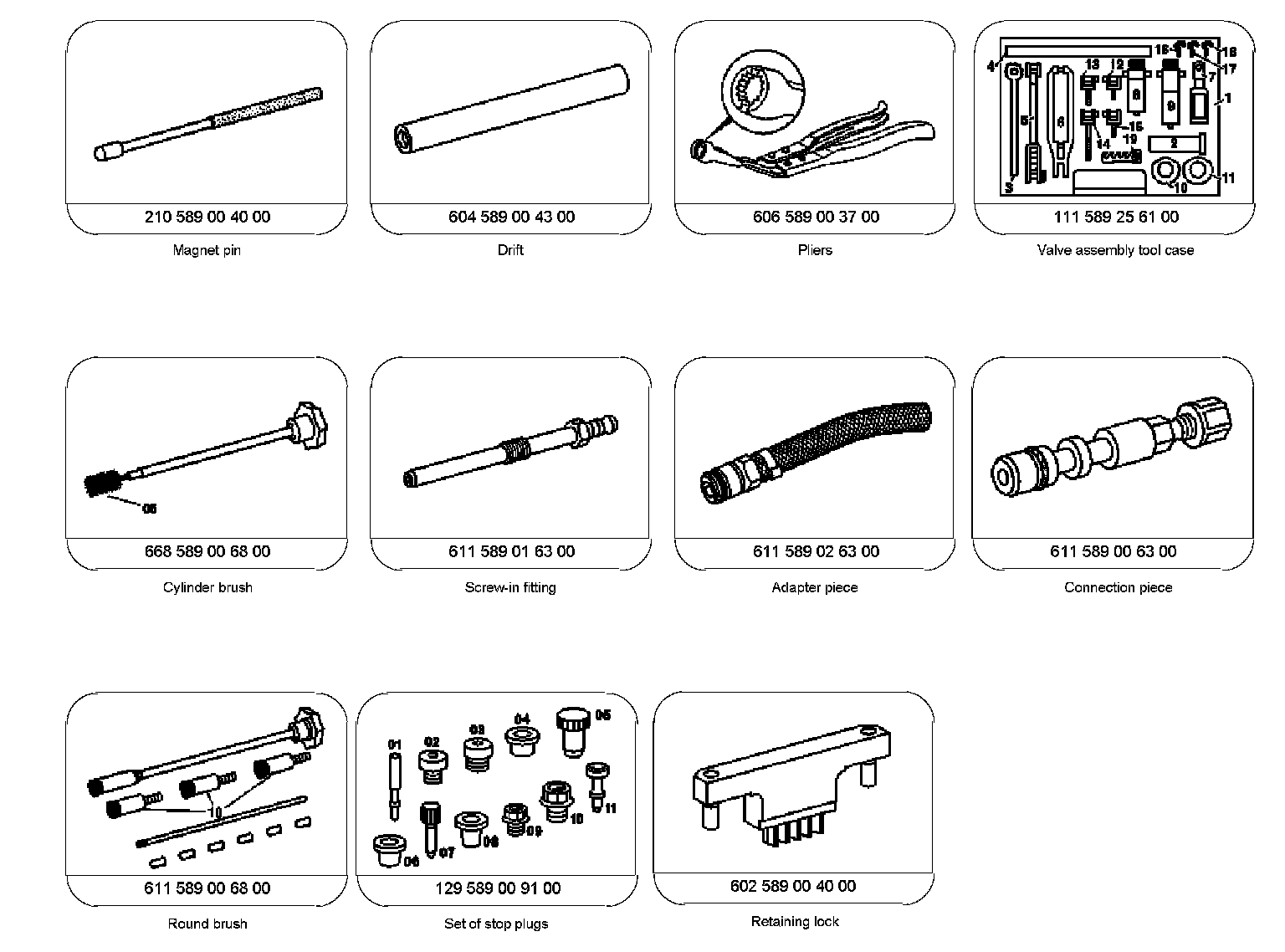

Special Tools:

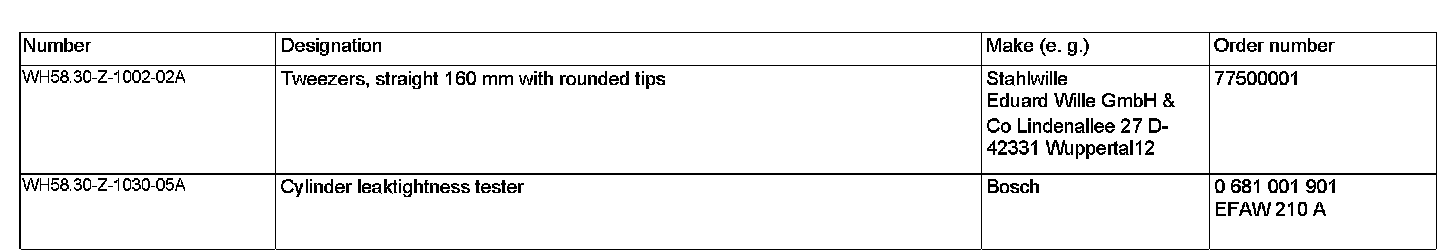

Commercially Available Tools:
Workshop Equipment/MB Testers:

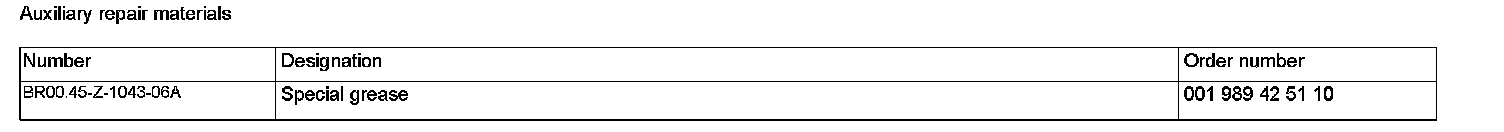

Auxiliary Repair Materials:
