Valve Seat: Service and Repair



AR05.30-P-4511AB Machine valve seat rings

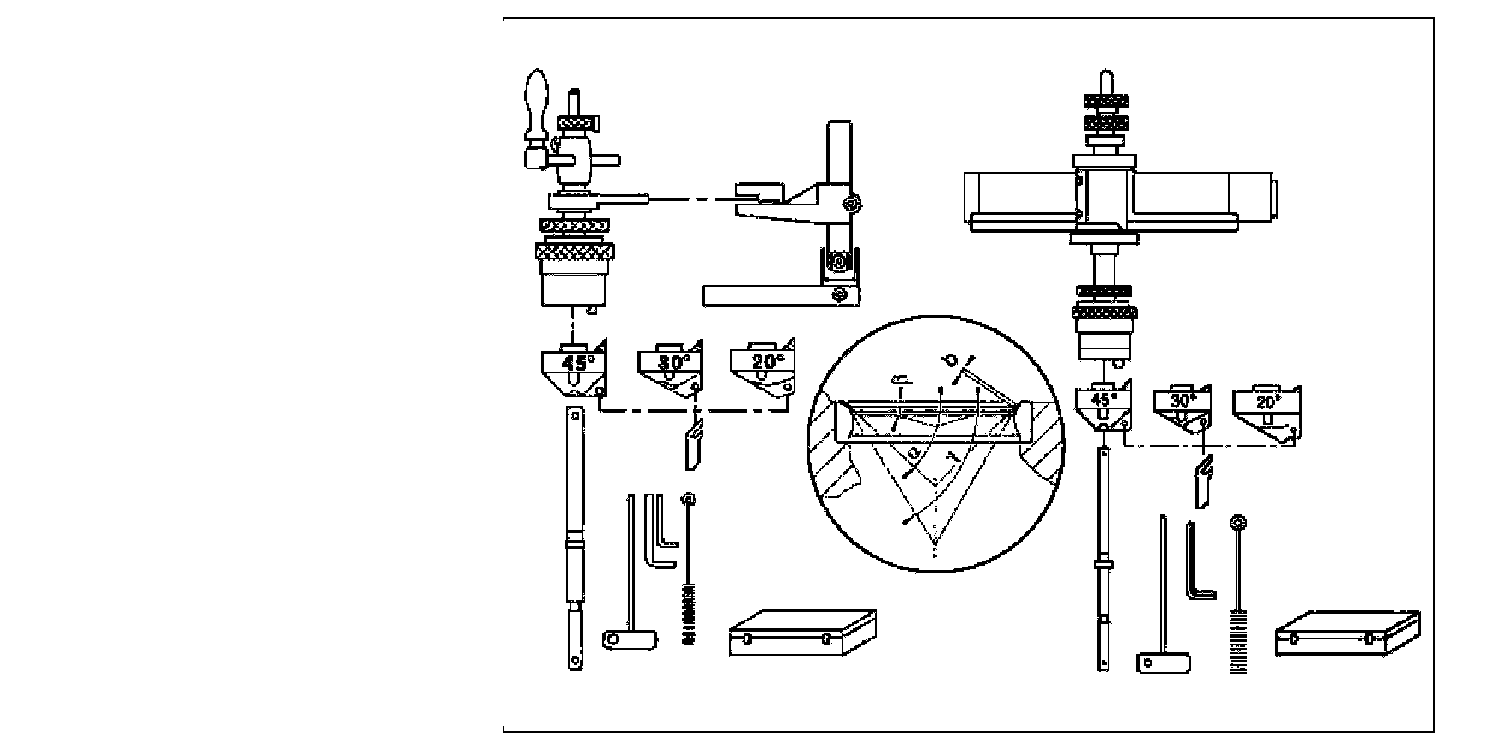

Component Identification:

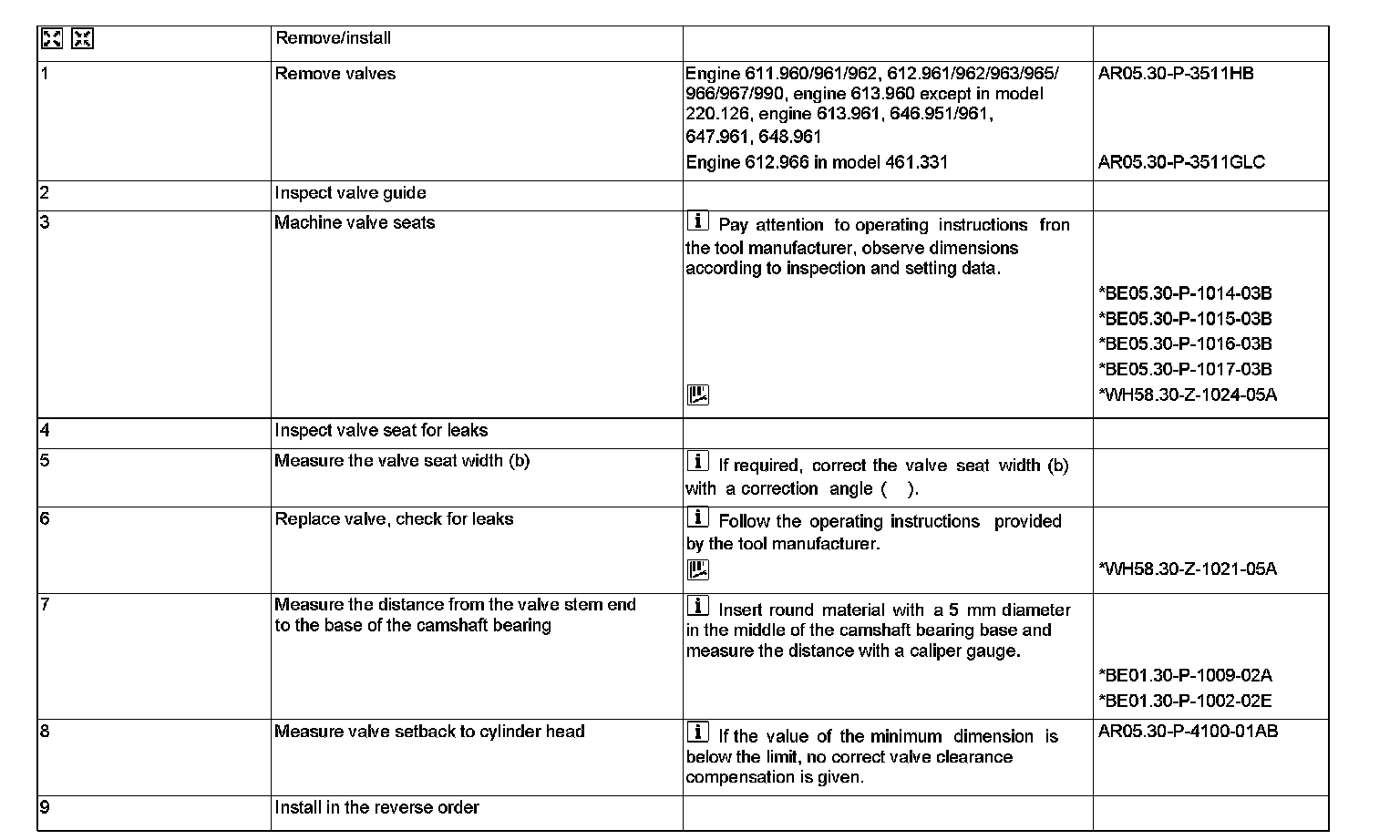

Steps 1-9:

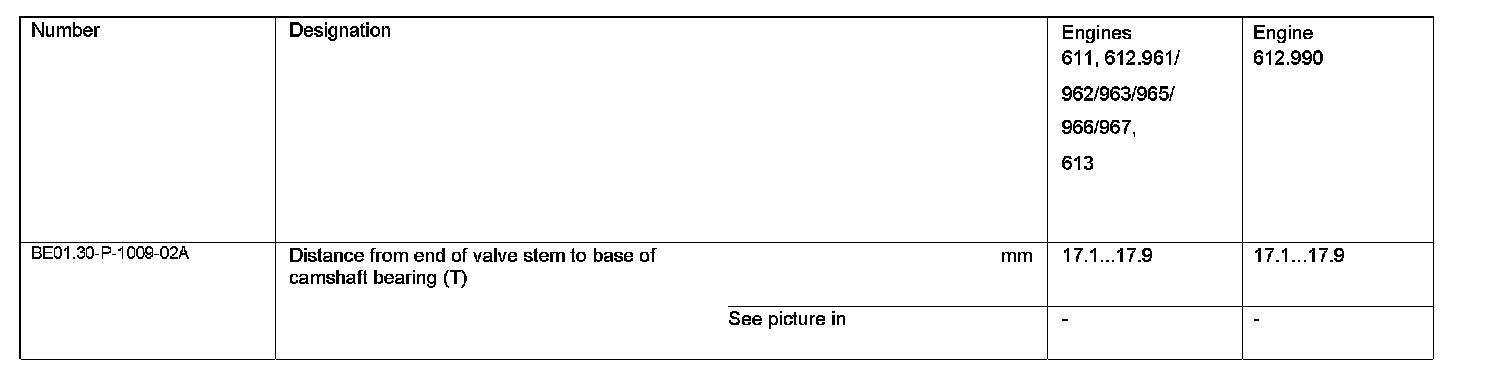

Inspection Data For A Cylinder Head:

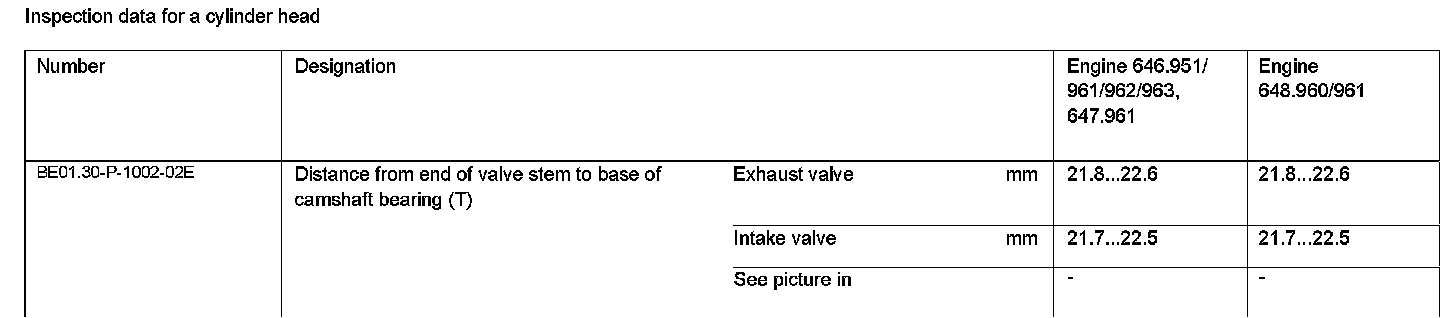

Inspection Data For A Cylinder Head:

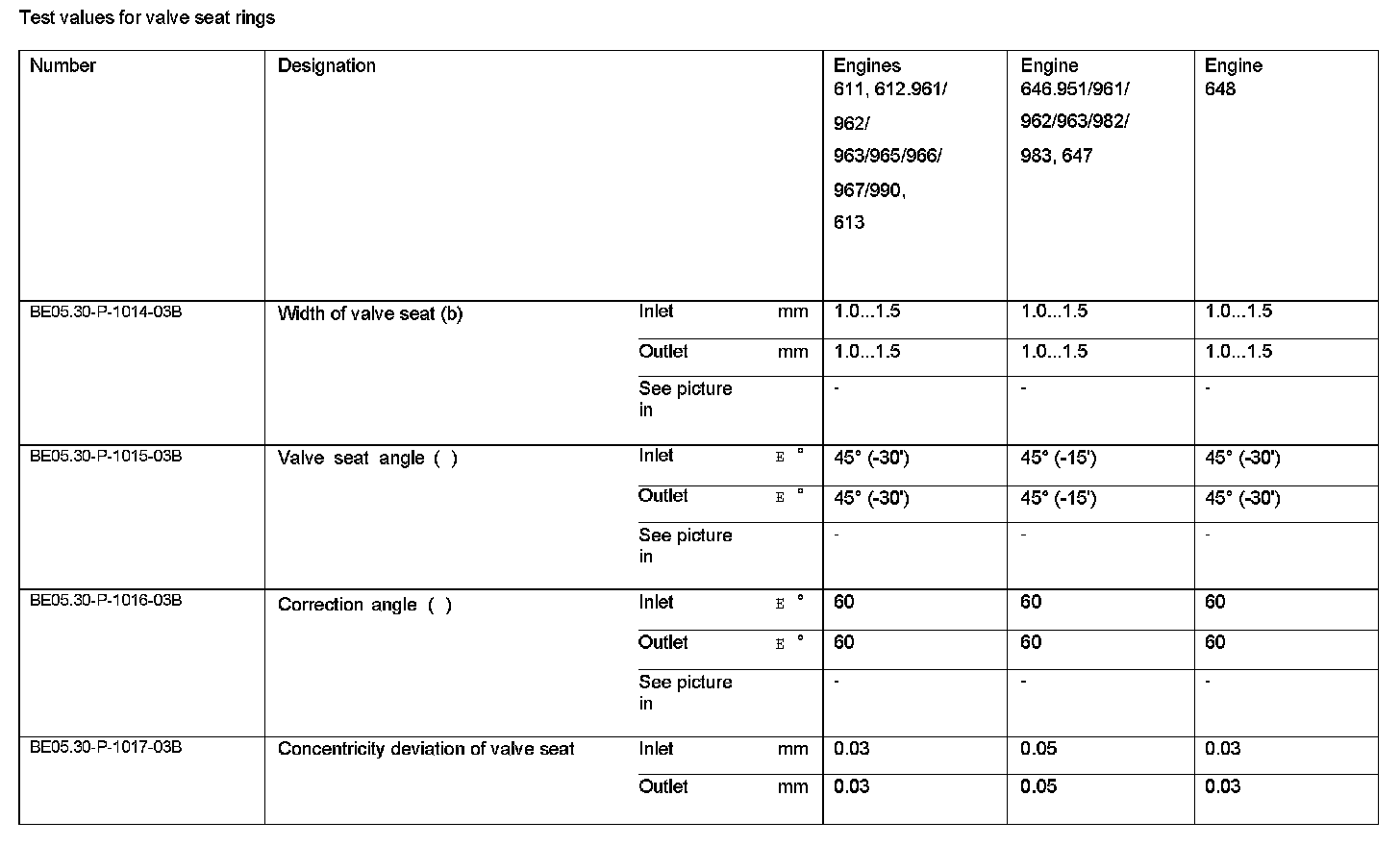

Test Values For Valve Seat Rings:

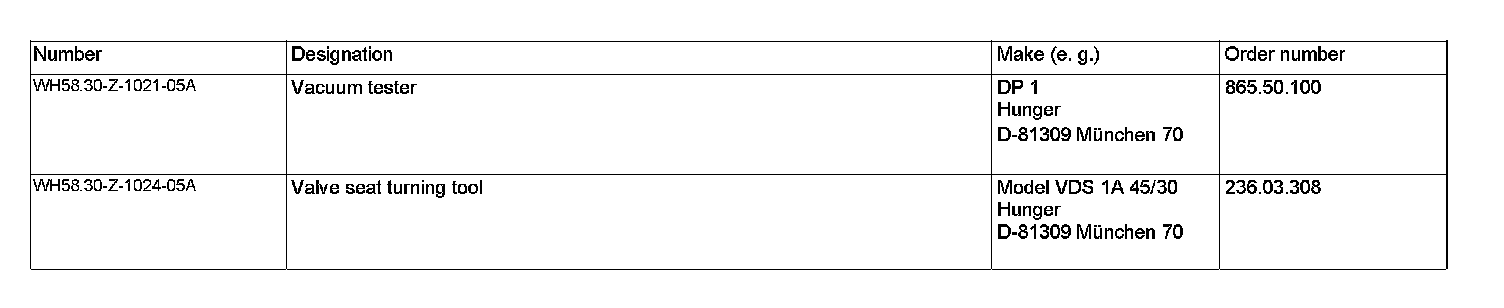

Commercially Available Tools:
