AR01.20-P-5014T Remove/Install Cylinder Head Cover



AR01.20-P-5014T Remove/install cylinder head cover

Component Identification:

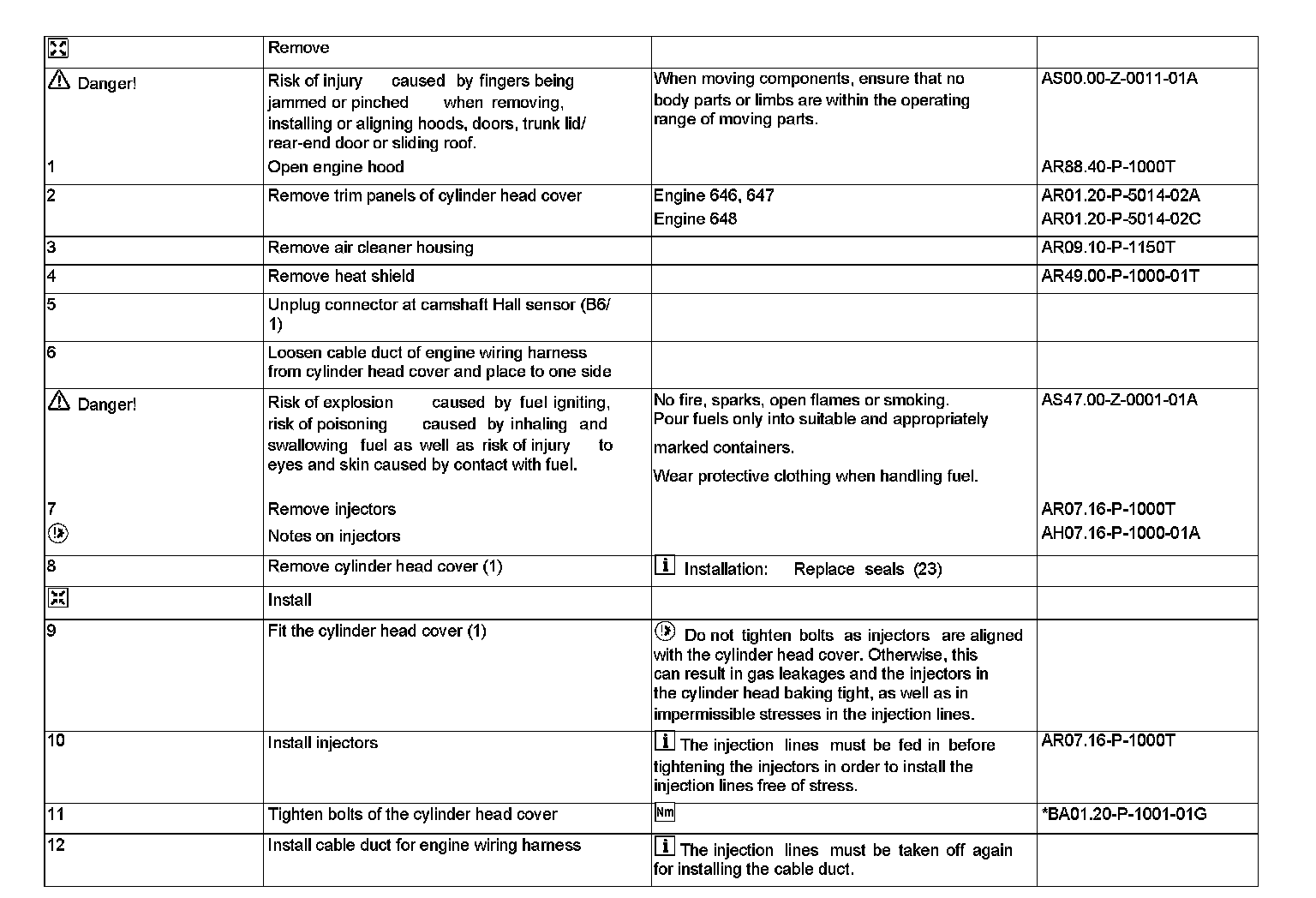

Steps 1-12:

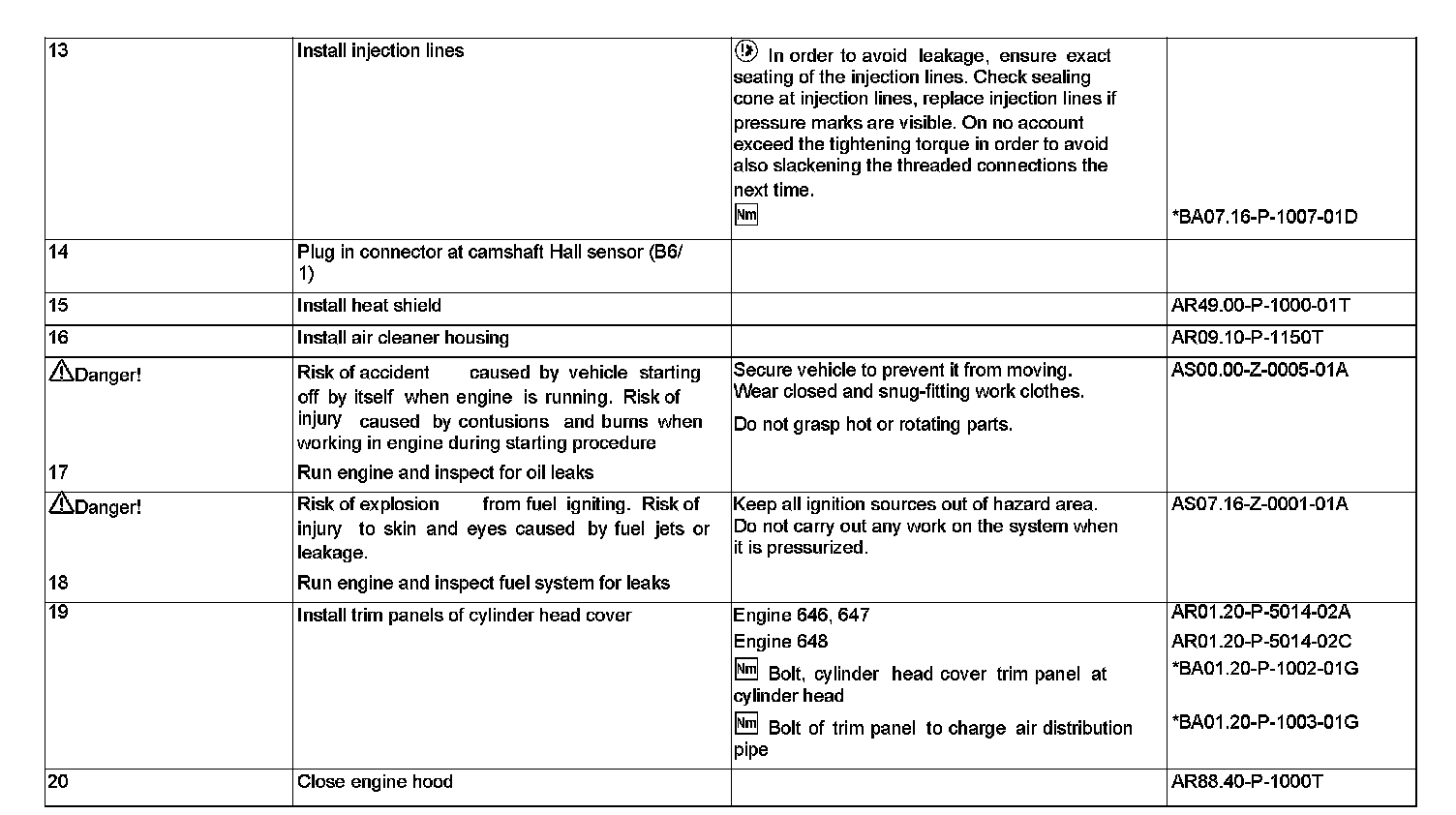

Steps 13-20:

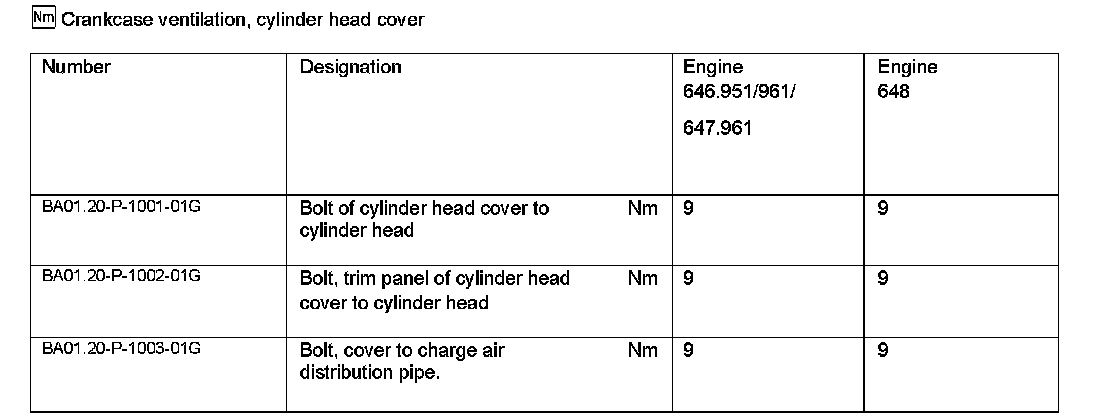

Crankcase Ventilation, Cylinder Head Cover:

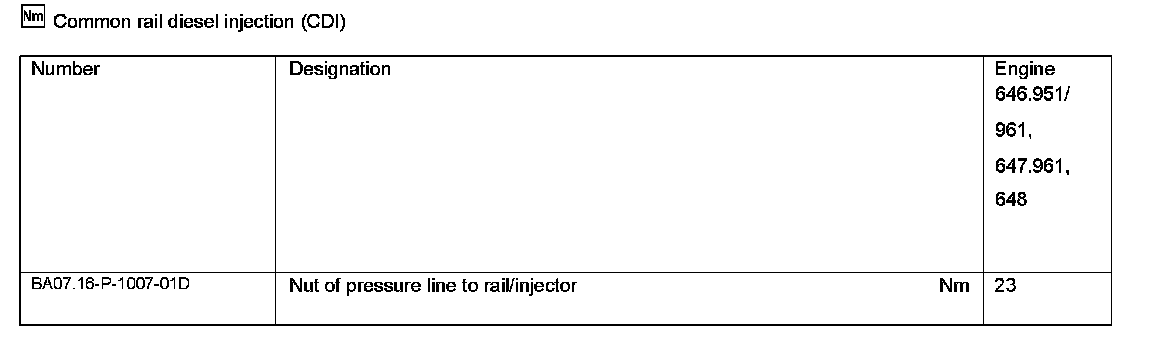

Common Rail Diesel Injection (CDI):
