AR01.20-P-5014-02C Remove/Install Cylinder Head Cover Trim



AR01.20-P-5014-02C Remove and Install Cylinder Head Cover Trim

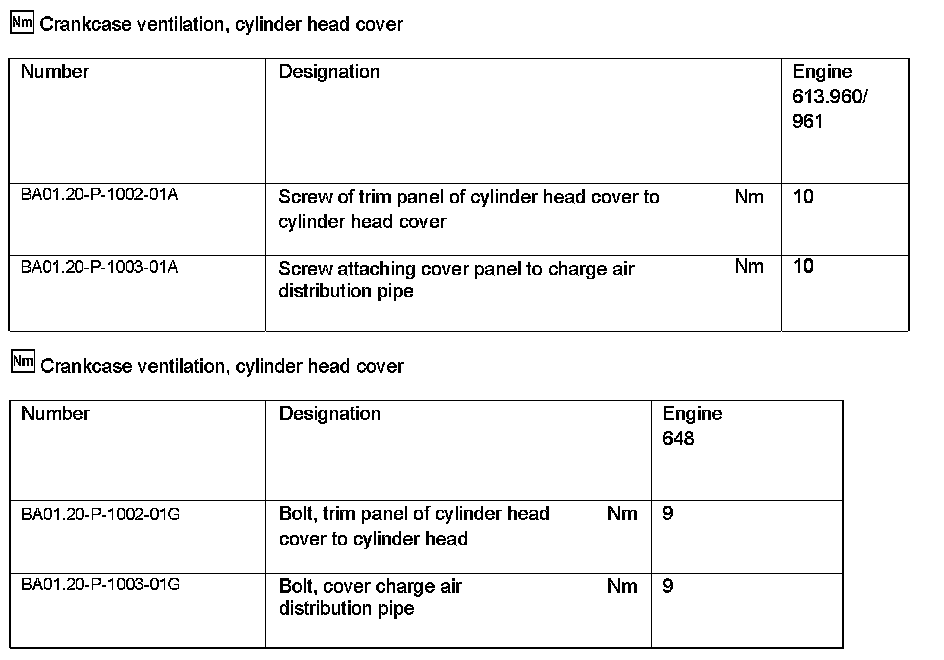

Crankcase Ventilation, Cylinder Head Cover:

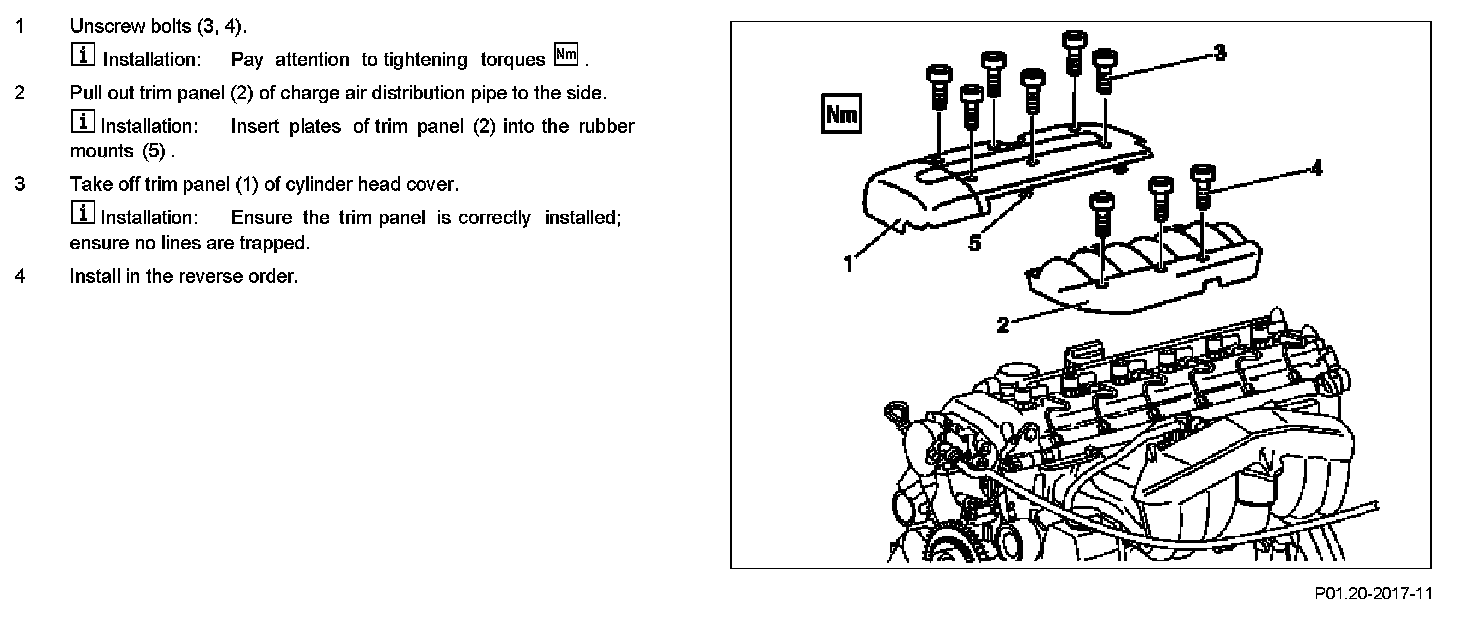

Component Identification:
