AR01.30-P-5800TA Remove/Install Cylinder Head

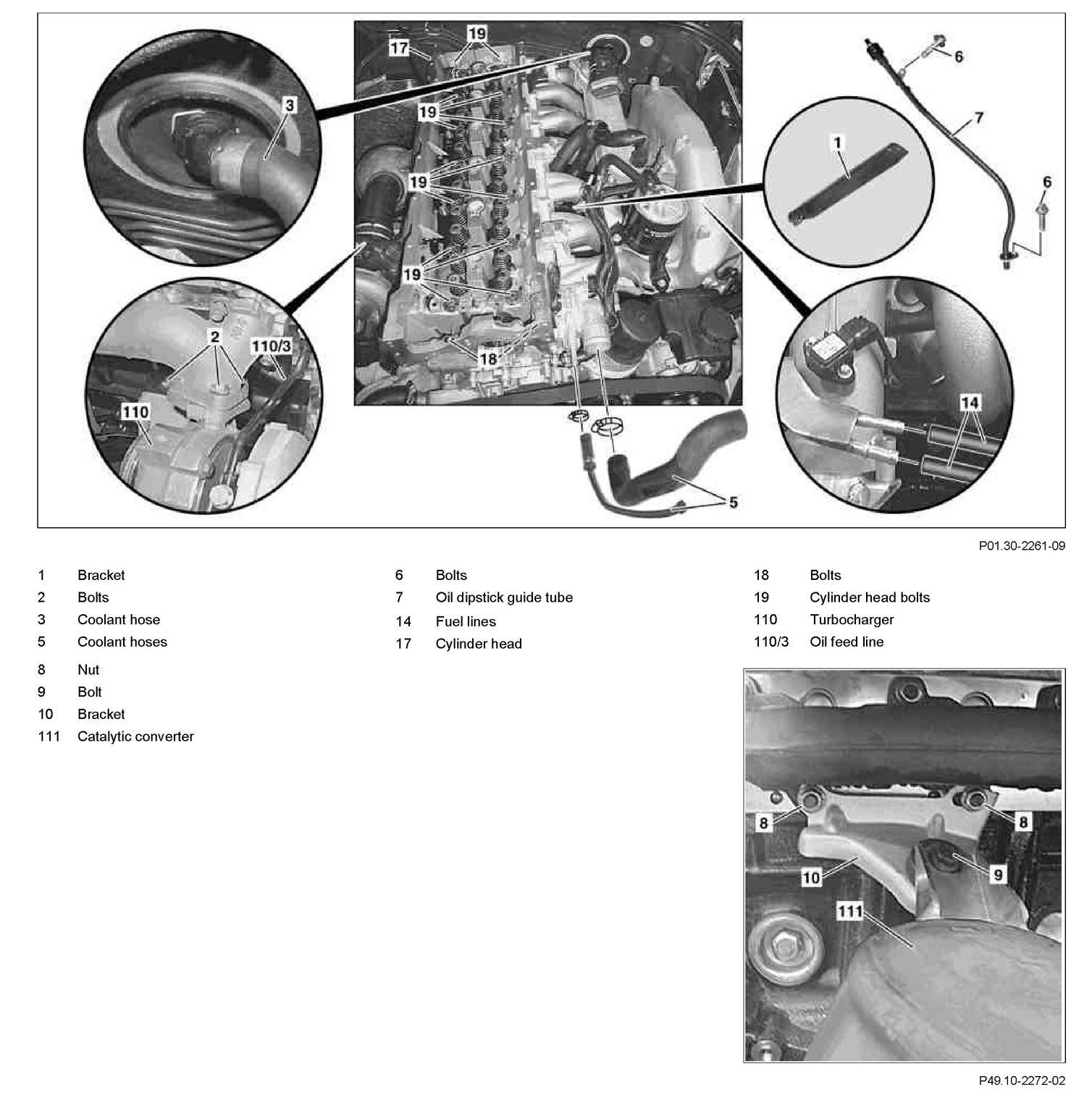

Component Identification:

Removal/Install Cylinder Head:

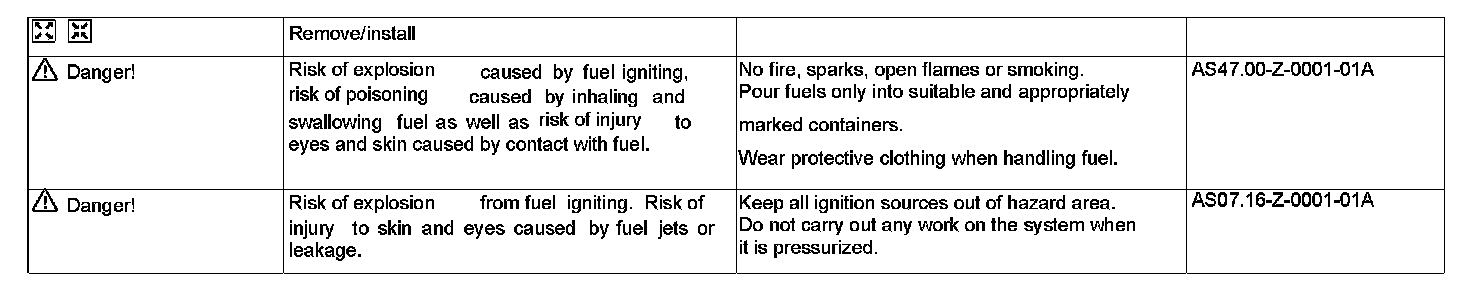

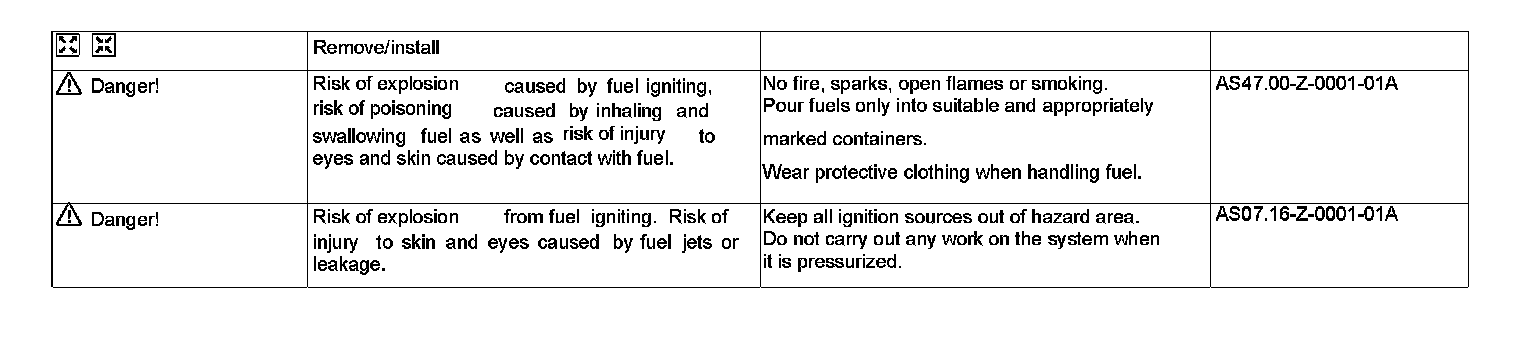

Remove/Install:

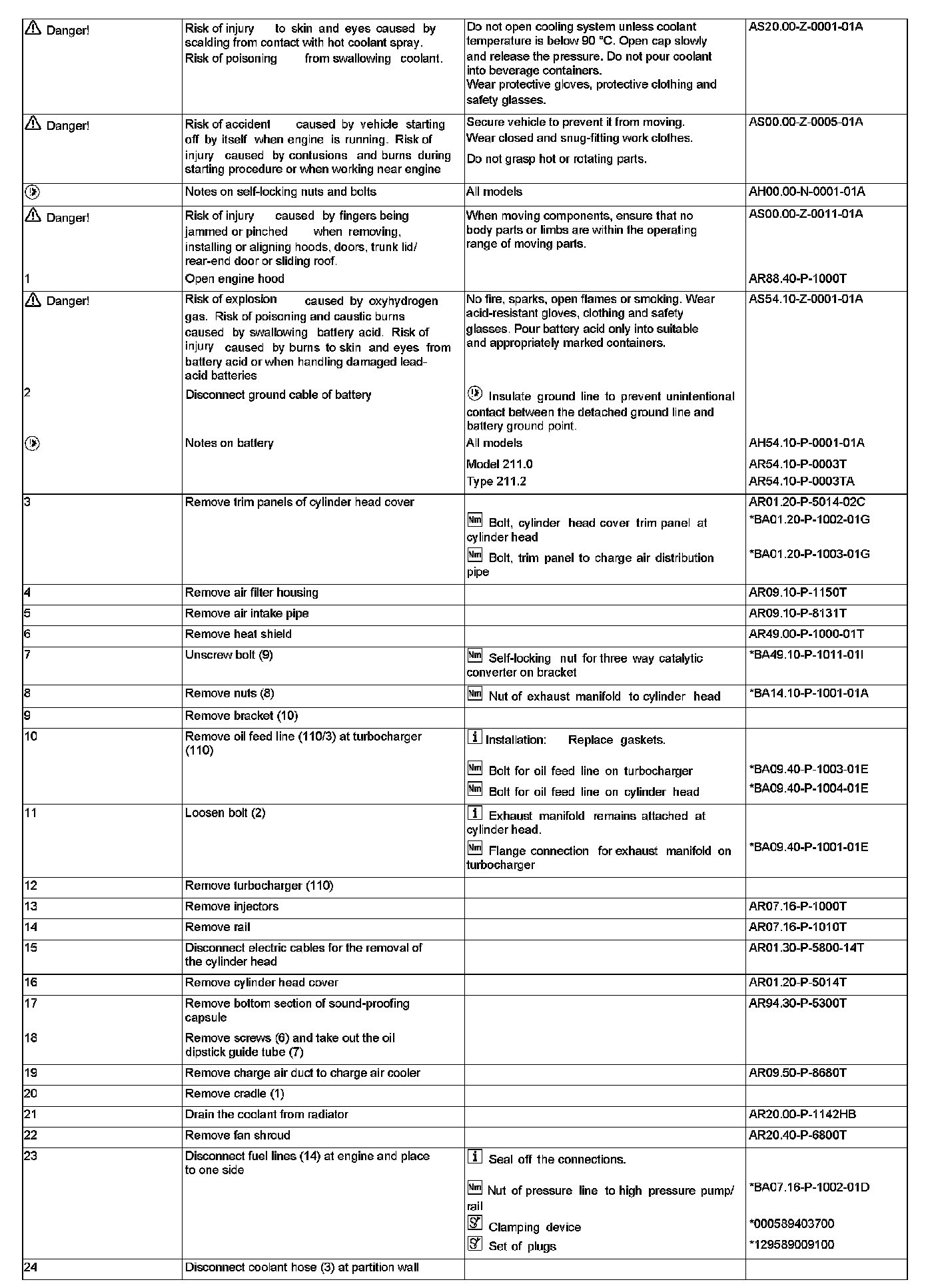

Steps 1-24:

Steps 25-40:

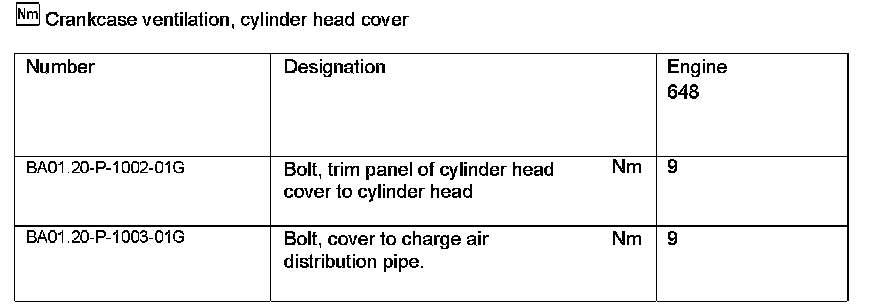

Crankcase Ventilation, Cylinder Head Cover:

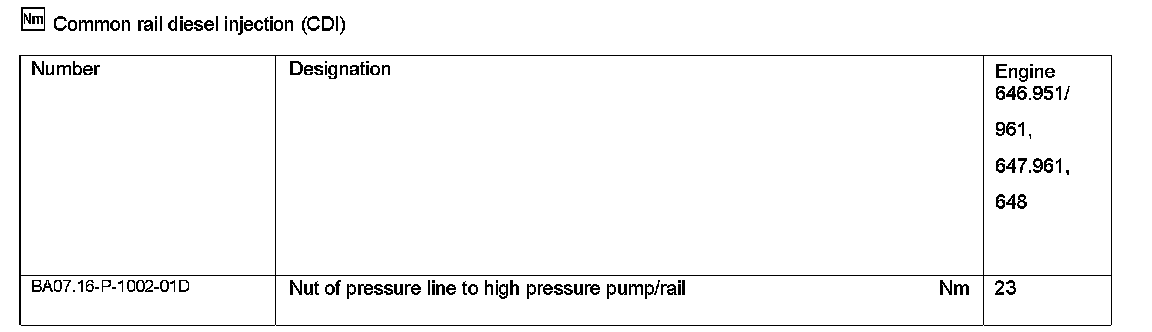

Common Rail Diesel Injection (CDI):

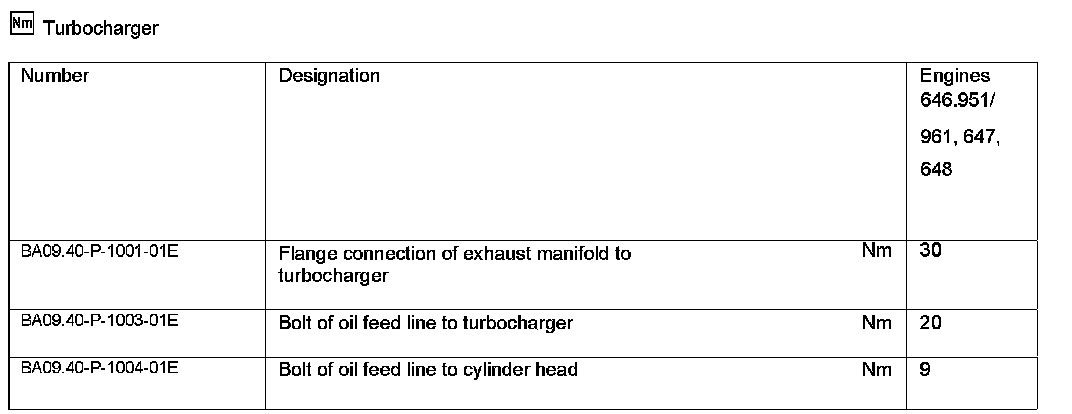

Turbocharger:

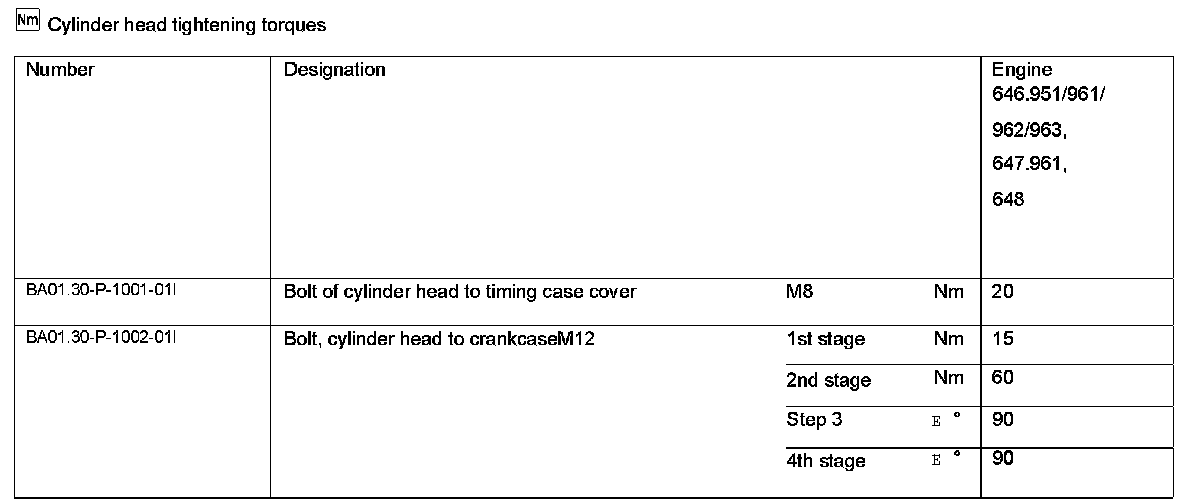

Cylinder Head Tightening Torques:

Exhaust Manifold:

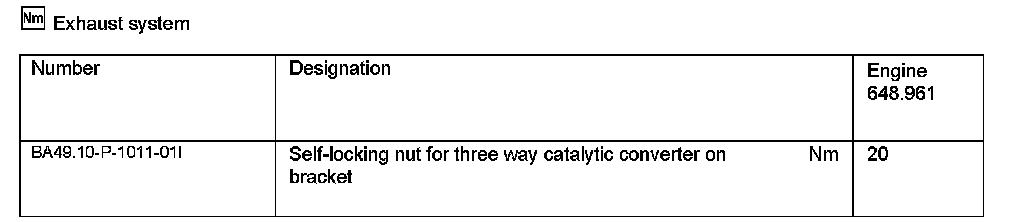

Exhaust System:

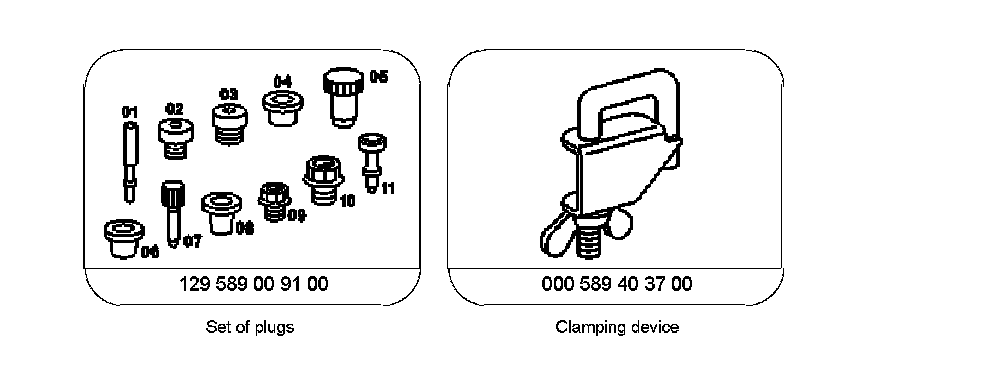

Special Tools:

Commercially Available Tools:

Commercially Available Tools:

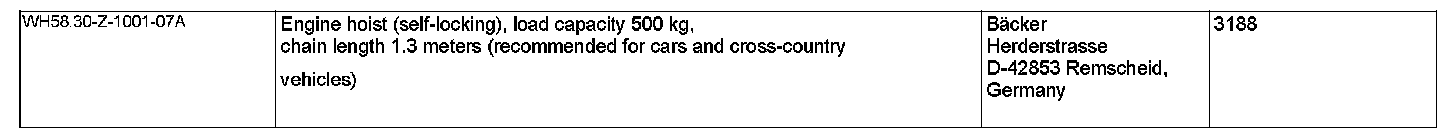

Workshop Equipment/MB Testers:
