Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Service and Repair >> Removal and Replacement >> AR01.30-P-5700T Remove/Install Front Cover on Cylinder Head

AR01.30-P-5700T Remove/Install Front Cover on Cylinder Head



AR01.30-P-5700T Remove/install front cover on cylinder head

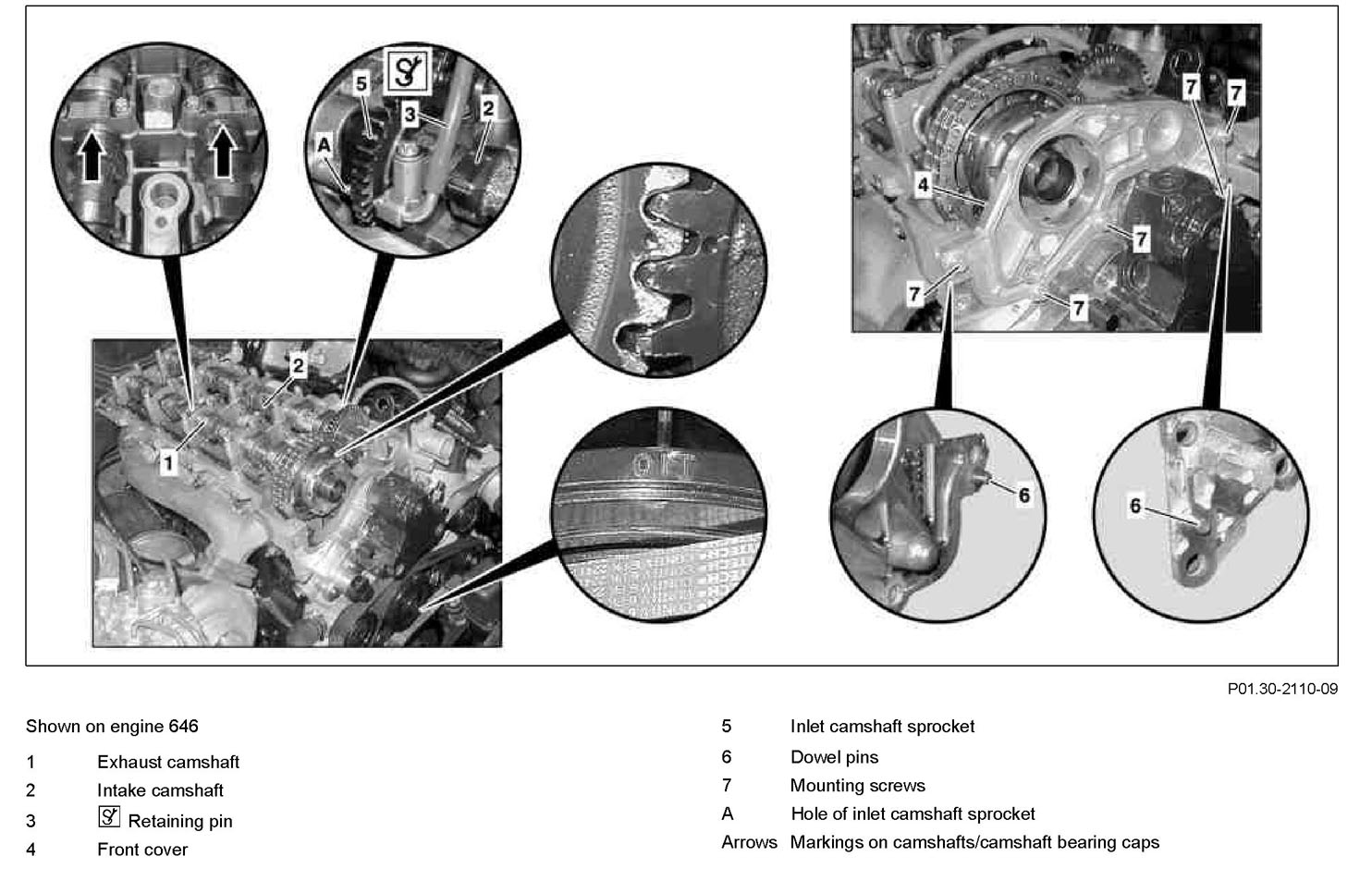

Component Identification:

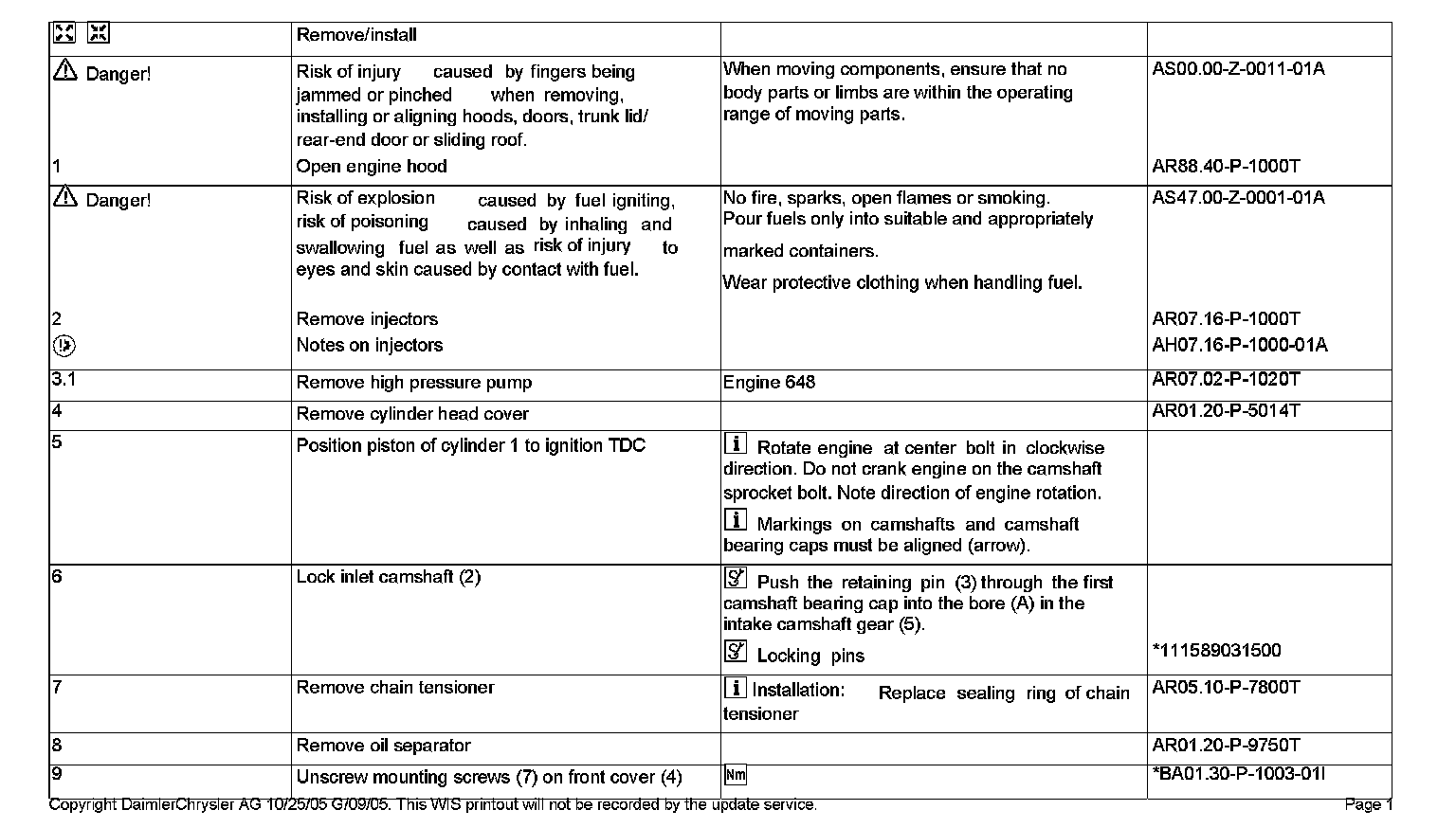

Steps 1-9:

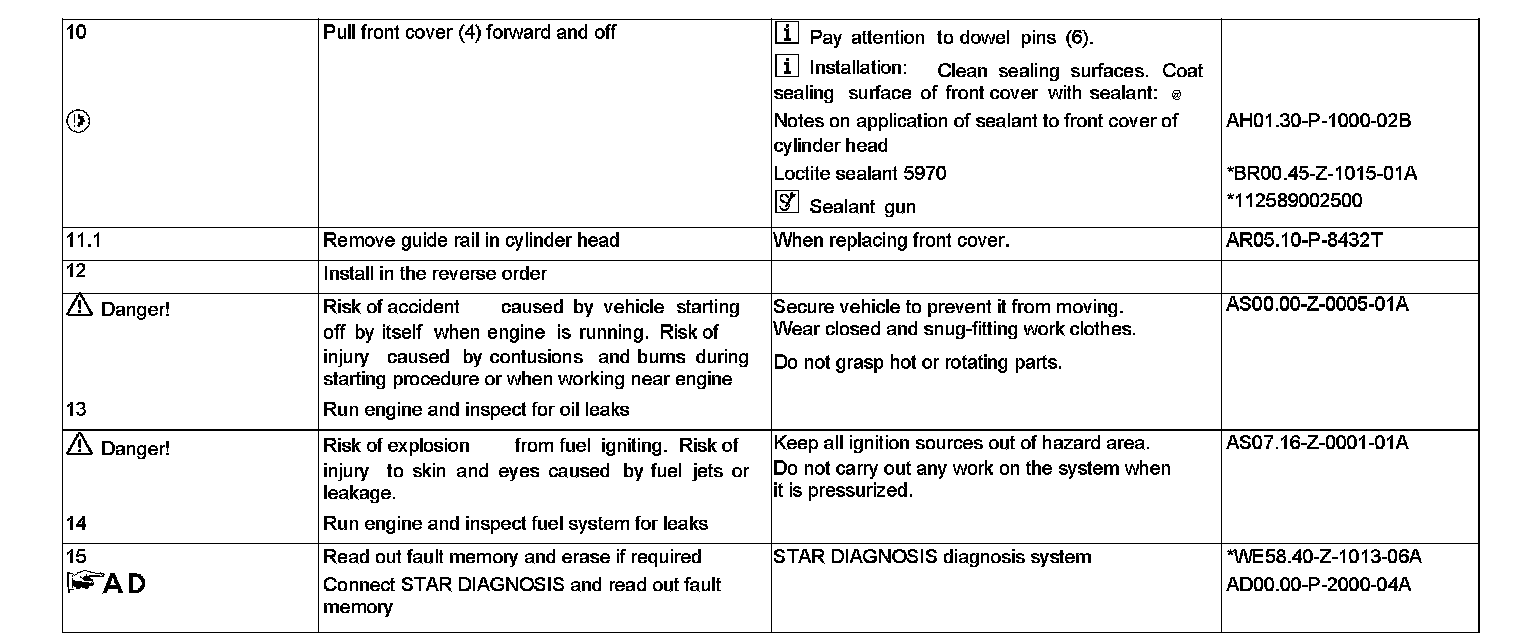

Steps 10-15:

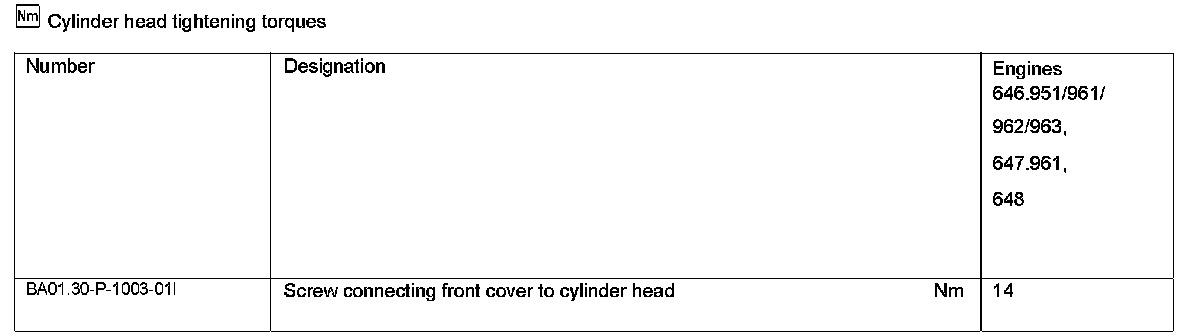

Cylinder Head Tightening Torques:

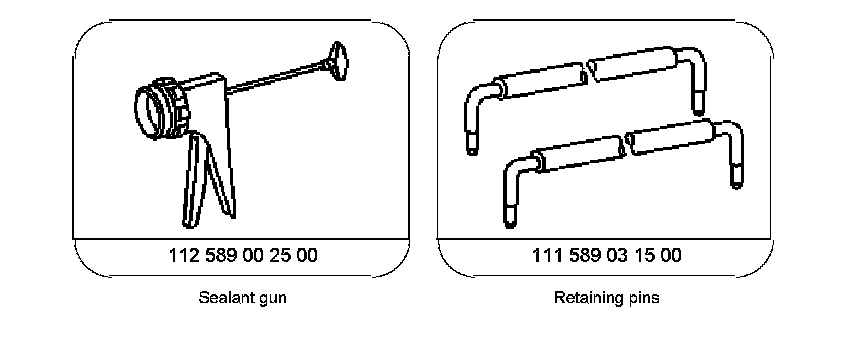

Special Tools:




Workshop Equipment/MB Testers:

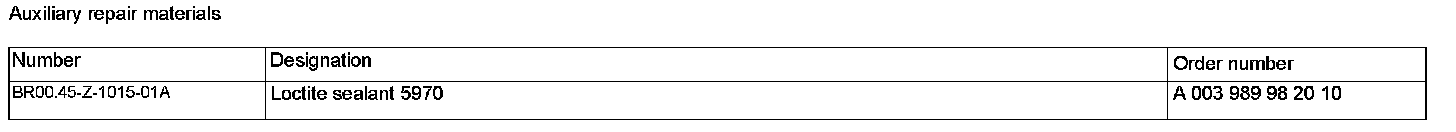

Auxiliary Repair Materials:
