AR01.30-P-5800-14T Connecting / Disconnecting Electric Cables For the Purpose of Removing the Cylinder Head
AR01.30-P-5800-14T Connecting / Disconnecting Electric Cables For the Purpose of Removing the Cylinder Head
Shown on engine 647
1 Coupling
2 Connector
3 Connector
4 Rubber seal
5 Engine wiring harness
6 Bracket
7 Connector
B17/8 Charge air temperature sensor
N3/9 CDI control unit
N10/1 Driver-side SAM control unit with and fuse relay module
N14/2 Glow output stage
Shown on engine 647
9 Connector
10 Connector
11 Connector
A9 Refrigerant compressor
A9x1 Refrigerant compressor connector
B50 Fuel temperature sensor
G2 Alternator
Y94 Quantity control valve
Y100/1 Right boost pressure regulator
Shown on engine 647
13 Charge air distribution pipe
14 Cover
B28/8 Charge air pressure sensor
B40 Oil sensor (oil level, temperature and quality)
L5 Crankshaft position sensor
M1 Starter
M55 Intake port shutoff motor
Engine 648

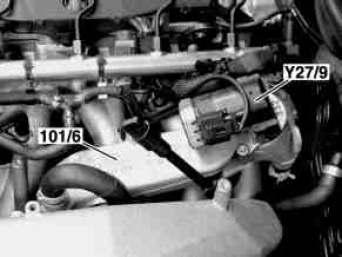

Y27/9 Left exhaust gas recirculation positioner
101/6 Exhaust gas recirculation pipe
Shown on Engine 648

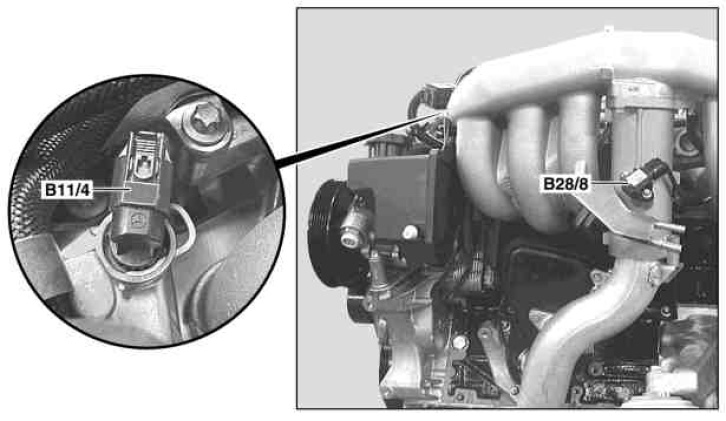

B11/4 Coolant temperature sensor
B28/8 Charge air pressure sensor
1 Remove cover (14) of left fuse box.
Check the rubber seal in the cover. Cover must be located in the groove at the rear.

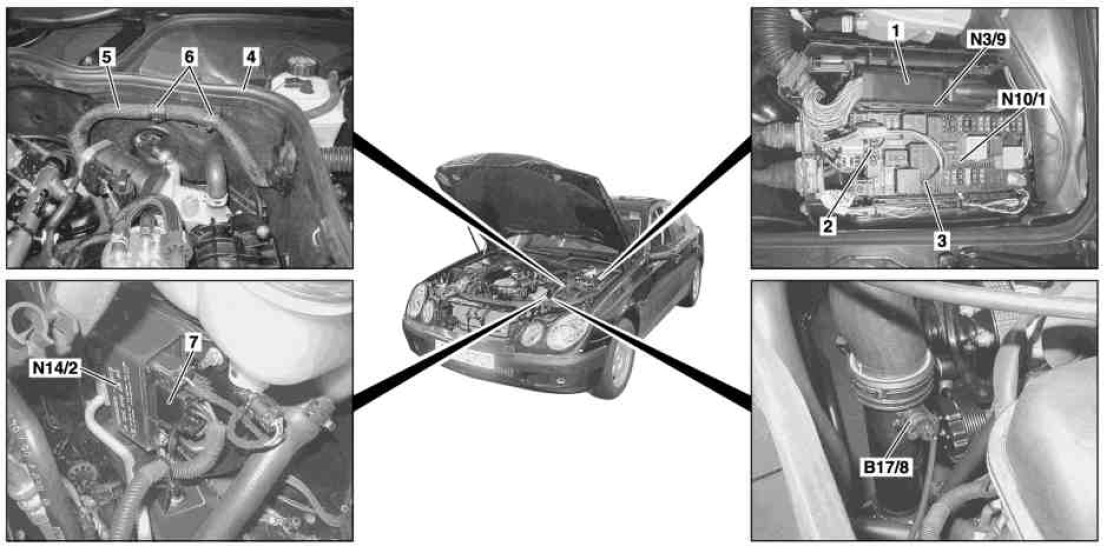

2 Detach the coupling (1) at CDI control unit (N3/9) and plug (2, 3) on driver-side SAM control unit with fuse and relay module (N10/1).
3 Remove the rubber seal (4) and loosen the engine wiring harness (5) from the bracket (6) at the partition wall
4 Disconnect plug (7) at glow output stage (N14/2) and unplug refrigerant compressor connector (A9x1) at refrigerant compressor (A9).
5 Detach electric lines running through the cylinder head.
Engine 647:

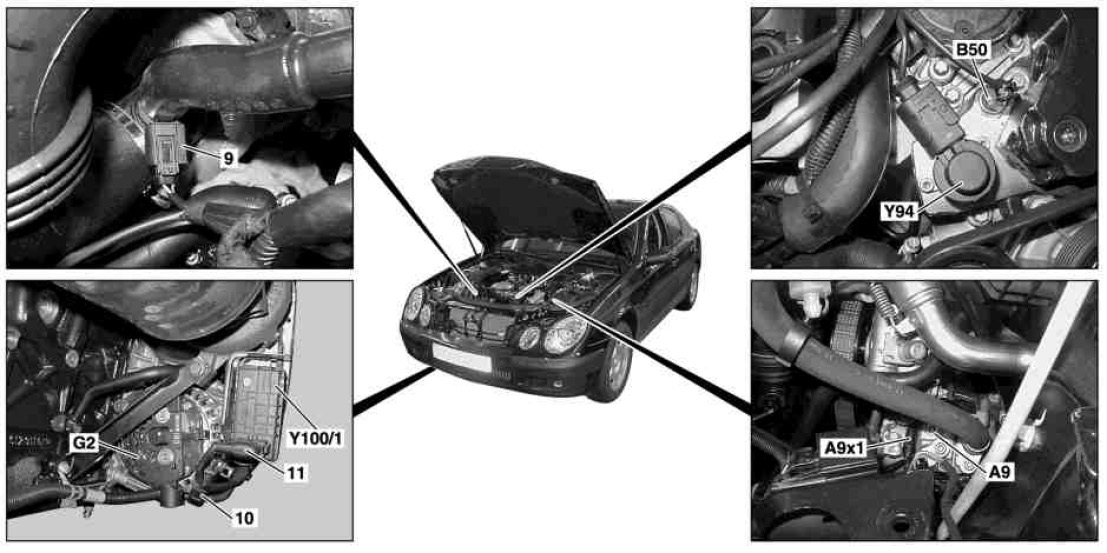

Pull out the plugs at the quantity control valve (Y94), fuel temperature sensor (B50), charge air temperature sensor (B17/8), and plug (9) at the crankcase ventilation system, plug (10) at the generator (G2) and plug (11) on right of boost pressure regulator (Y100/1).
Engine 648:
Disconnect plugs at the quantity control valve (Y94), fuel temperature sensor (B50), charge air temperature sensor (B17/8), coolant temperature sensor (B11/4), and plug (9) at crankcase ventilation system, plug (10) at generator (G2) and plug (11) at right boost pressure regulator (Y100/1).
6 Detach electric cables running along charge air distribution tube (13).
Engine 647:

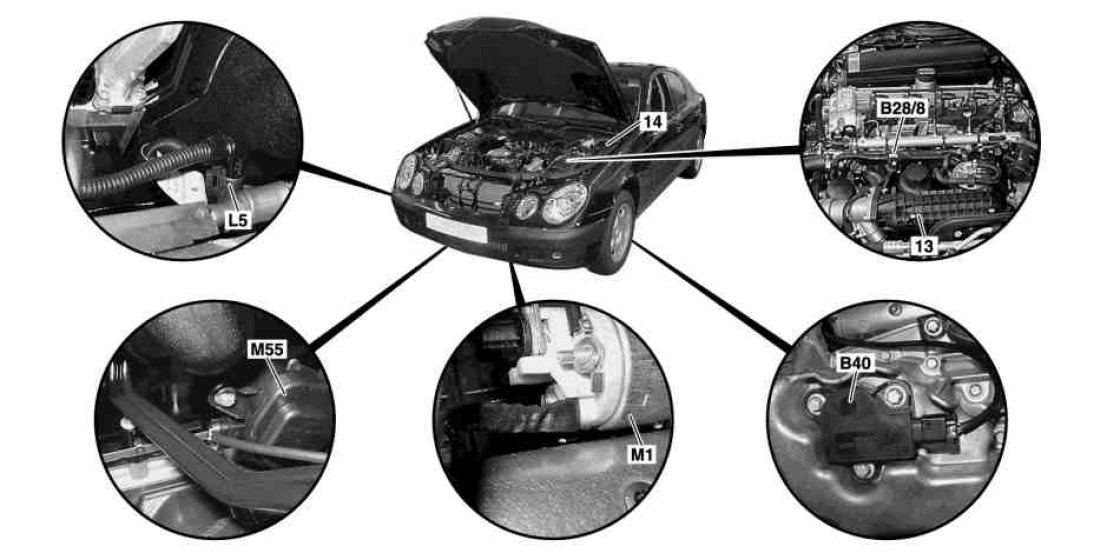

Detach electrical line at starter (M1). Disconnect plugs at oil sensor (oil level, temperature and quality) (B40), crankshaft position sensor (L5), intake port shutoff motor (M55) and charge air pressure sensor (B28/8).
Engine 648:
Detach electrical line at starter (M1). Disconnect plugs at oil sensor (oil level, temperature and quality) (B40), crankshaft position sensor (L5), left exhaust gas recirculation positioner (Y27/9) and charge air pressure sensor (B28/8).
