Camshaft Housing: Service and Repair



AR05.20-P-6995B Remove/install camshaft housing

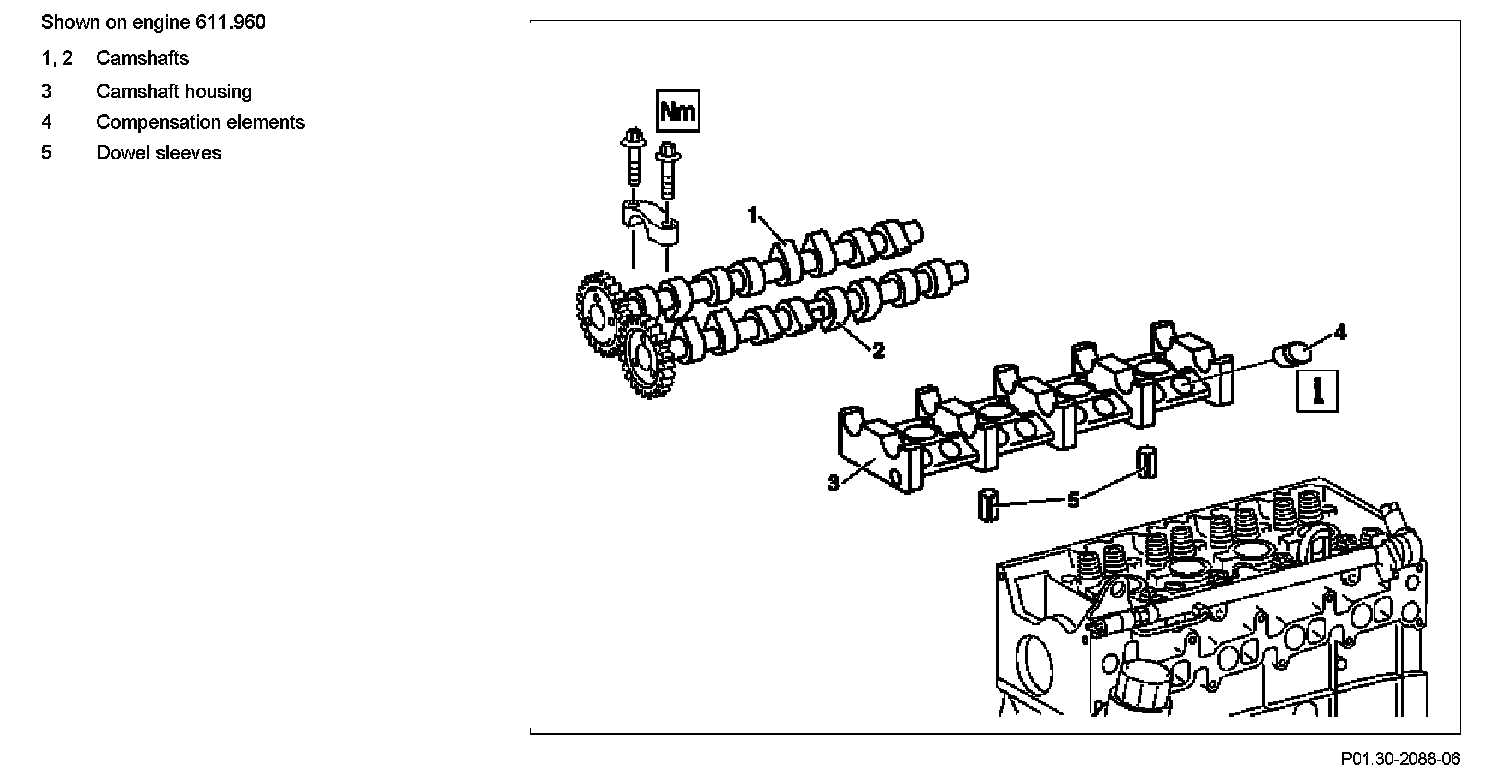

Component Identification:

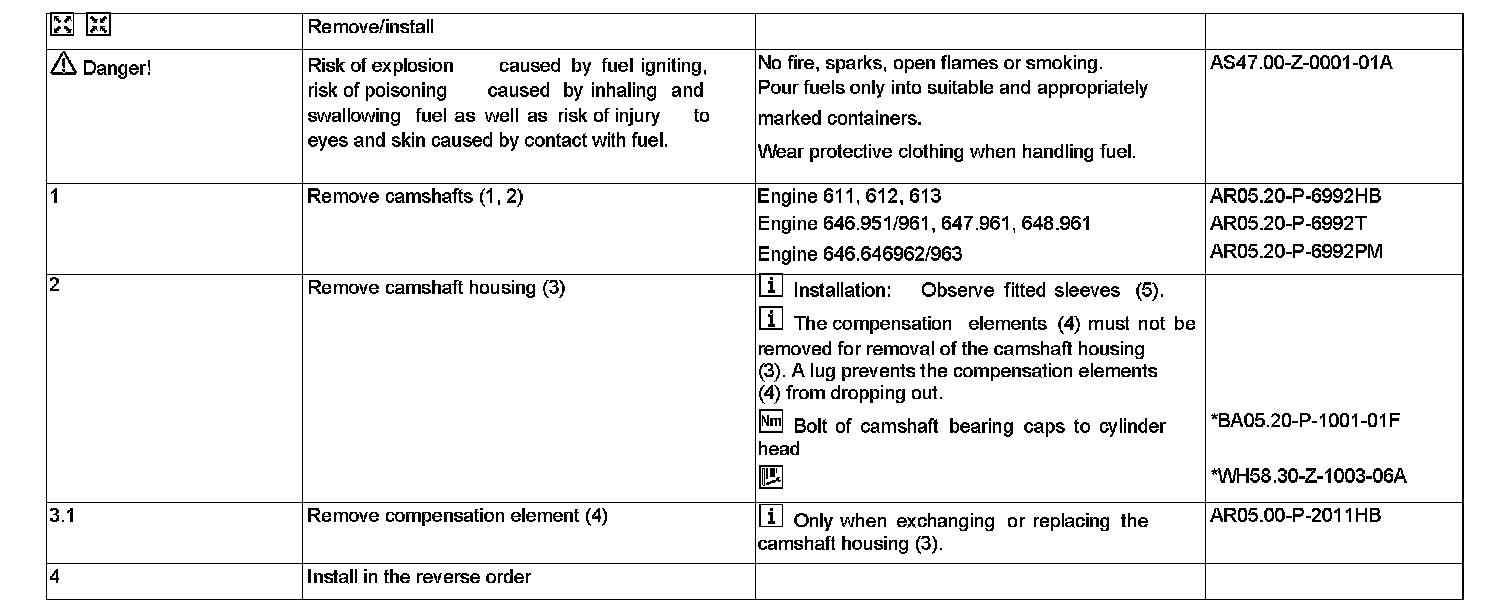

Steps 1-4:




Camshaft:




Camshaft:

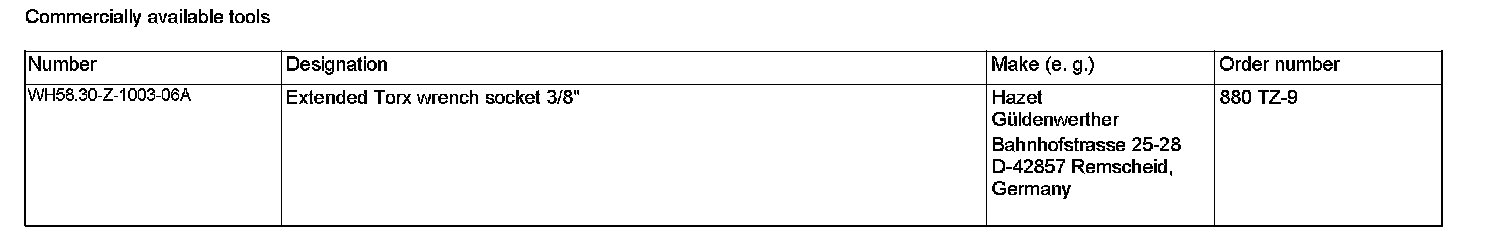

Commercially Available Tools:
