AR01.40-P-9202T Measuring Cylinder Bores



AR01.40-P-9202T Measuring cylinder bores

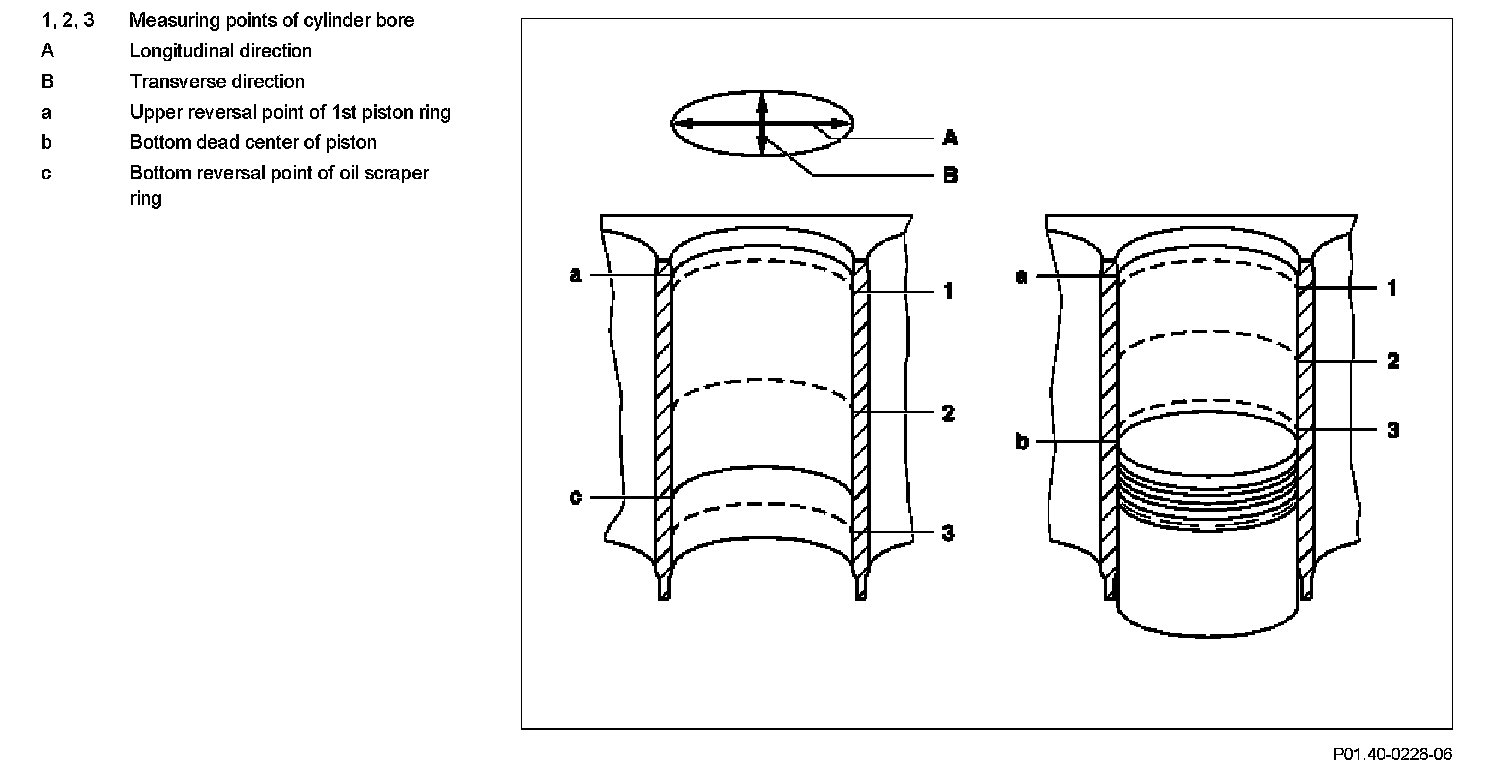

Component Identification:

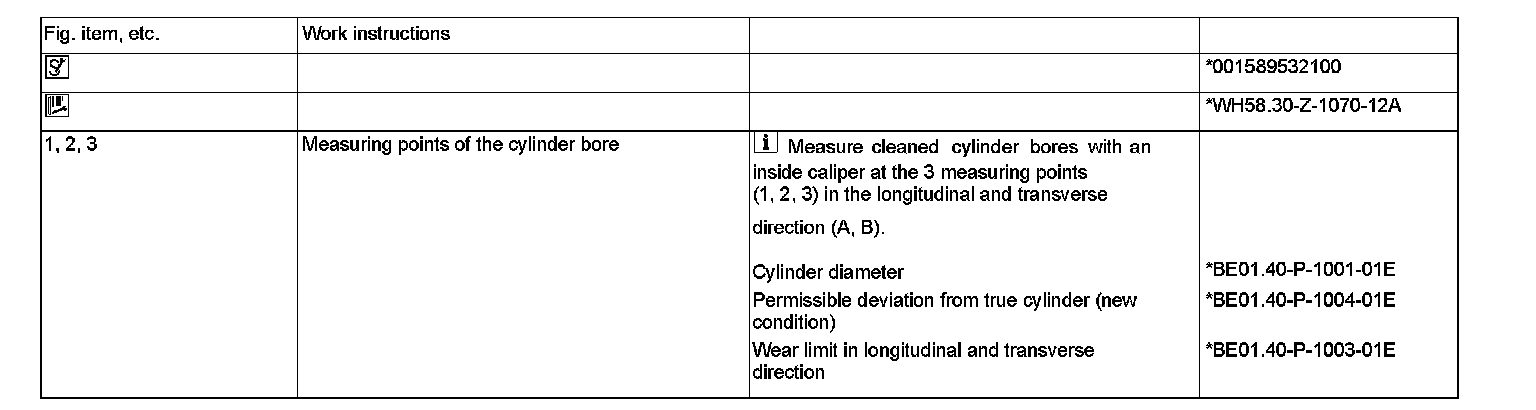

Measuring Cylinder Bores:




Test Values For Cylinder Bore:

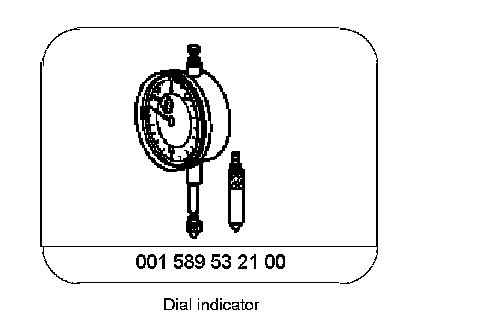

Special Tools:




Commercially Available Tools:
