AR01.40-P-8498B Knocking Out, Inserting Steel Ball For Main Oil Gallery



AR01.40-P-8498B Knocking out, inserting steel ball for main oil gallery

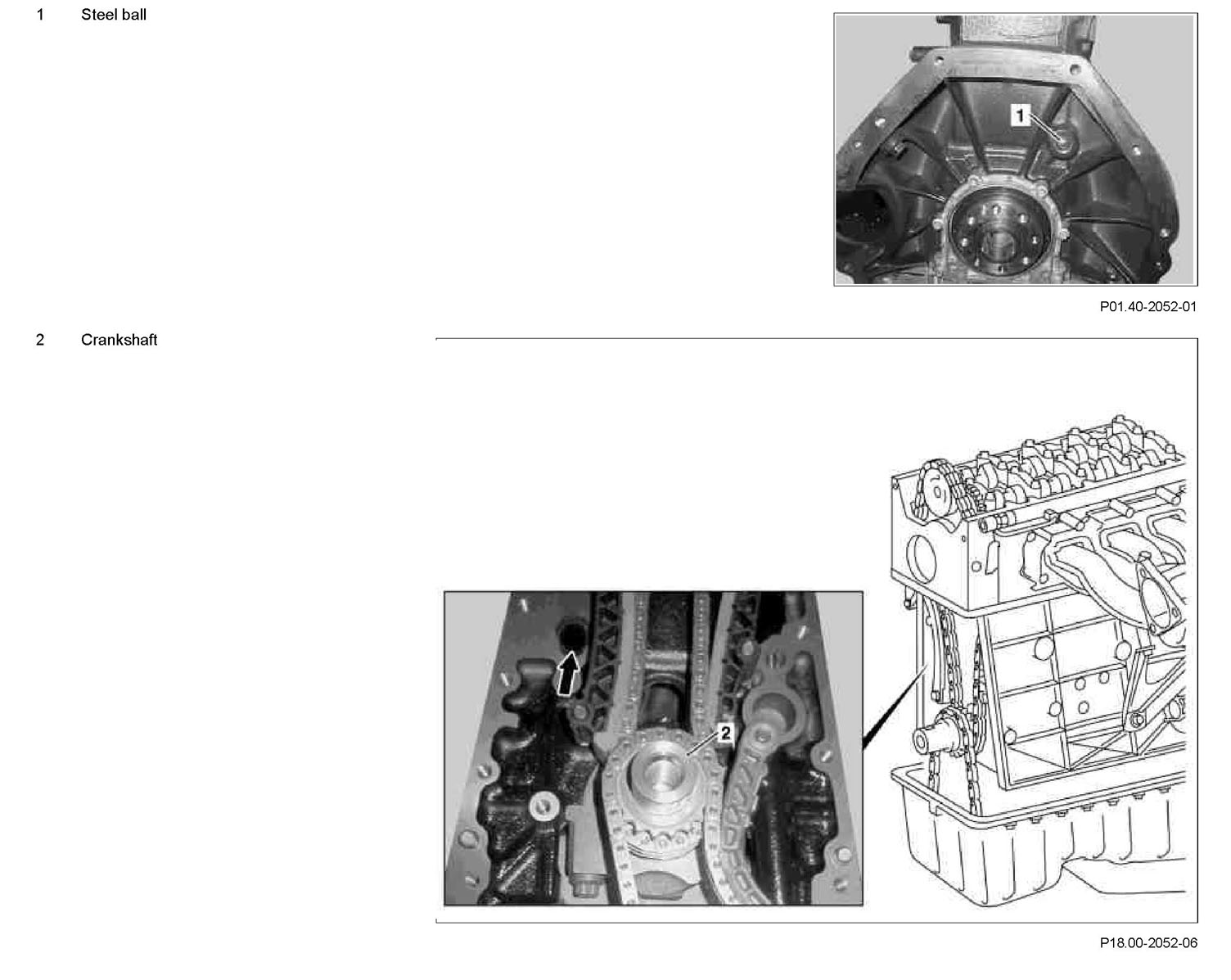

Component Identification:

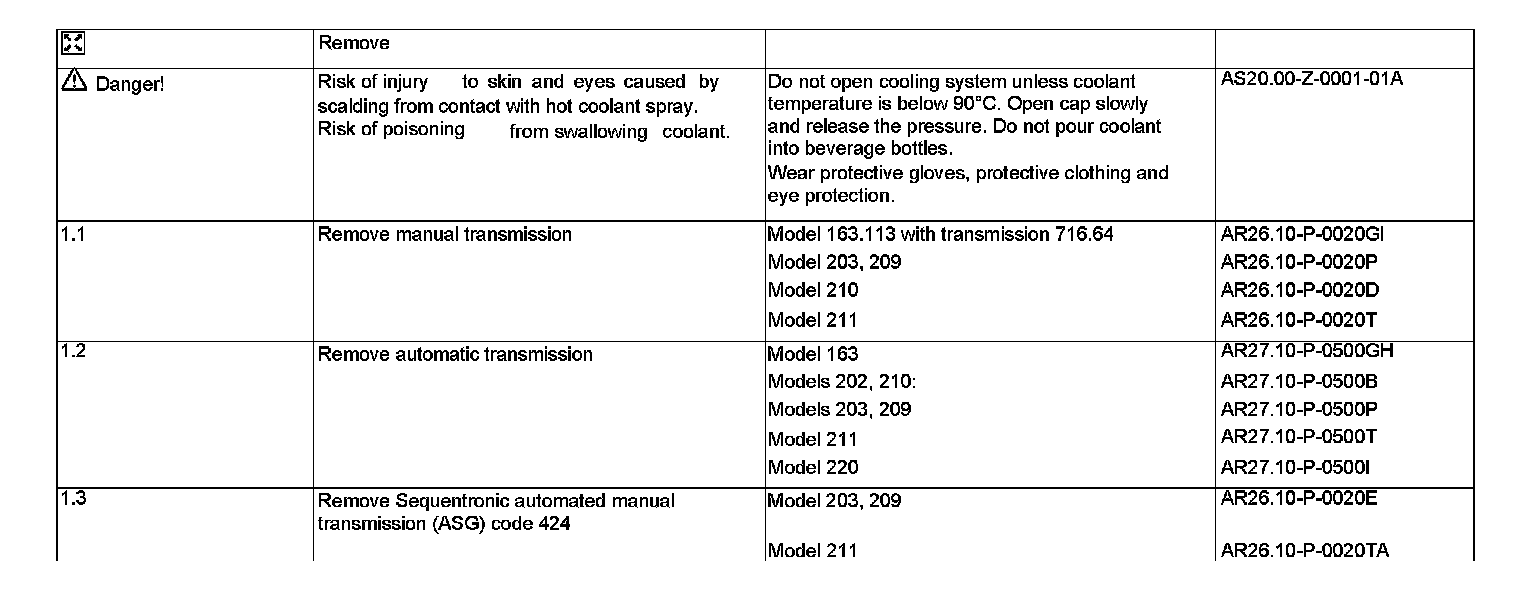

Steps 1.1 -1.3:

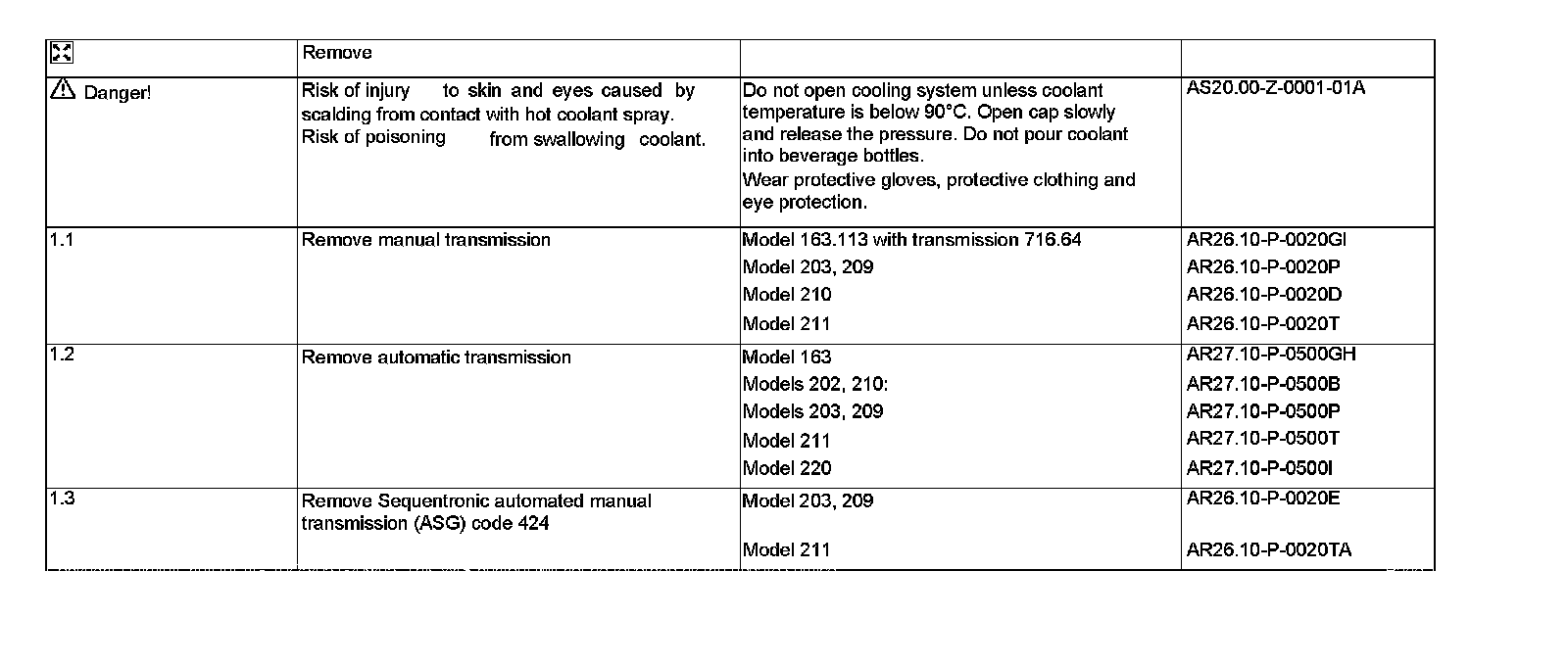

Steps 1.1-1.3:

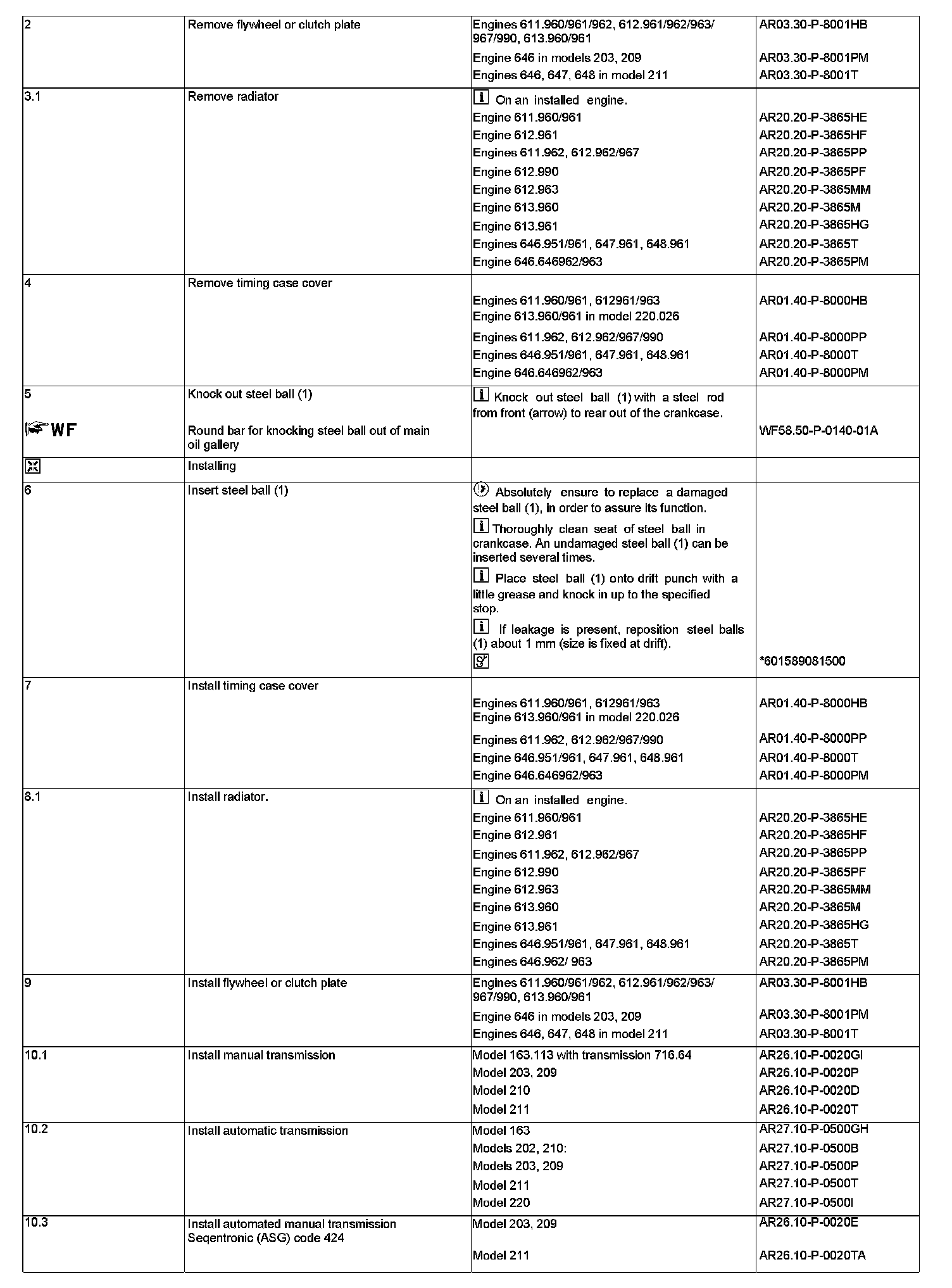

Steps 2-10.3:

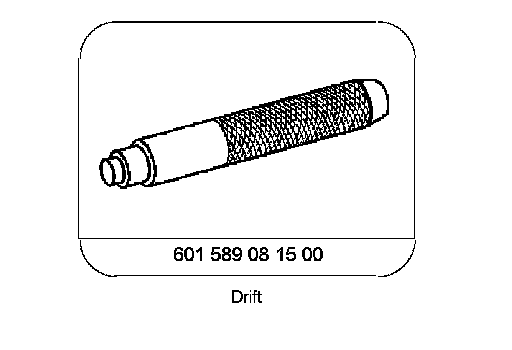

Special Tools:
