Piston: Service and Repair



AR03.10-P-7021T Piston removal and installation

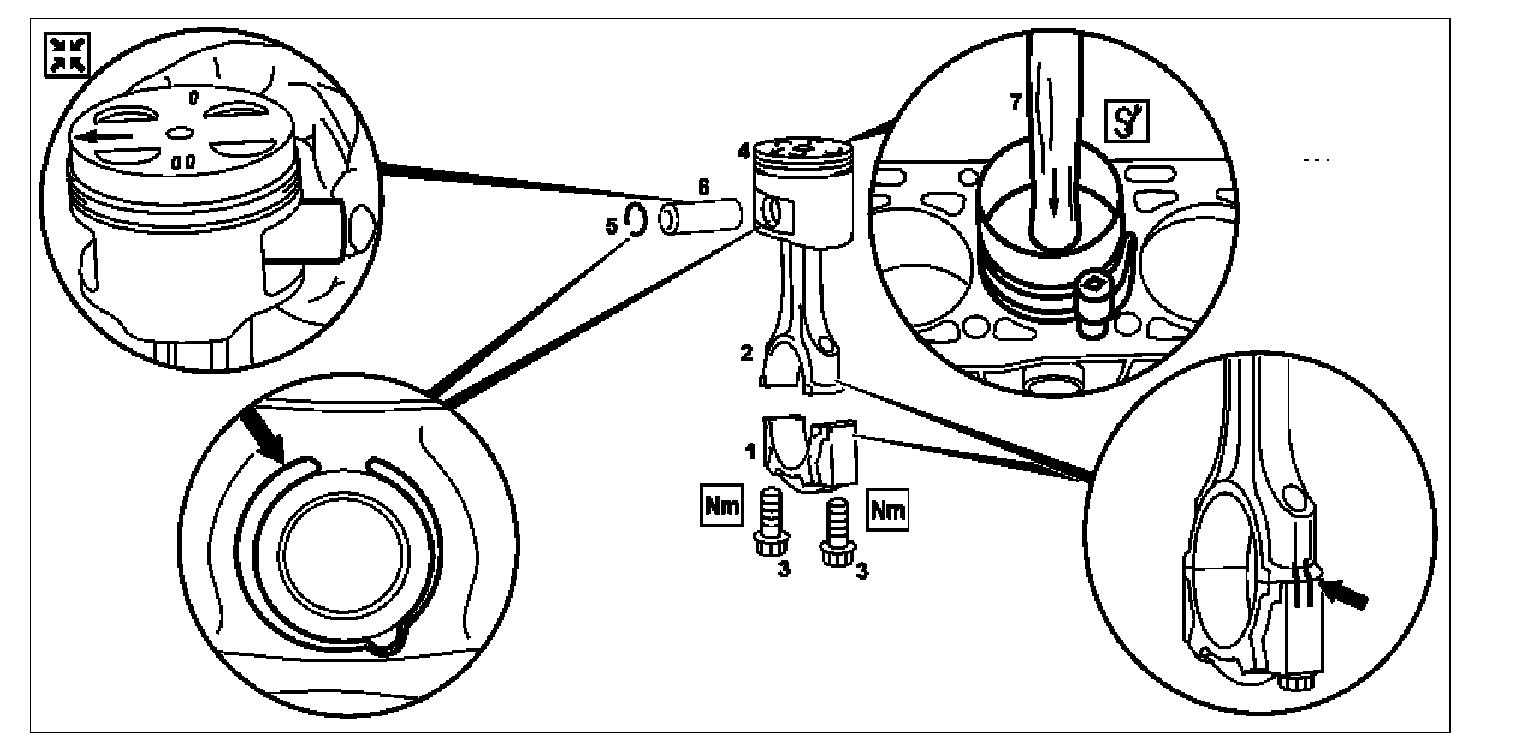

Component Identification:

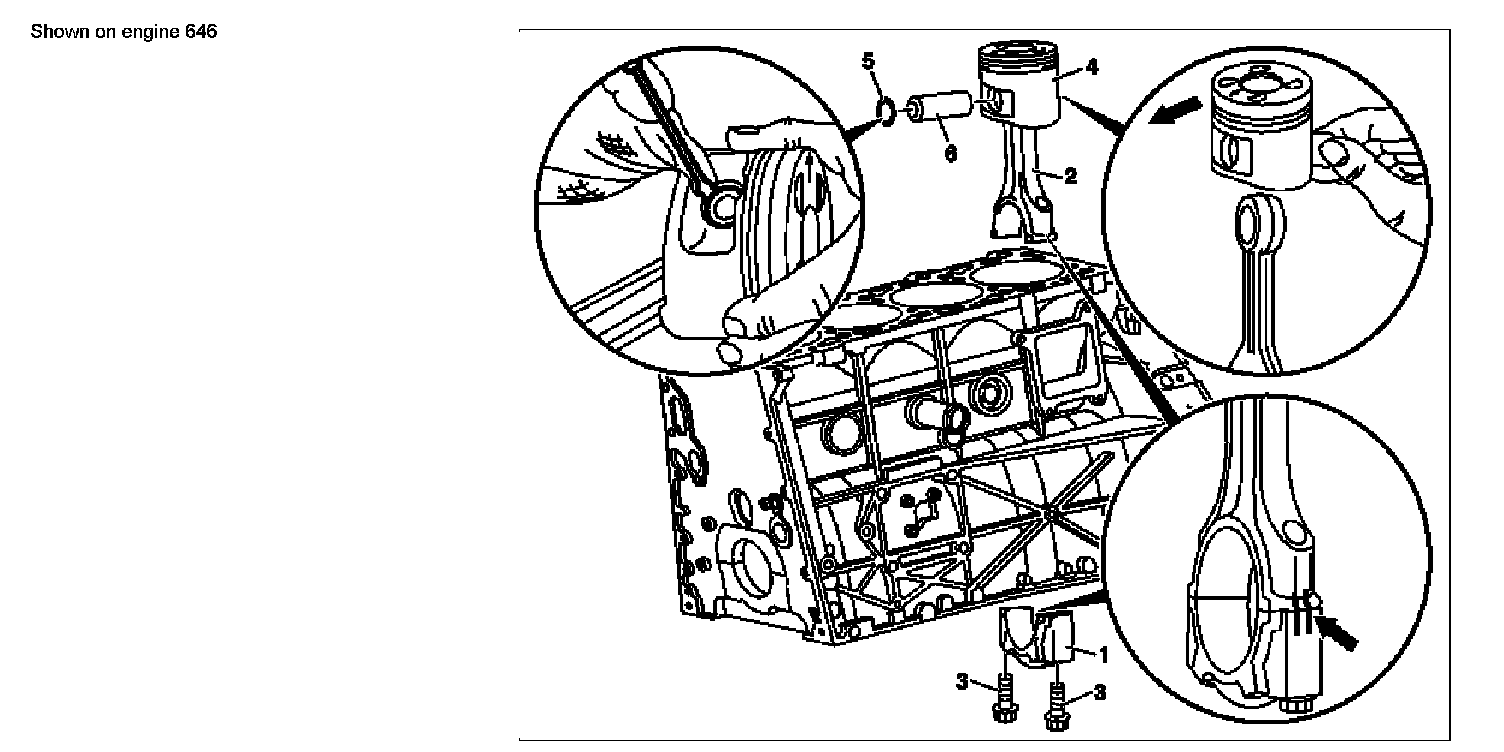

Component Identification:

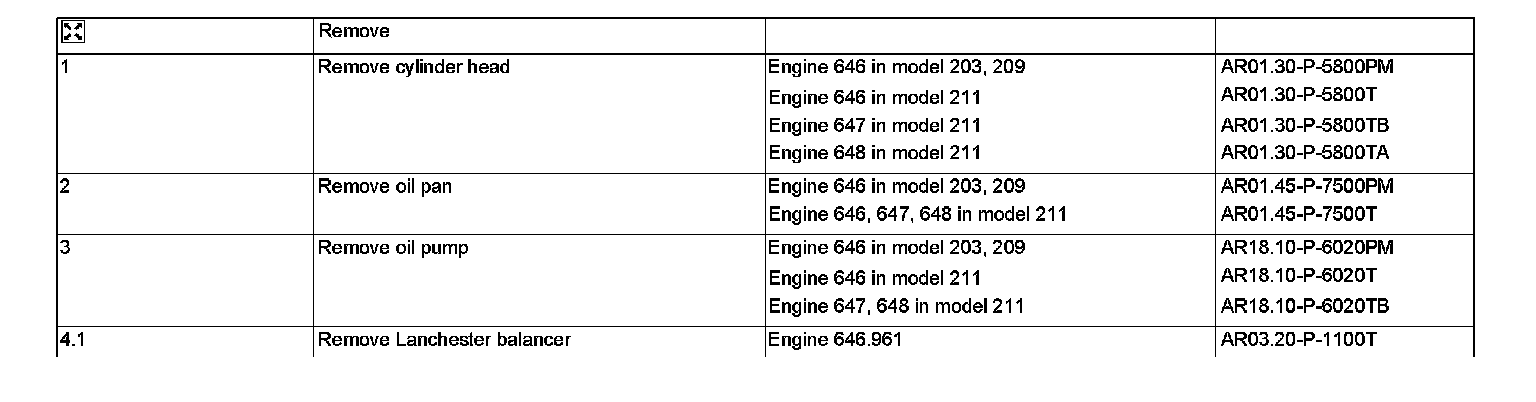

Steps 1-4.1:

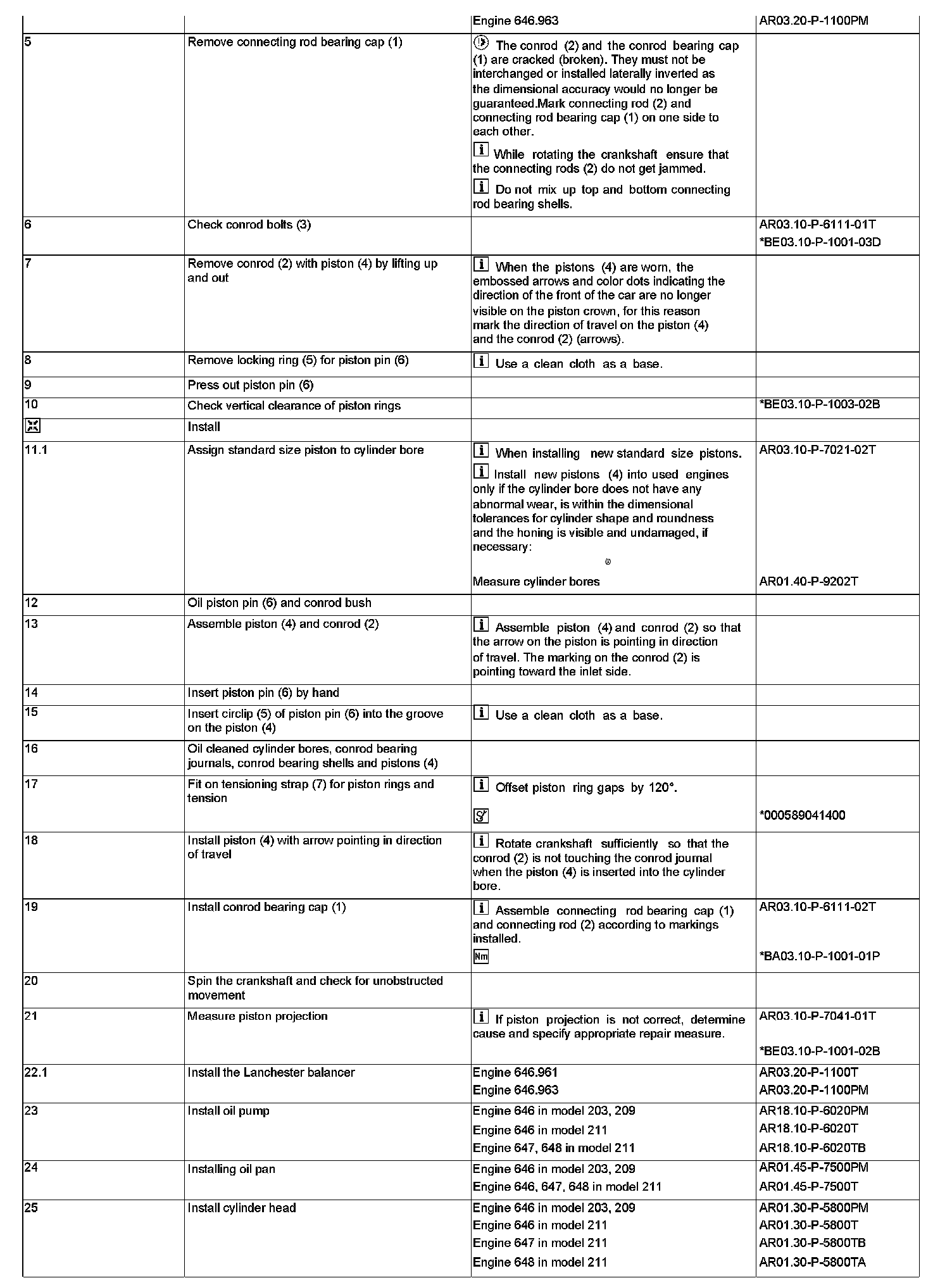

Steps 5-25:




Test Values For Pistons:

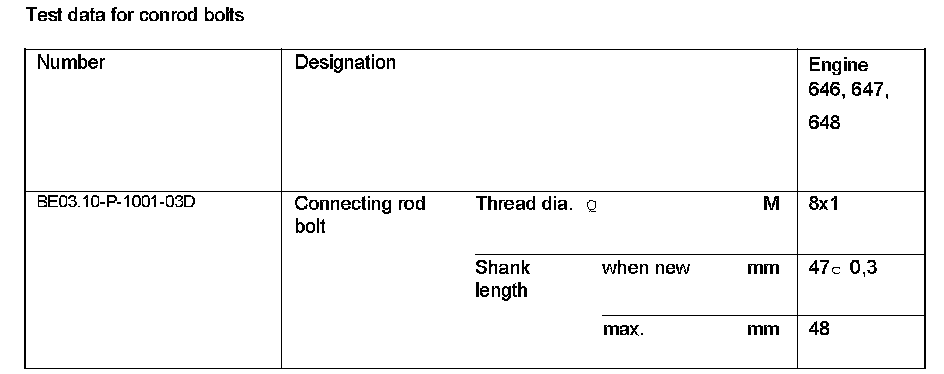

Test Data For Conrod Bolts:

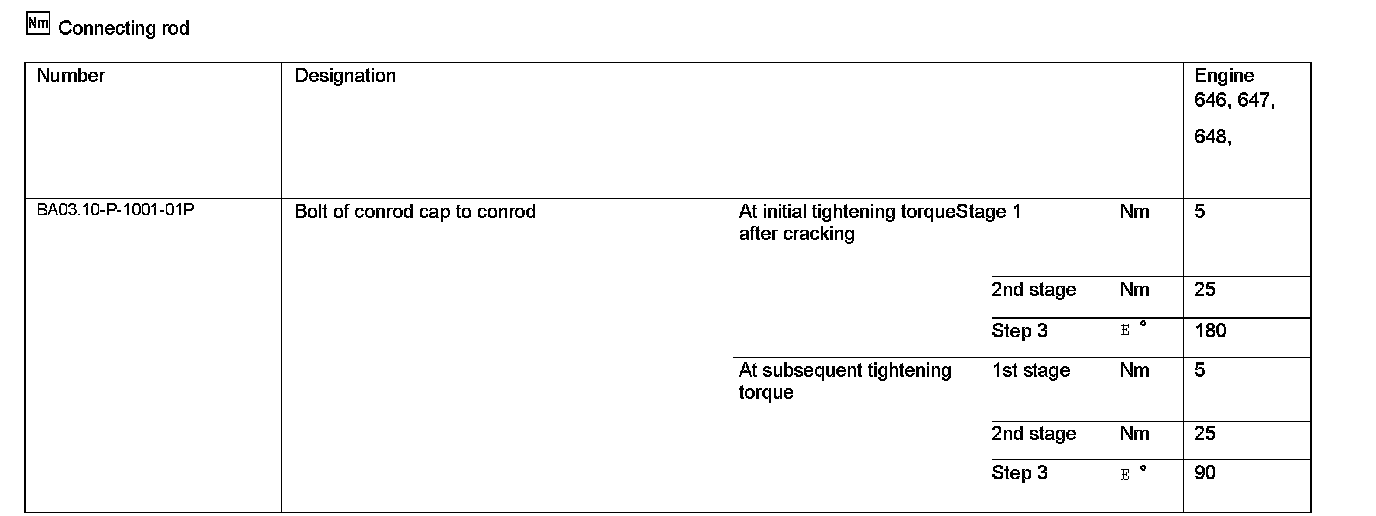

Connecting Rod:

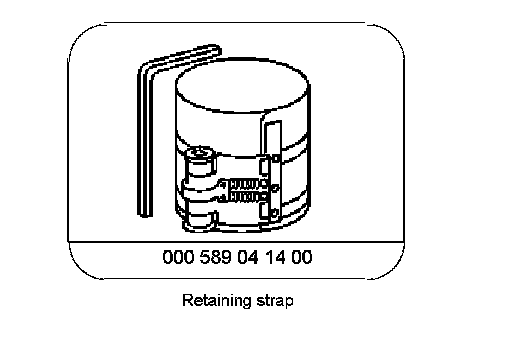

Special Tools:
