Piston Ring: Service and Repair
AR03.10-P-7311T Removing/installing piston rings

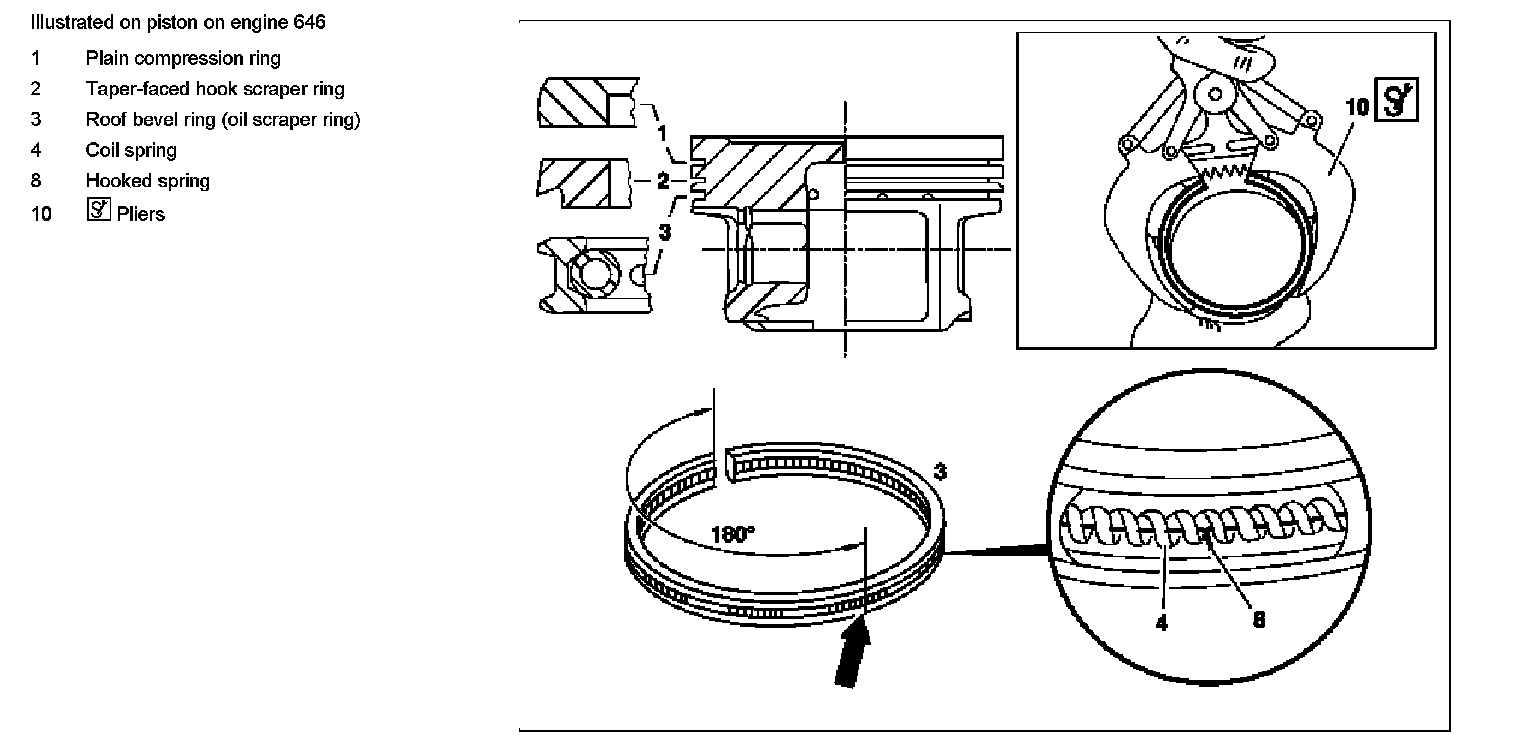

Component Identification:
Component Identification:

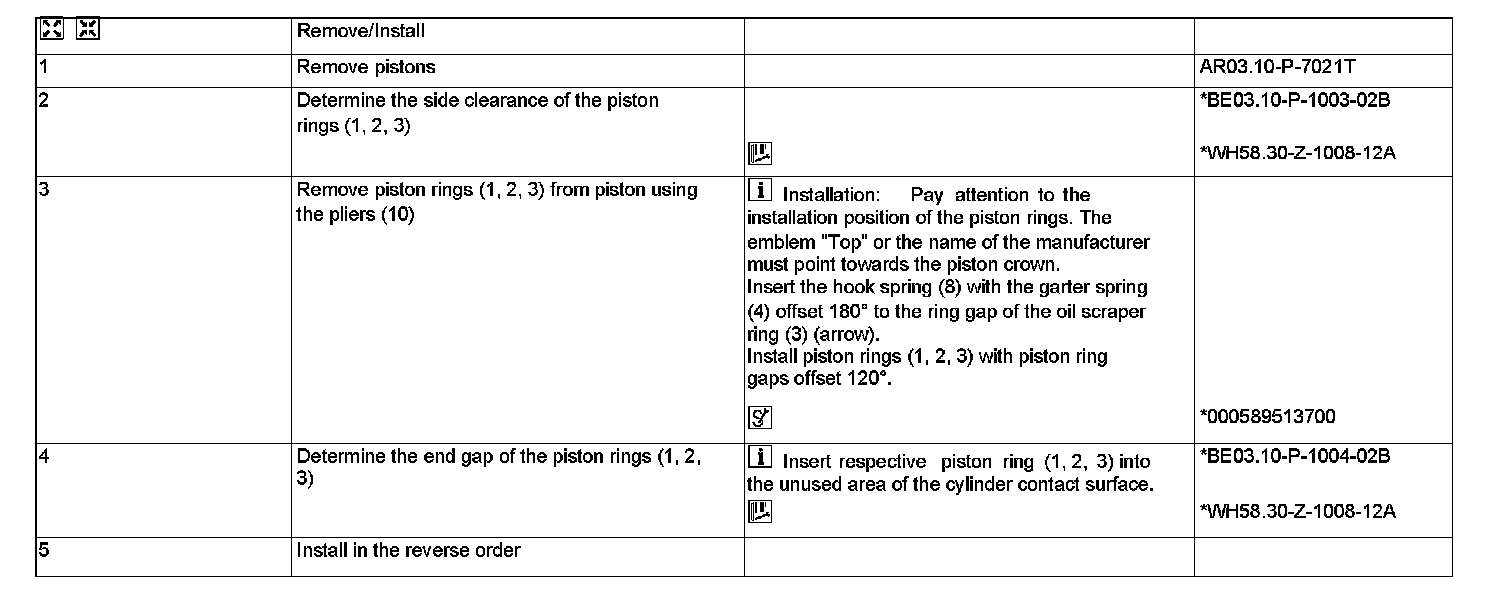

Steps 1-5:

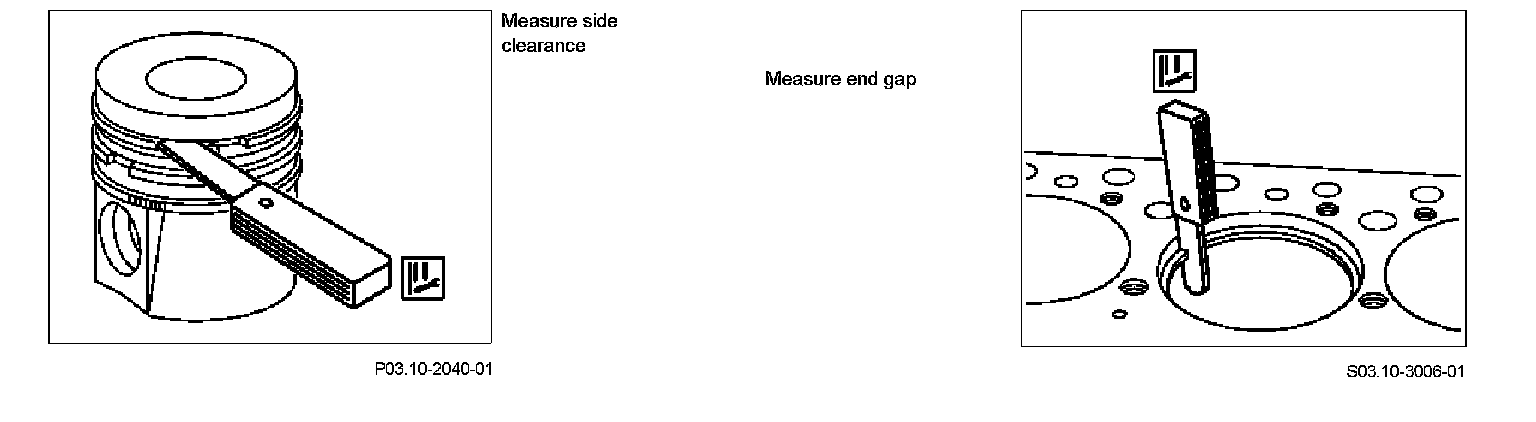

Test Values For Pistons:

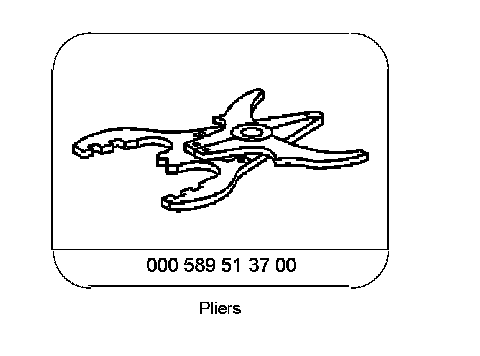

Special Tools:

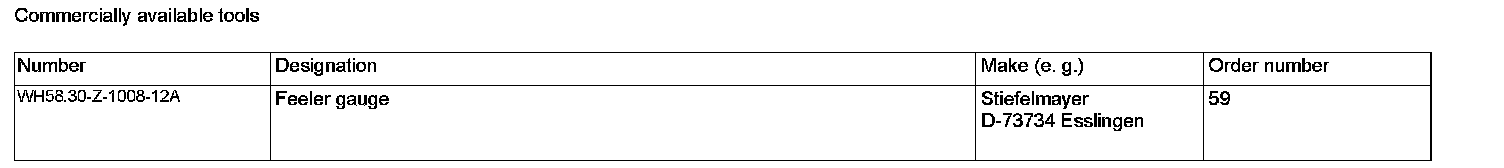

Commercially Available Tools:
AR03.10-P-7311T Removing/installing piston rings
