Expansion/Freeze Plug: Service and Repair


AR01.40-P-8499HC Replace core hole plugs in crankcase

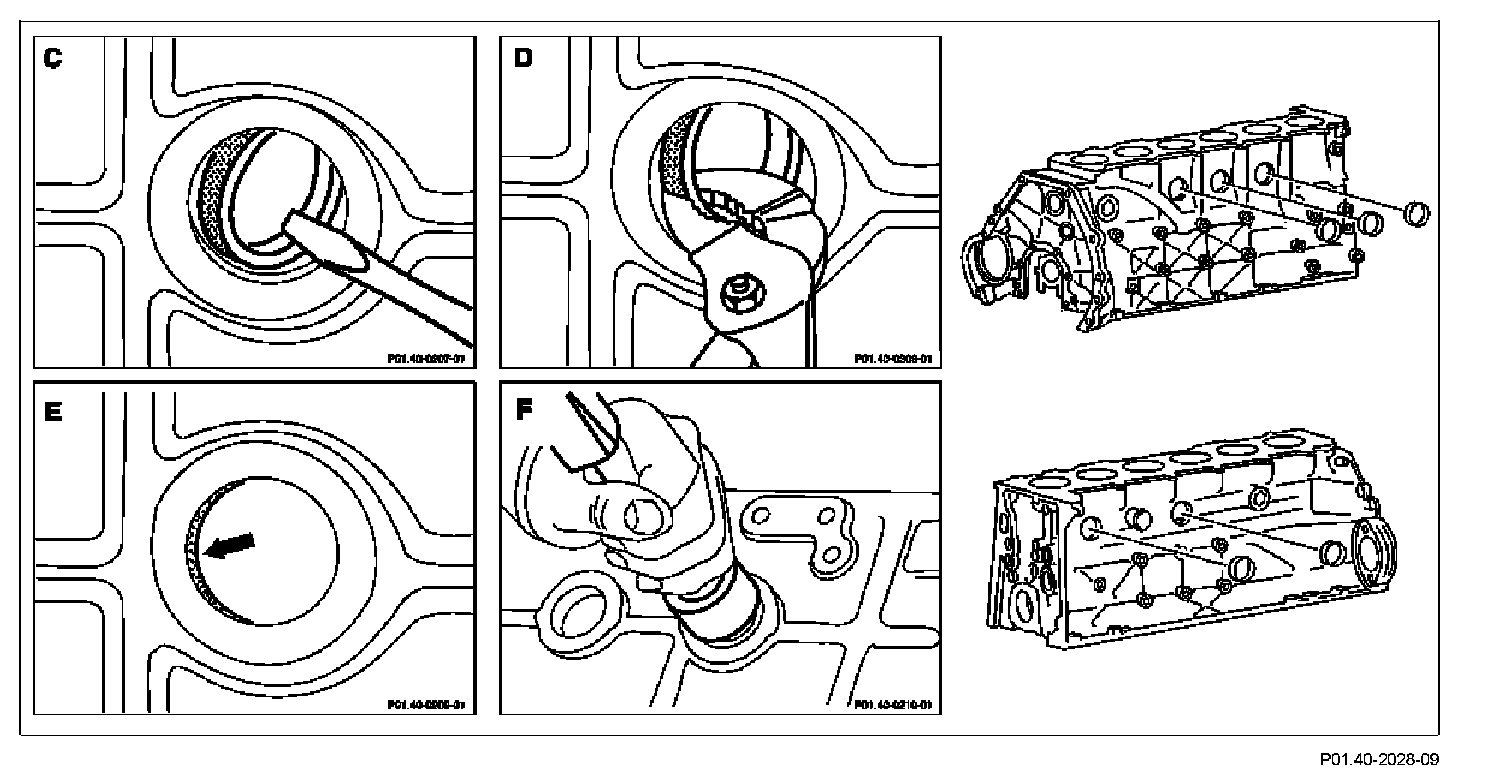

Component Identification:

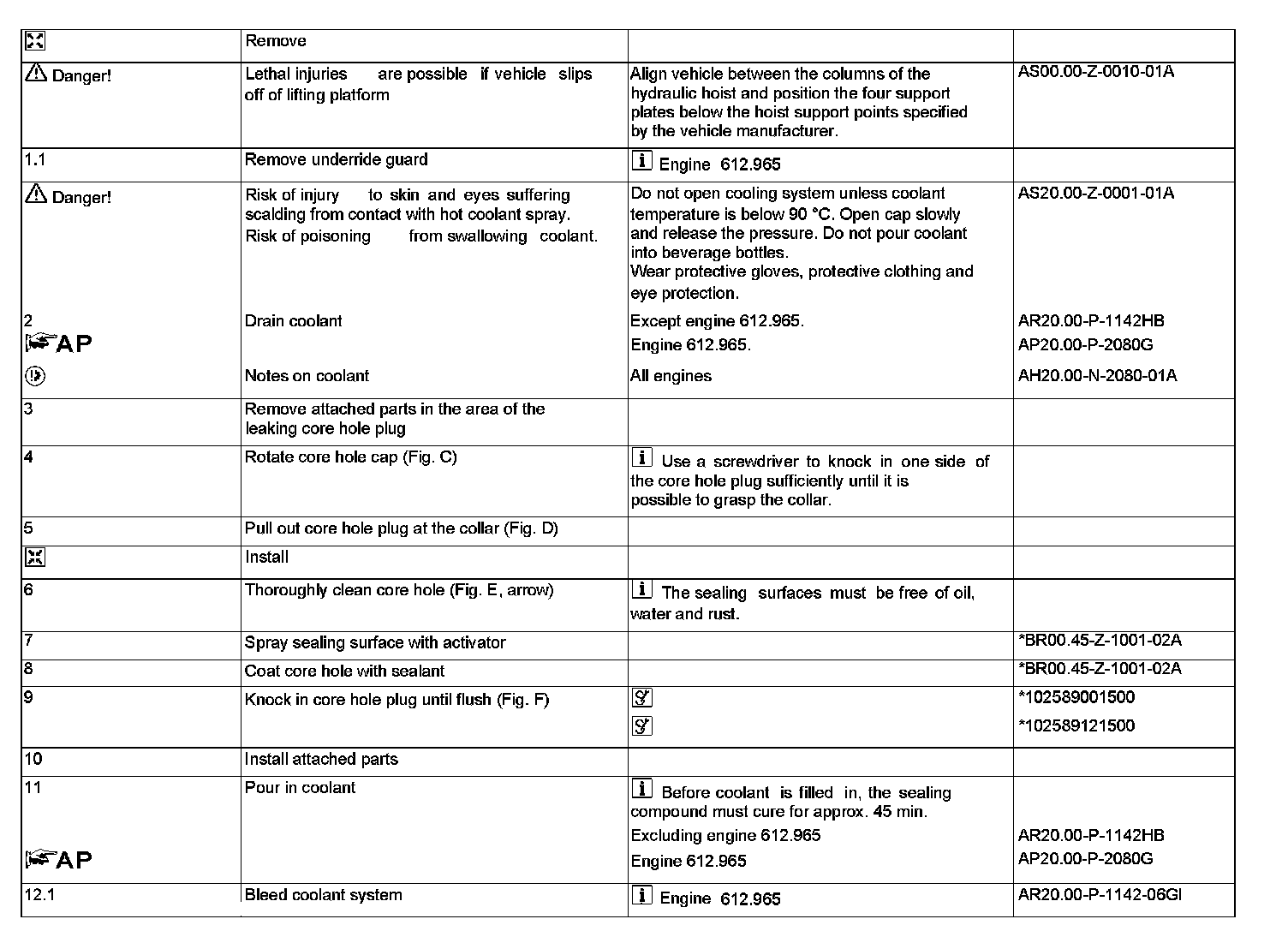

Steps 1-12.1:

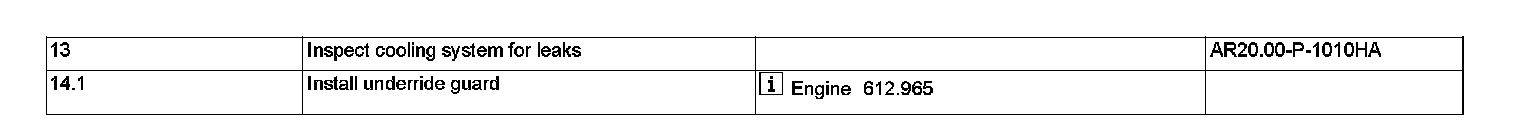

Steps 13-14.1:

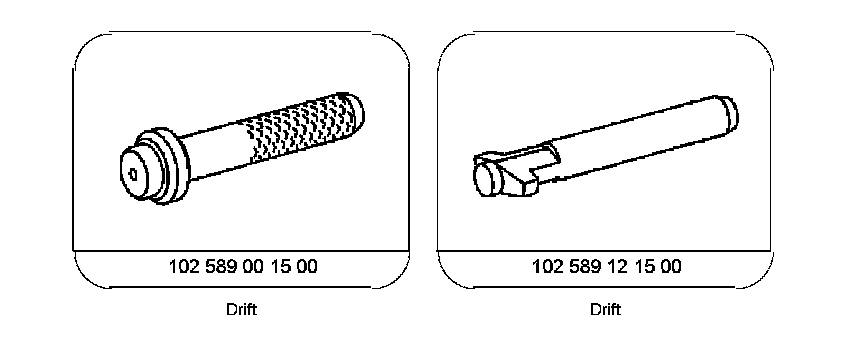

Special Tools:

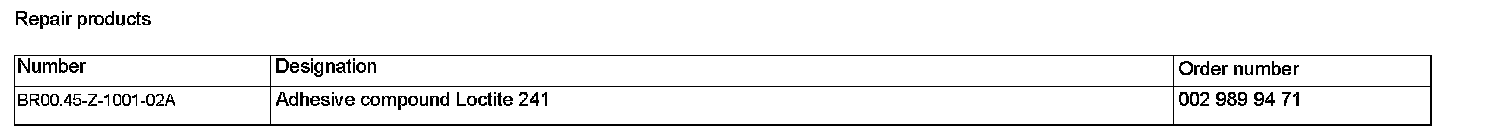

Repair Products:
