Crankshaft Main Bearing: Service and Repair



AR03.20-P-4355T Measuring the crankshaft and mounting in bearings

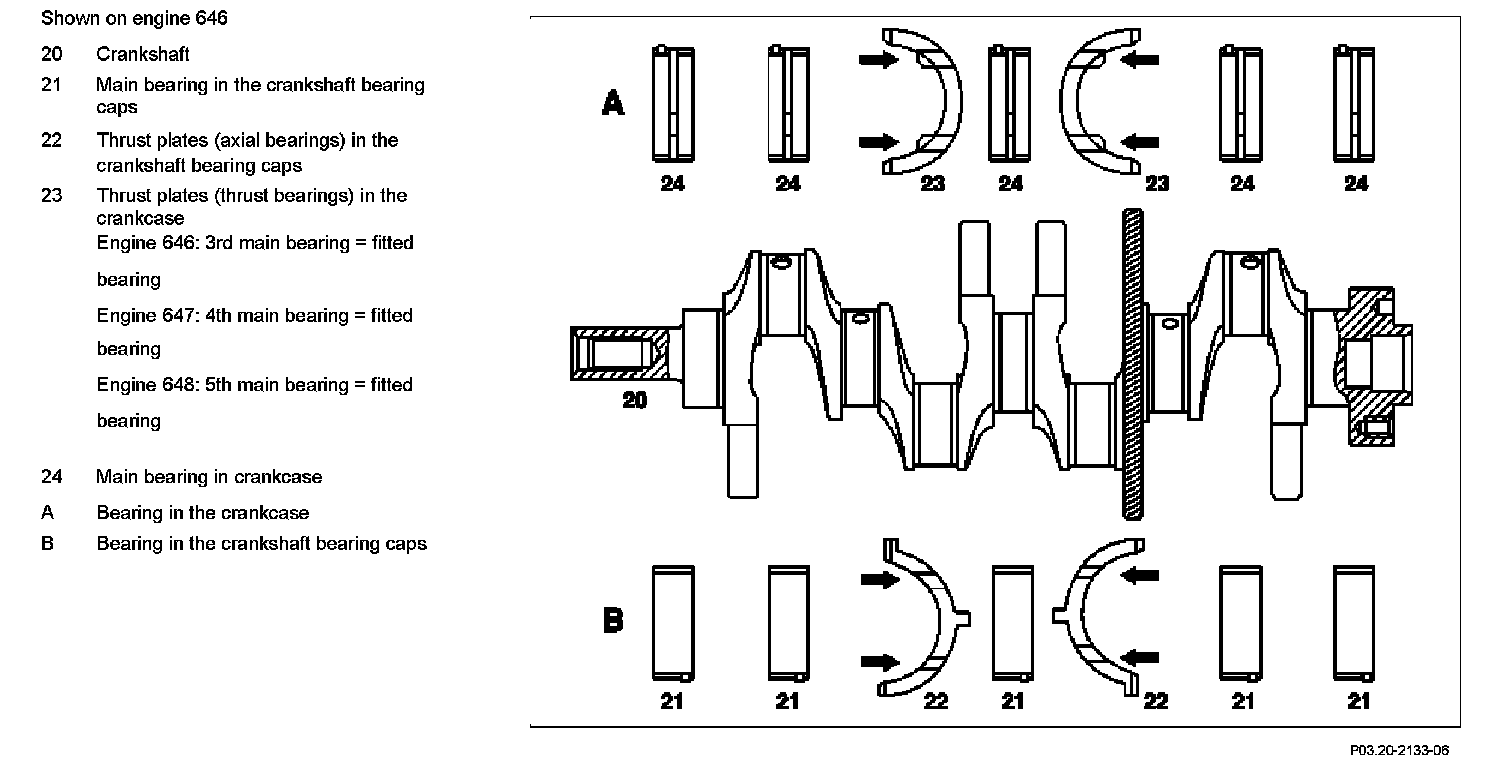

Component Identification:

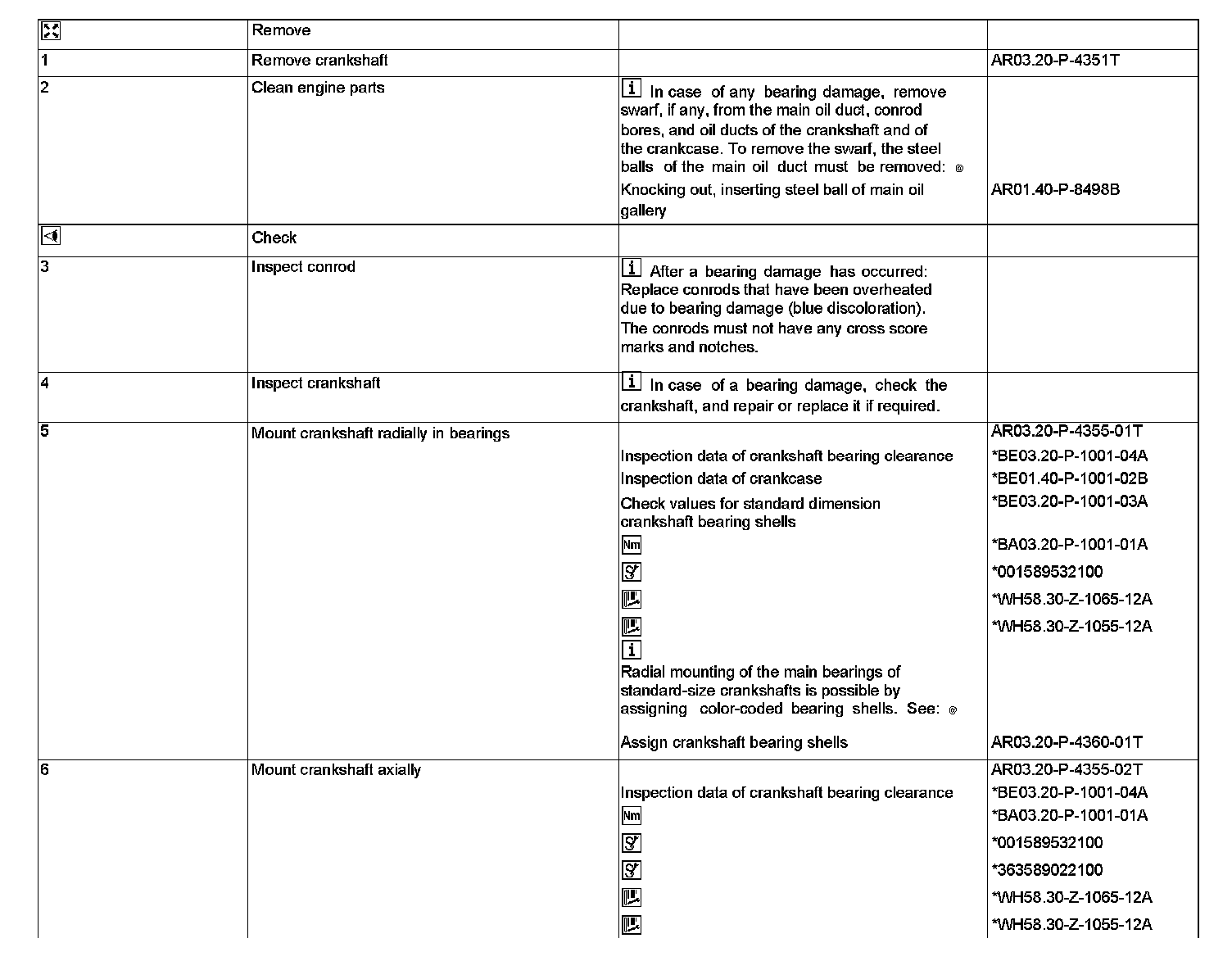

Steps 1-6:




Step 7:

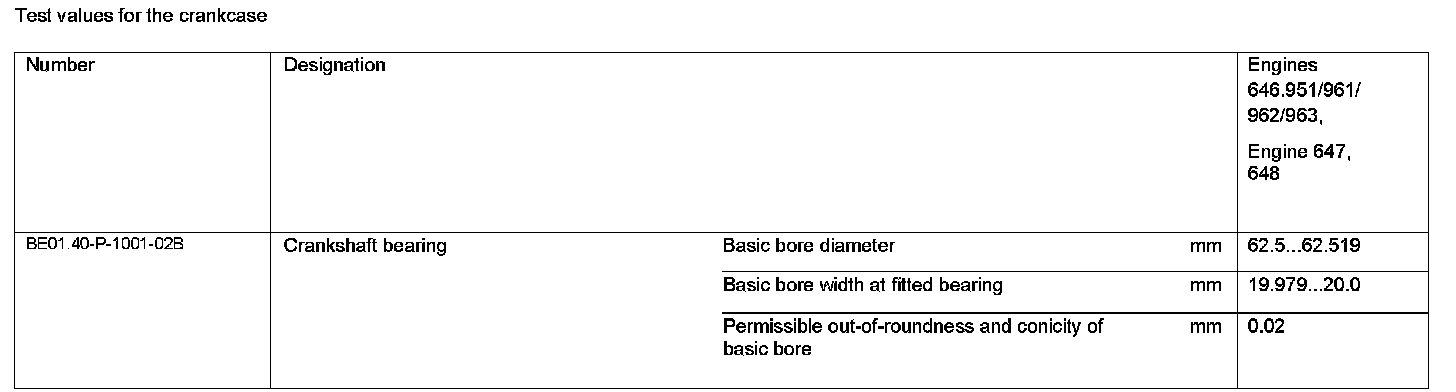

Test Values For The Crankcase:

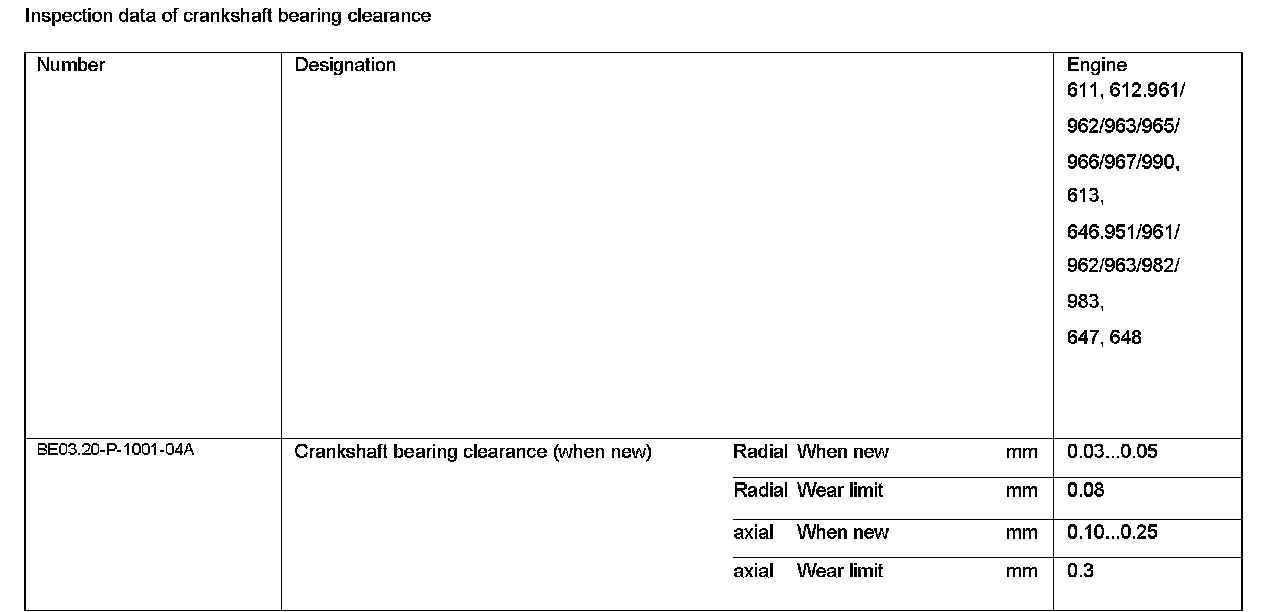

Inspection Data Of Crankshaft Bearing Clearance:

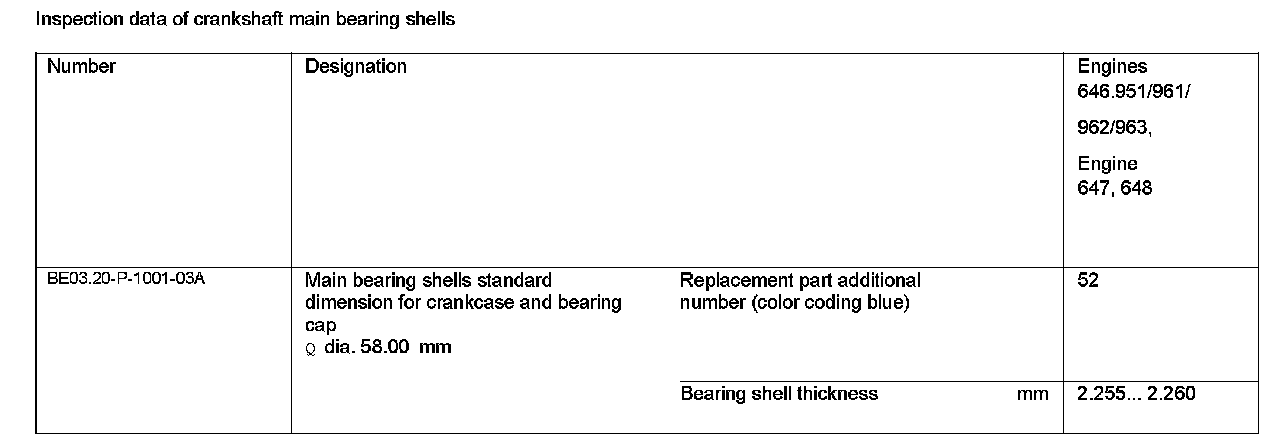

Inspection Data Of Crankshaft Main Bearing Shells:




Crankshaft:

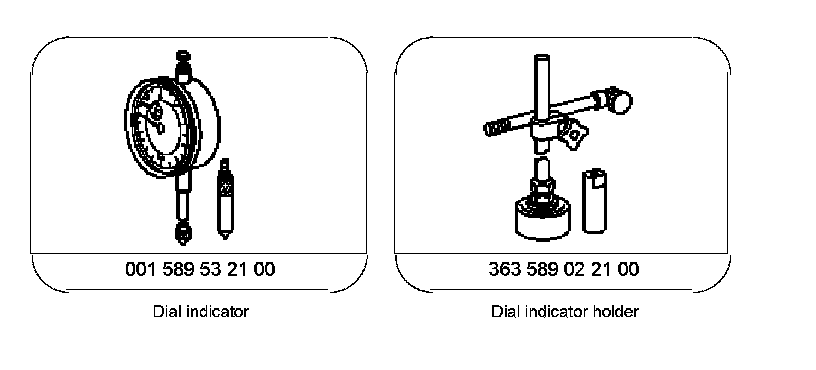

Special Tools:

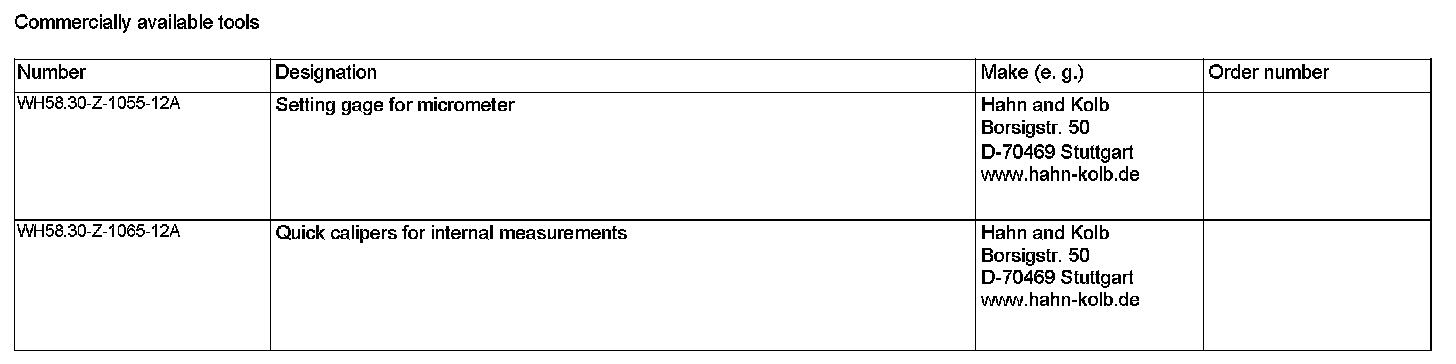

Commercially Available Tools:
