Lifter / Lash Adjuster: Testing and Inspection
AR05.00-P-2010B Inspecting hydraulic
valve clearance
compensation elements

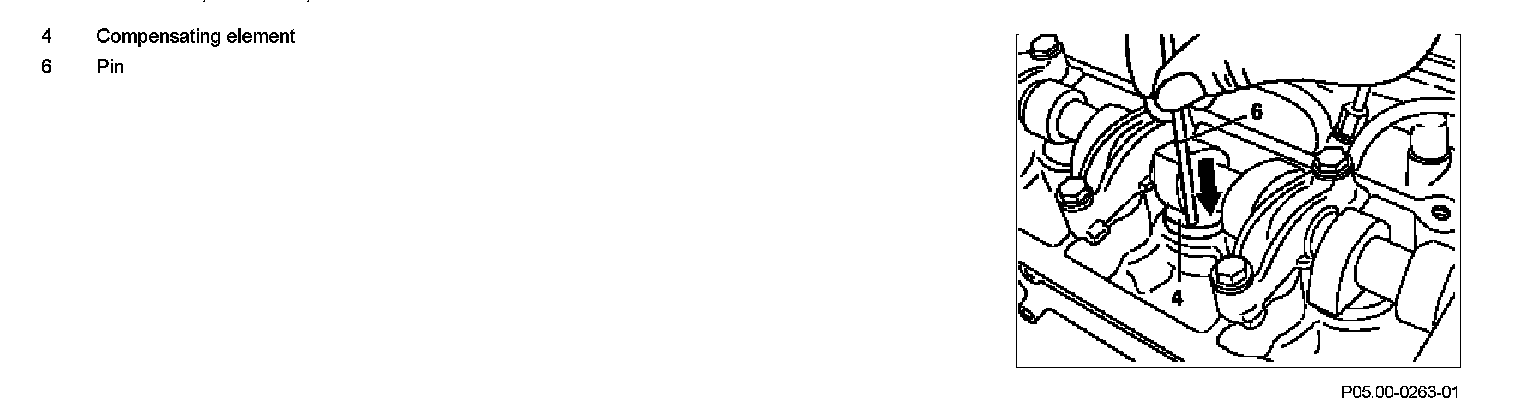

Component Identification:

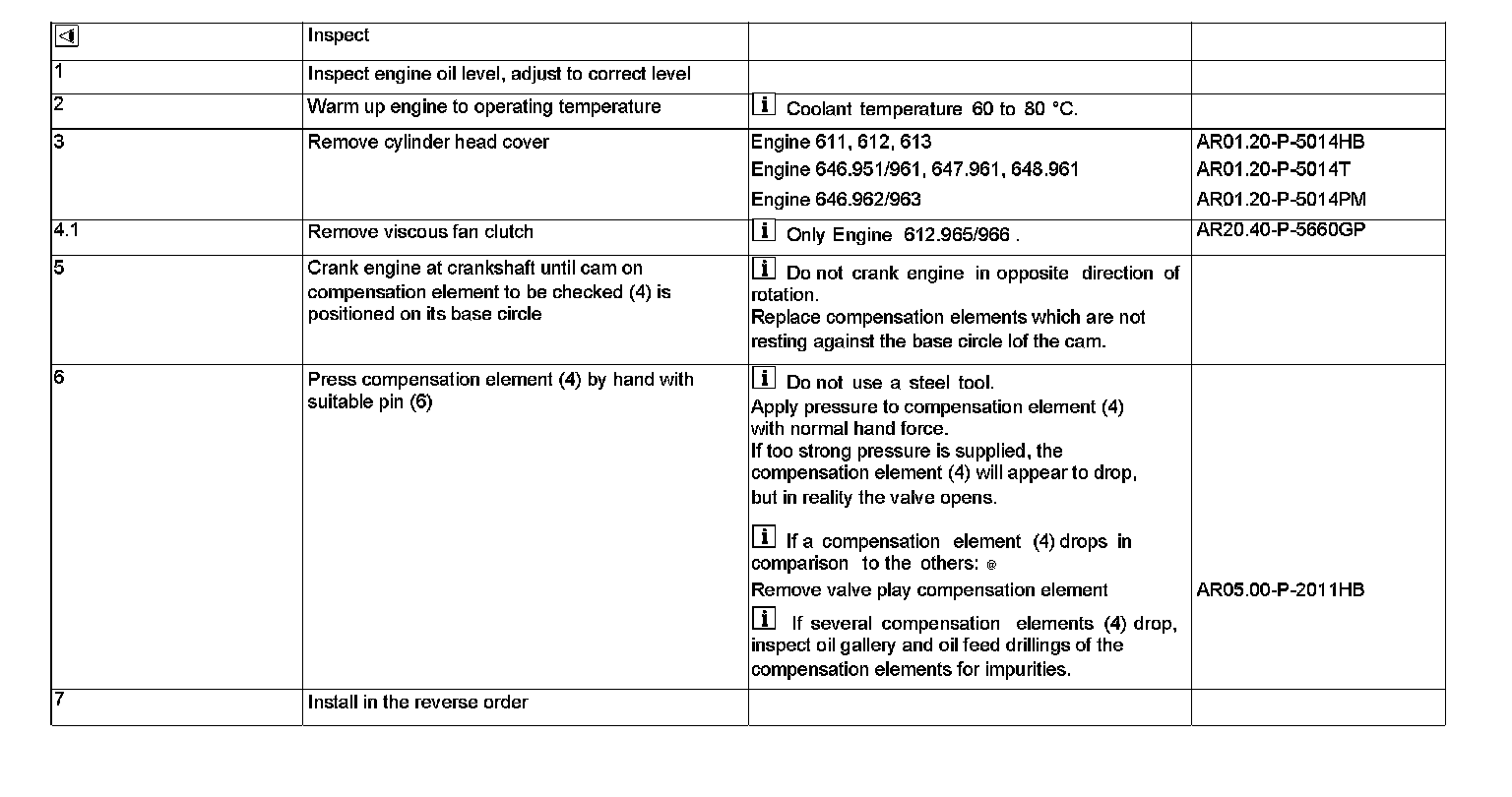

Steps 1-7:
