Lifter / Lash Adjuster: Service and Repair



AR05.00-P-2011HB Remove/install hydraulic valve clearance compensation elements

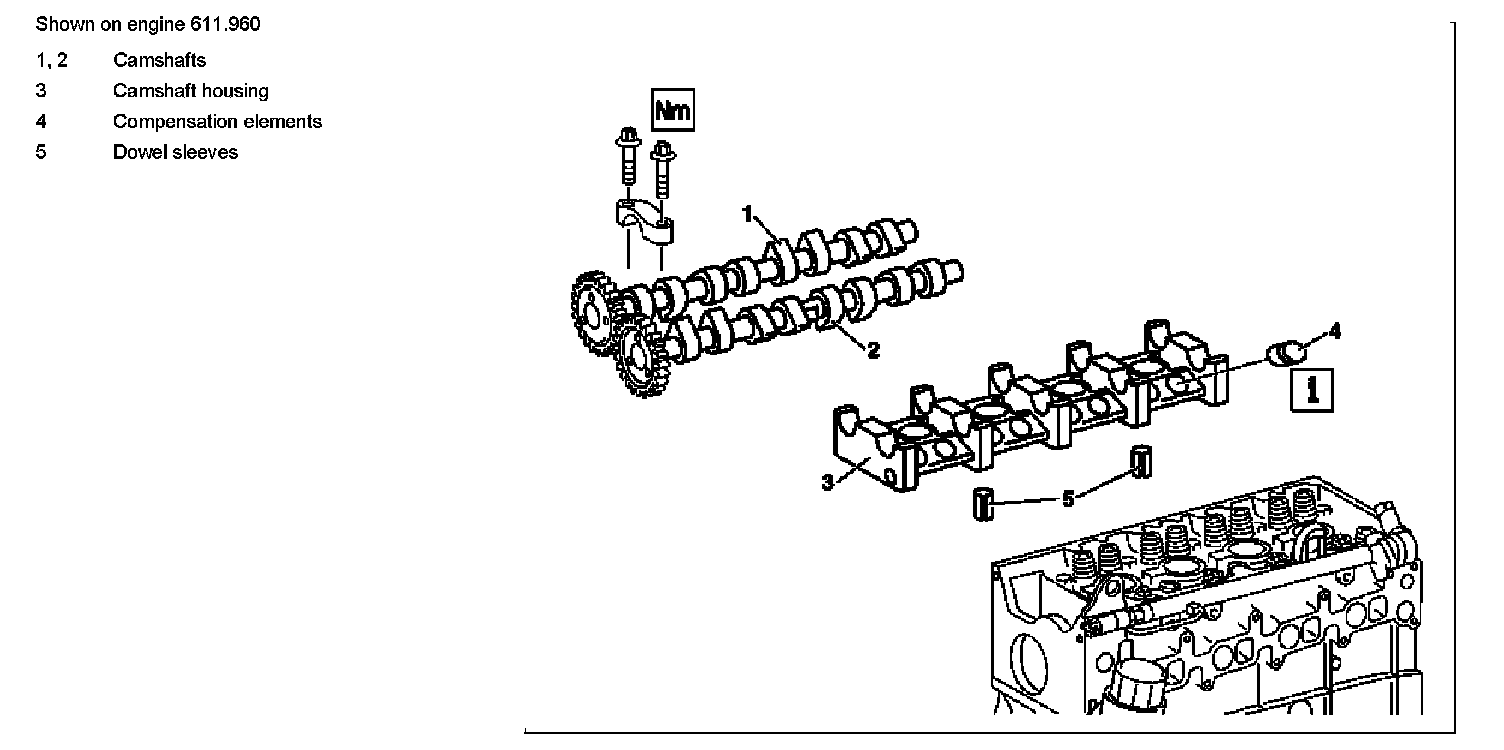

Component Identification:

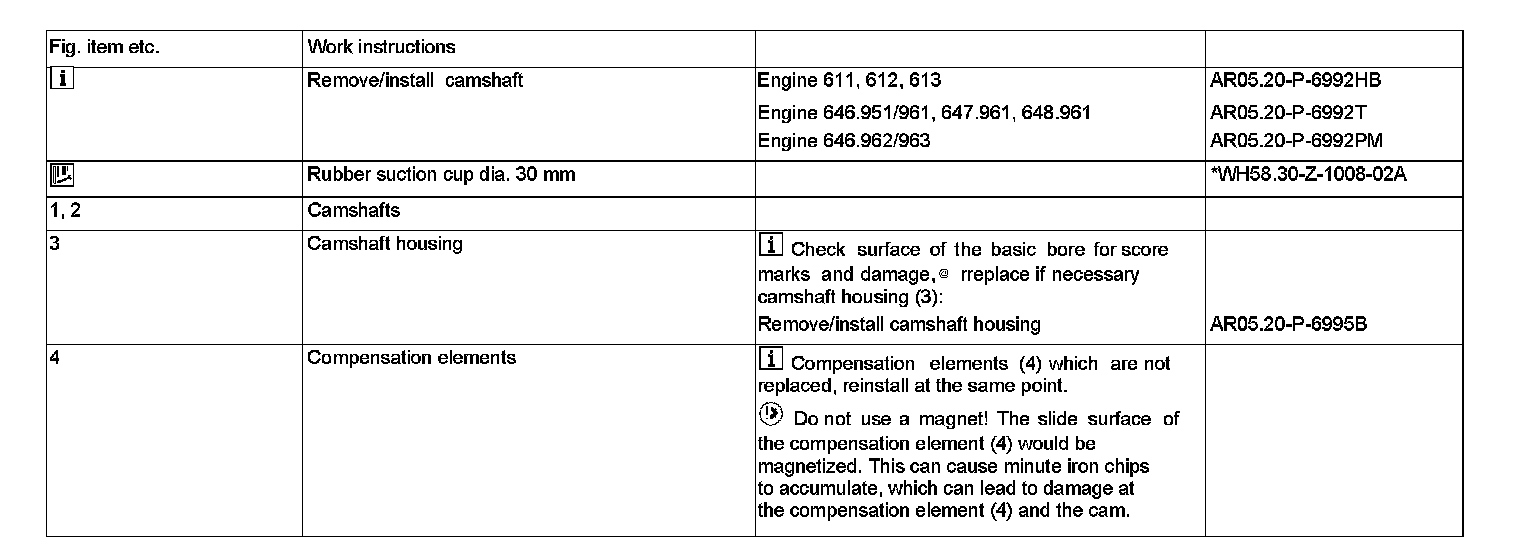

Steps 1-4:

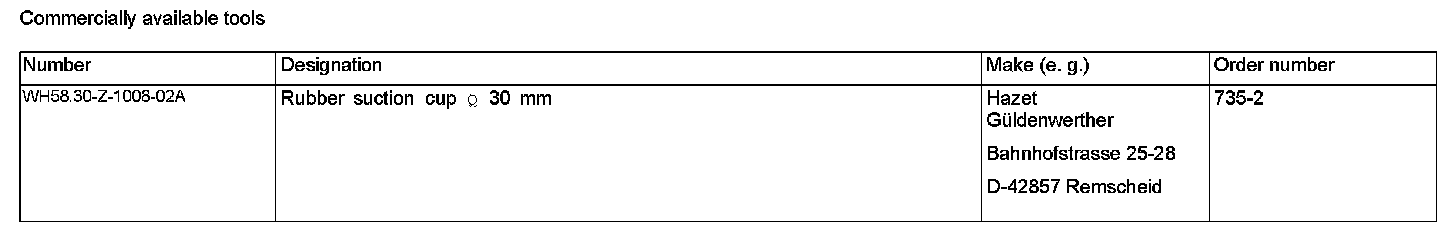

Commercially Available Tools:
