AR05.20-P-6030B Remove/Install End Cover For Camshafts
AR05.20-P-6030B Remove/Install End Cover For Camshafts
AR05.20-P-6030B Remove/install end cover for camshafts

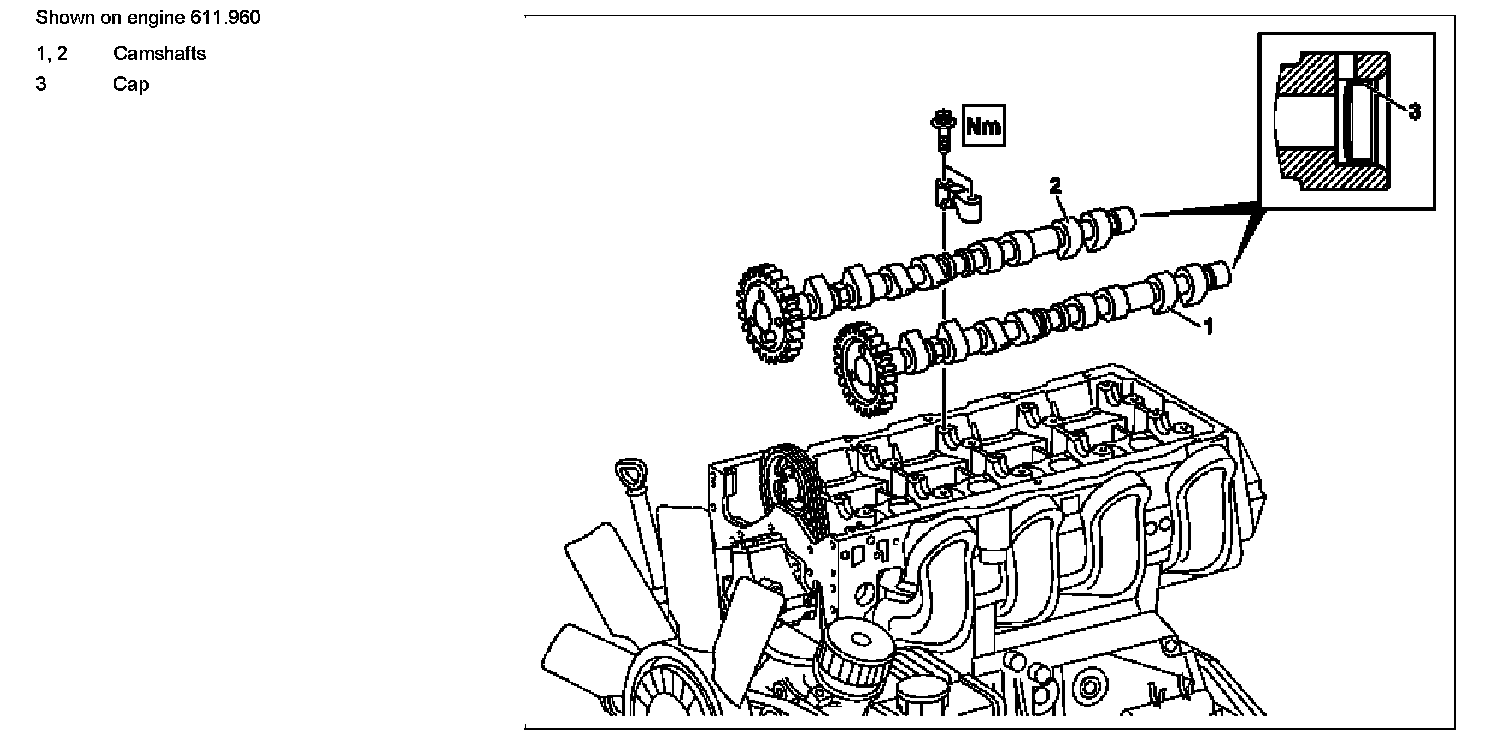

Component Identification:

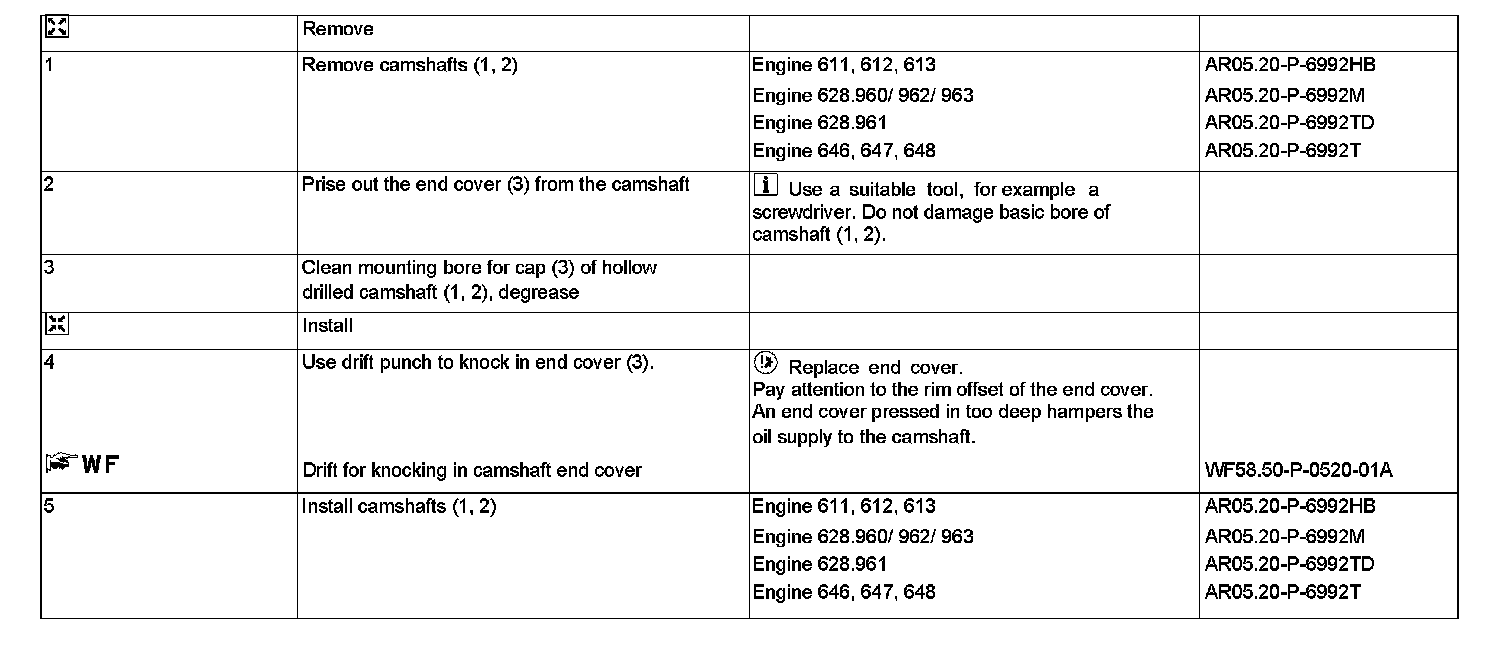

Steps 1-5:
