AR01.40-P-8913TC Removing/Installing the End Cover



AR01.40-P-8913TC Removing/installing the end cover

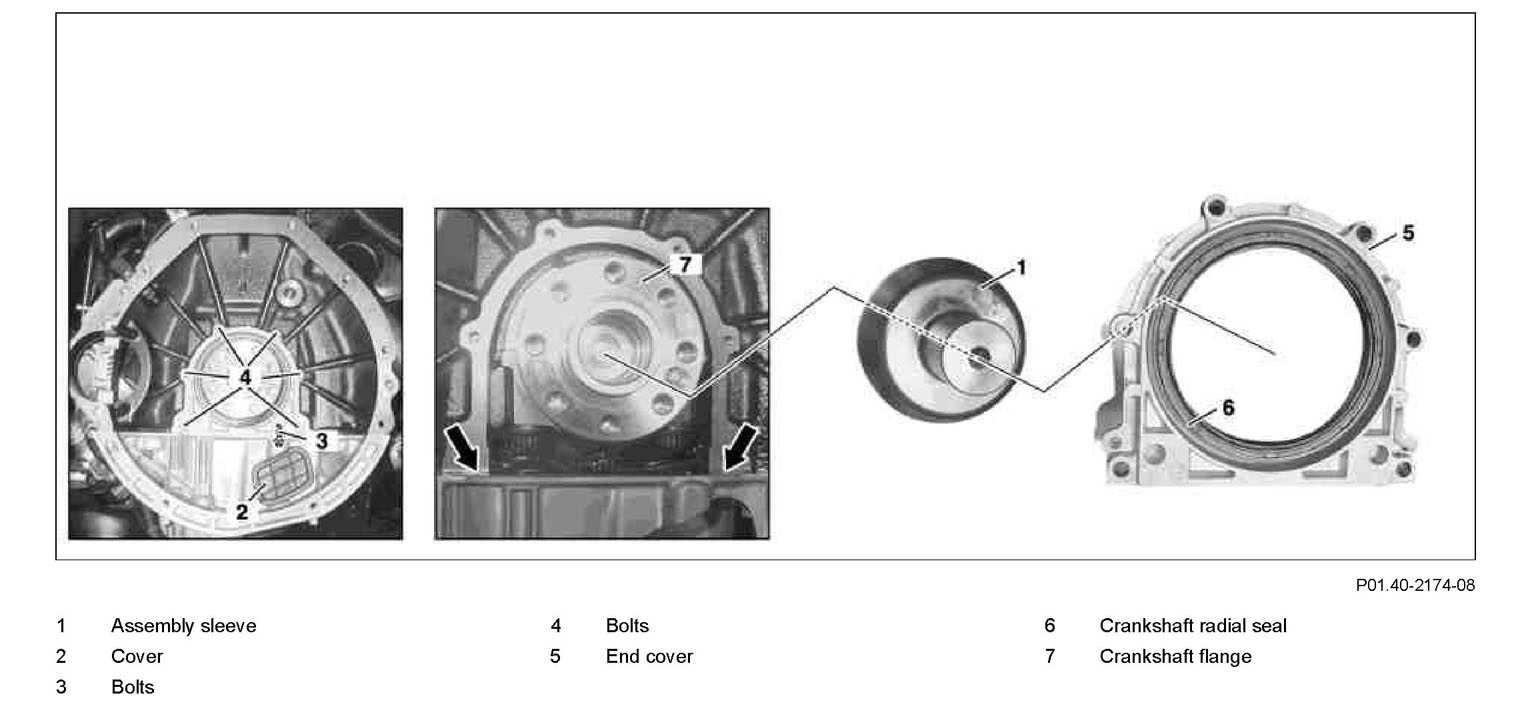

Component Identification:

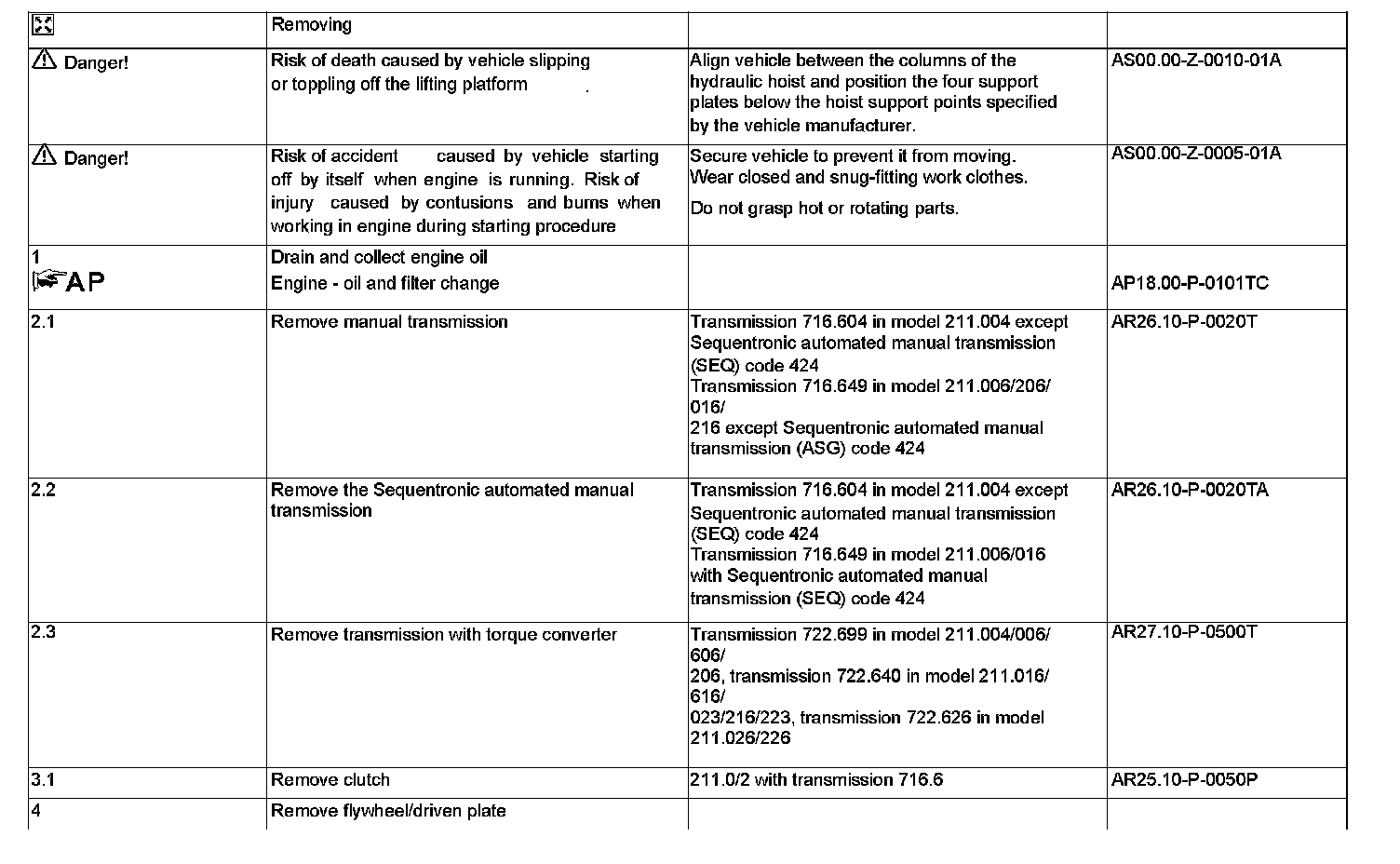

Steps 1-4:

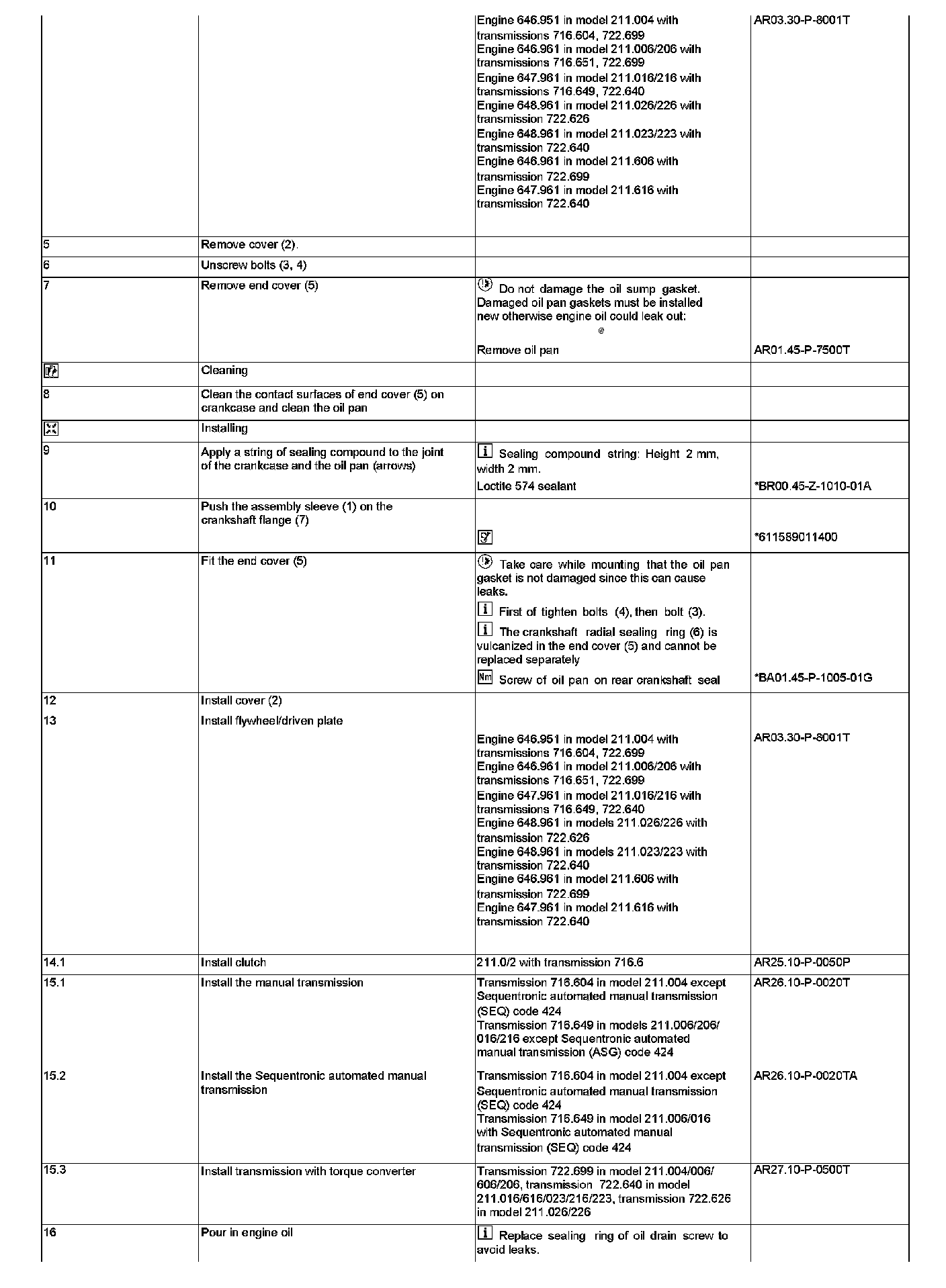

Steps 5-16:

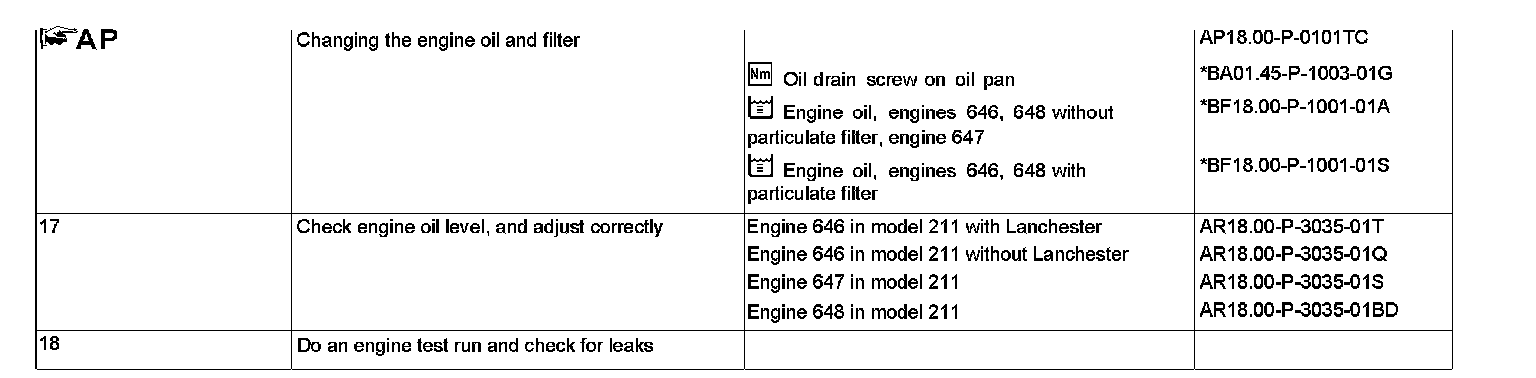

Steps 17-18:




Oil Pan:

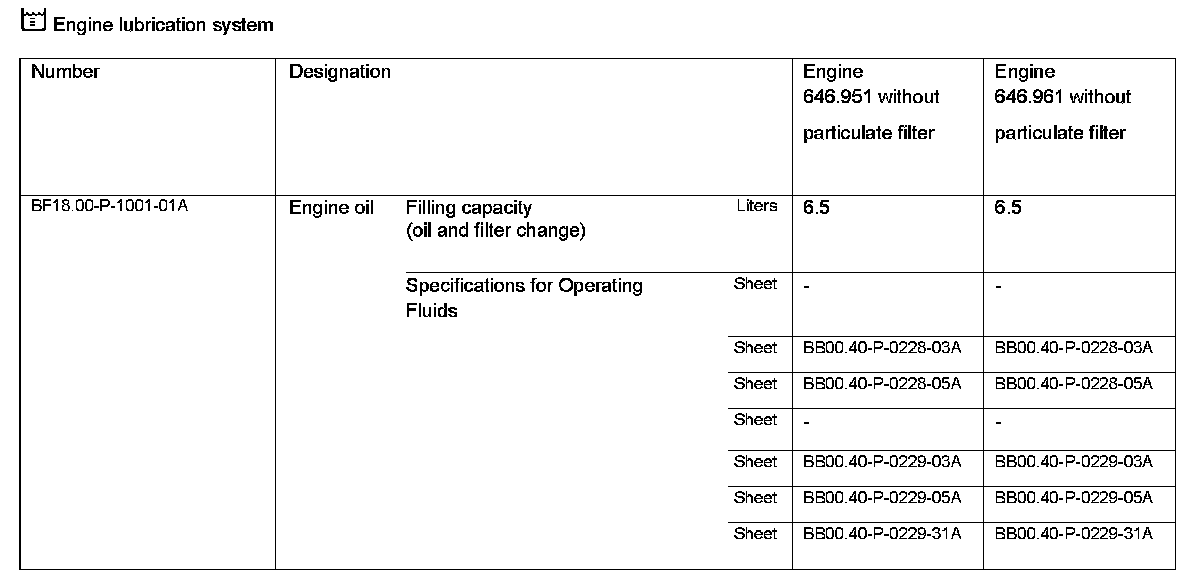

Engine Lubrication System:

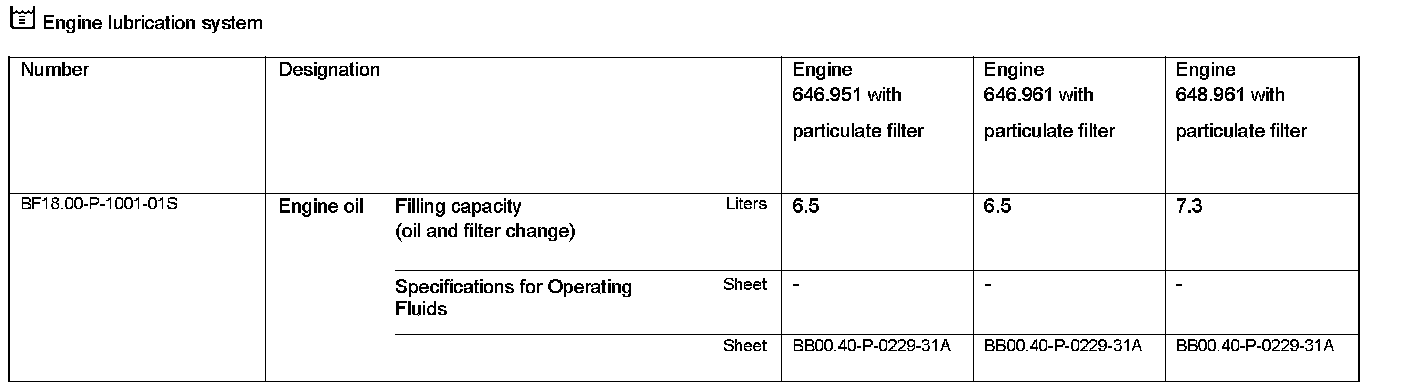

Engine Lubrication System:

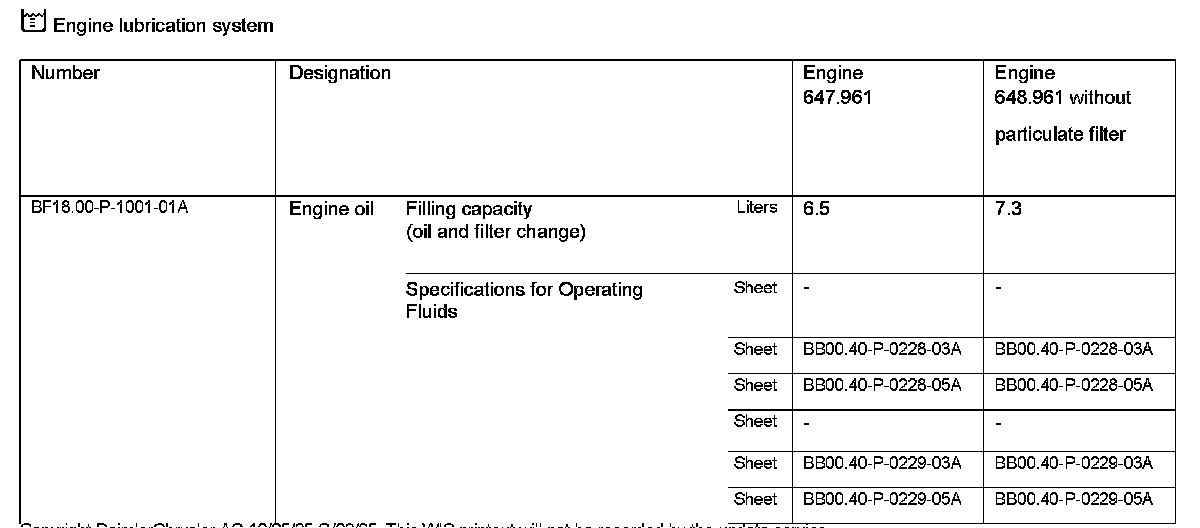

Engine Lubrication System:




Engine Lubrication System:
