Thermostat: Service and Repair



AR20.10-P-2460PP Removing/installing the coolant thermostat

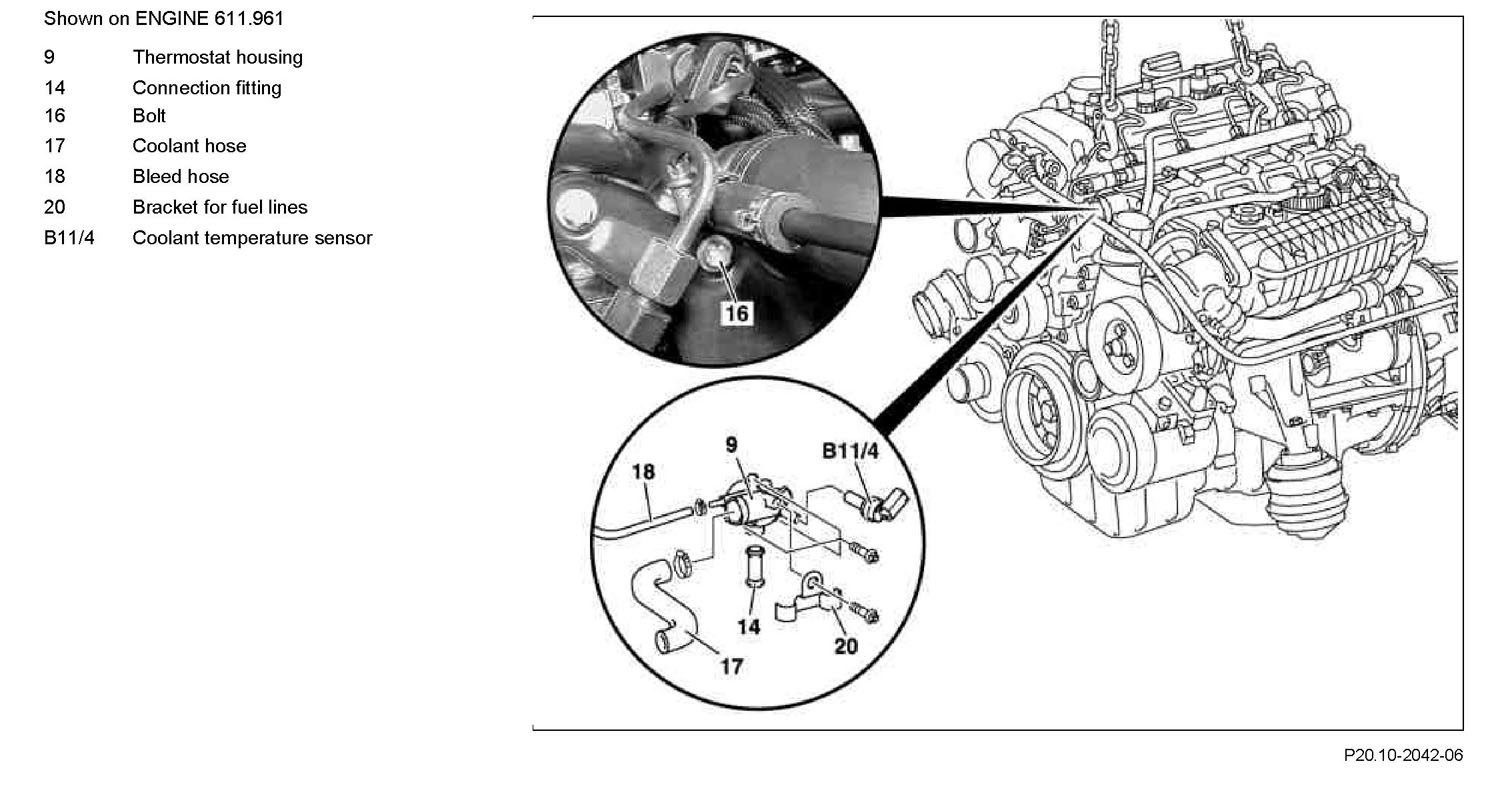

Component Identification:

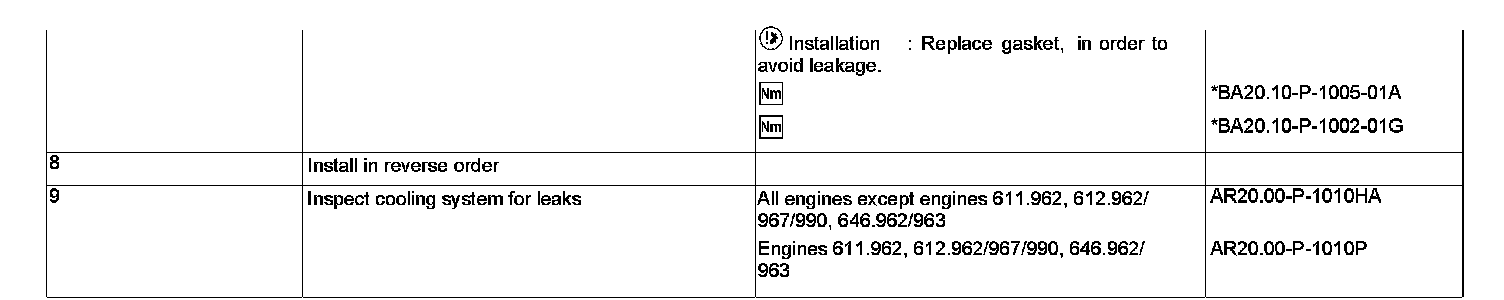

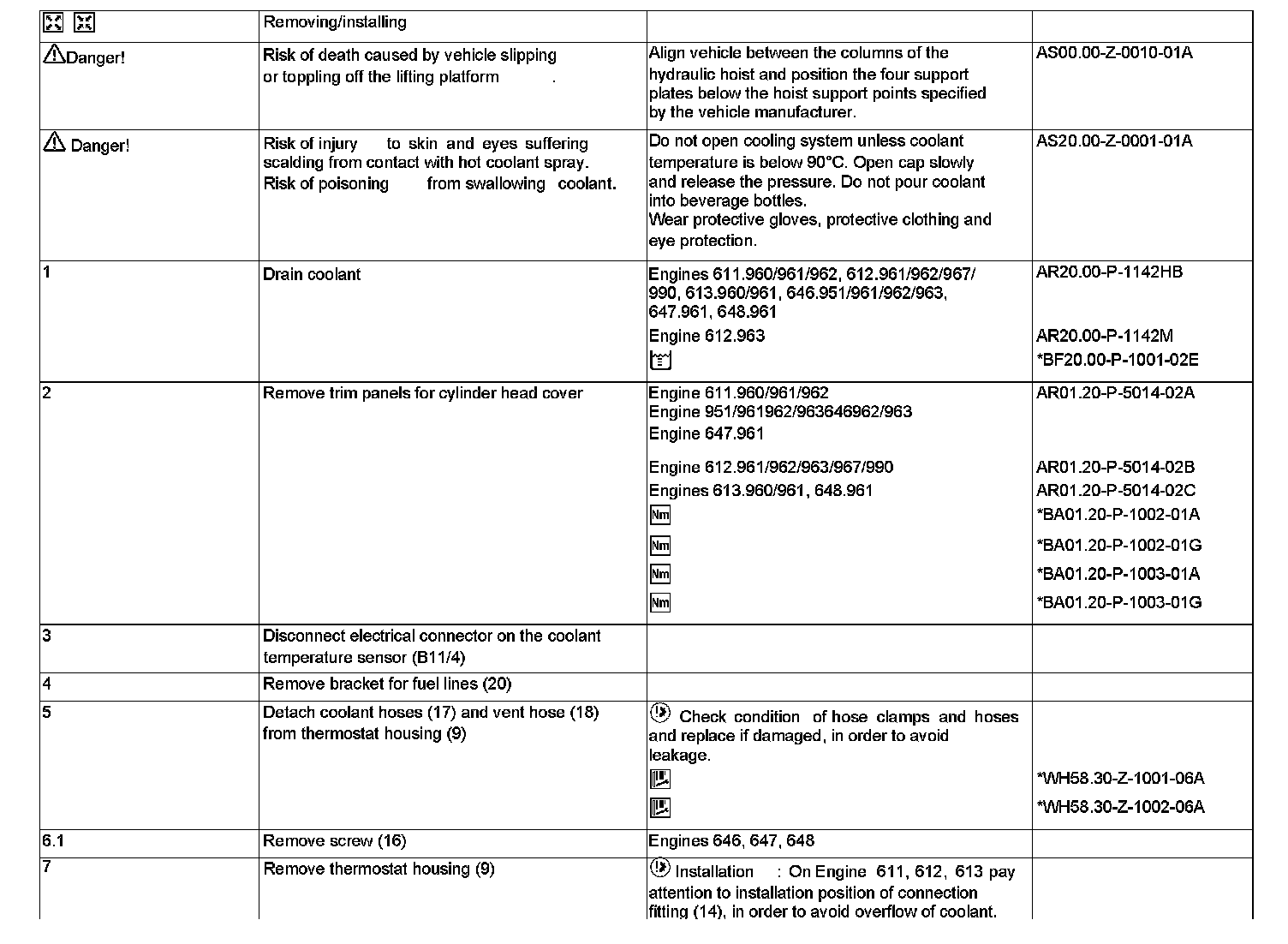

Steps 1-7:




Steps 8-9:

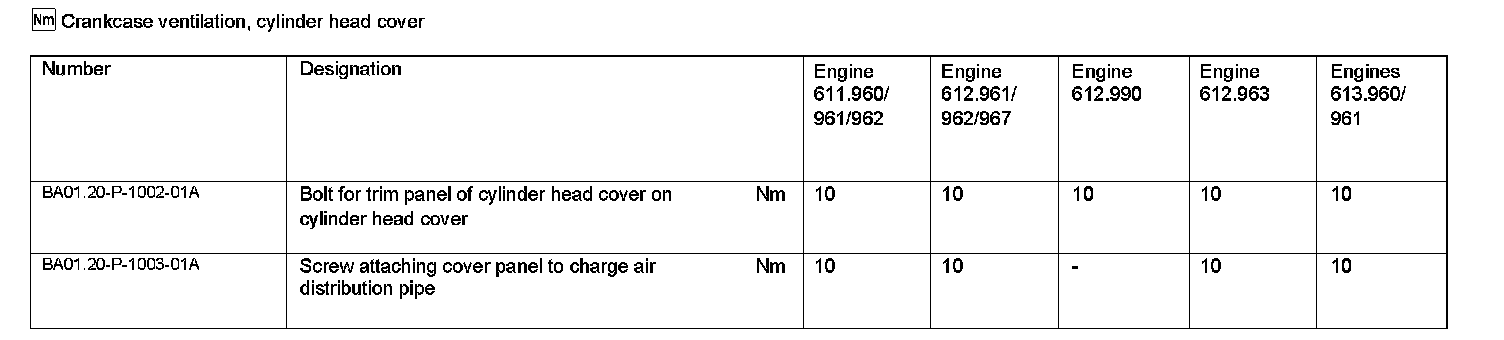

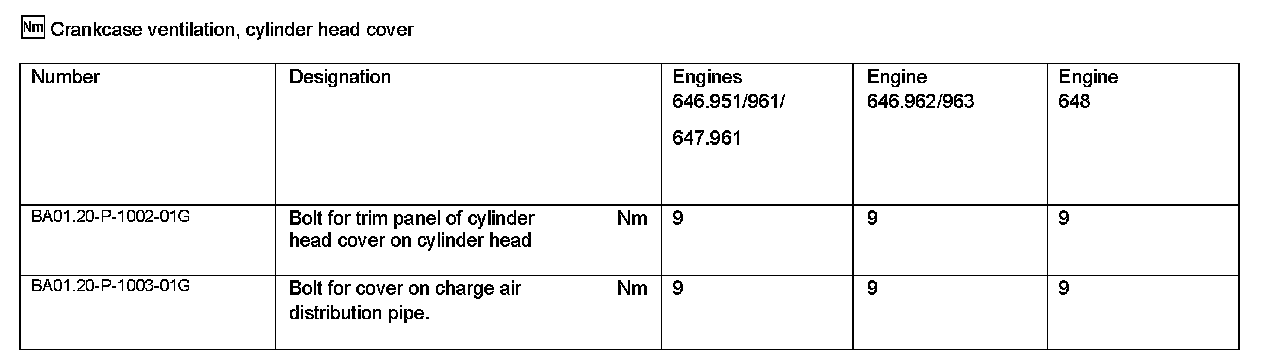

Crankcase Ventilation, Cylinder Head Cover:




Crankcase Ventilation, Cylinder Head Cover:

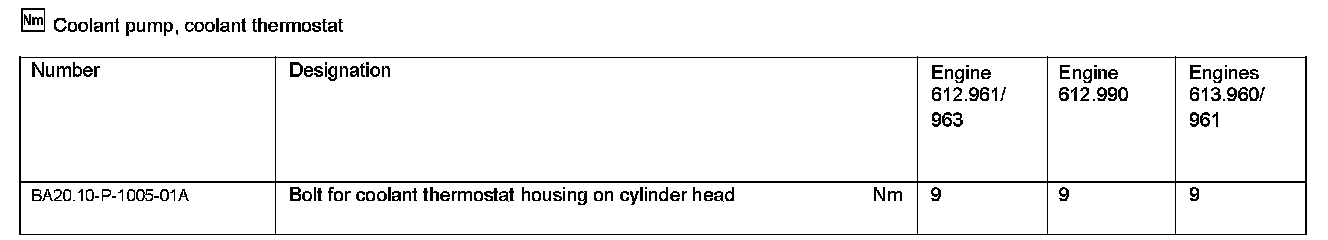

Coolant Pump, Coolant Thermostat:

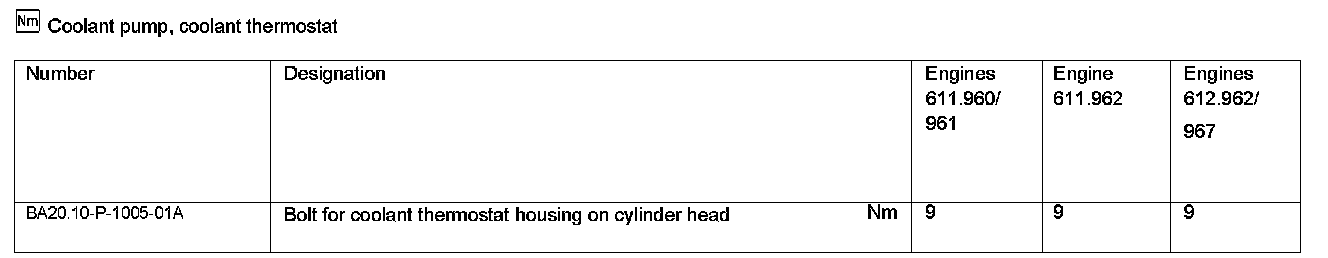

Coolant Pump, Coolant Thermostat:

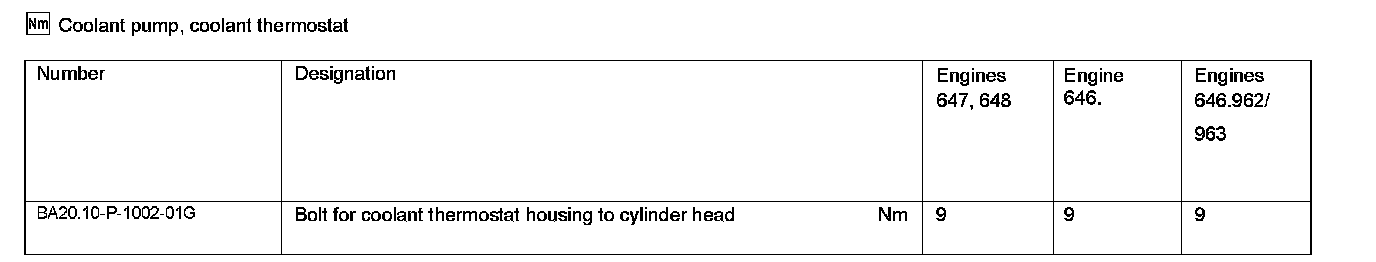

Coolant Pump, Coolant Thermostat:

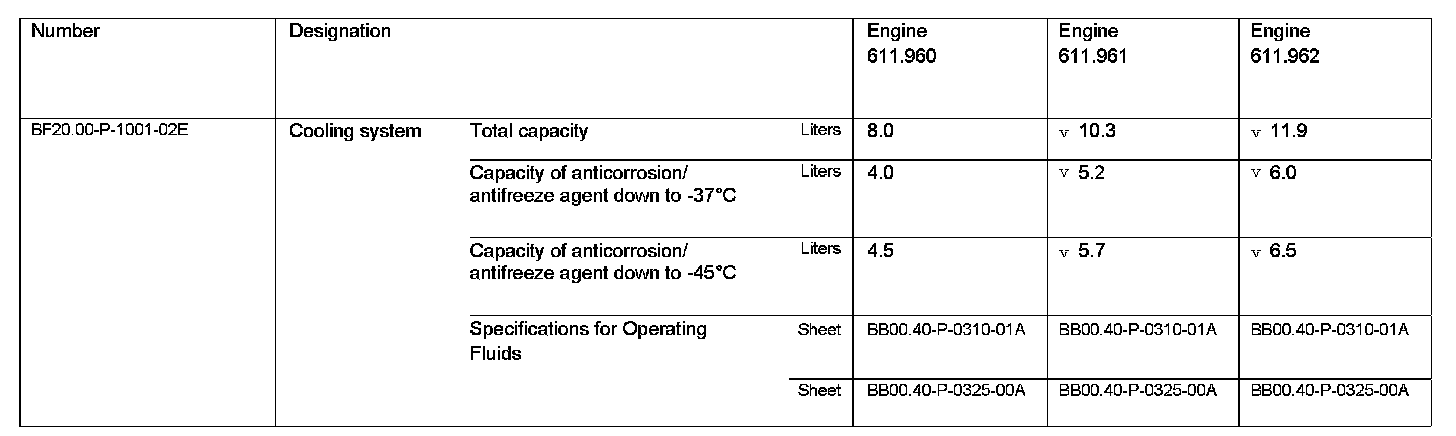

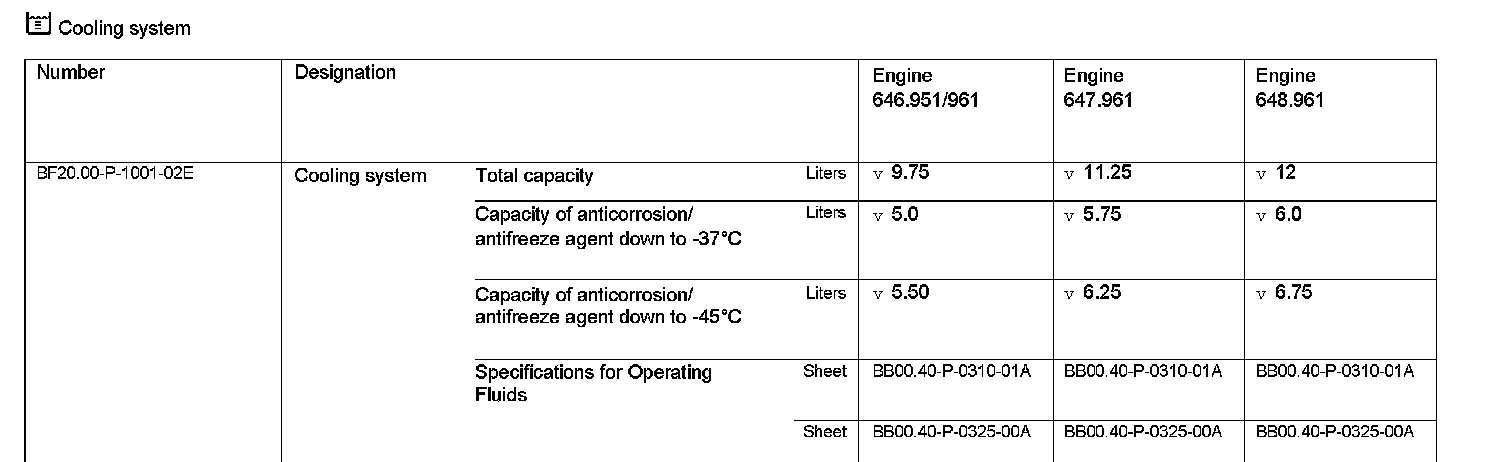

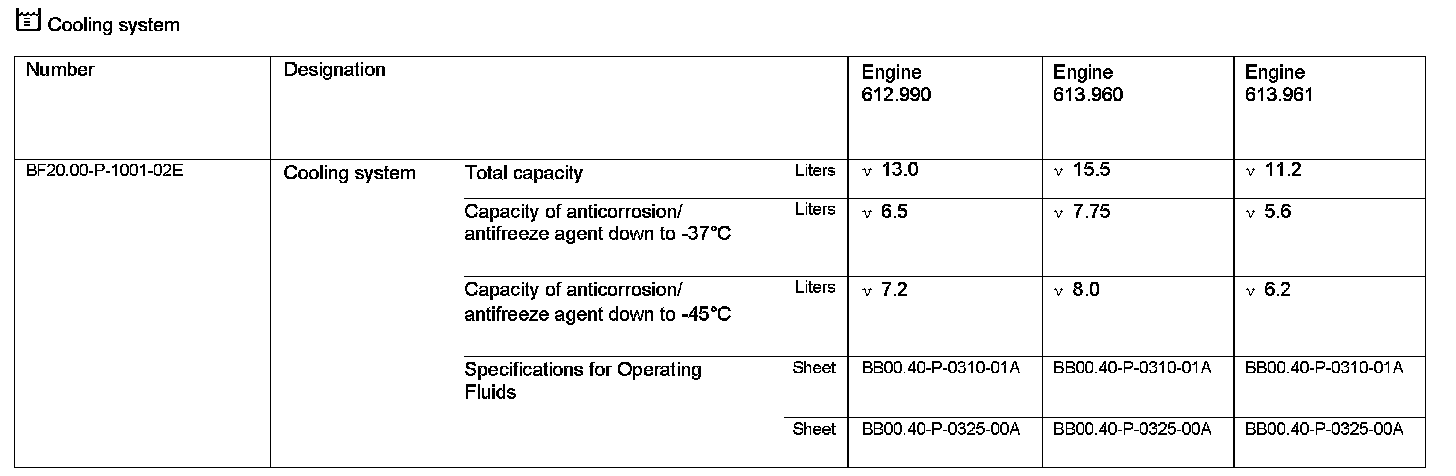

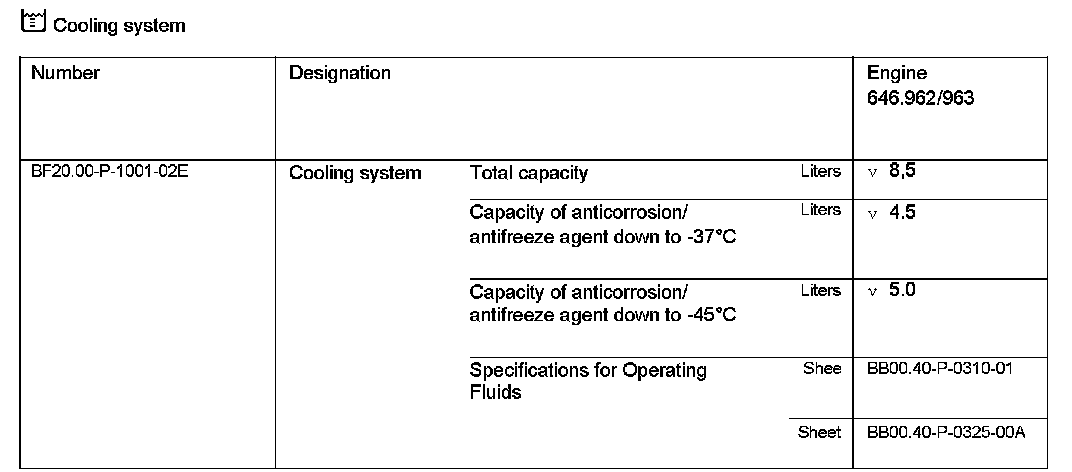

Cooling System:

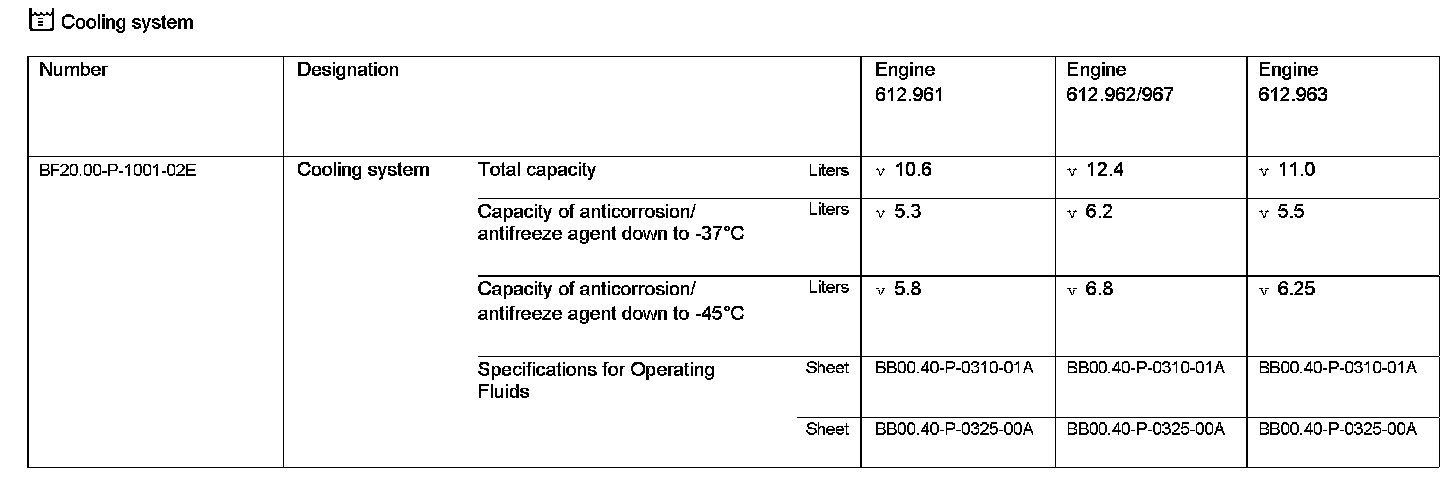

Cooling System:




Cooling System:




Cooling System:




Cooling System:

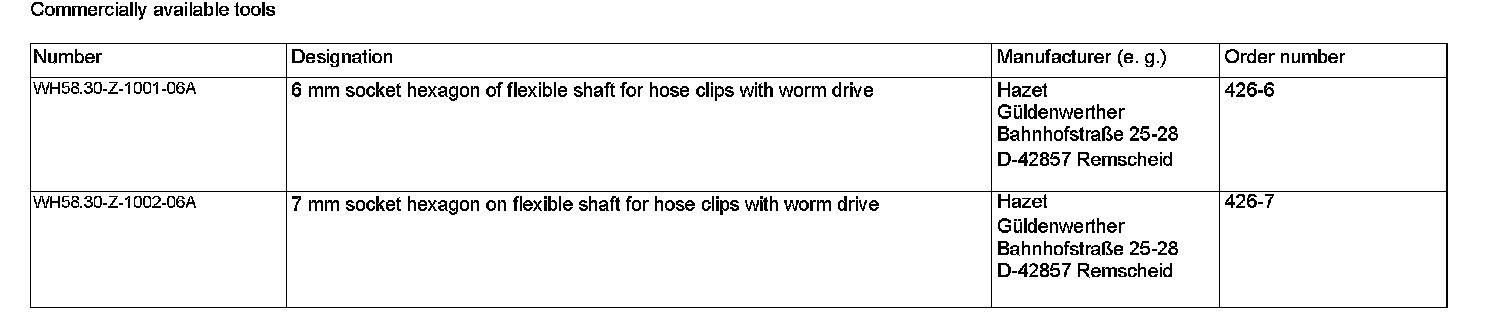

Commercially Available Tools:
