Radiator: Service and Repair
AR20.20-P-3865T Removing and installing radiator

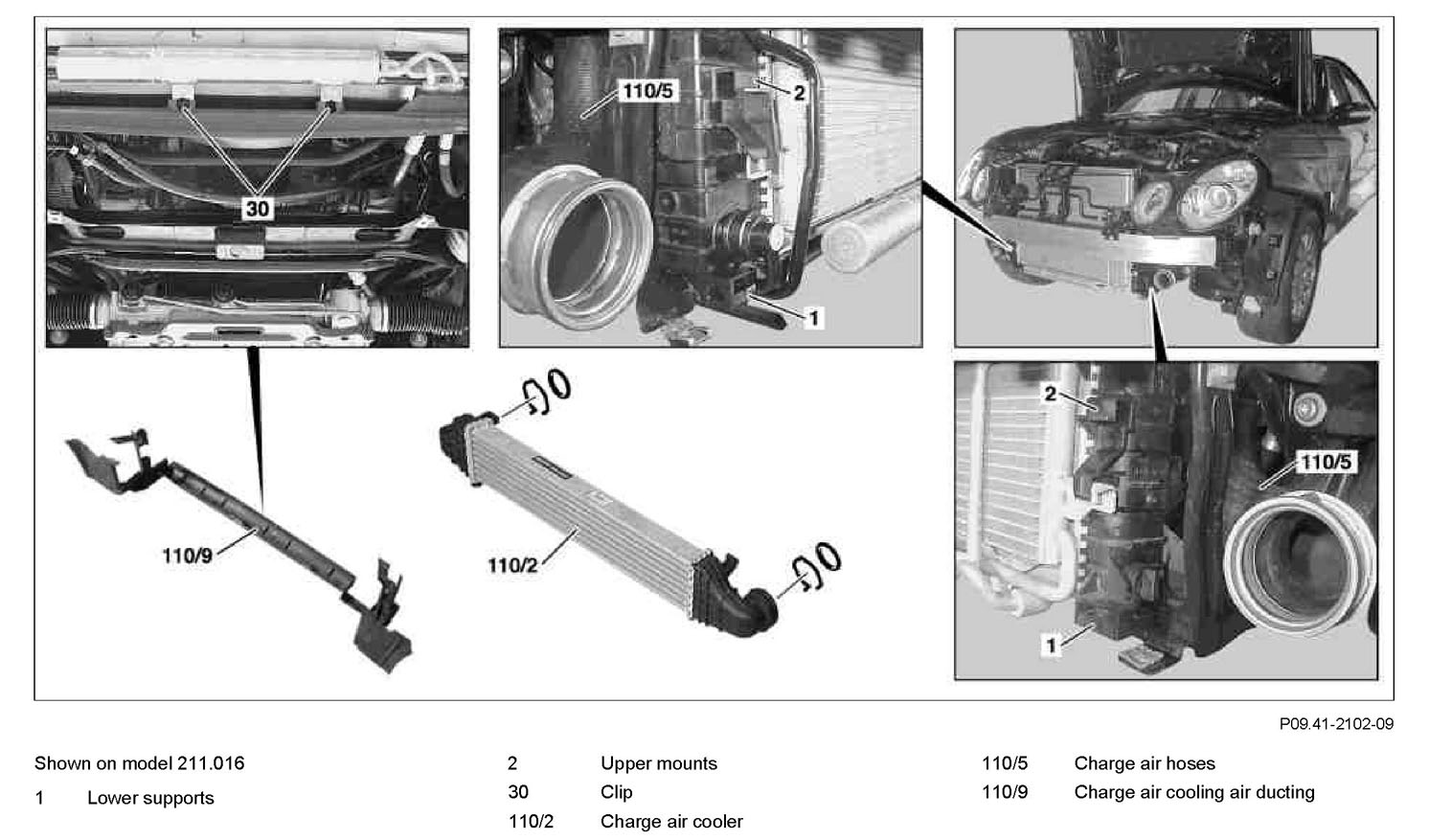

Component Identification:

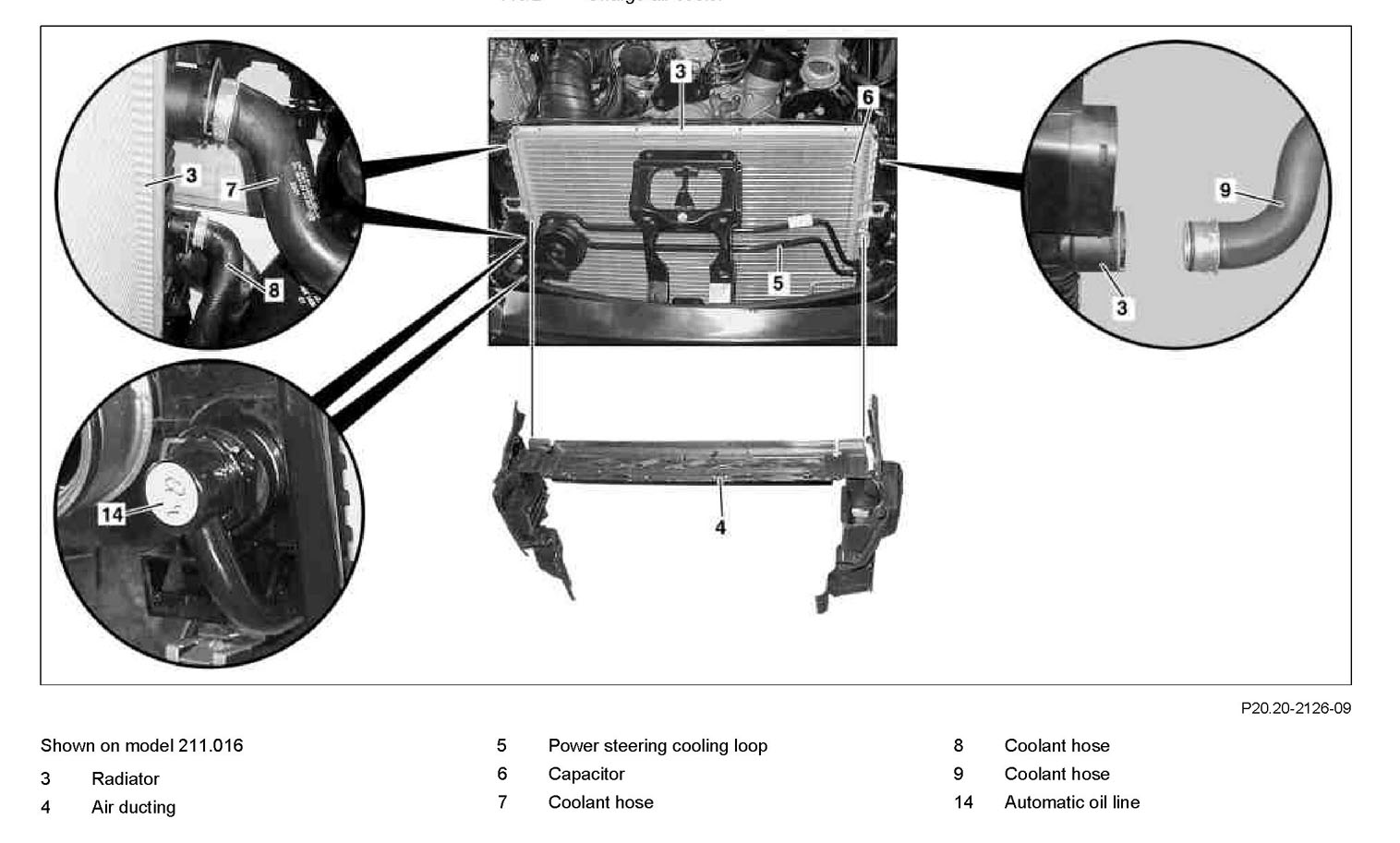

Component Identification:

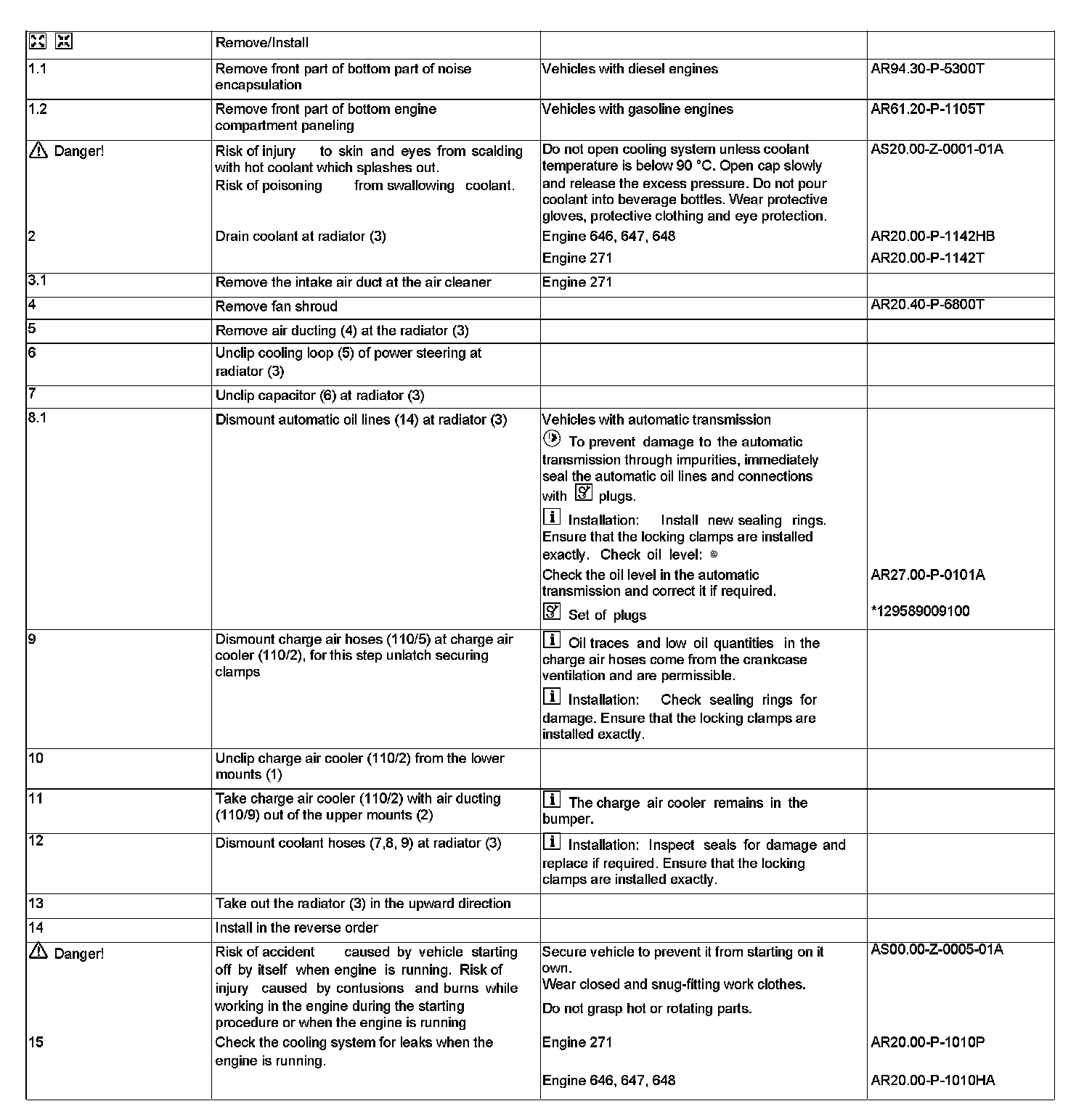

Steps 1-15:

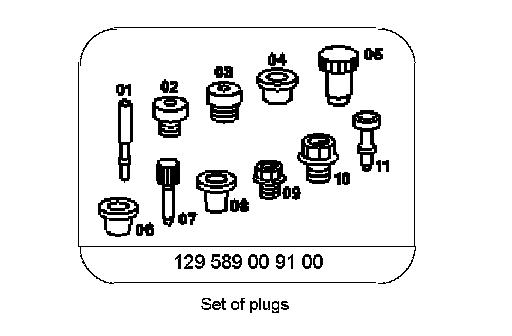

Special Tools:
