Fan Shroud: Service and Repair
AR20.40-P-6800T Removing and installing fan shroud

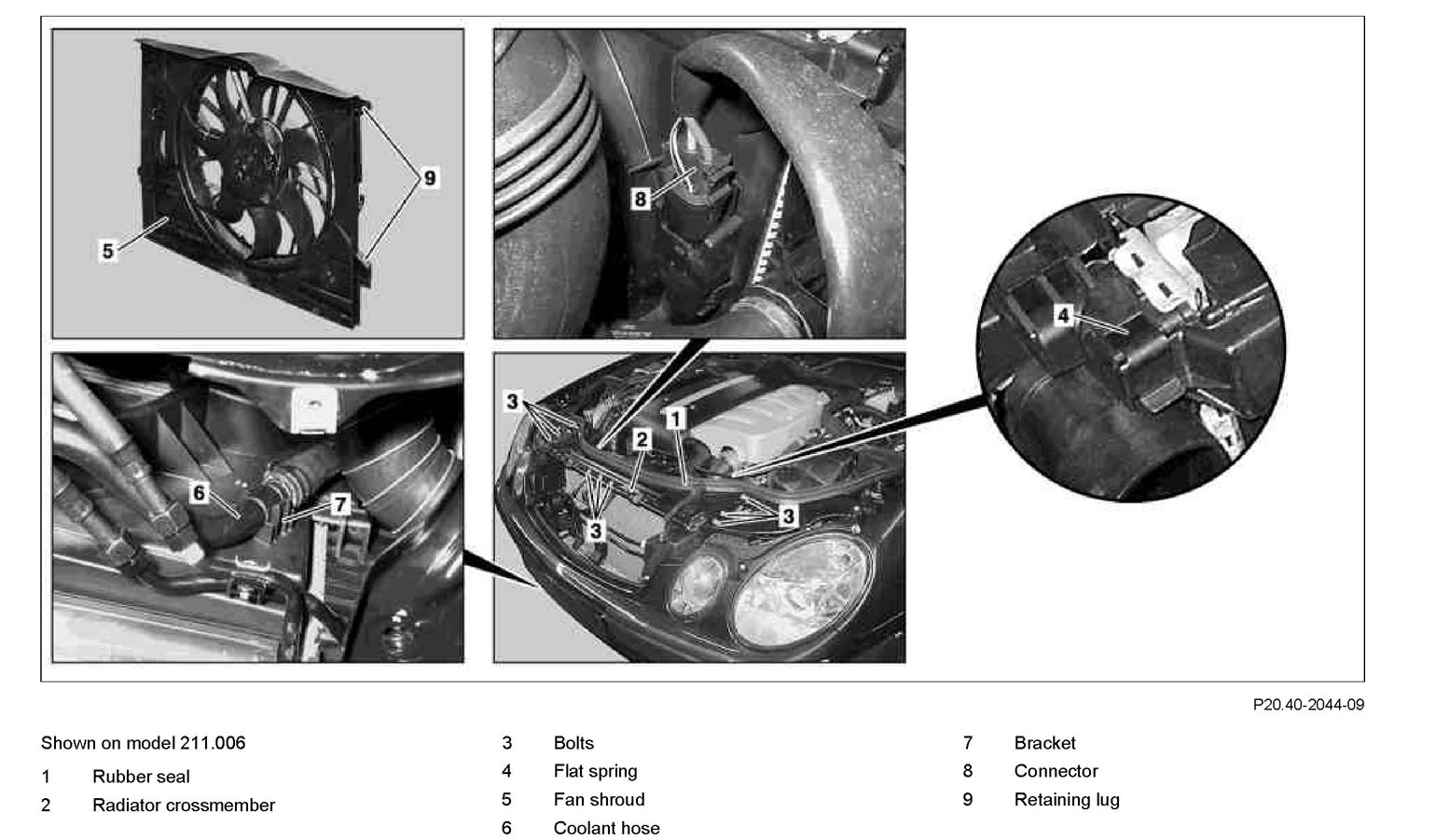

Component Identification:

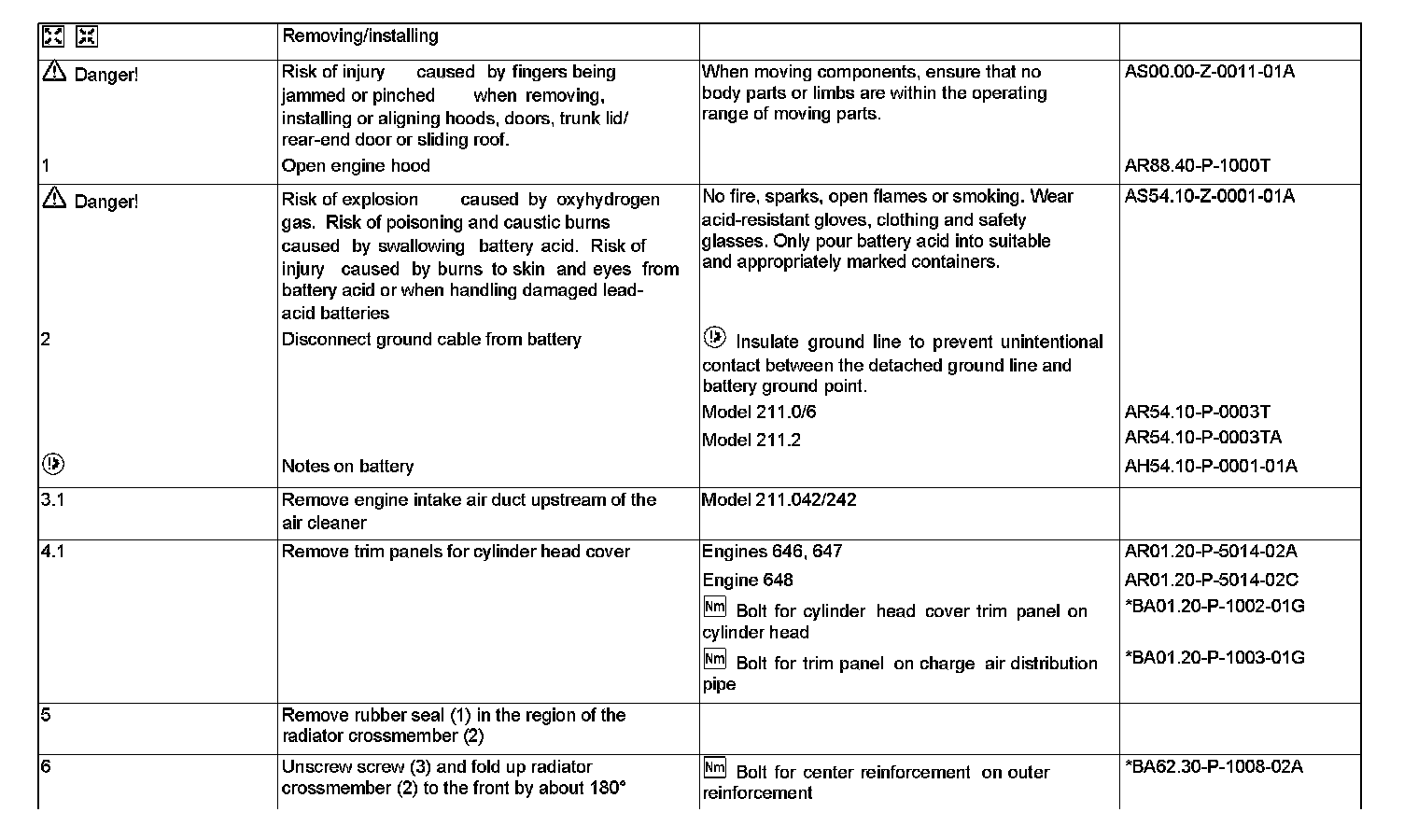

Steps 1-6:

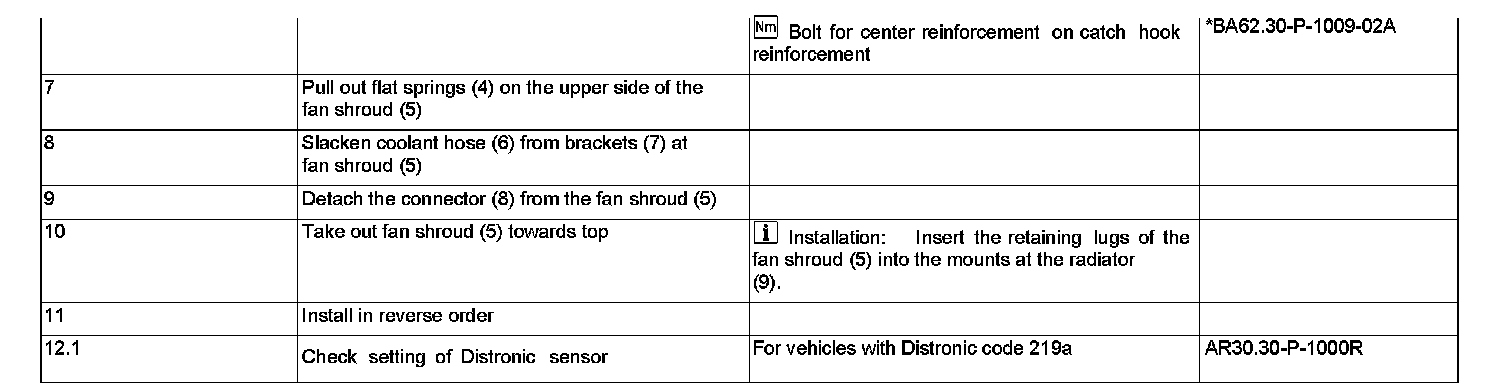

Steps 7-12.1:

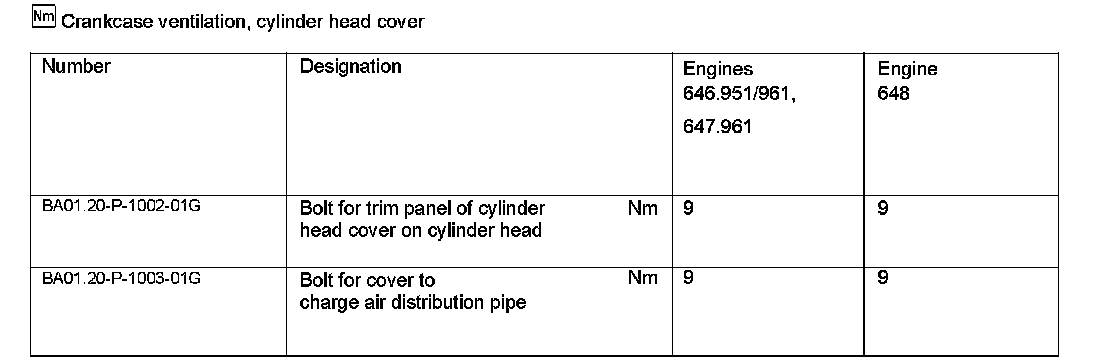

Crankcase Ventilation, Cylinder Head Cover:

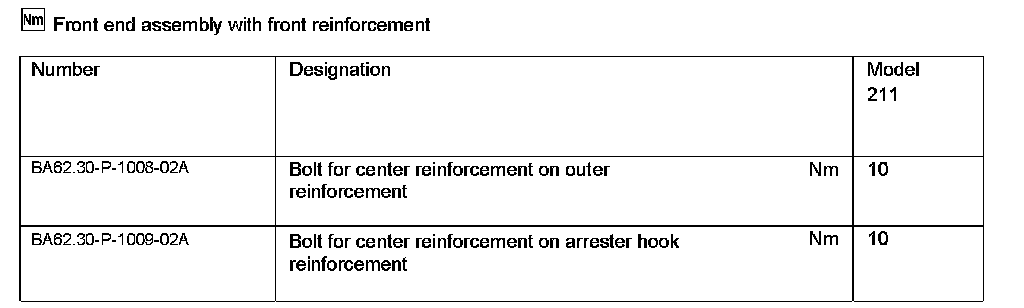

Front End Assembly With Front Reinforcement:
AR20.40-P-6800T Removing and installing fan shroud
