AP42.00-P-4290R Brake Testing on Test Stand



AP42.00-P-4290R Brake testing on test stand

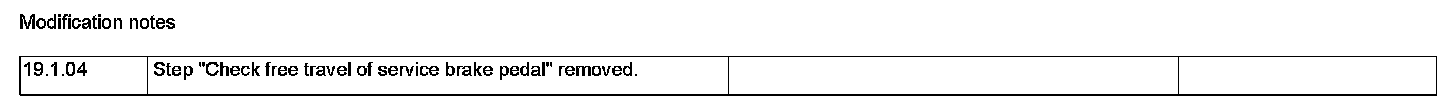

Modification Notes:

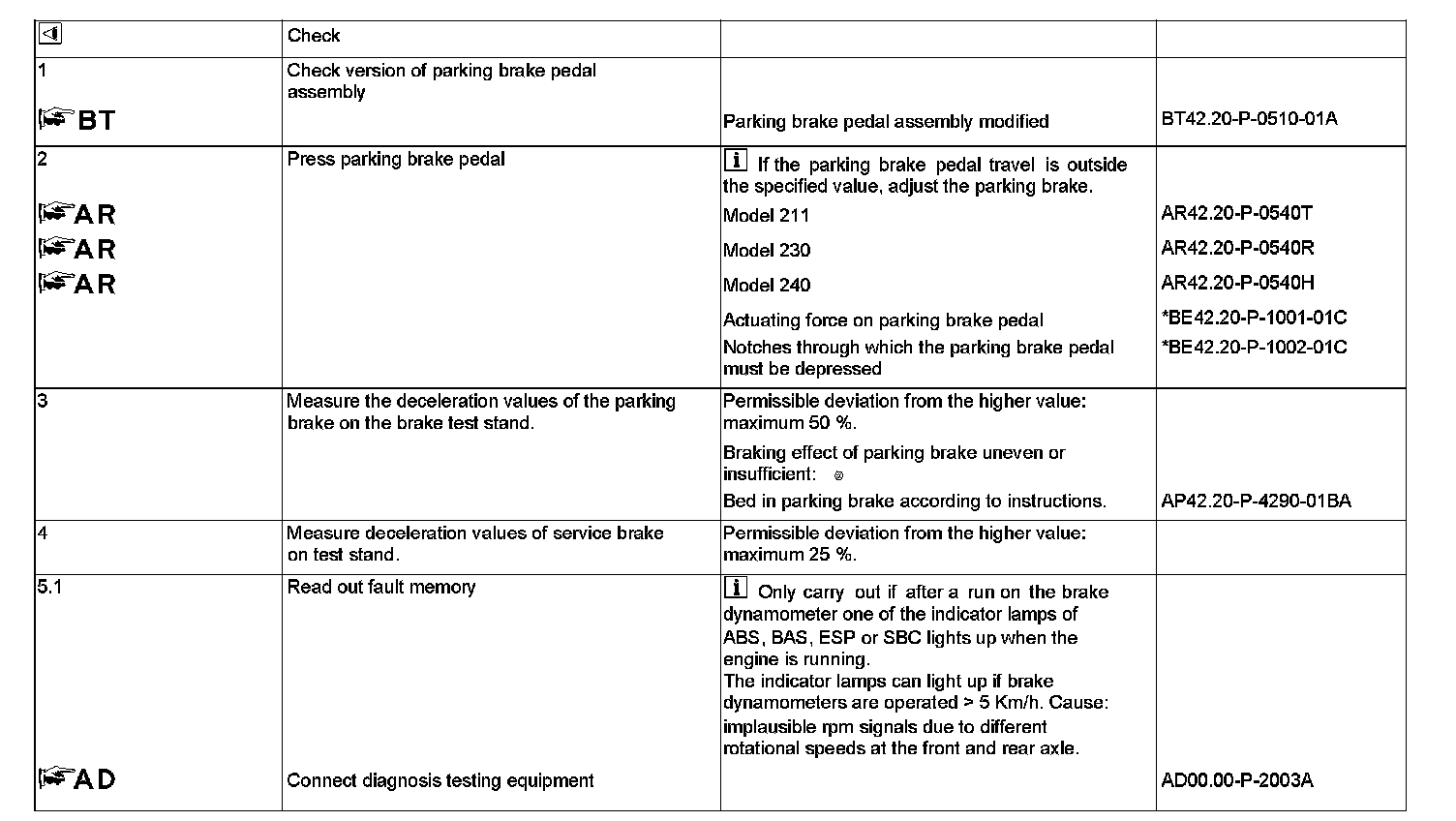

Steps 1-5.1:

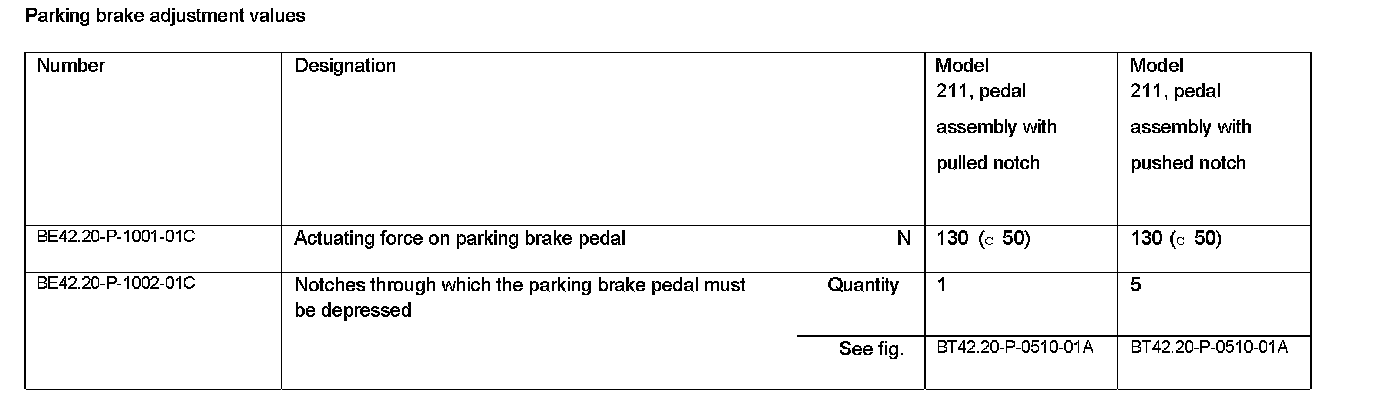

Parking Brake Adjustment Values:

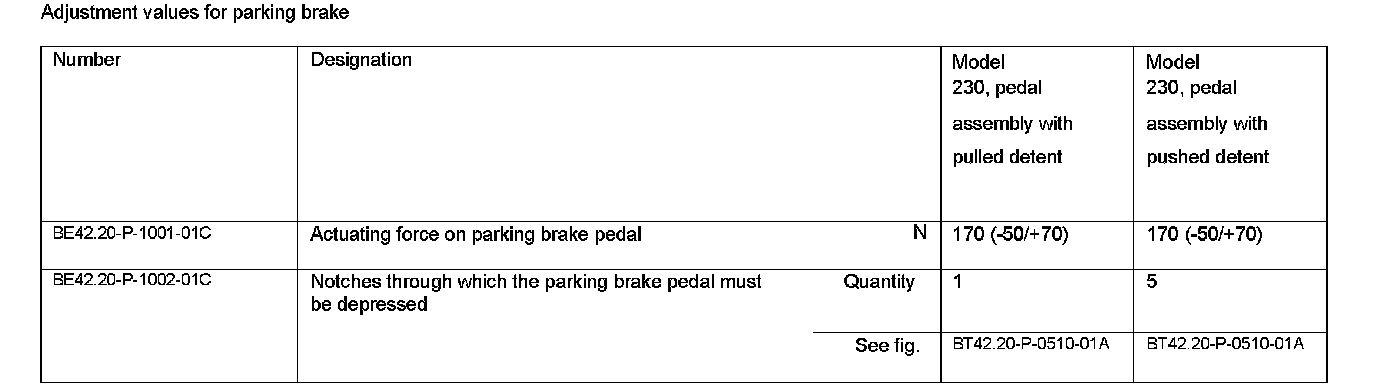

Adjustment Values For Parking Brake:

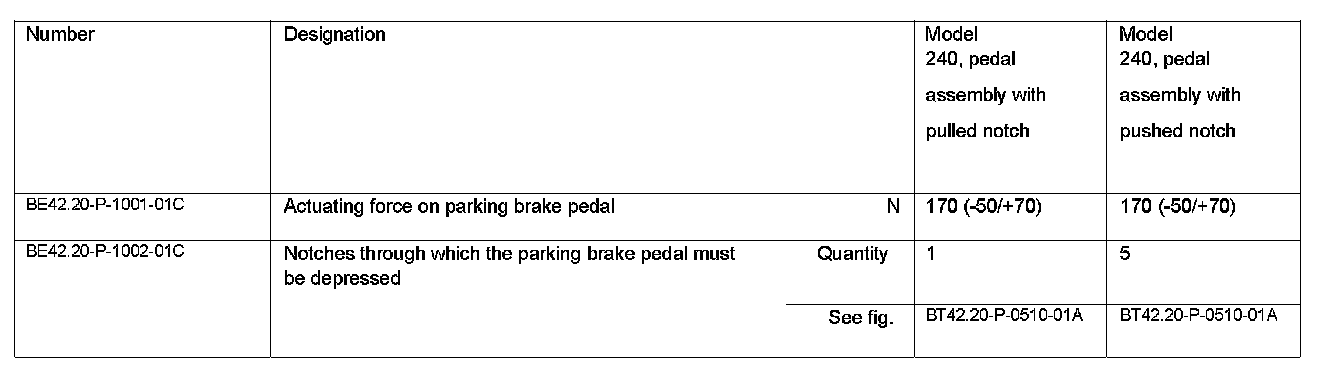

Adustment Values For Parking Brake:
