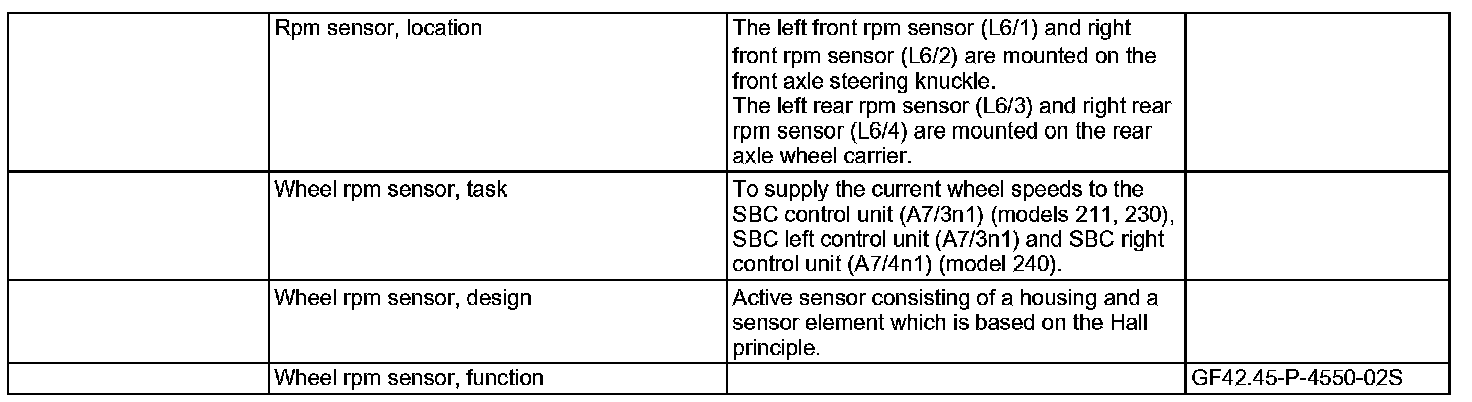

GF42.45-P-4550S Location/Task/Design/Function of Wheel RPM Sensor



GF42.45-P-4550S Location/task/design/function of wheel rpm sensor

MODEL 211 up to 31.5.06
except CODE (494) USA version
MODEL 211 up to 30.6.06
with CODE (494) USA version
MODEL 230 up to Model Year 8

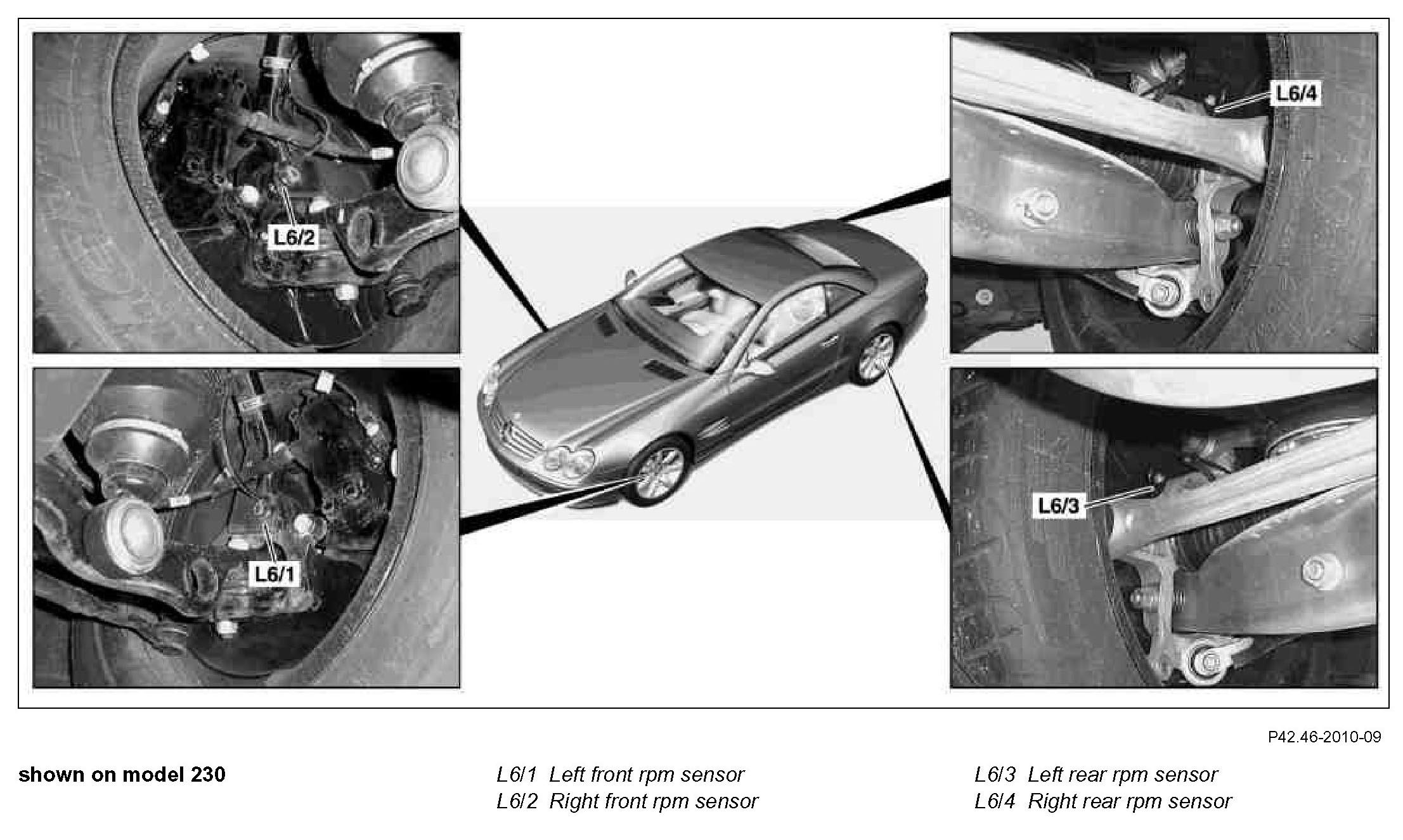

Component Identification:
