Vacuum Brake Booster: Service and Repair



AR43.10-P-0350T Remove/Install Brake Booster
- with Adaptive Brake (ABR)

Component Identification:

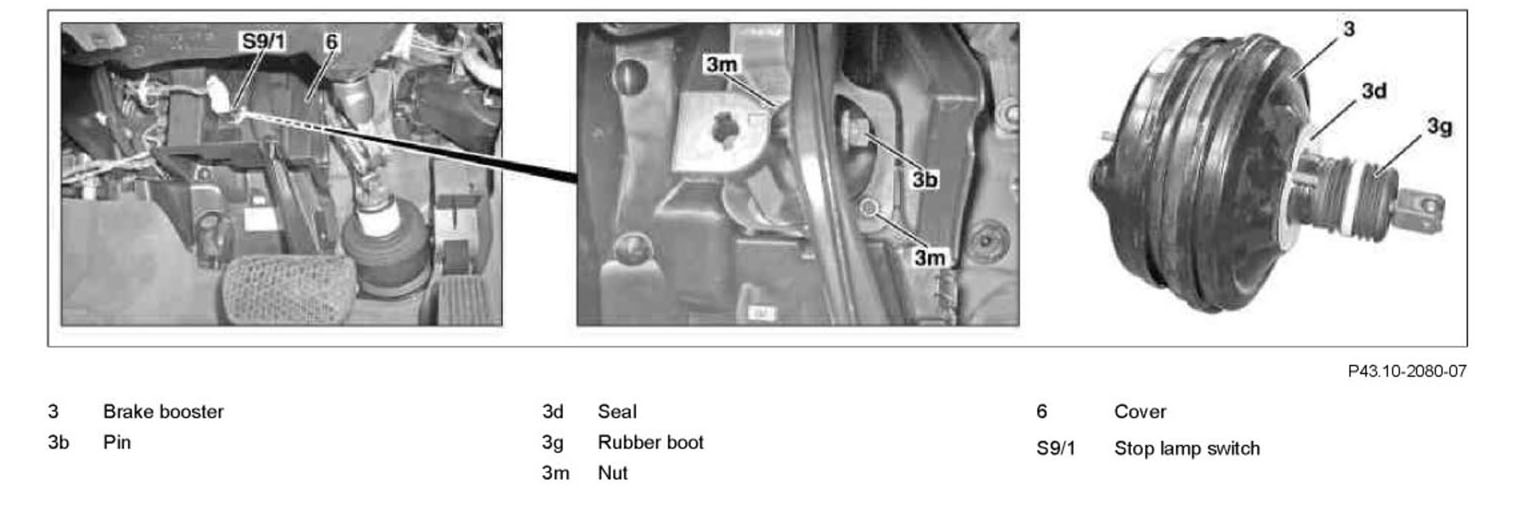

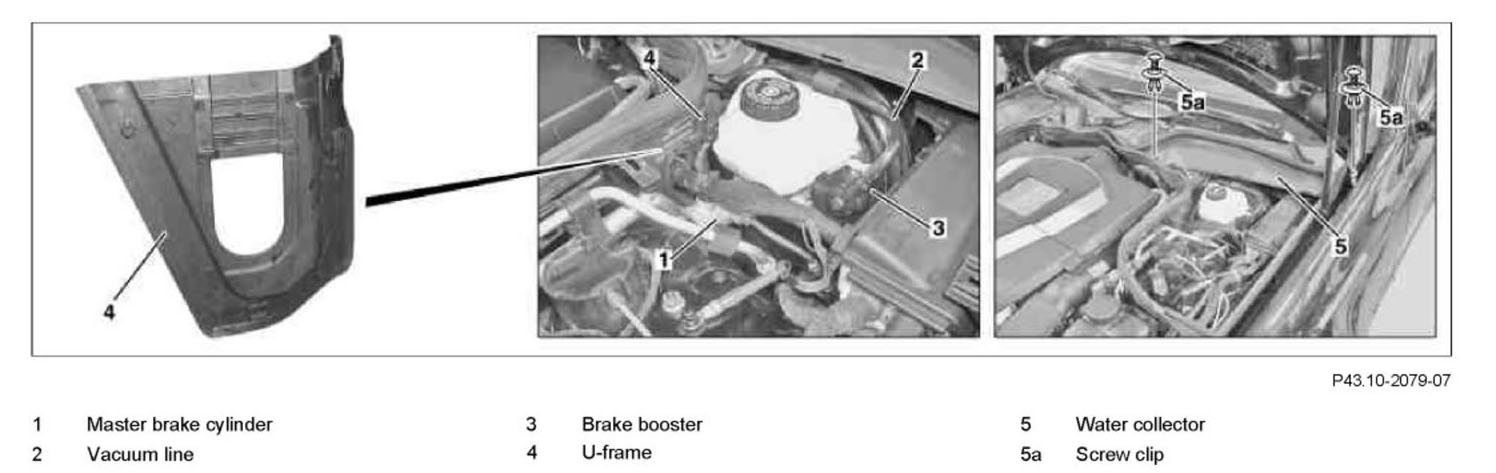

Component Identification:

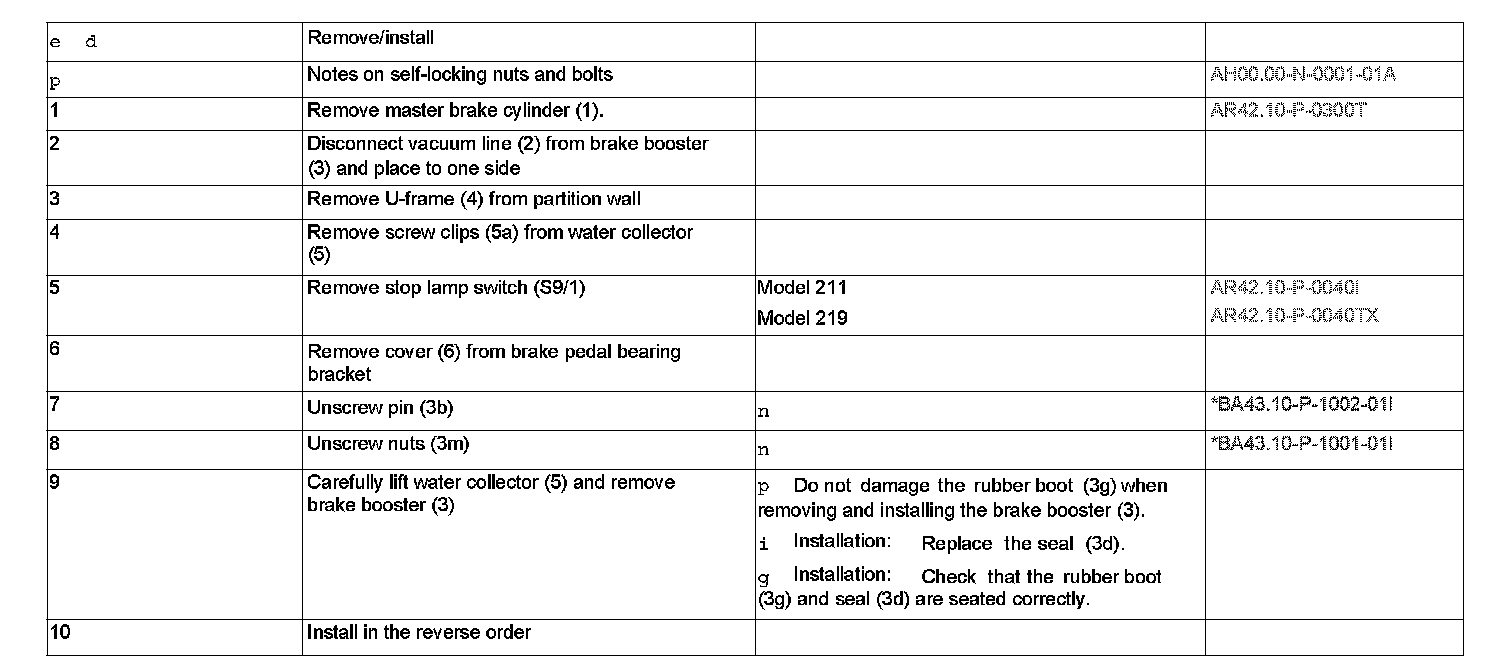

Steps 1 - 10:

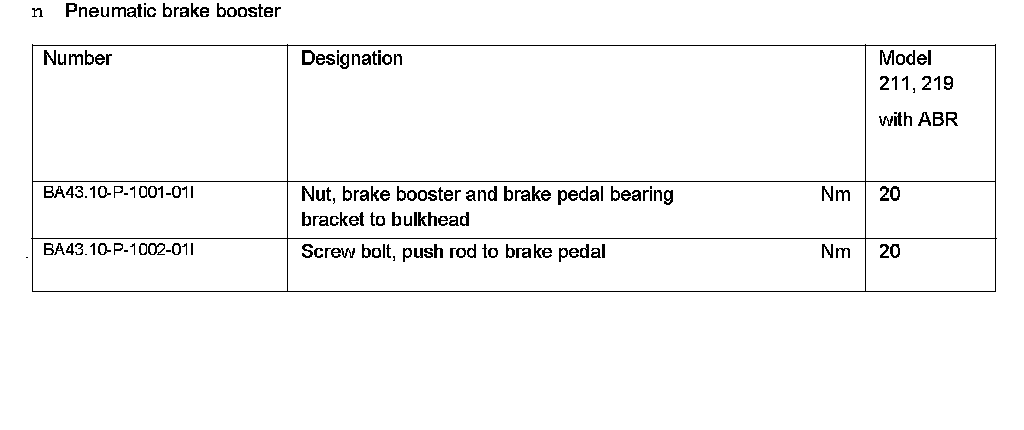

Pneumatic Brake Booster:
