GF42.50-P-4000-03S Traction Systems Hydraulic Unit, Design

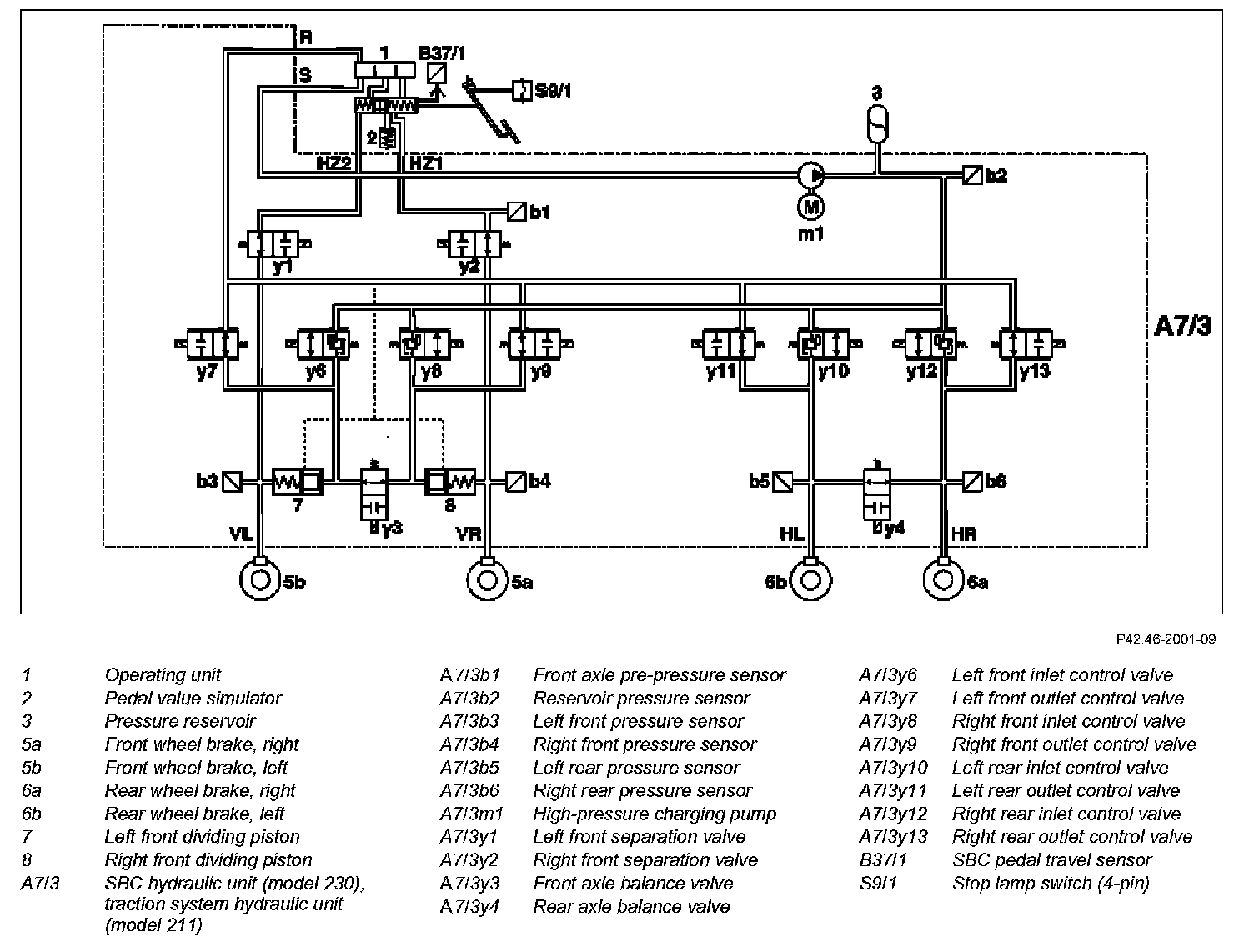

GF42.50-P-4000-03S Traction systems hydraulic unit, design

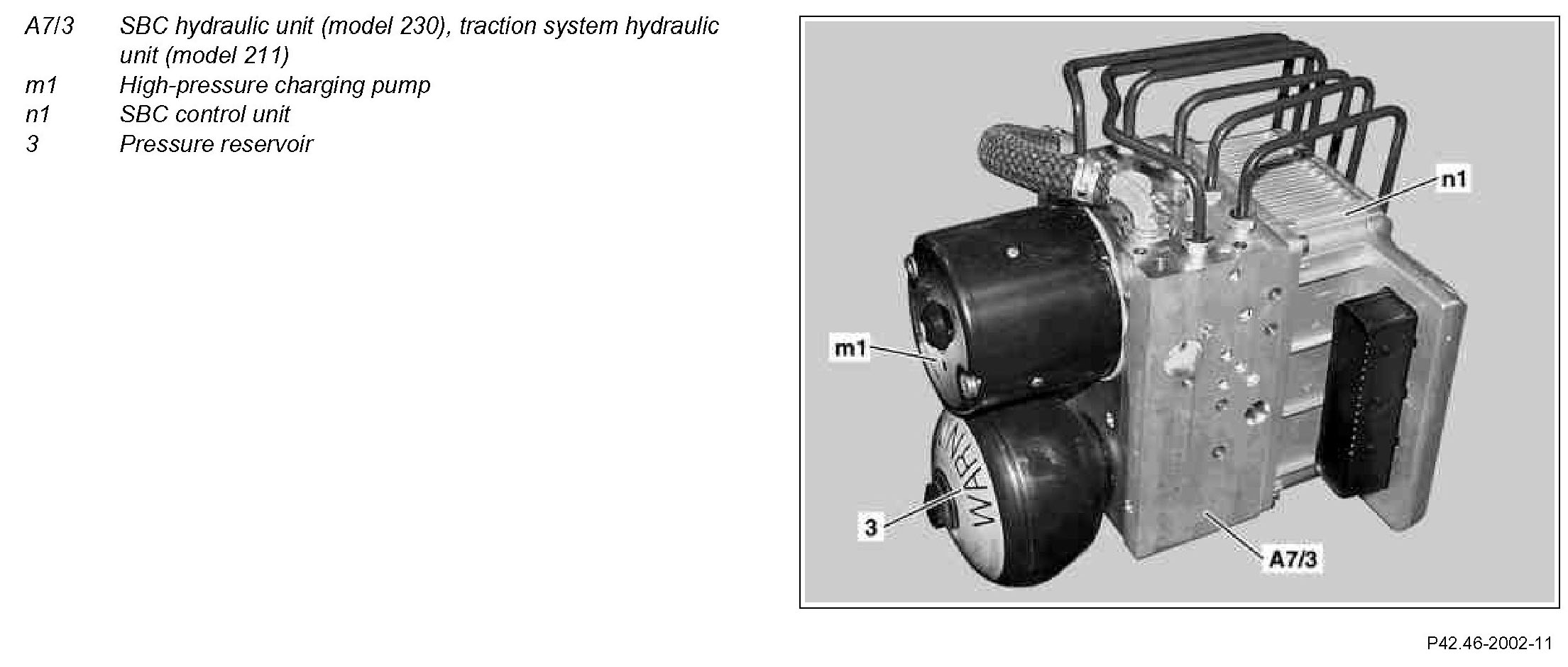

Component Identification:





The pressure reservoir, high-pressure charging pump and the SBC control unit are attached.
