FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Brake Caliper
>>
Service and Repair
>>
Procedures
>>

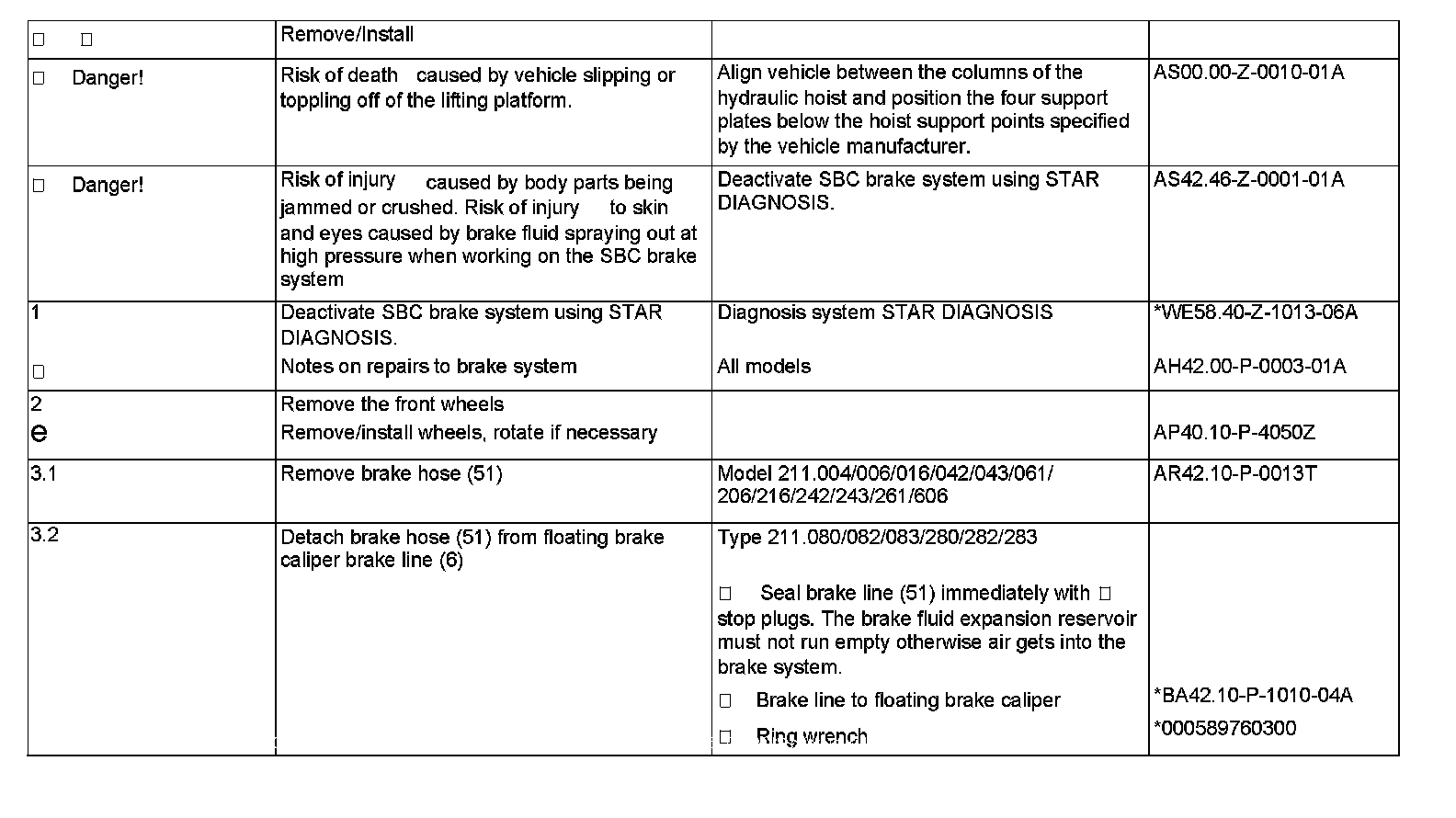

AR42.10-P-0070T Remove/Install Front Axle Brake Caliper
AR42.10-P-0070T Remove/Install Front Axle Brake Caliper
Remove/install front axle
brake caliper
Brake lines, brake hoses:
